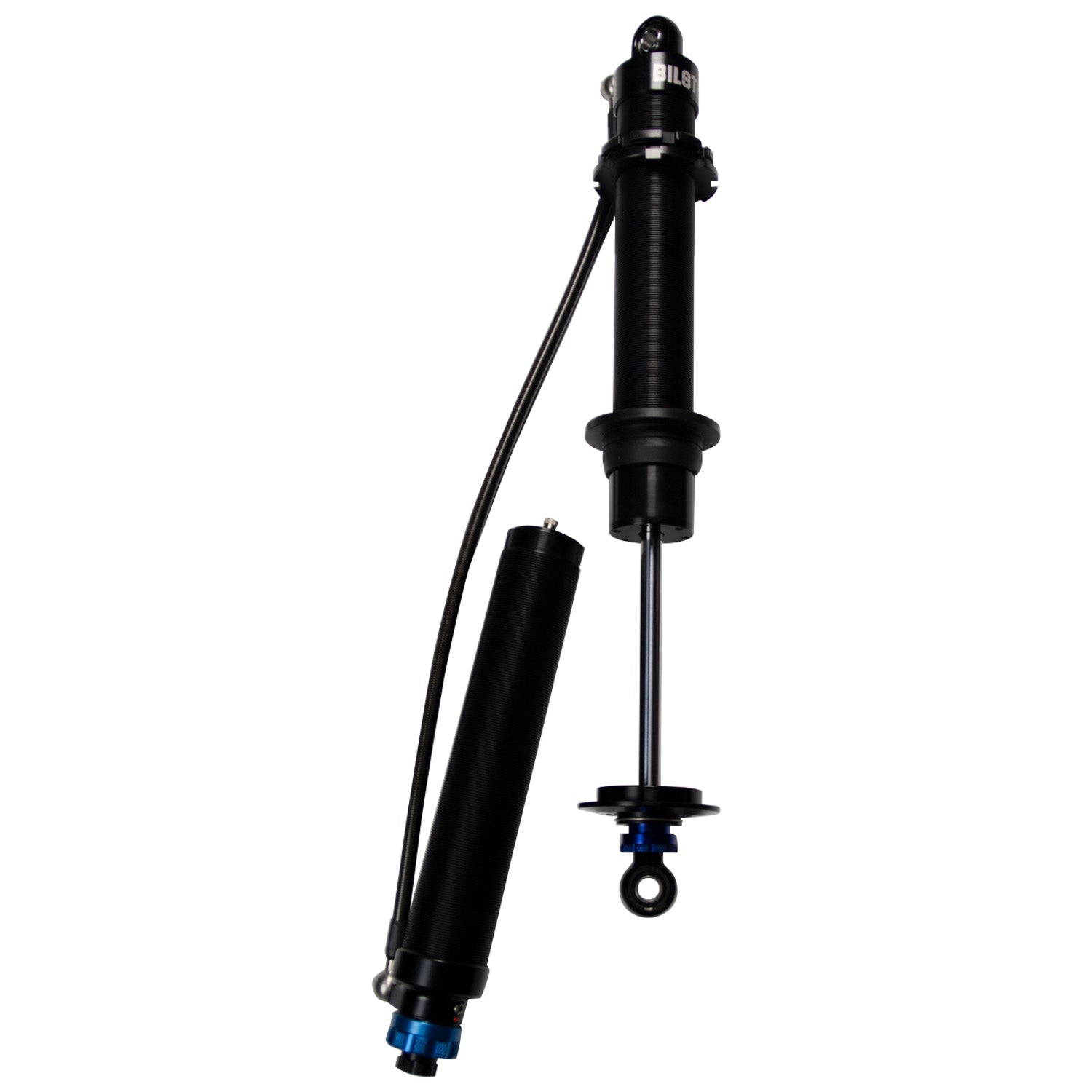

Bilstein 33-327747 - Suspension Shock Absorber AS2-R Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Suspension Shock Absorber
Bilstein AS2-R Series Suspension Shock Absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein’s AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series Suspension Shock Absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.
Features & Benefits
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
AS2-R Series - Suspension Shock Absorber
AS2-R, RR Eldora
Specifications
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 15.33 |
| Piston Type | 2 Port Linear |
| Extended Length (IN) | 23.18 |
| Collapsed Length (MM) | 389.4 |
| Extended Length (MM) | 588.8 |
| Body Material | Aluminum |
| Series | AS2-R Series |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Boot Included | No |
| Body Design | Threaded Body Screw Top (Coilover) |
| Adjustable Damping | Triple Adjustable - Rebound and High and Low Speed Compression |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Title | Bilstein Shock Absorbers |
| Spring Hardware 2 | B4-MKT-0001A00 |
| Spring Seat Included | Yes |
| Spring Hardware | E4-MSG-0096A00 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 199.4 |
| Stroke/Travel Length (IN) | 7.85 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
