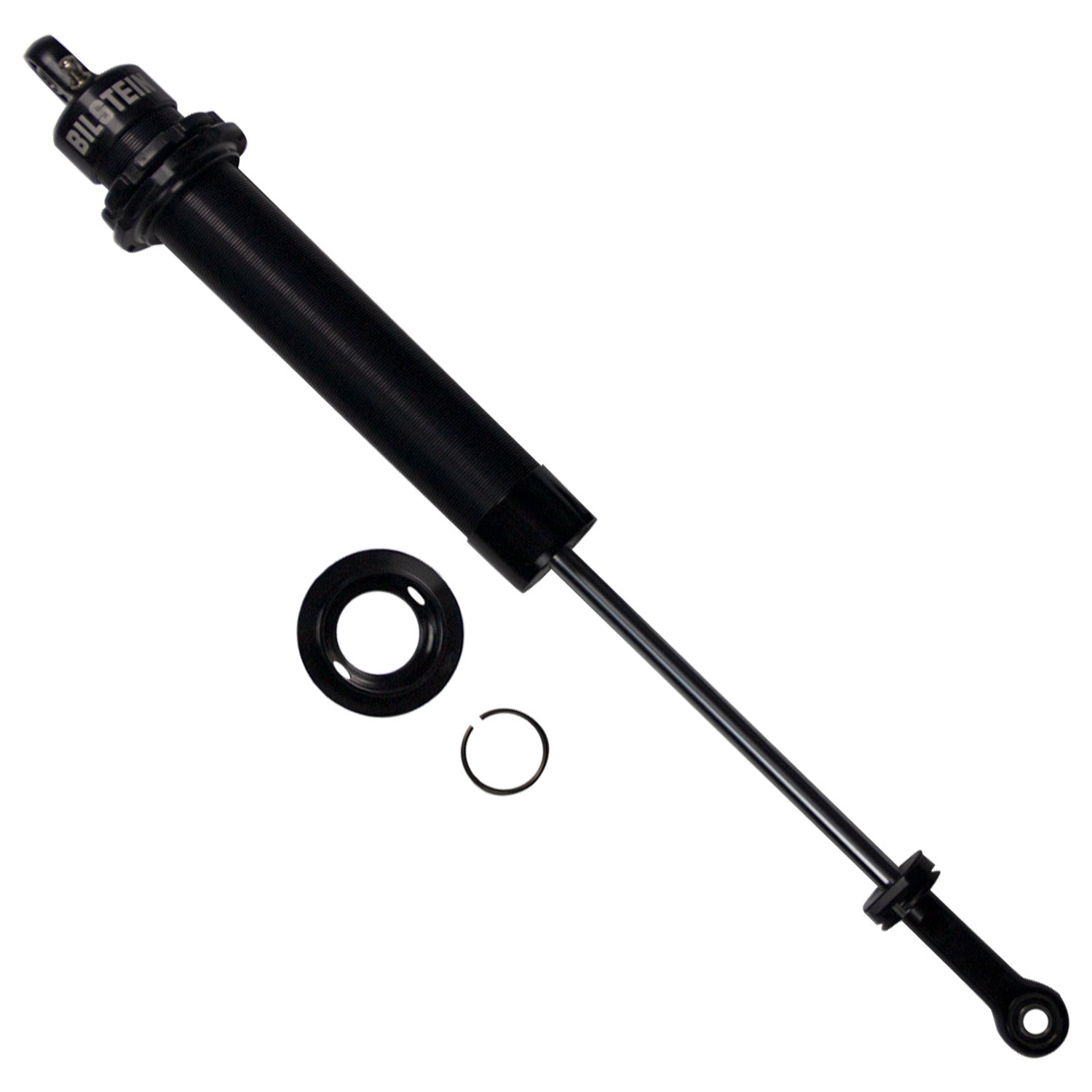

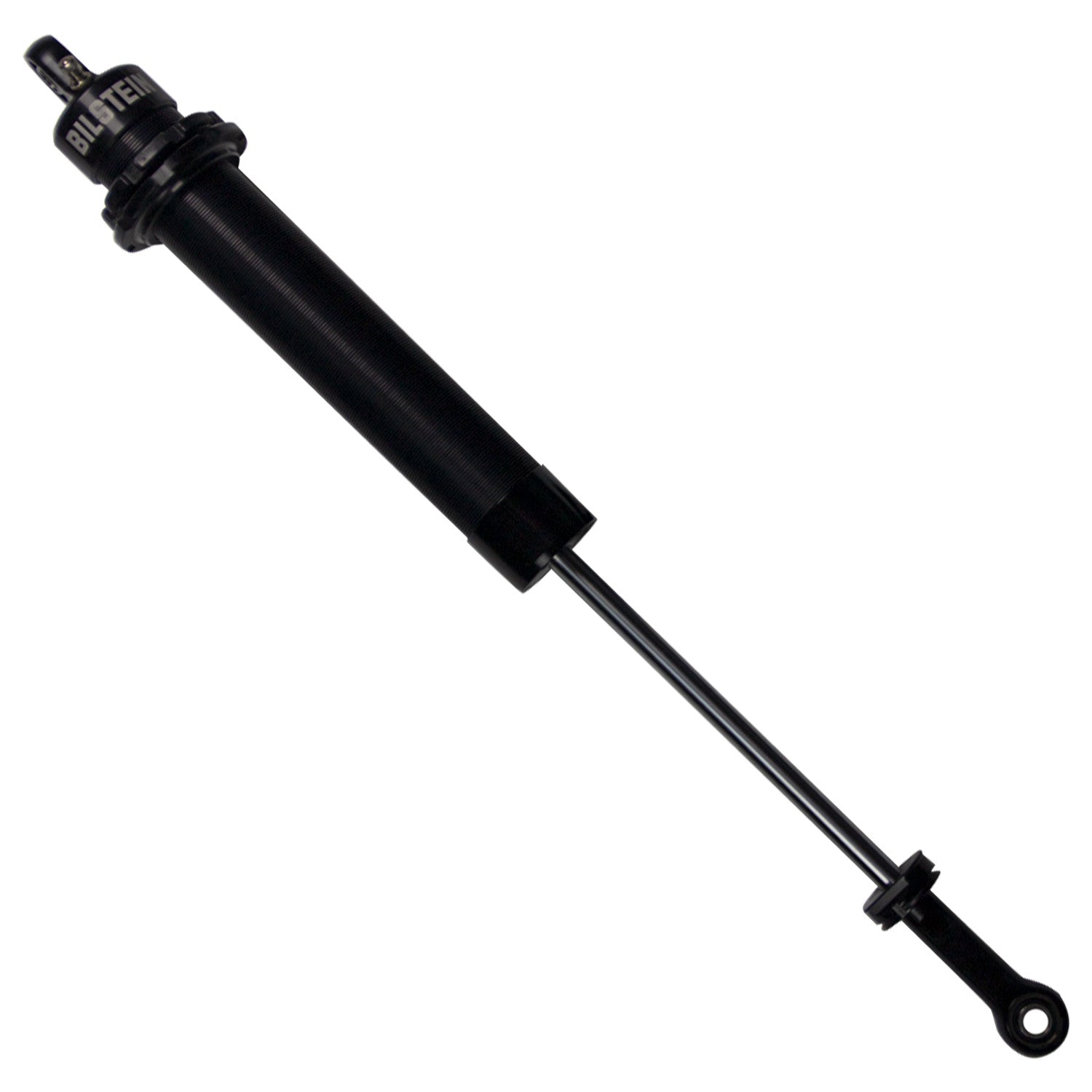

Bilstein 33-334103 - Suspension Shock Absorber AS2 Left Rear Behind BIG Crate NA Monotube AS2 Series Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Suspension Shock Absorber
Bilstein AS2 Series Suspension Shock Absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series Suspension Shock Absorbers are ideal for racers demanding a lightweight design with upgrade capability.
Features & Benefits
- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
AS2 Series - Suspension Shock Absorber
AS2, Left Rear Behind BIG Crate NA
Specifications
| Extended Length (IN) | 25.85 |
| Collapsed Length (MM) | 429.3 |
| Extended Length (MM) | 656.6 |
| Body Material | Aluminum |
| Series | AS2 Series |
| Finish | Clear Anodized |
| Internal Design | Monotube |
| Boot Included | No |
| Adjustable Damping | Non-Adjustable |
| Body Design | Threaded Body Screw Top (Coilover) |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | 1/2in teflon heim |
| Upper Mount Type | 1/2in teflon heim |
| Piston Type | Digressive |

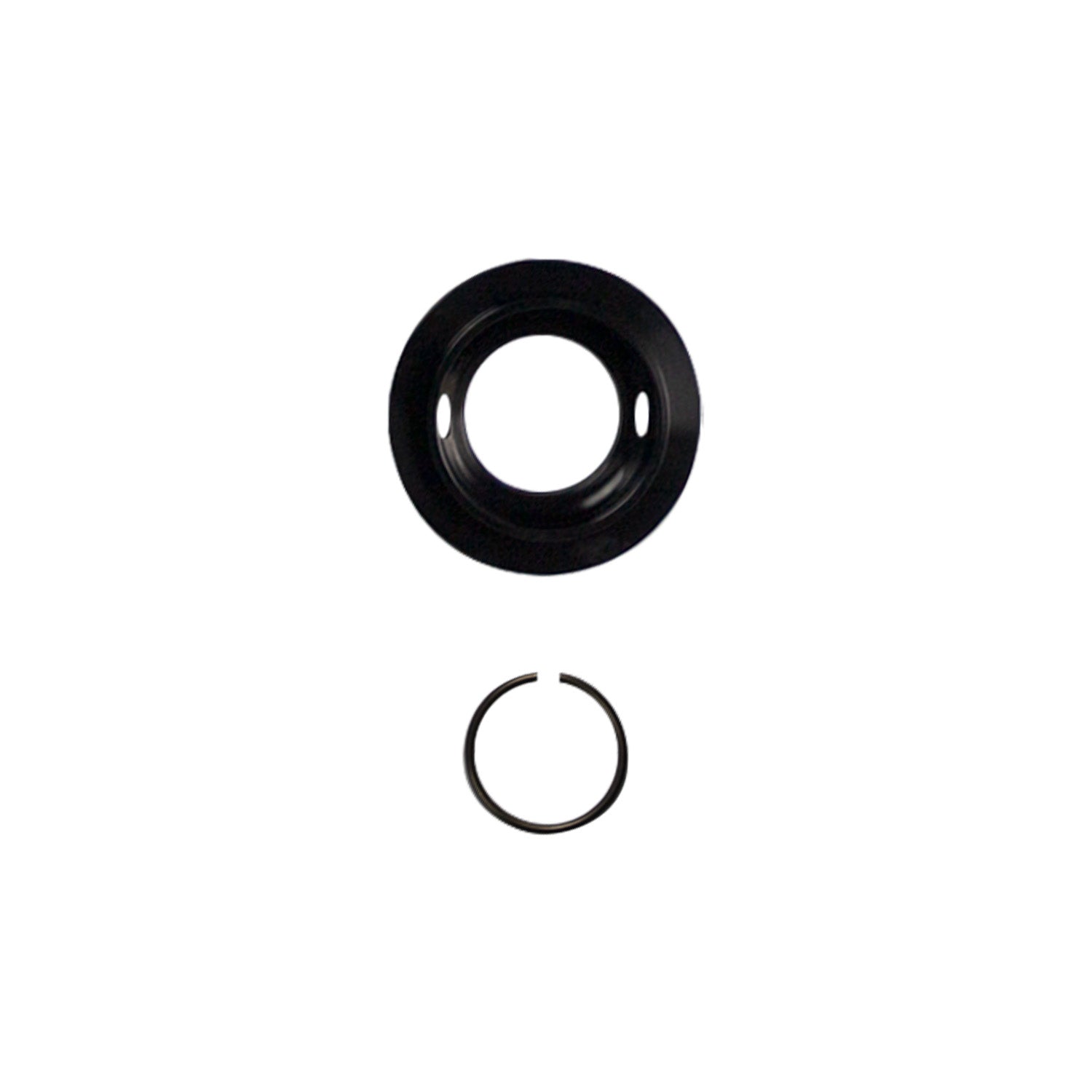

| Spring Seat Included | Yes |
| Collapsed Length (IN) | 16.90 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 227.3 |
| Stroke/Travel Length (IN) | 8.95 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
