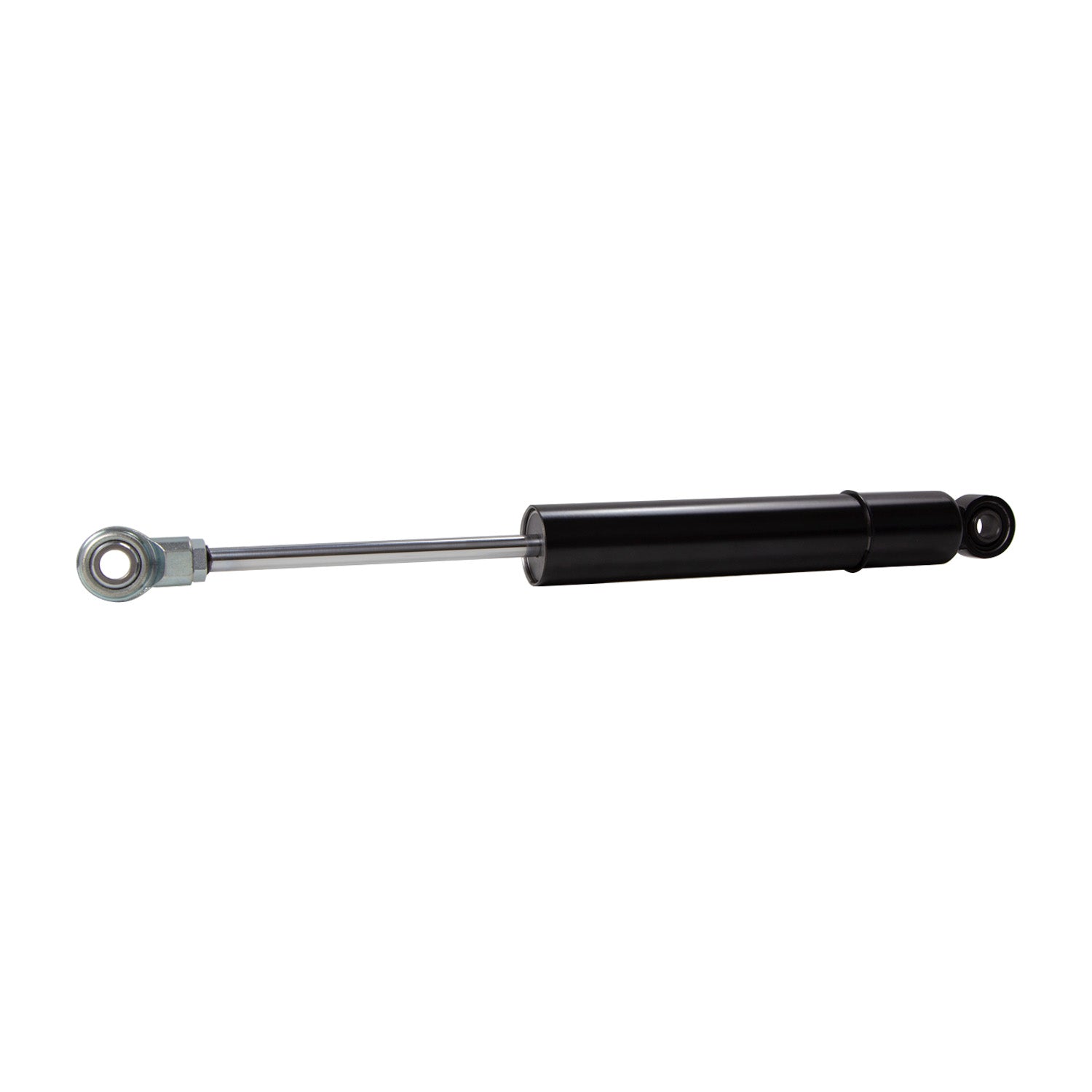

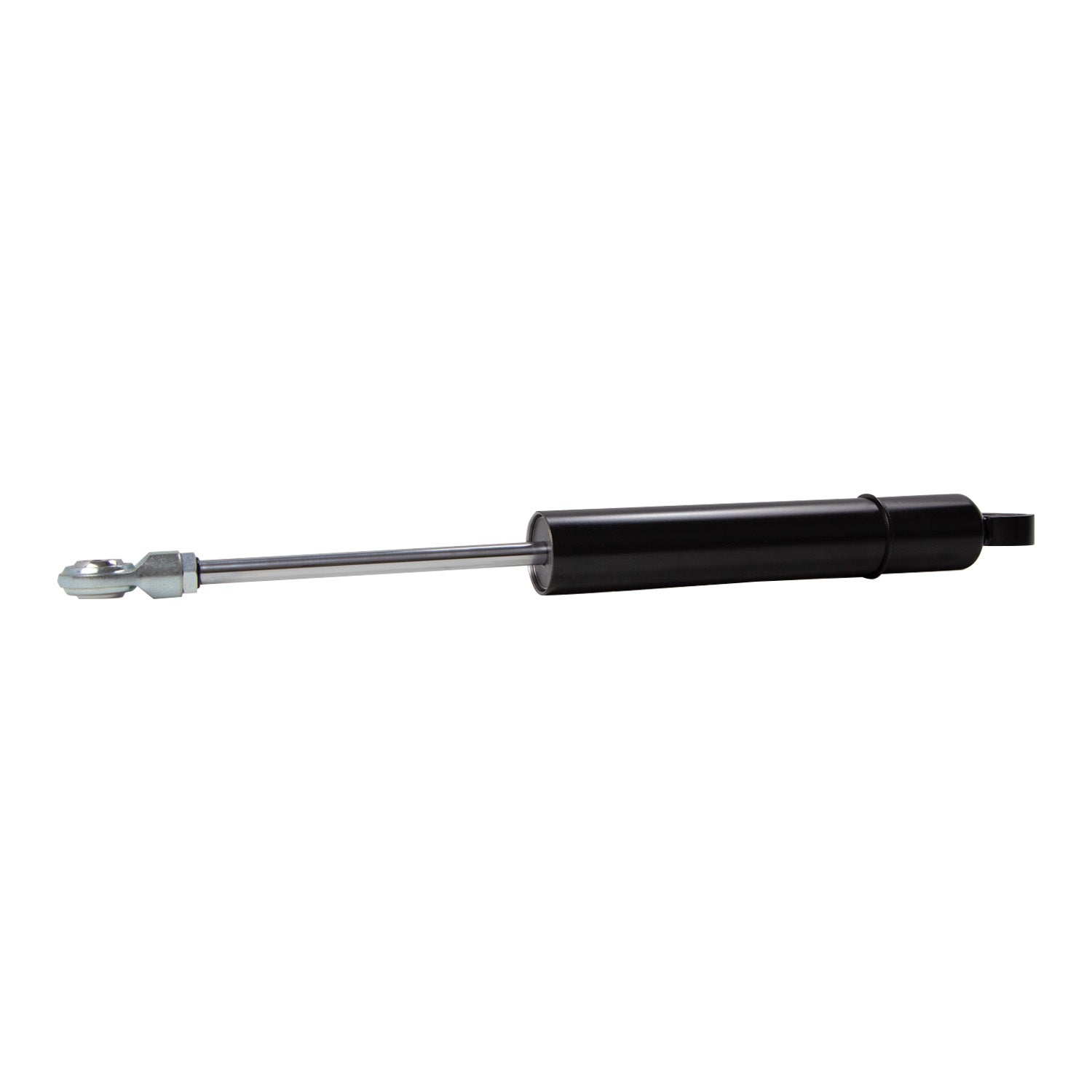

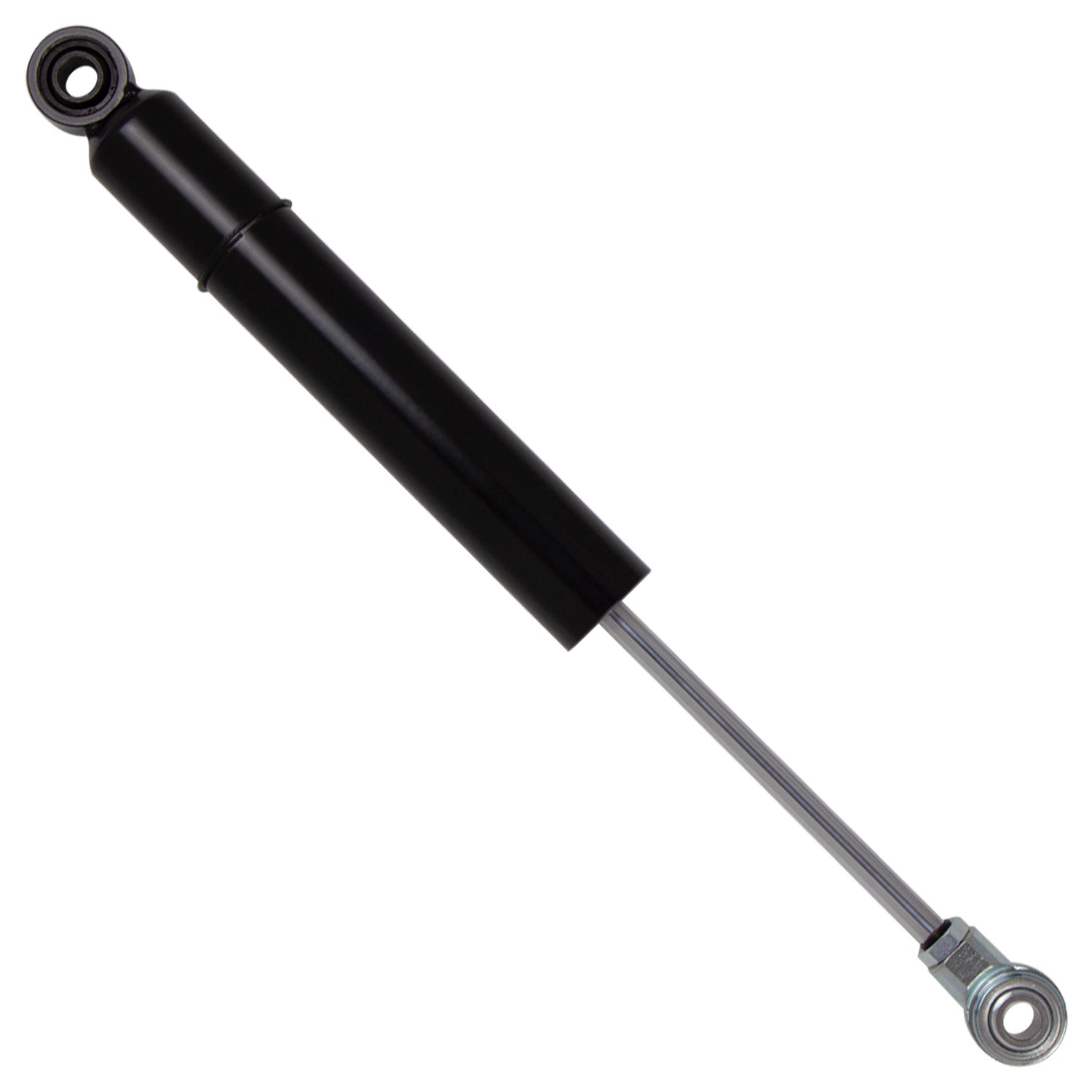

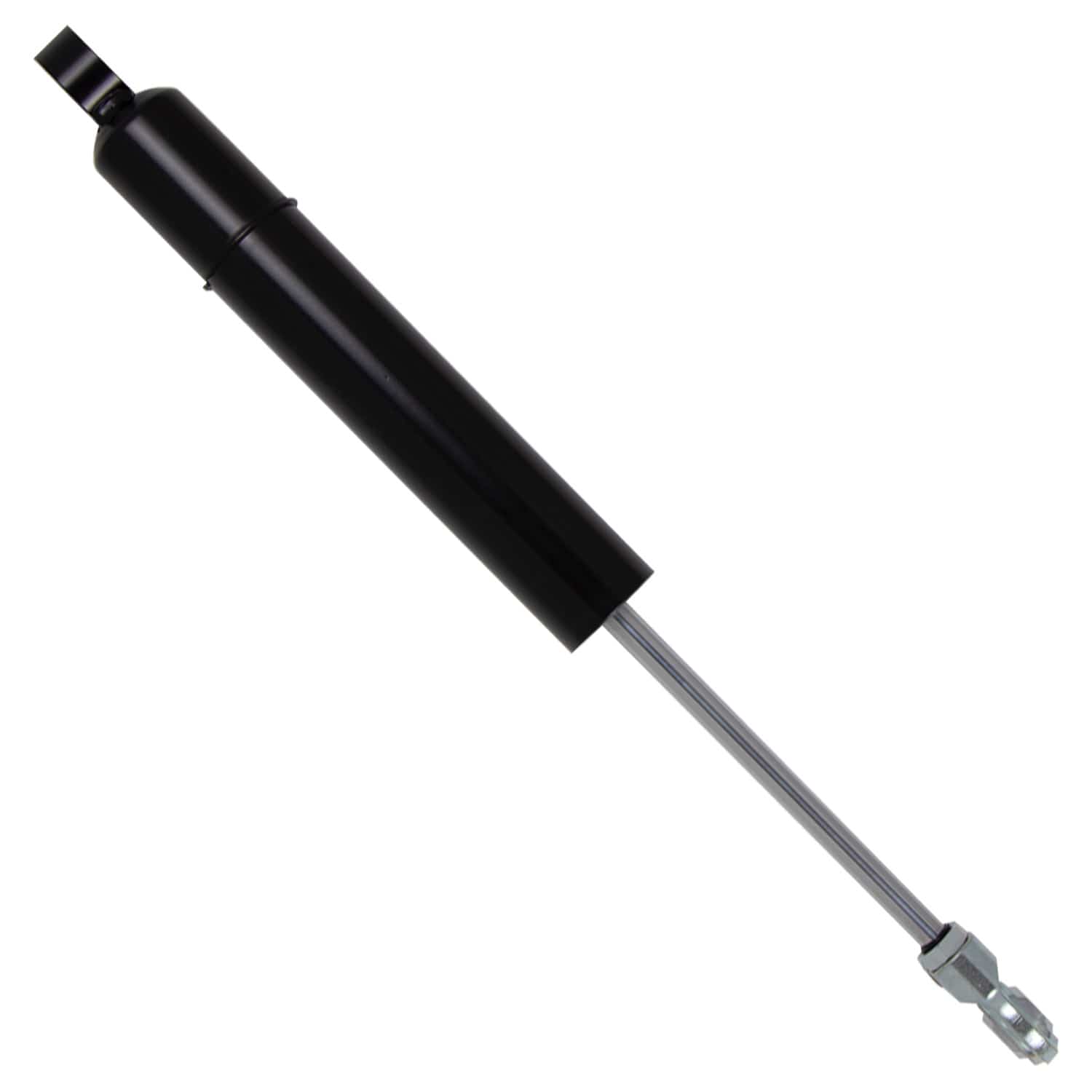

Bilstein 33-345666 - Suspension Shock Absorber 6 Inch Digressive dry kit Monotube G Series Bilstein
Product Availability Request
Fill the form and our team will contact you.
36mm Monotube Shock Absorber
BILSTEIN SG2 Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These dampers are available in 6 and 7 inch strokes with the option of linear or digressive pistons to provide racers with a wide tuning range. These can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. The SG2 Series shock absorbers are ideal for racers needing a lightweight high-performance option with fade free handling and control on light to mid-weight applications.
Features & Benefits
- 36mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications
- Designed for Stock Cars, IMCA/UMP Modified, Midgets, Mini-Sprints, Modified Lites and Dwarf Cars
SG2 Series - Suspension Shock Absorber
SG2, 6" Dig. Non Adjs. Dry kit
Specifications
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 11.36 |
| Extended Length (IN) | 17.22 |
| Collapsed Length (MM) | 288.5 |
| Extended Length (MM) | 437.5 |
| Title | Bilstein Shock Absorbers |
| Finish | Black Paint |
| Piston Type | Digressive |
| Series | G Series |
| Internal Design | Monotube |
| Boot Included | No |
| Spring Seat Included | No |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Body Material | Steel |
| PartType | Shocks / Struts |
| Segment | Motorsports |
| Piston Diameter | 36mm |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 148.8 |
| Stroke/Travel Length (IN) | 5.86 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
