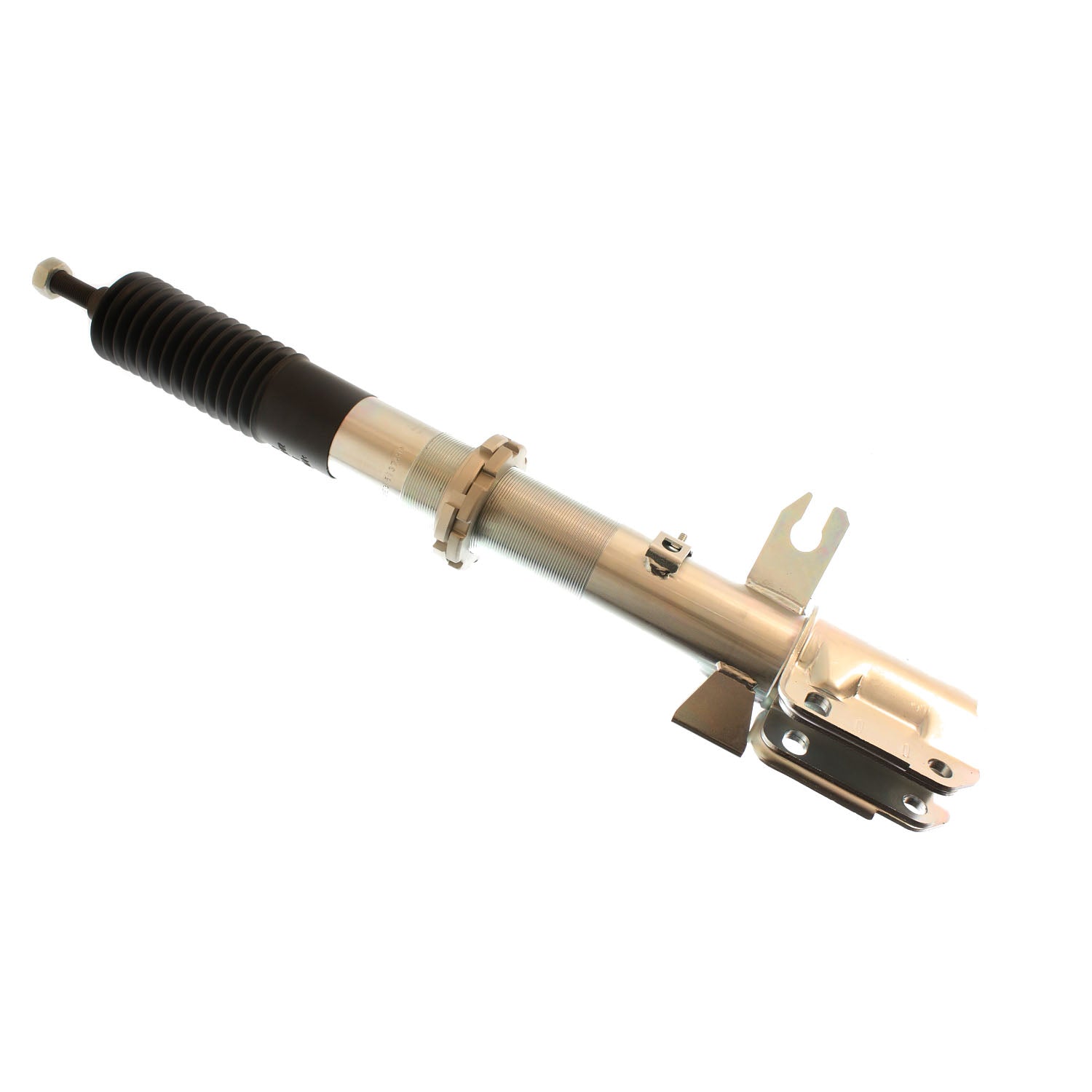

Bilstein 35-593744 - Motorsports - Suspension Strut Assembly

Contact Us for Availability
Regular price $771.00 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Bilstein
  • SKU 35-593744
  • Barcode 651860501567

Do you have questions about this product?

Ask an expert!

36mm Monotube Strut Assembly

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Features & Benefits

  • Monotube design ensures consistent, fade-free performance in all conditions
  • Larger working piston with deflective disc valving
  • Available in steel and aluminum bodies

Specifications

Piston Type Digressive
Boot Included Black Bellows
Title Bilstein Shock Absorbers
Position Front
Body Design Threaded Body (Coilover)
Series Motorsports
Upper Mount Type Stem
Body Material Steel
Internal Design Monotube
Extended Length (IN) 20.53
Compression @0.26m/s 1440
Collapsed Length (IN) 16.61
Extended Length (MM) 521.5
Rebound @0.26m/s 5370
Finish Zinc Plated
Adjustable Damping Non-Adjustable
Lower Mount Type Bracket
Spring Seat Included Yes
Segment Motorsports
PartType Shocks / Struts
Spring Hardware N/A
Collapsed Length (MM) 422.0
Piston Diameter 46mm
Shaft Diameter 11mm
Stroke/Travel Length (IN) 3.92
Stroke/Travel Length (mm) 99.6

⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation Guide: Download PDF
