Bilstein 41-322697 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR) Monotube 2005-2023 Toyota Tacoma
Product Availability Request
Fill the form and our team will contact you.

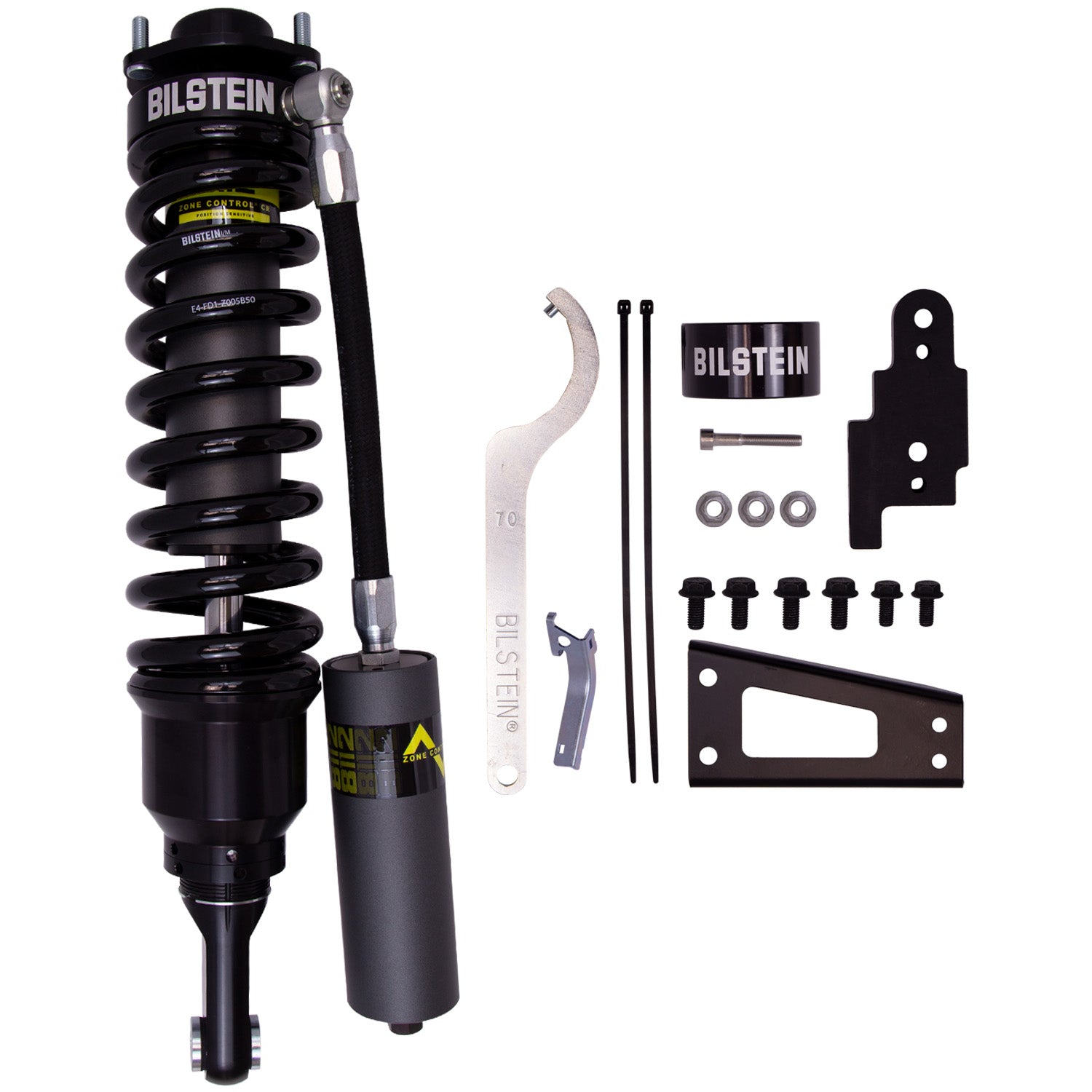

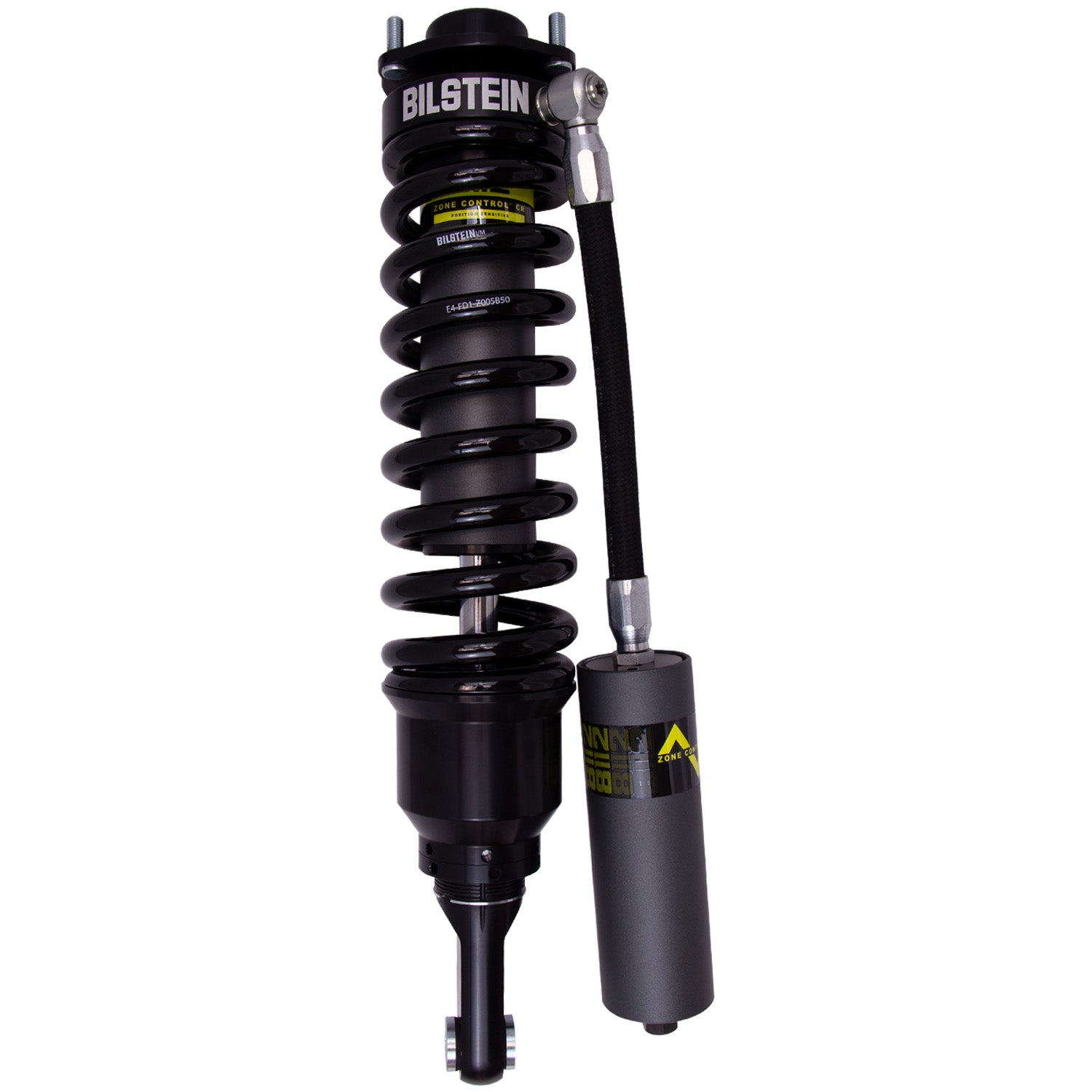

60mm Front Right Corner Module
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Boot Included | No |
| Extended Length (IN) | 22.39 |
| Body Material | Steel |
| Adjustable Damping | Non-Adjustable |
| Internal Design | Monotube |
| Series | B8 8112 (ZoneControl CR) |
| Title | Bilstein Shock Absorbers |
| Body Design | Smooth Body (Coilover) |
| Spring Seat Included | Yes |
| Reservoir | Yes |
| Extended Length (MM) | 568.8 |
| Lower Mount Type | Eye 14.1mm |
| Finish | Dampers: EVO Grey/Springs: Black |
| Collapsed Length (MM) | 442.6 |
| Upper Mount Type | Special |
| Collapsed Length (IN) | 17.43 |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Piston Diameter | 60mm |
| Shaft Diameter (mm) | 22.0 |
| Front Main Spring Rate (lbs/in) | 600 lbs |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
