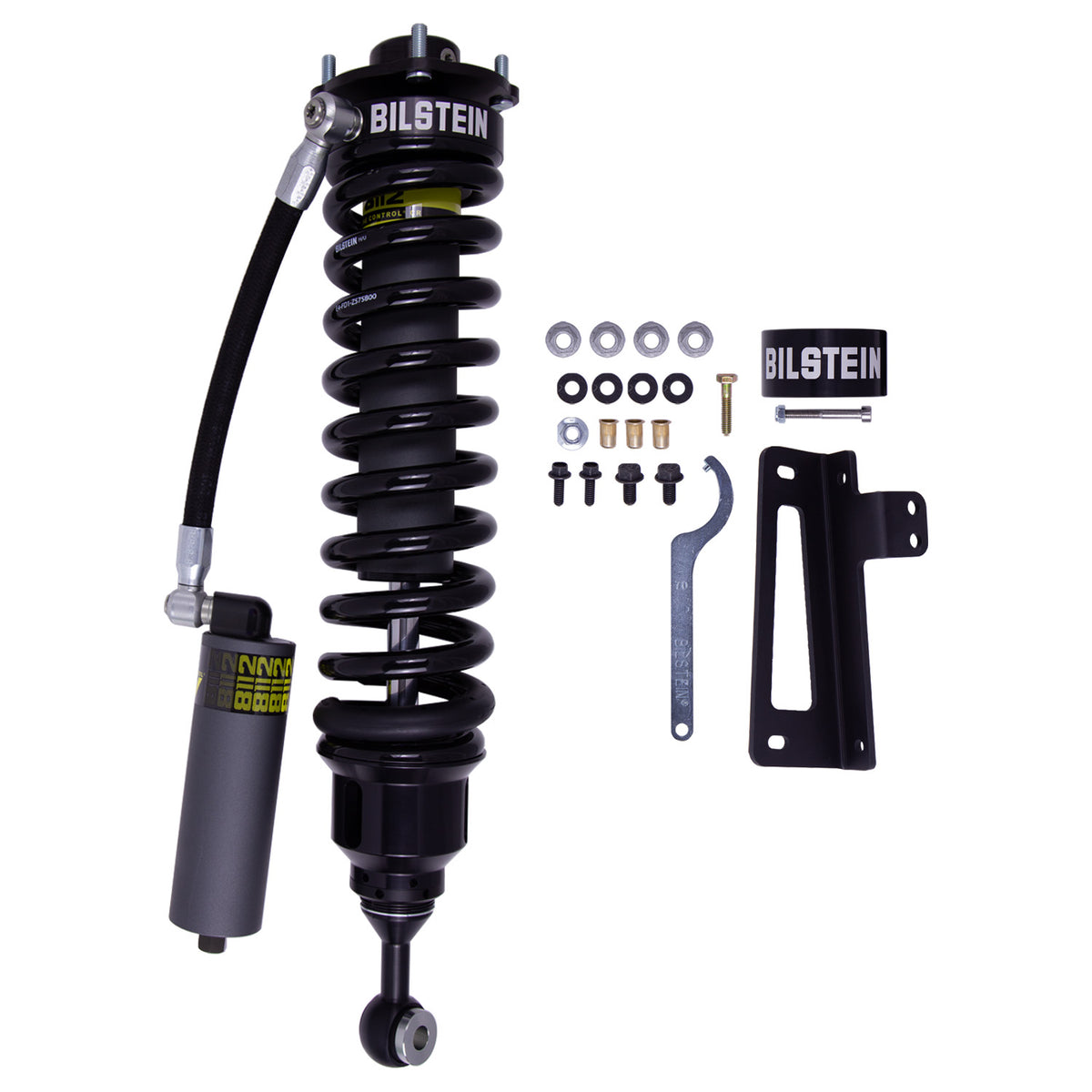

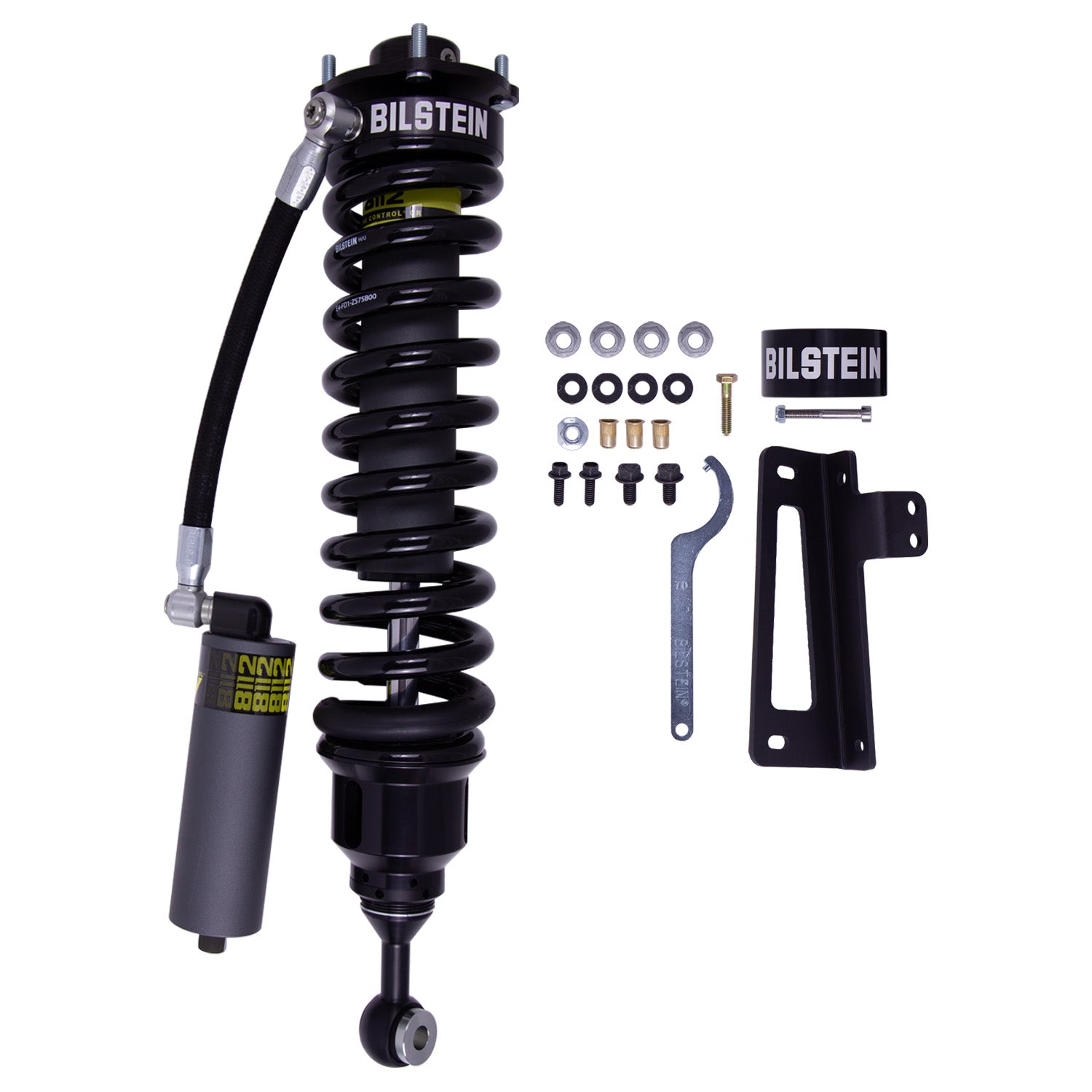

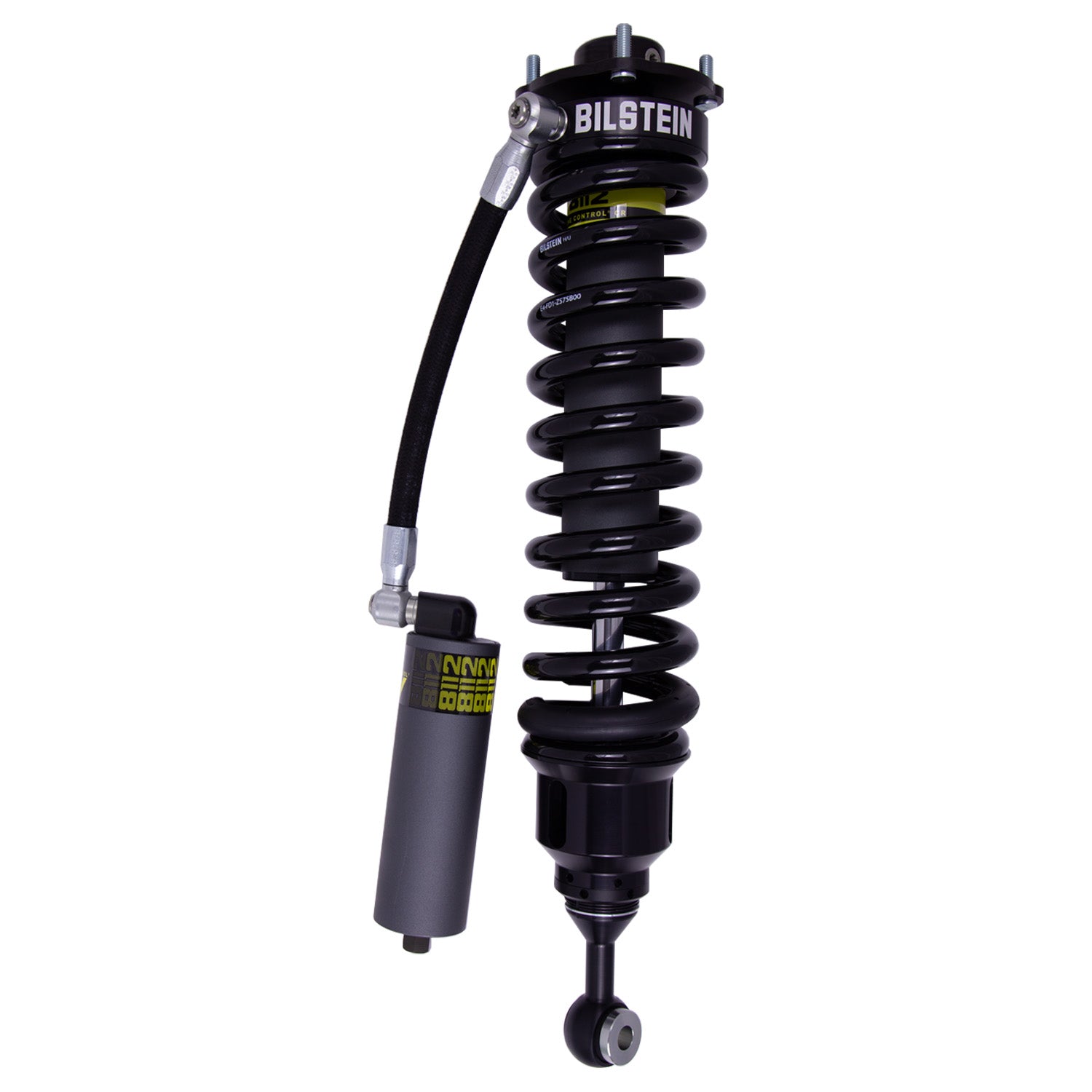

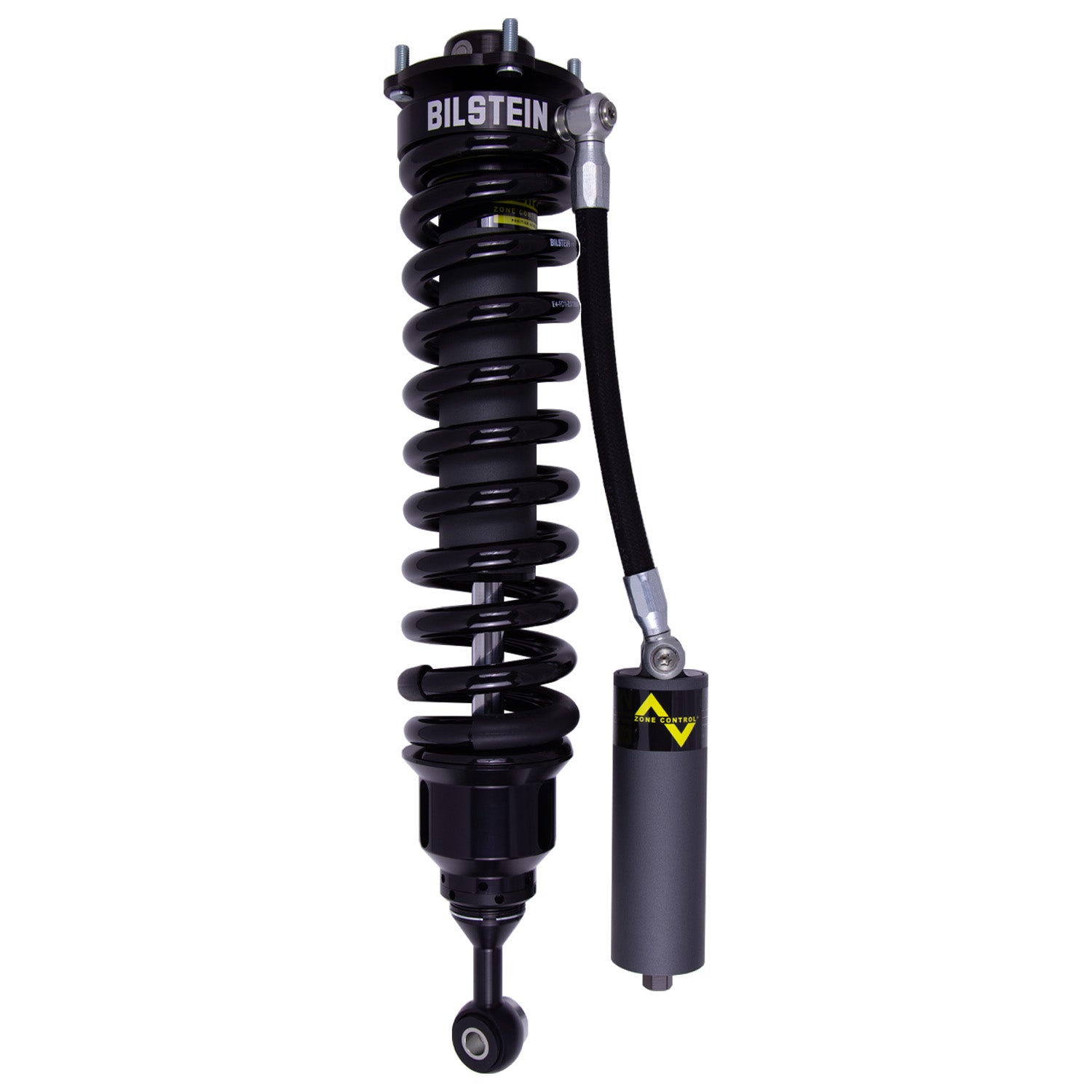

Bilstein 41-326039 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR) Monotube 2007-2021 Toyota Tundra
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
60mm Front Right Corner Module
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Title | Bilstein Shock Absorbers |
| Spring Seat Included | Yes |
| Extended Length (IN) | 25.79 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Coilover) |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (IN) | 19.43 |
| Upper Mount Type | Special |
| Series | B8 8112 (ZoneControl CR) |
| Reservoir | Yes |
| Collapsed Length (MM) | 493.6 |
| Internal Design | Monotube |
| Extended Length (MM) | 655.1 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Lower Mount Type | Eye 16.1mm |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Aftermarket Upper Arms Required | Yes |
| Piston Diameter | 60mm |
| Shaft Diameter (mm) | 22.0 |
| Front Main Spring Rate (lbs/in) | 650 lbs |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
