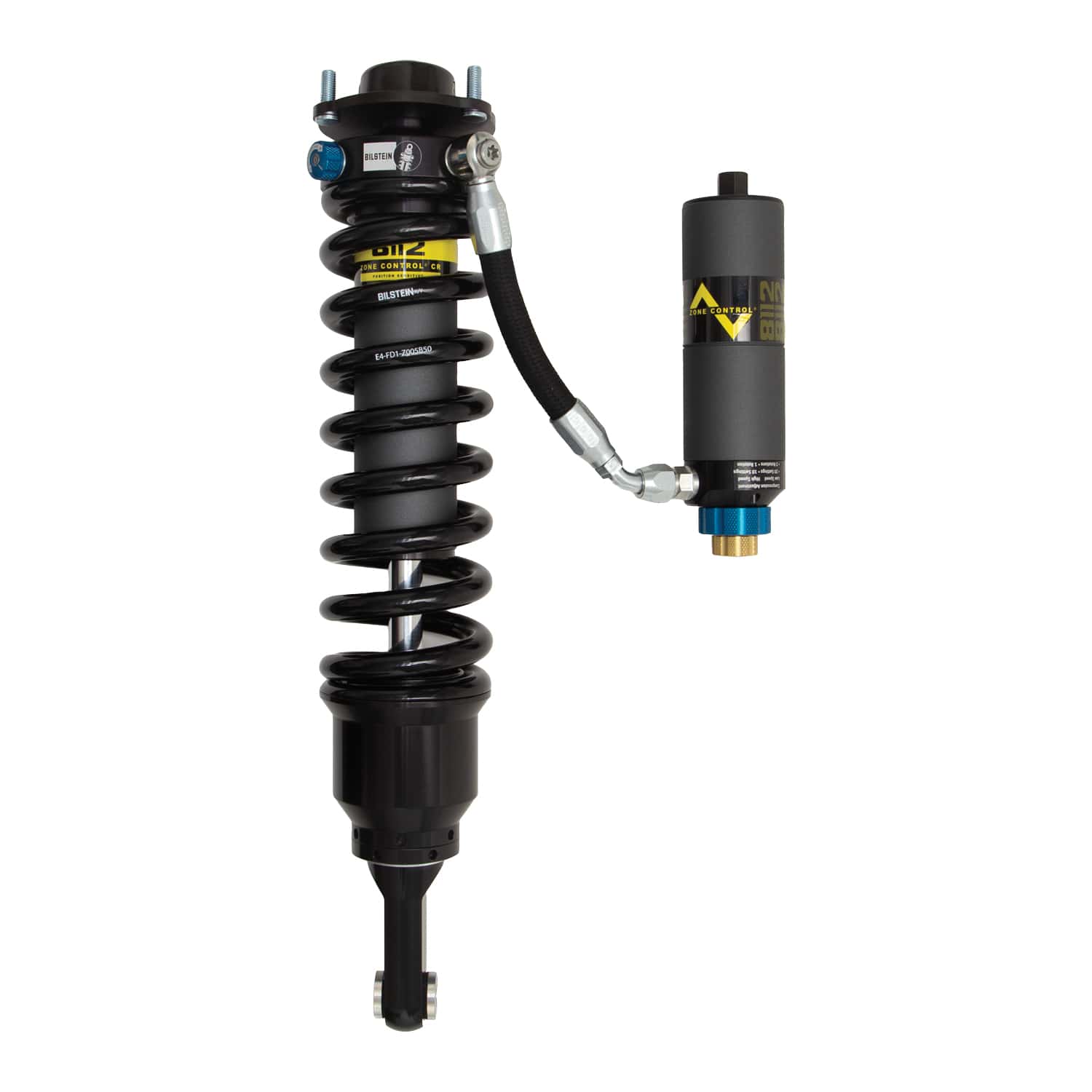

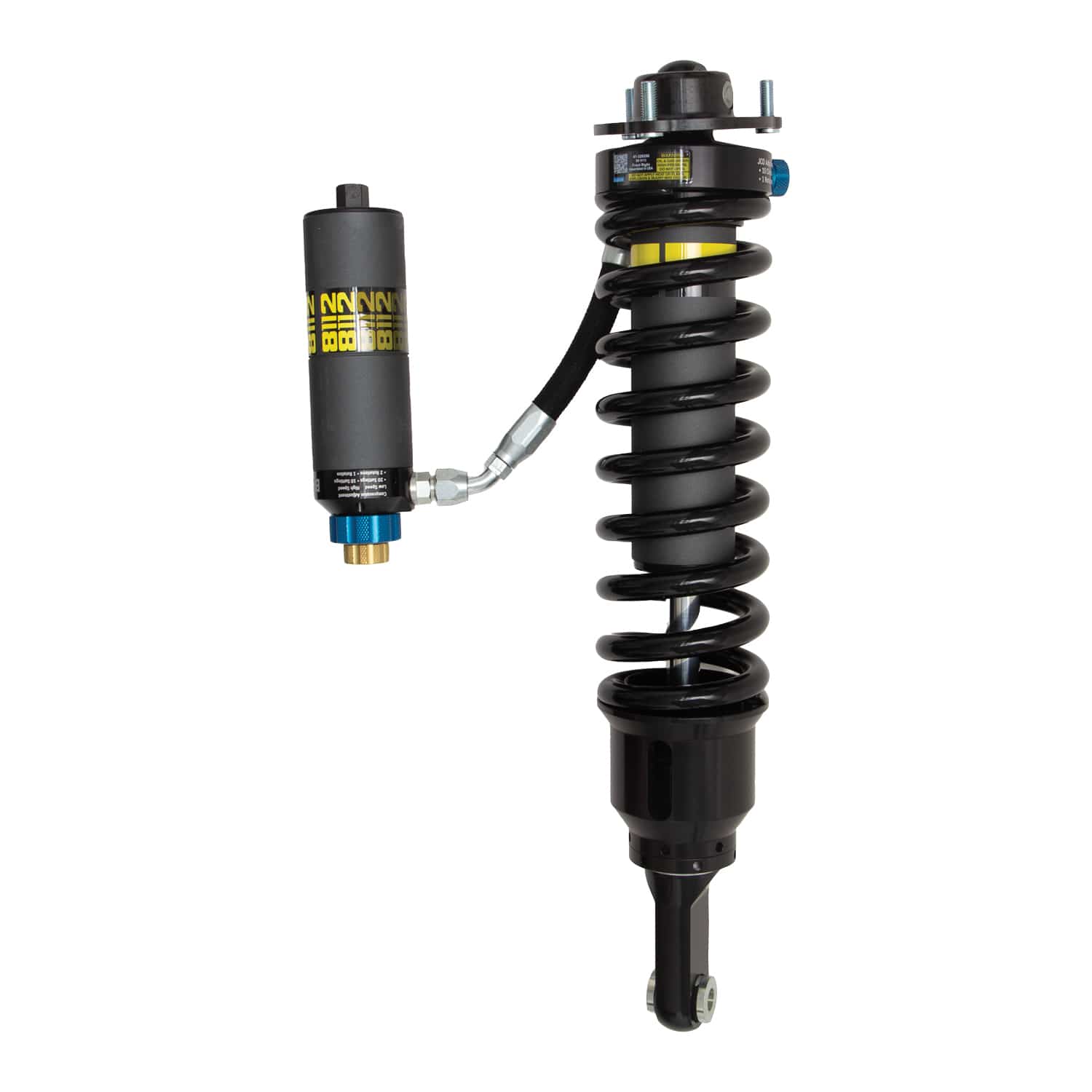

Bilstein 41-326350 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR DSA+) Monotube 2003-2009 Toyota/Lexus
Product Availability Request
Fill the form and our team will contact you.
60mm Front Right Corner Module
Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Features
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Front Main Spring Rate (lbs/in) | 600 |
| Internal Design | Monotube |
| Spring Seat Included | Yes |
| Reservoir | Yes |
| Extended Length (IN) | 22.24 |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 17.43 |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Upper Mount Type | Special |
| Piston Diameter | 60mm |
| Extended Length (mm) | 564.8 |
| Body Design | Smooth Body (Coilover) |
| Shaft Diameter (mm) | 22.0 |
| Lower Mount Type | Eye 14.1mm |
| Body Material | Steel |
| Segment | Light Truck |
| Collapsed Length (mm) | 442.6 |
| Prop 65 (Y/N) | Y |
| Boot Included | No |
| Finish | Dampers: EVO Grey/Springs: Black |
Short Description: Front Corner Module
Invoice Description: 4Runner 03-09; FR; 8112 DSA+ EVO; Module
Definition: Suspension Shock Absorber and Coil Spring Assembly
Installation Guide: Download PDF
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2003-2009 | Lexus | GX470 | Base | |
| 2003-2009 | Toyota | 4Runner | Limited | 4.0L V6 |
| 2003-2009 | Toyota | 4Runner | Limited | 4.7L V8 |
| 2003-2009 | Toyota | 4Runner | SR5 | 4.0L V6 |
| 2003-2009 | Toyota | 4Runner | SR5 | 4.7L V8 |
| 2007-2009 | Toyota | FJ Cruiser | Base | |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition | |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition |
8 applications listed.
