Bilstein 47-309524 Suspension Kit Monotube Front Lift 0-1.2 Inch B8 6112
Product Availability Request
Fill the form and our team will contact you.
Front Suspension Kit

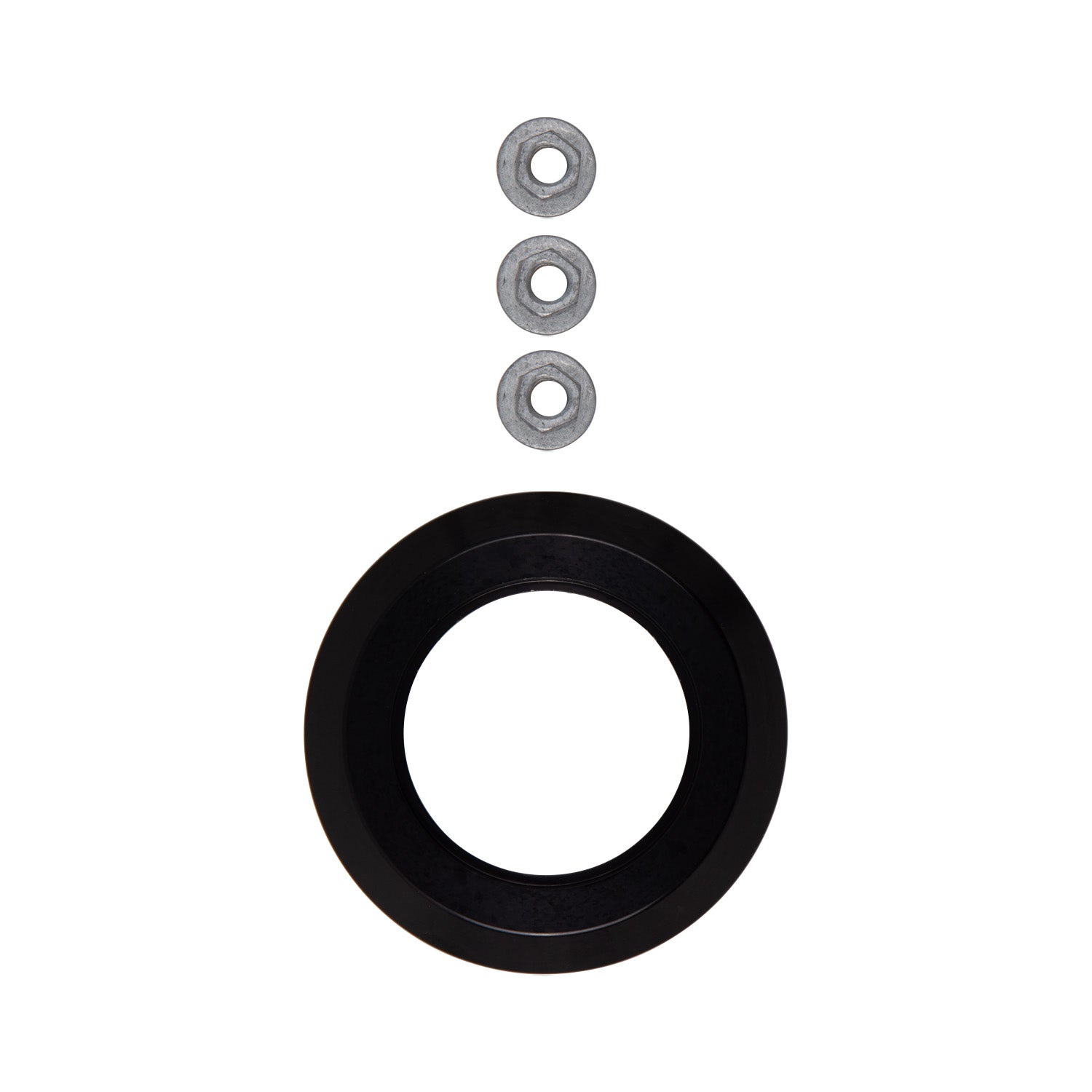

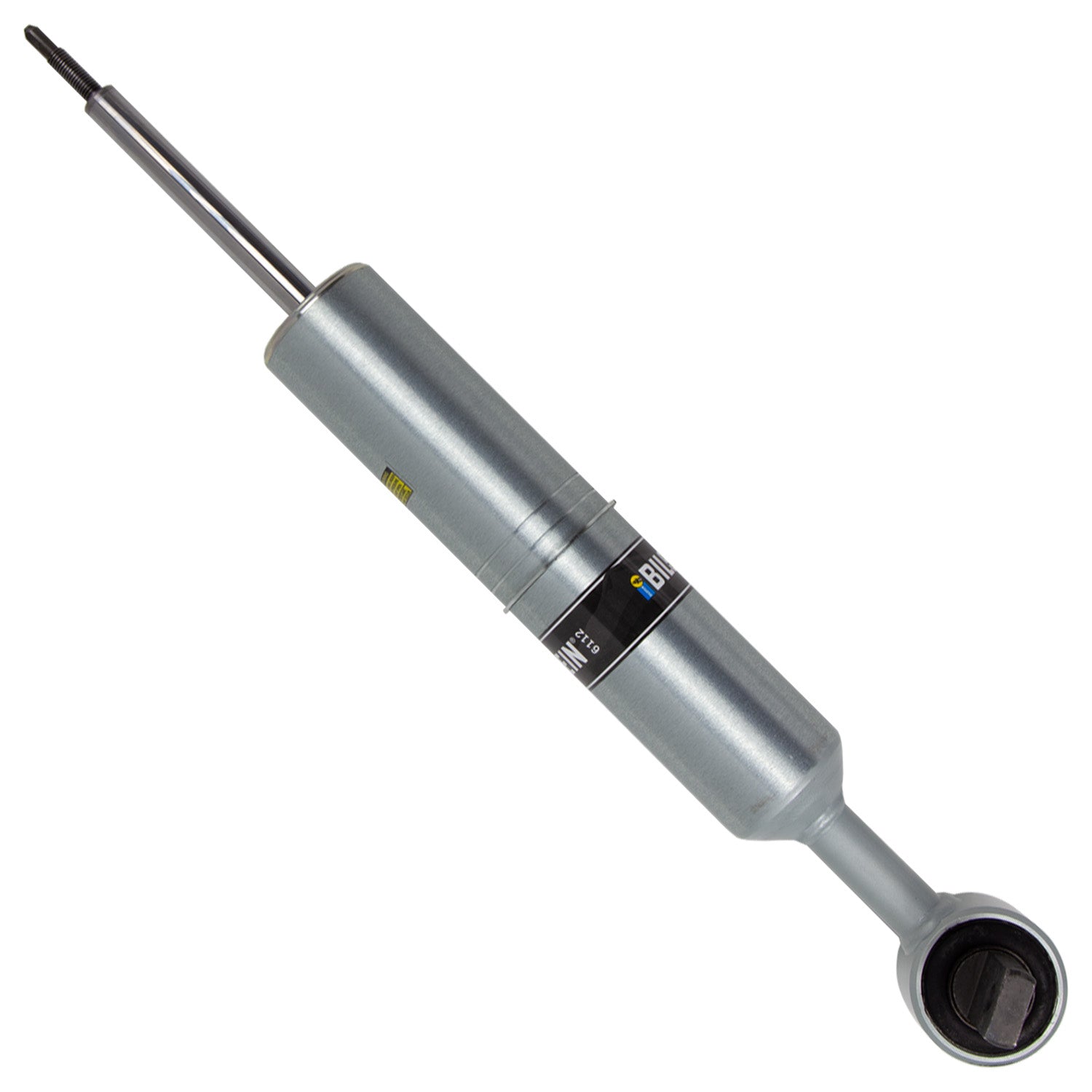

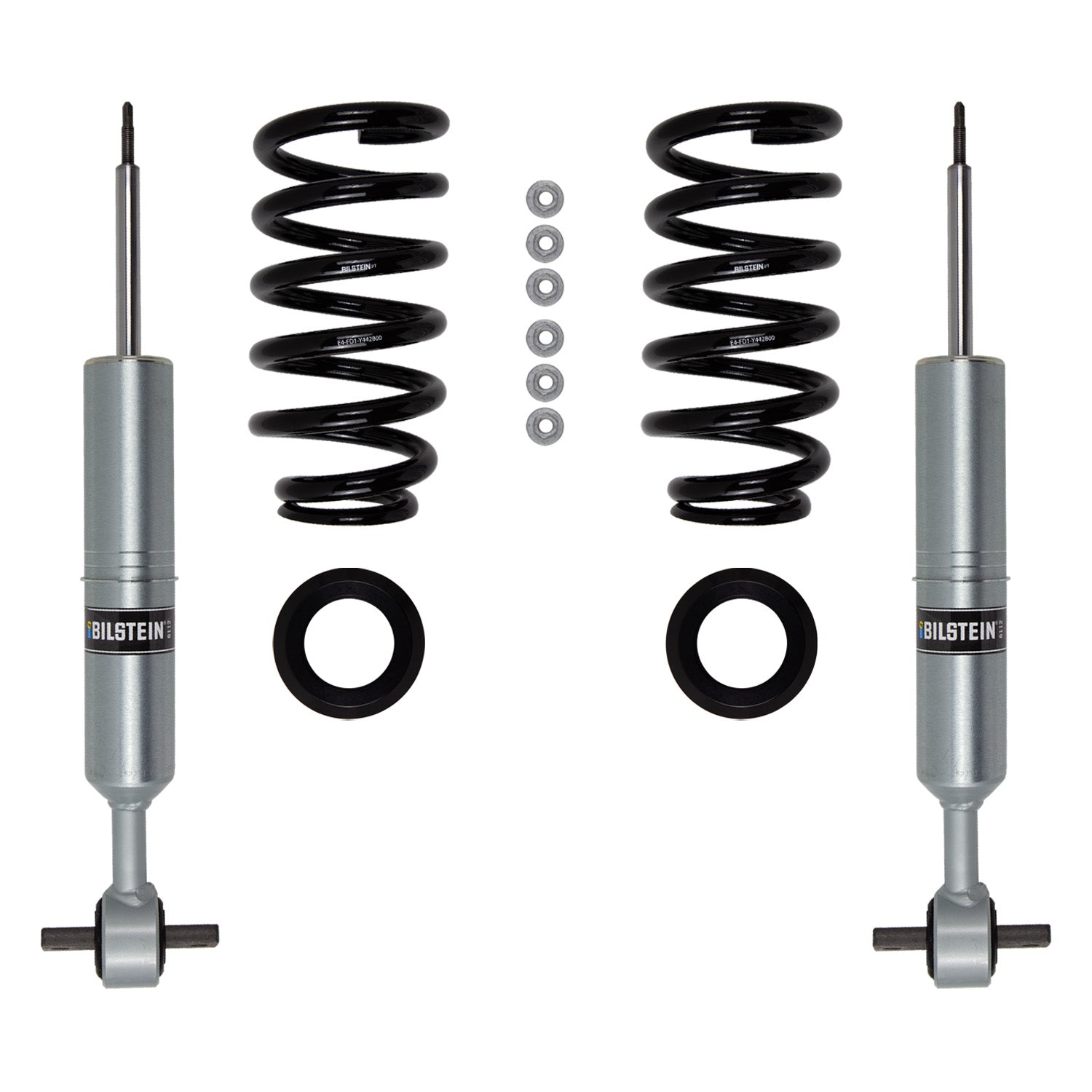

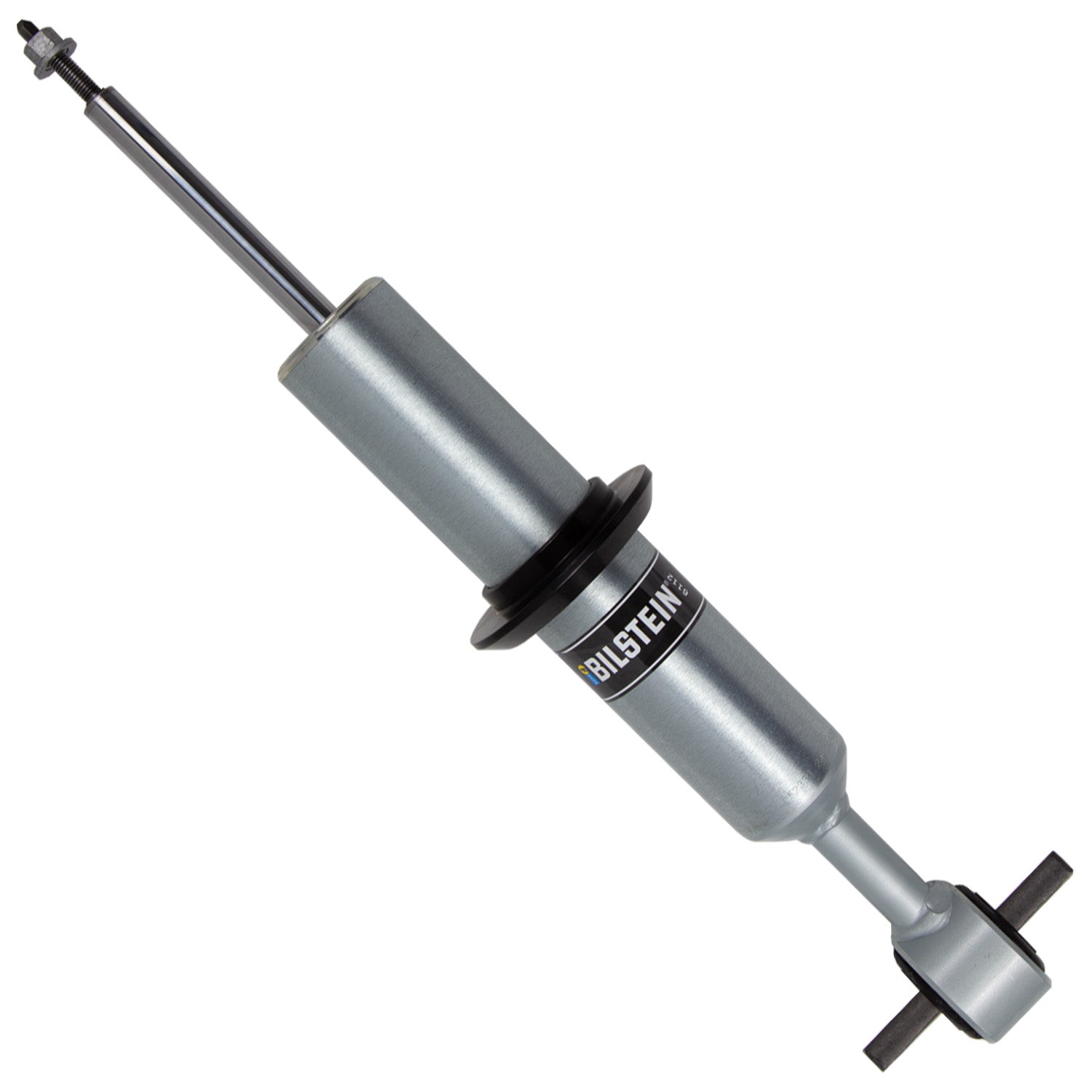

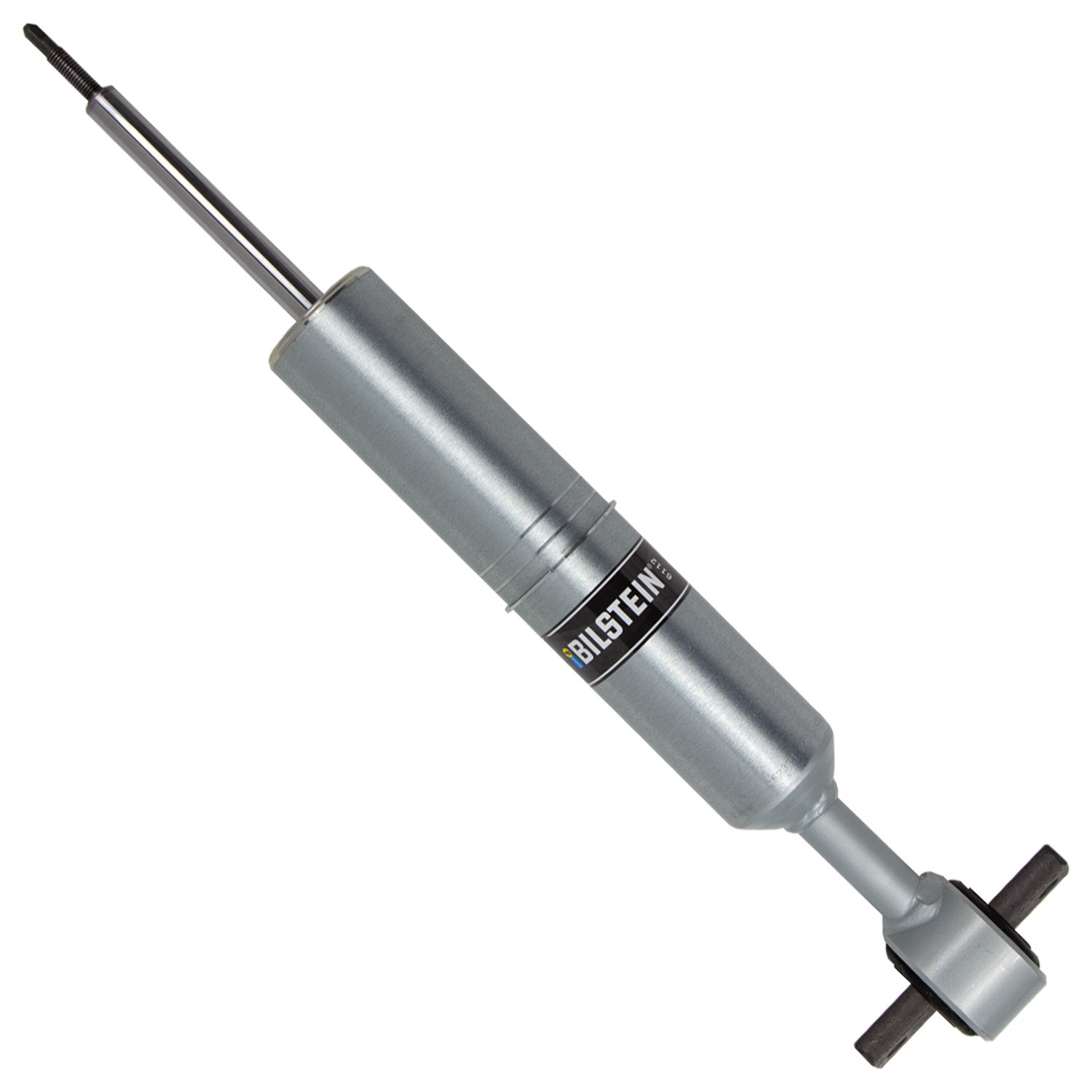

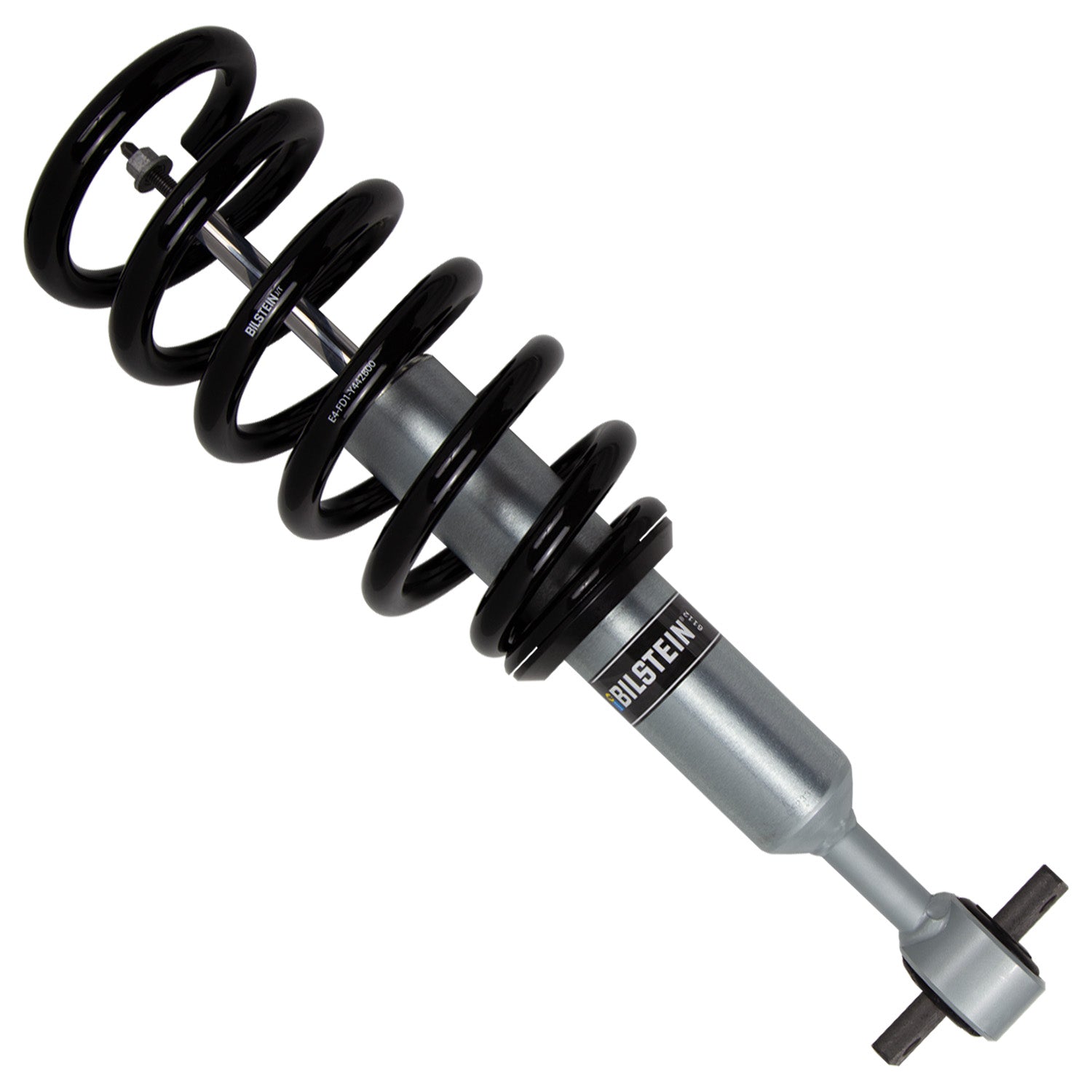

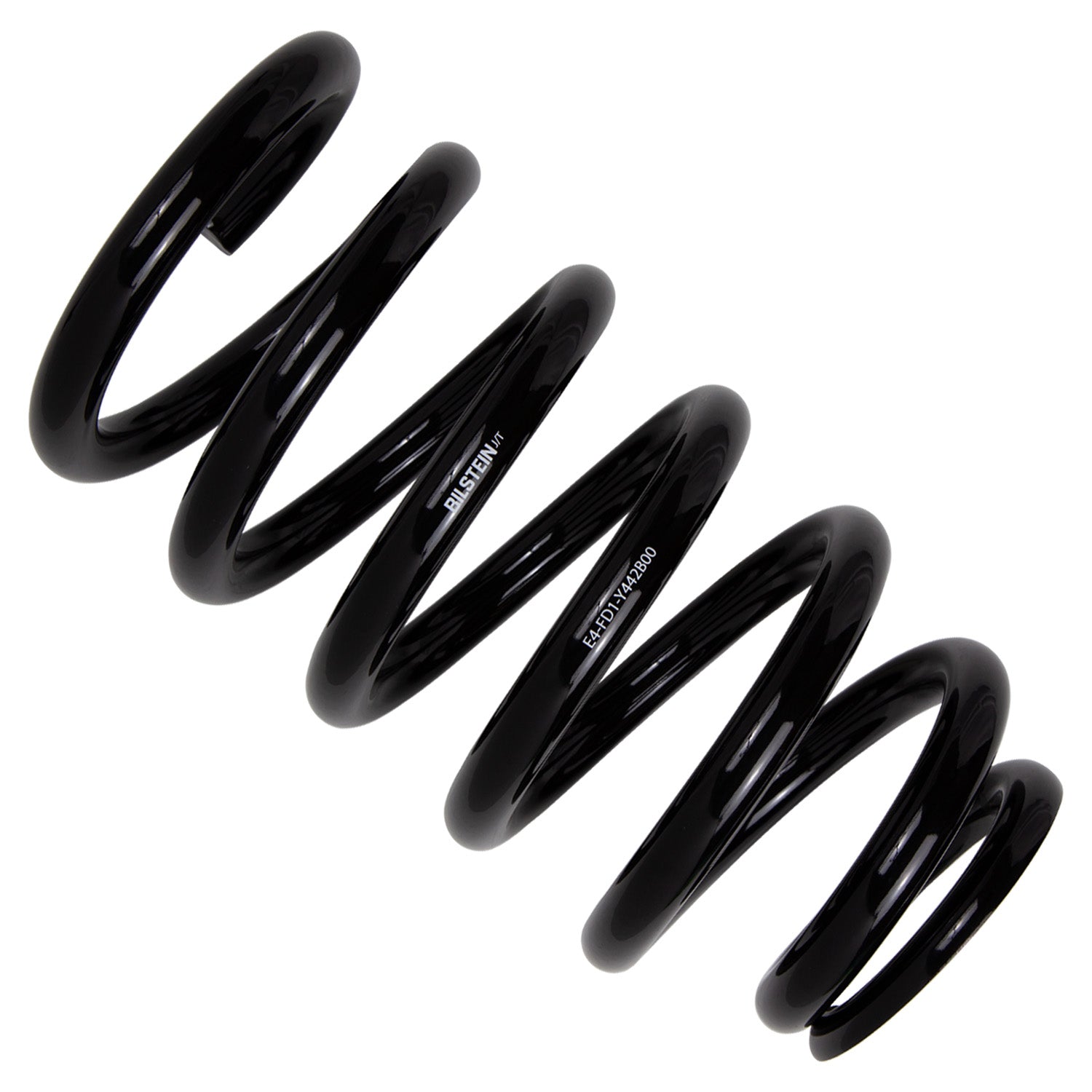

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Features & Benefits
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
B8 6112 - Suspension Kit
Front Kit
GM 1500 Trail Boss 4x4 '19-; F; 6112 Kit
Specifications
| Body Design | Snap Ring Grooved Body (Coilover) |
| Reservoir | No |
| Title | Bilstein Shock Absorbers |
| Internal Design | Monotube |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Boot Included | No |
| Series | B8 6112 |
| Spring Seat Included | Yes |
| Segment | Light Truck |
| PartType | Suspension Kit |
| Piston Diameter | 60mm |
| Front Main Spring Rate (lbs/in) | 600 |
| Shaft Diameter | 18mm |
| Extended Length (mm) | 558.0 |
| Collapsed Length (mm) | 451.6 |
| Extended Length (IN) | 21.97 |
| Collapsed Length (IN) | 17.78 |
| Stroke/Travel Length (IN) | 4.19 |
| Stroke/Travel Length (mm) | 106.4 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
