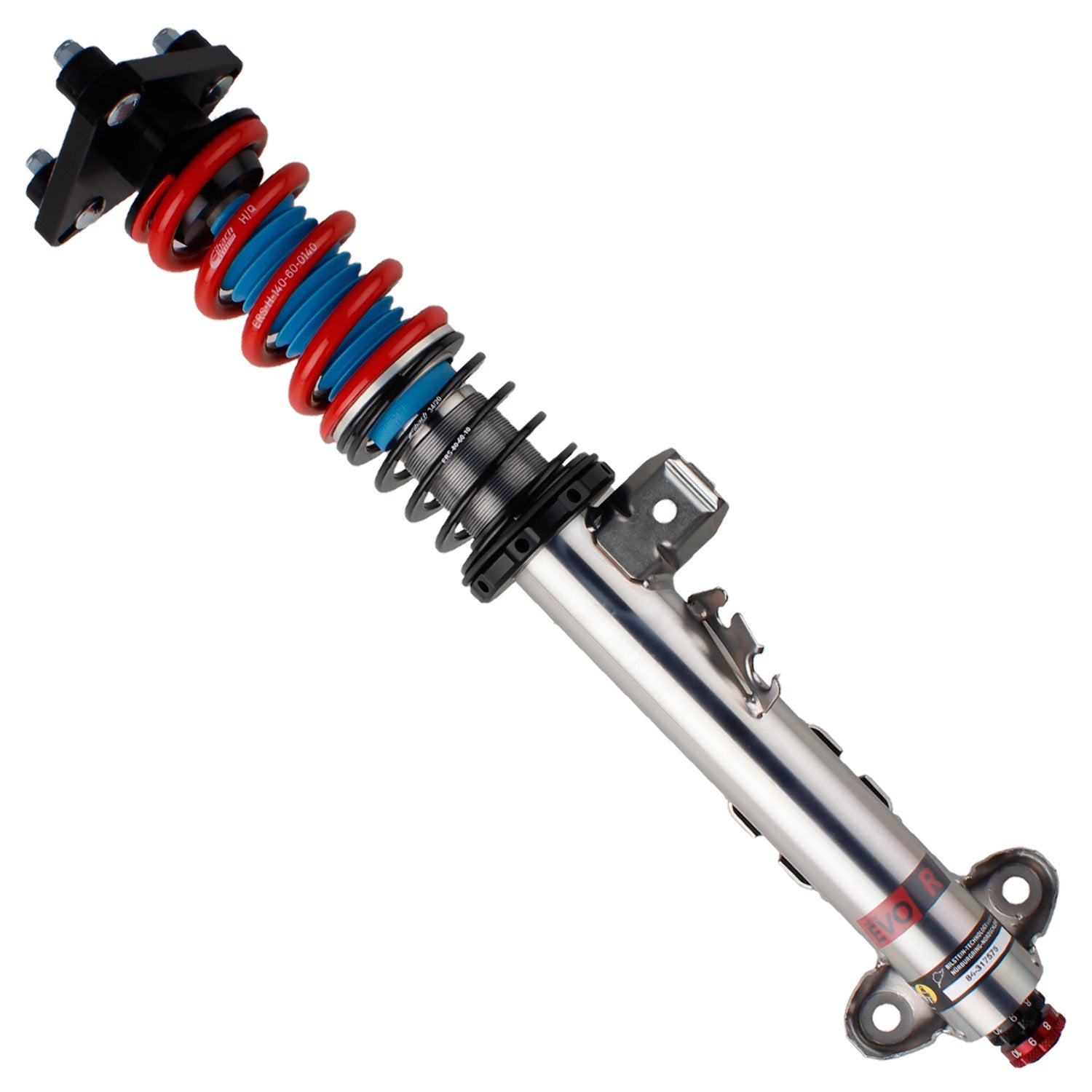

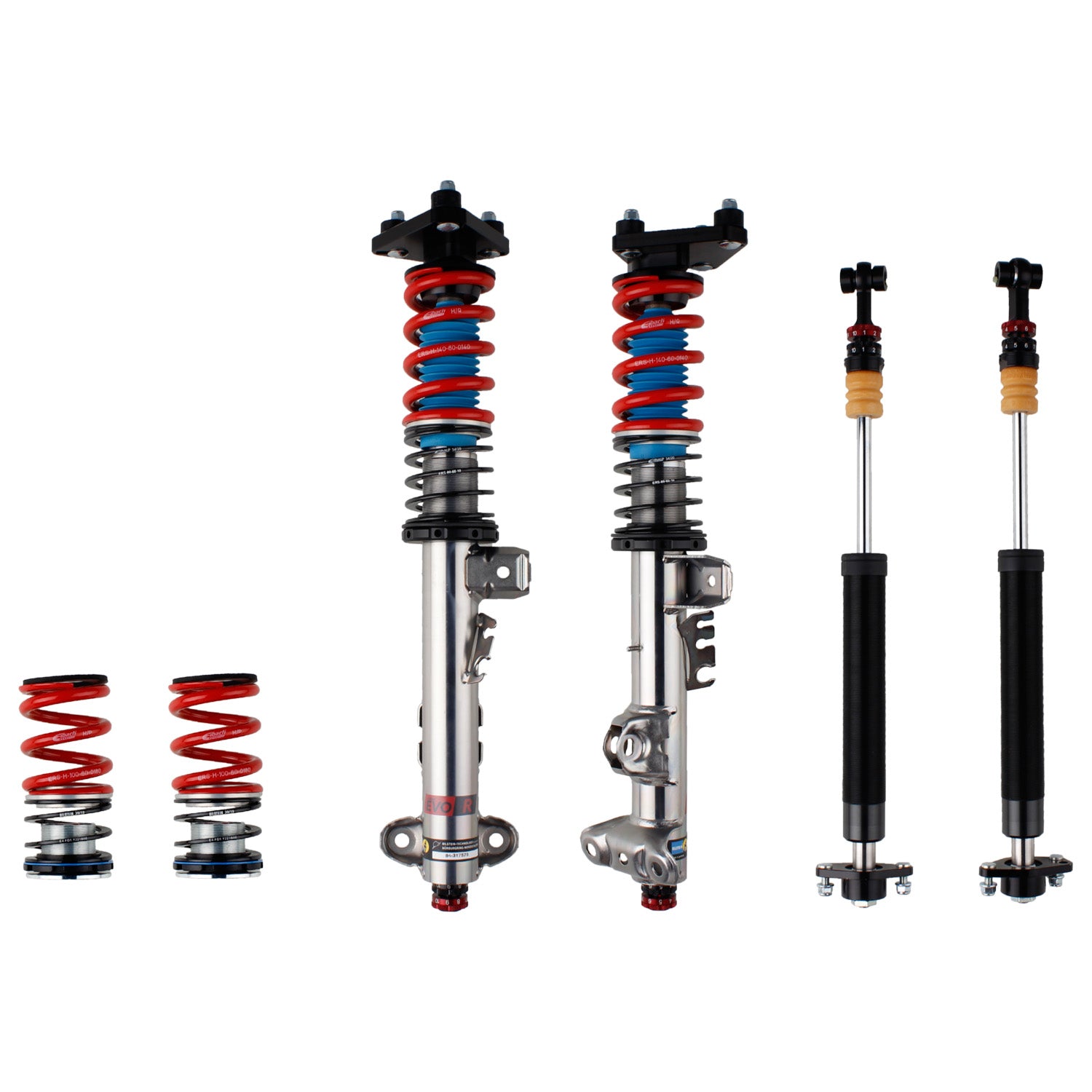

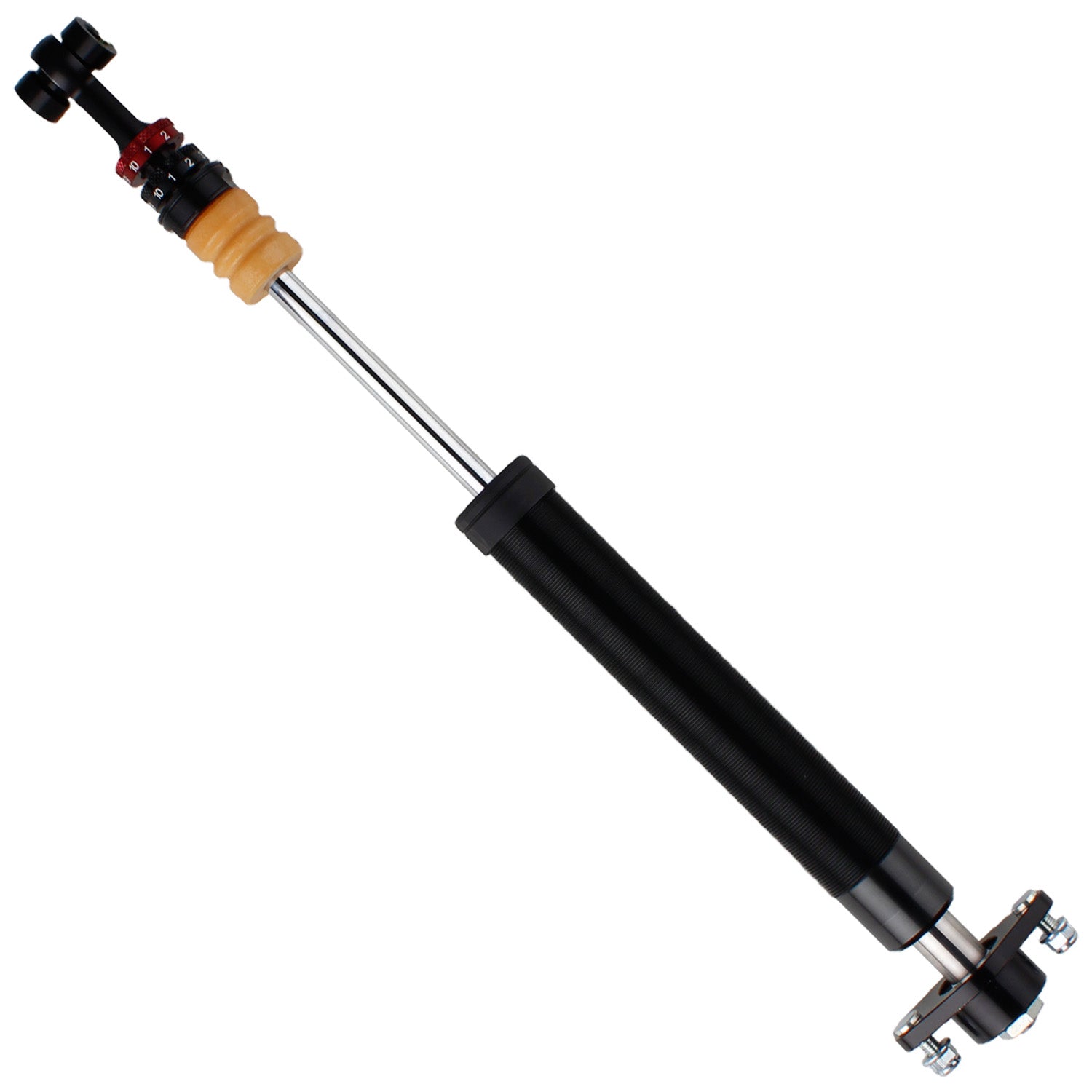

Bilstein 89-317594 Suspension Kit Monotube EVO R
Product Availability Request
Fill the form and our team will contact you.
Performance Suspension System
Bilstein EVO R is the next step in the evolution of performance suspension tuning. EVO R is a coilover kit built and tuned specifically for the demanding conditions of motorsports. Featuring 2-way manually adjustable dampers and monoball mounting equipment. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for precision adjustment. Where applicable, adjustable monoball upper mounts allow for adjustment to camber settings. Monotube damper construction and high quality components provide consistent performance under the most demanding motorsports conditions. Proven performance, reliability and exceptional versatility is achieved to provide the ultimate performance coilover setup. Bilstein EVO R suspension kits are designed and hand built in Germany to each specific application. EVO R coilovers feature technology and tuning knowledge acquired from Bilstein’s experience conquering the Nürburgring.
Features
- Aluminum and lightweight construction – for more stability, faster cornering and quicker laps
- Aluminum adjusters are easy-to-read and scale from 1 (soft) to 10 (hard)
- Two totaly personalized aluminum dials offer 100 possible damper settings – 10x10 Pro-Click adjustment lets you define rebound and bump separately and confidently for a completely personalized damper setup
Specifications
| PartType | Suspension Kit |
| Internal Design | Monotube |
| Segment | Tuning |
| Finish | Dampers: Grey/Springs: Red |
| Series | EVO R |
| Prop 65 (Y/N) | Y |

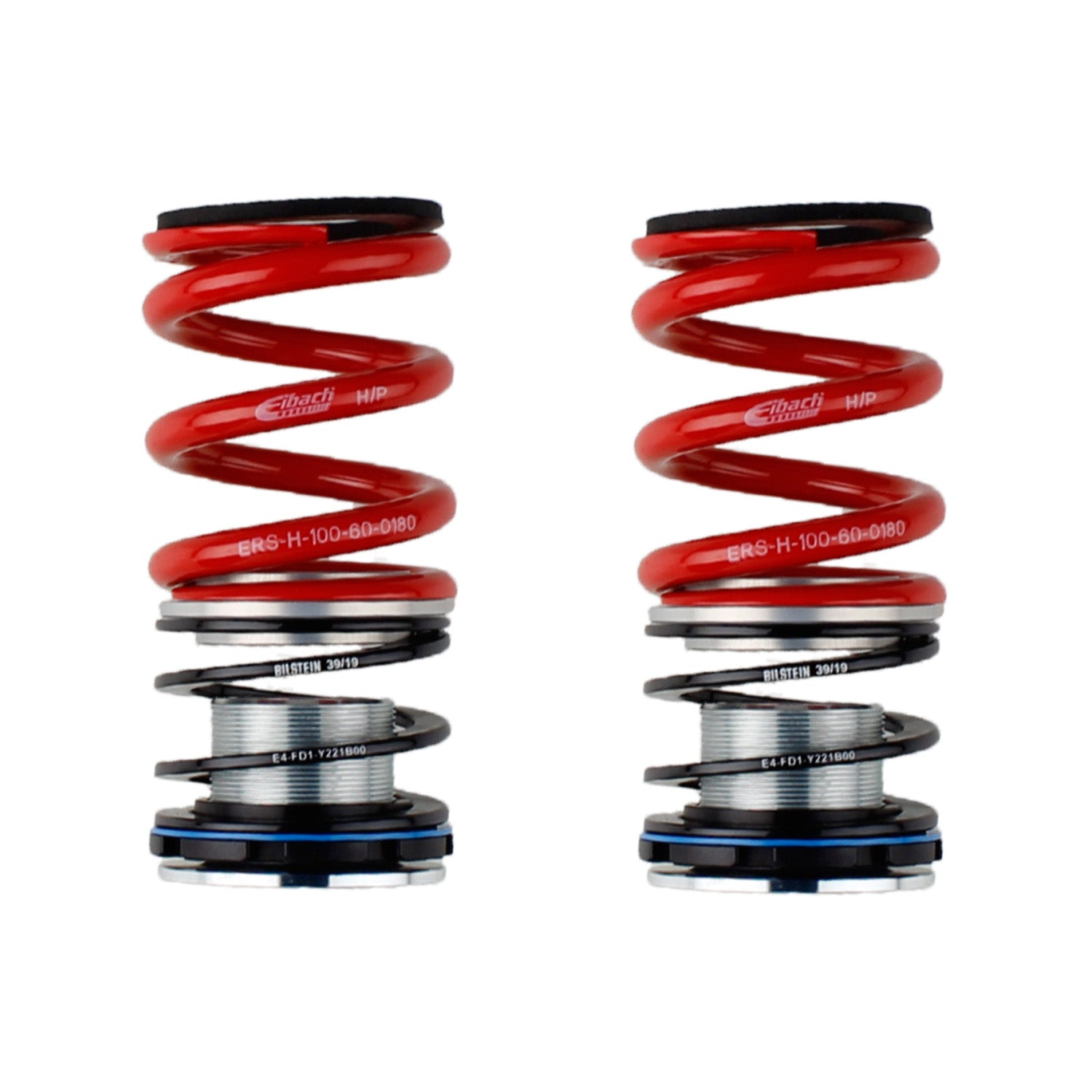

| Rear Main Spring Rate (lbs/in) | 1027 |
| Rear Tender Spring Rate (lbs/in) | 114 |
| Front Tender Spring Rate (lbs/in) | 57 |
| Front Main Spring Rate (lbs/in) | 800 |
| Front Main Spring Type | Linear |
| Rear Main Spring Type | Linear |
Short Description: Complete Kit
Invoice Description: BMW; E36; EVO R; KIT
Definition: Suspension Kit
Installation Guide: Download PDF
Warranty: 90 Day Warranty
