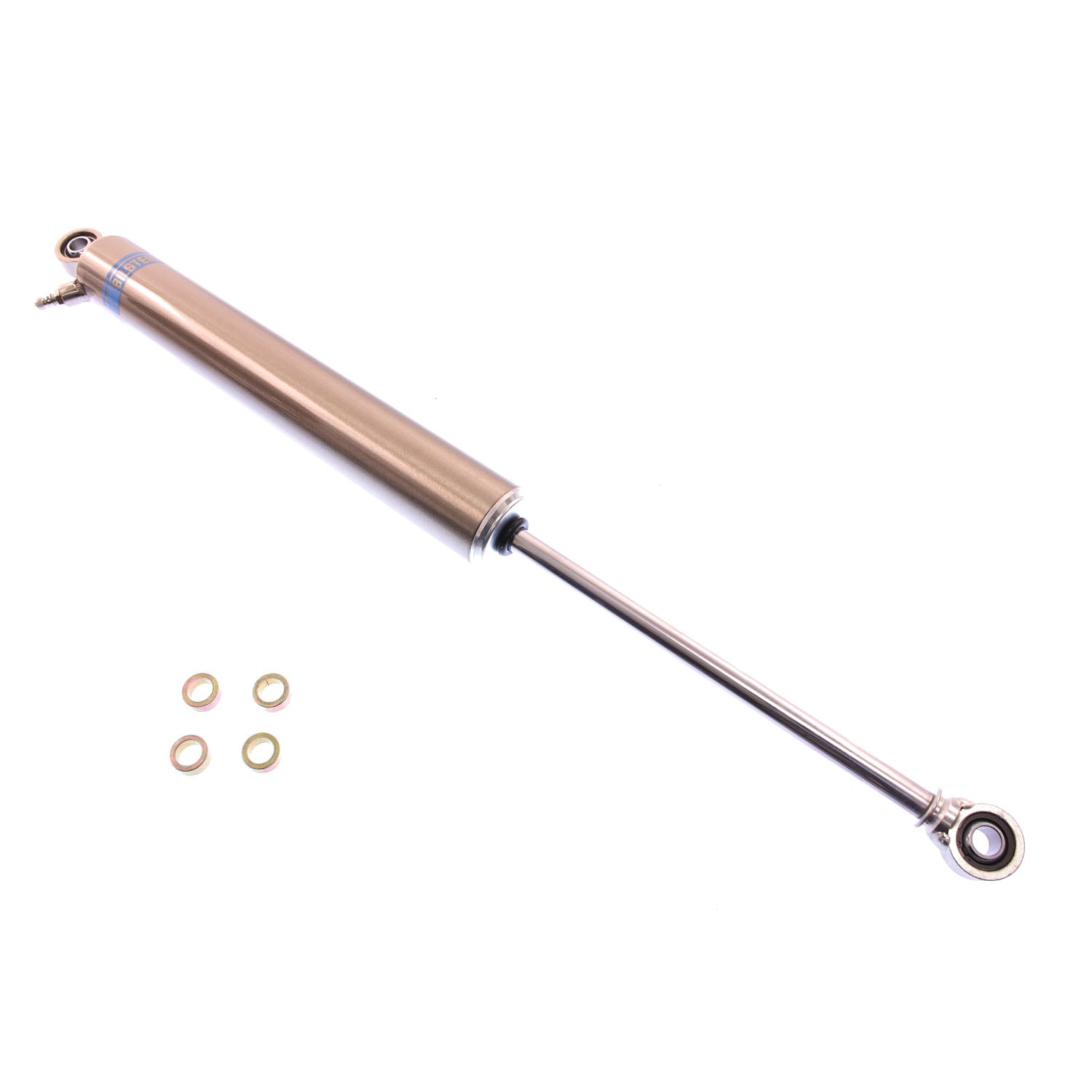

Bilstein B46-0930S - Suspension Shock Absorber M 7100 Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber

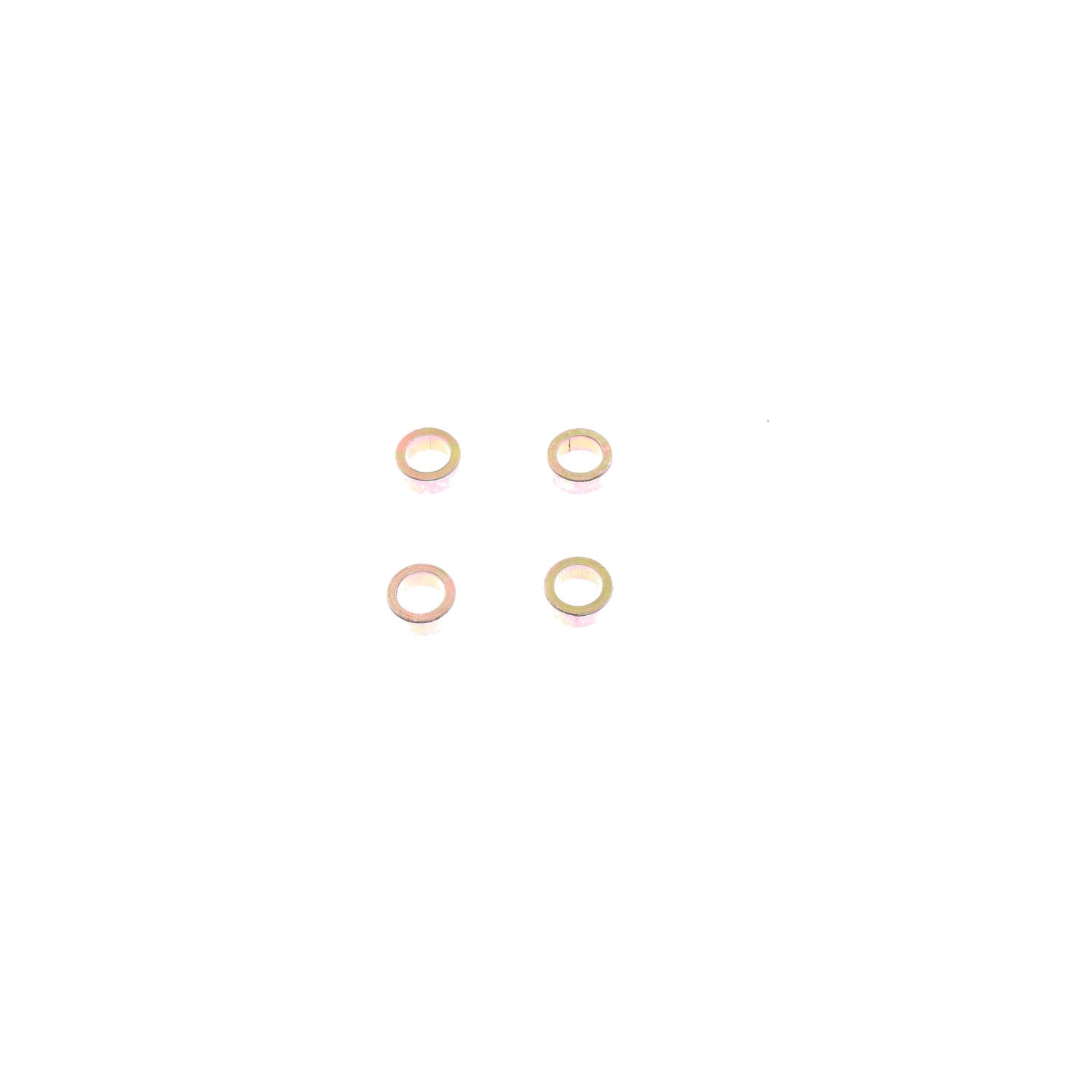

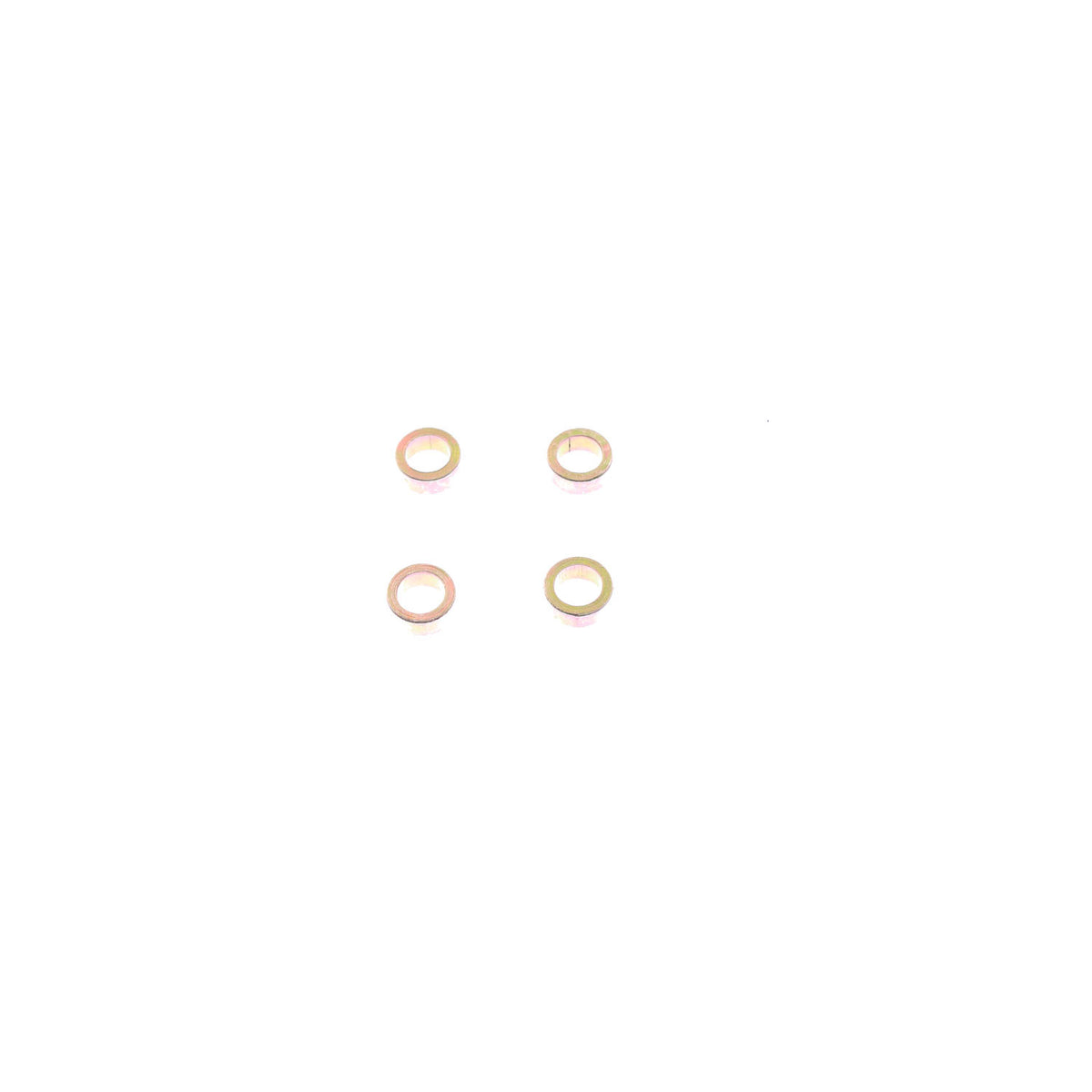

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
M 7100 - Suspension Shock Absorber
5" W/SHRDR 345/135
Specifications
| Body Design | Smooth Body (Non-Coilover) |
| Mount Type | Eye-to-Eye |
| Finish | Nickel Plated with Clear Powder Coat |
| Internal Design | Monotube |
| Extended Length (IN) | 16.04 |
| Title | Bilstein Shock Absorbers |
| Series | M 7100 |
| Lower Mount Type | 1/2in Heim |
| Rebound @0.52m/s | 3450 |
| Optional Reservoir Clamp | N/A |
| Reservoir | No |
| Extended Length (MM) | 407.4 |
| Collapsed Length (IN) | 10.81 |
| Upper Mount Type | 1/2in Heim |
| Compression @0.52m/s | 1350 |
| Collapsed Length (MM) | 274.6 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 132.8 |
| Shaft Diameter (mm) | 14.0 |
| Stroke/Travel Length (IN) | 5.23 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
