Bilstein F4-BE3-C751-M2 - Suspension Shock Absorber GM G/H Body Motorsport Front AK4040F Monotube AK Series Bilstein

Contact Us for Availability
Regular price $125.16 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Bilstein
  • SKU F4-BE3-C751-M2
  • Barcode 651860751849

Do you have questions about this product?

Ask an expert!

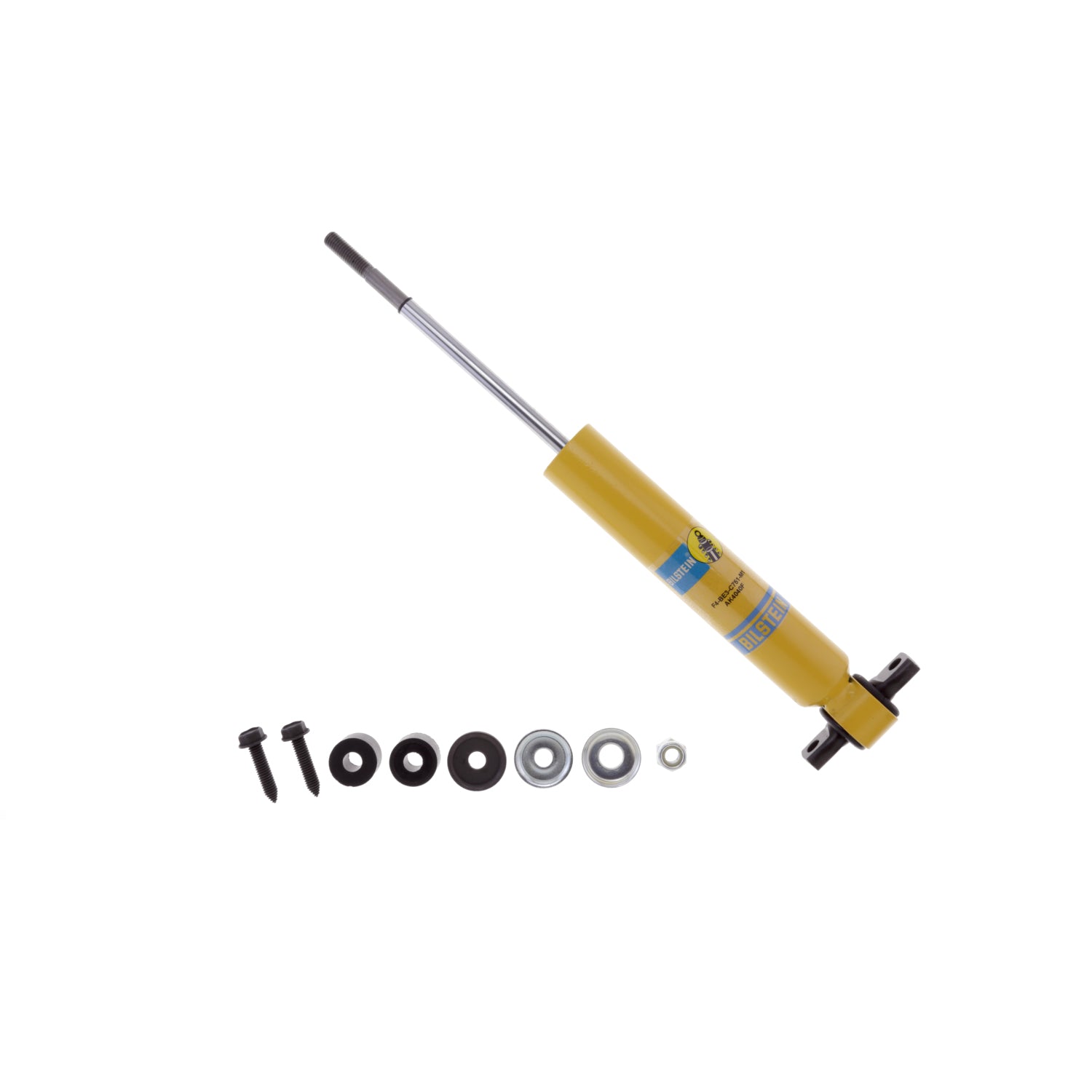

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability.

AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Details:

  • Series: AK Series
  • Internal Design:Monotube
  • Lower Mount Type: Bar Pin
  • Upper Mount Type: Stem
  • Finish: Yellow Paint
  • Adjustable: Non-Adjustable
  • Body Design: Stock Mount Smooth Body
  • Collapsed Length Inch: 8.73
  • Body Material: Steel
  • Compression at 26m s: 685
  • Compression at 52m s: 900
  • Extended Length Inch: 13.46
  • Boot Included:No
  • Pistion Diameter: 36mm
  • Pistion Type: Digressive
  • Rebound at 26m/s: 880
  • Rebound at 52m/s: 1150
  • Shaft Diameter: 11mm
  • Stroke Travel Length In: 4.73
  • Stroke Travel Length In: 120.1
  • Warranty: Limited 90 Day Warranty

Warranty

Limited 90 Day Warranty

Specifications

Finish Yellow Paint
Series AK Series
