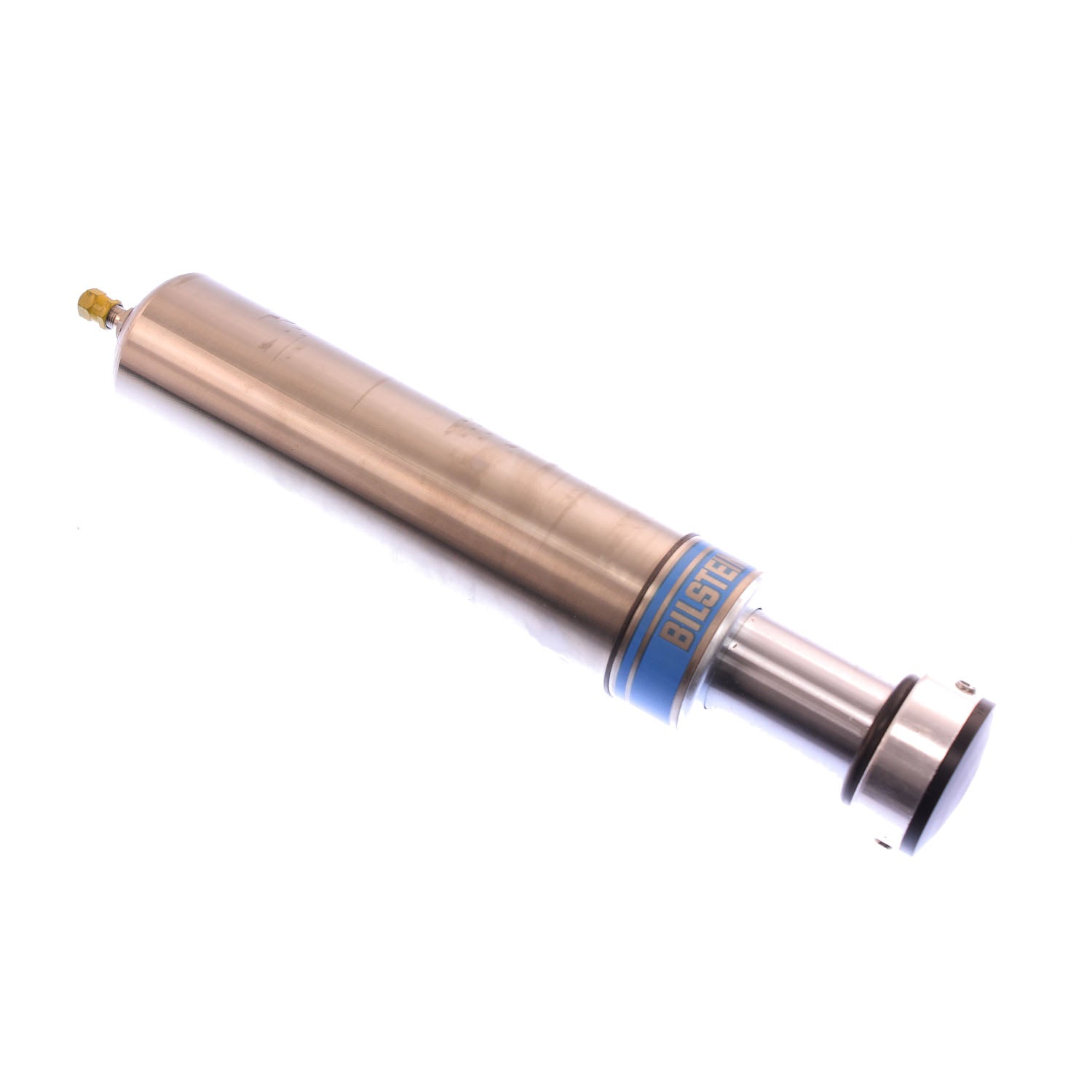

Bilstein F4-BE5-G722-M0 - M 9100 (Bump Stop) - Suspension Bump Stop
Couldn't load pickup availability
46mm Monotube Bump Stop
Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
Features & Benefits
- Filled with technology perfected over 3 decades of off-road dominance
- Monotube gas pressure design maximizes heat dissipation
- Available for lifted truck, custom truck, rock crawling and off-road racing applications
Specifications
| Lower Mount Type | Special |
| Upper Mount Type | Special |
| Finish | Nickel Plated |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (MM) | 244.1 |
| Mount Type | Special |
| Series | M 9100 (Bump Stop) |
| Rebound @0.52m/s | Custom |
| Extended Length (MM) | 291.3 |
| Reservoir | No |
| Collapsed Length (IN) | 9.61 |
| Extended Length (IN) | 11.47 |
| Optional Reservoir Clamp | N/A |
| Compression @0.52m/s | Custom |
| Internal Design | Monotube |
| Title | Bilstein Shock Absorbers |
| Spring Seat Included | No |
| PartType | Bump Stop |
| Segment | Motorsports |
| Piston Diameter | 46mm |
| Shaft Diameter | 1-1/4 in. |
| Stroke/Travel Length (IN) | 1.86 |
| Shaft Diameter (mm) | 31.8 |
| Stroke/Travel Length (mm) | 47.2 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
