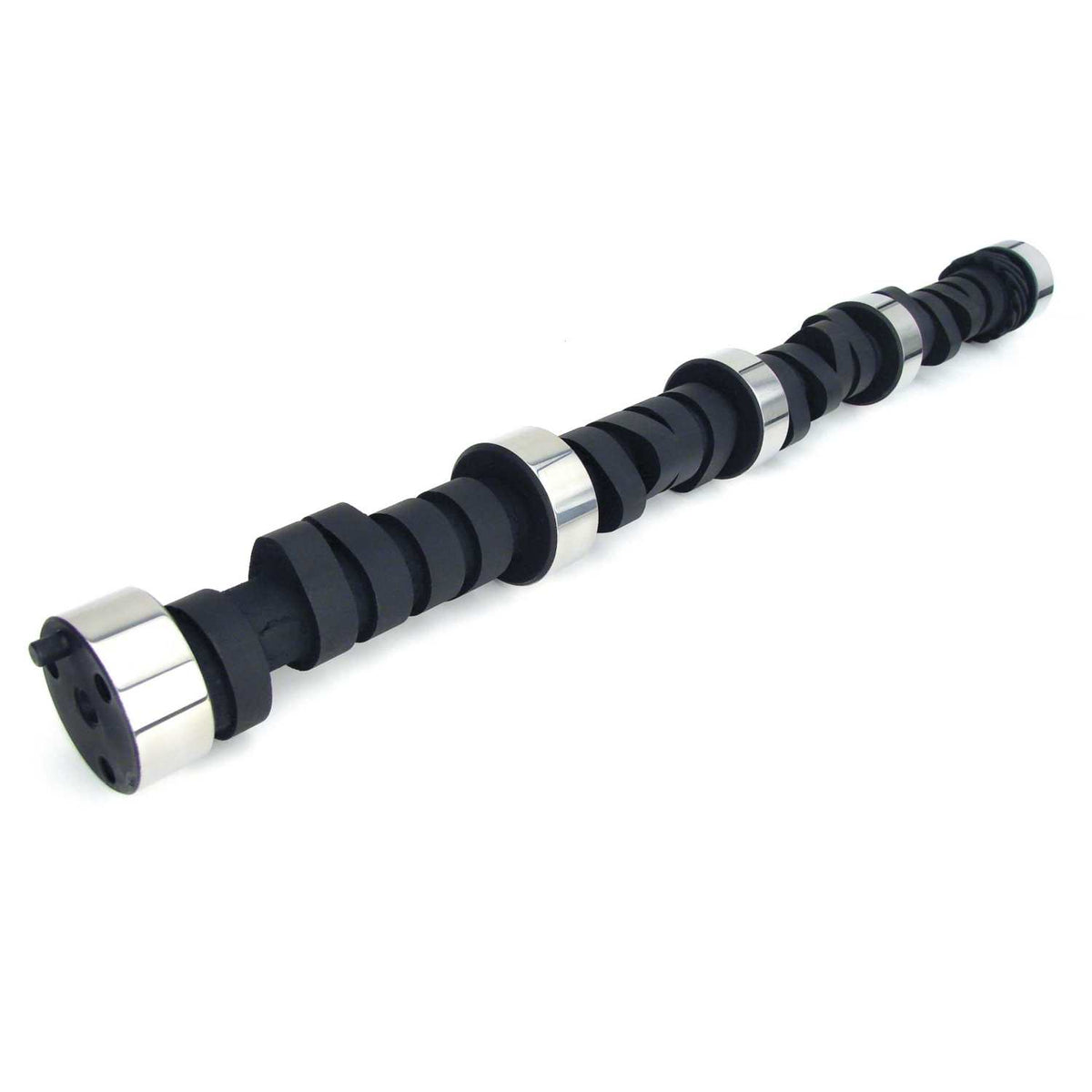

COMP Cams 11-236-4 Xtreme Marine 226/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454
This part is made for competition vehicles that are never driven on public roads. It has no CARB Executive Order, so it is not legal on emissions controlled vehicles used on the street, including in California.
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Jet w/ A impeller, strong mid- range, good throttle response, noticeable idle.
BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
Specifications
| Camshaft Series | Xtreme Marine |
| Advertised Exhaust Duration | 286 deg |
| Lobe Separation | 112 deg |
| Intake Valve Lift | 0.544 IN |
| Exhaust Valve Lift | 0.547 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Cast Iron |
| Engine Family | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Cam and Lifter Kit Upgrade | CL11-236-4 |
| K-Kit Upgrade | K11-236-4 |
| Lifter Type | Hydraulic Flat Tappet |
| SK-Kit Upgrade | SK11-236-4 |
| Usage | Marine |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | XM270H |
| Basic Operating RPM Range | 1,600-5,800 RPM |
| Intake Duration at .050 Inch Lift | 226 deg |
| Exhaust Duration at .050 inch Lift | 236 deg |
| Advertised Intake Duration | 270 deg |
| Grind Number | XM270H |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
