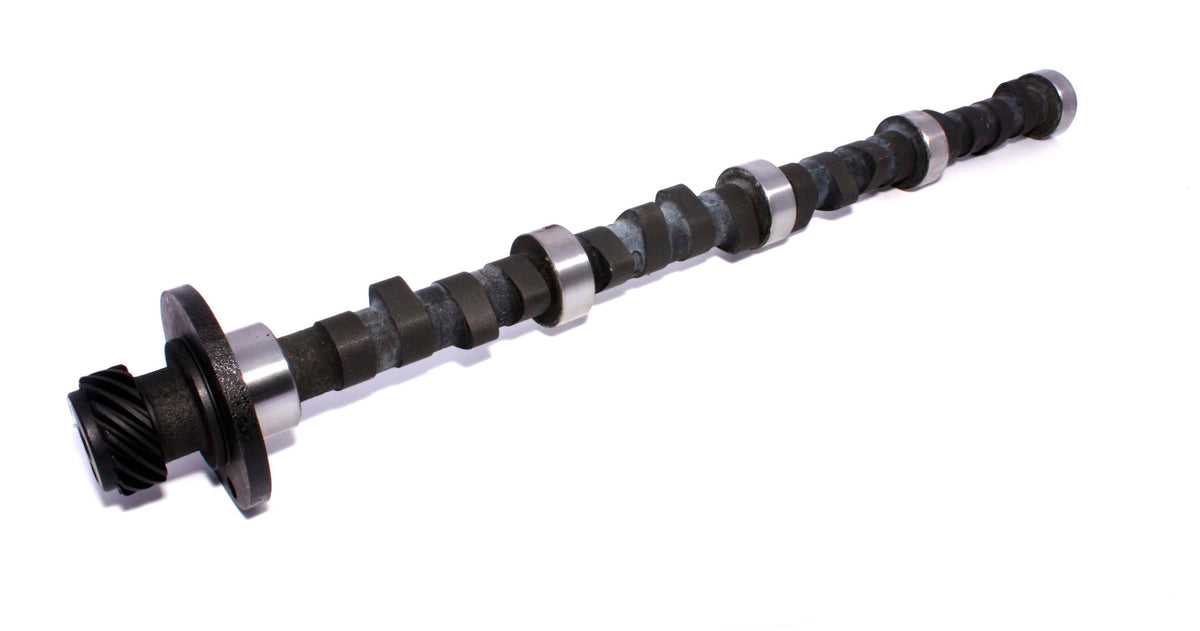

COMP Cams 94-306-5 Magnum 224/224 Hydraulic Flat Cam for Cadillac 425, 472, 500
This part has no CARB Executive Order, so it is not legal for sale or use on emissions controlled vehicles in California. Some other states follow California rules for many vehicles. Please check your state's rules before ordering.
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
High performance street, strong mid-range, best with upgraded exhaust and 2000+ stall. Choppy idle.
Hydraulic: High performance street, strong mid-range, modified Applications, choppy idle.
Specifications
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Engine Family | Cadillac 425, 472, 500 c.i. (1963-1979) |
| Cam and Lifter Kit Upgrade | CL94-306-5 |
| Lifter Type | Hydraulic Flat Tappet |
| Camshaft Series | Magnum |
| Usage | Street/Strip |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | 270H |
| Basic Operating RPM Range | 1,500-5,500 RPM |
| Intake Duration at .050 Inch Lift | 224 deg |
| Exhaust Duration at .050 inch Lift | 224 deg |
| Advertised Intake Duration | 270 deg |
| Advertised Exhaust Duration | 270 deg |
| Lobe Separation | 110 deg |
| Intake Valve Lift | 0.516 IN |
| Exhaust Valve Lift | 0.516 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Grind Number | 270H |
Note: Available in a Cam and Lifter Kit under CL94-306-5
