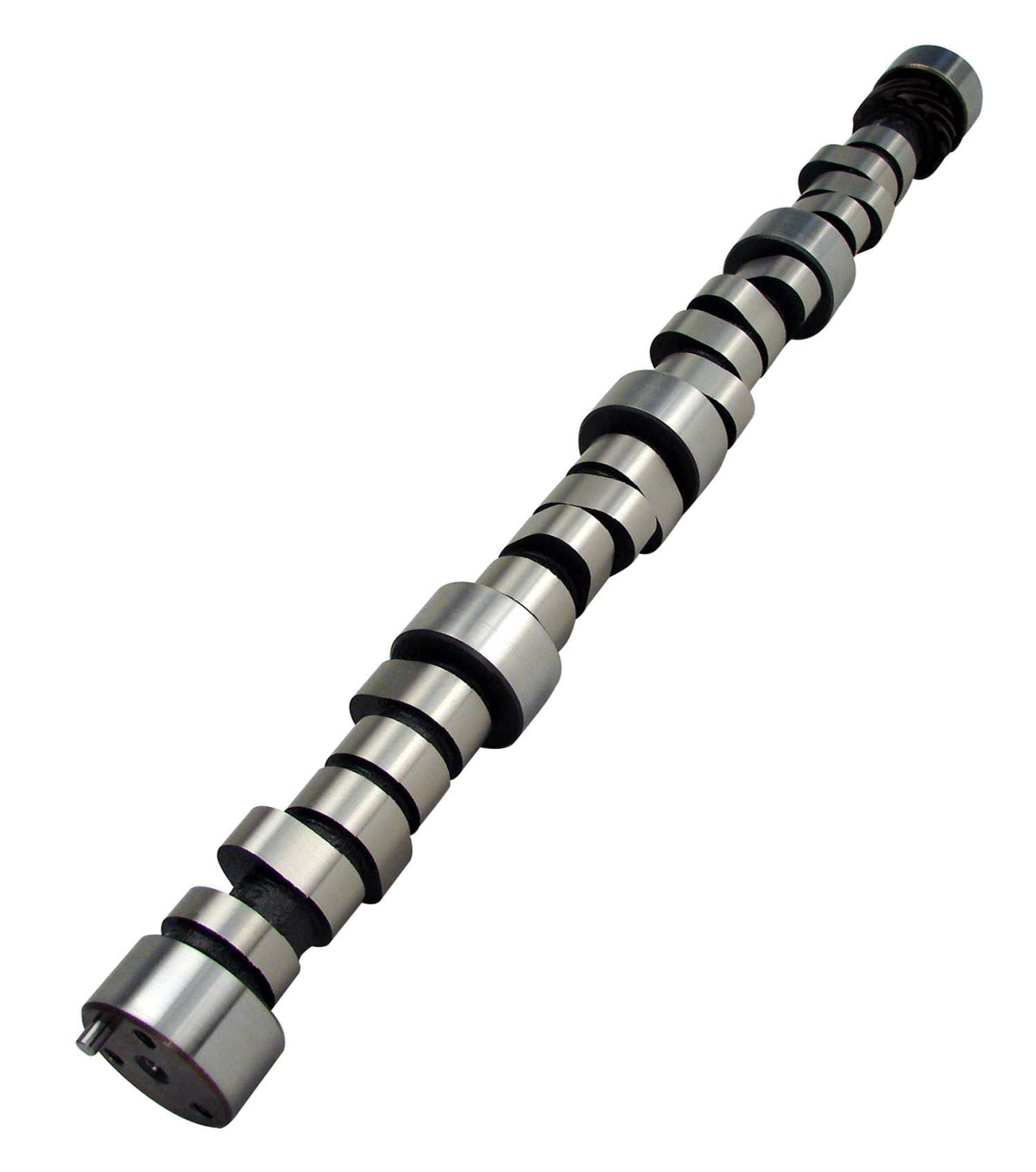

COMP Cams 12-420-8 Magnum 215/215 Hydraulic Roller Cam for Chevrolet Small Block
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Mild street performance, slightly noticeable lope at idle. Stock converter, aftermarket intake and headers. 3.40 to 4.10 rear gears.
- For Retro-Fit (Link Bar) Hydraulic Roller Lifters Fits '58-'021 262-400 cid Chevy Small Blocks 2
- Mild street performance - Slightly noticeable lope at idle - Works with stock converter
- Needs aftermarket intake, headers, 3.40 to 4.10 rear gears
- Requires thrust button and wear plate and suitable timing cover with thrust button and built-in wear plate
- High pressure / high volume fuel pumps require bronze tip fuel pump pushrods - OEM valve springs cannot be used
- Warning: Camshaft Optimized for use with a Melanized or Nitrided distributor gear. Not compatible with cast or steel gears without similar surface treatments. Failure to utilize the proper distributor gear will void all warranties and/or return policies.
1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for roller lifters. Most '87 - '93 GM cars came with roller lifters, but most '87 - '95 trucks came with flat tappet lifters in roller lifter style blocks. If your block has '87+ OEM-style roller cam provisions but does not have roller components fitted, COMP Hyd. Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased. As well as a '87+ OE-Style COMP Hyd. Roller Cam and '87+ OE-Style COMP Roller Lifters . Pre-'87 blocks require Retro-Fit Link Bar Roller Lifters.
Specifications
| Intake Duration at .050 Inch Lift | 215 DD |
| Exhaust Duration at .050 inch Lift | 215 DD |
| Advertised Intake Duration | 270 DD |
| Advertised Exhaust Duration | 270 DD |
| Lobe Separation | 110 DD |
| Intake Valve Lift | 0.5 IN |
| Exhaust Valve Lift | 0.5 IN |
| Basic Operating RPM Range | 1,800-5,000 R3 |
| Grind Number | 270HR |
| Cam Type | Hydraulic Roller |
| Usage | Street/Strip |
| Camshaft Series | Magnum |
| Lifters Included | No |
| K-Kit Upgrade | K12-420-8 |
| Lifter Type | Hydraulic Roller |
| SK-Kit Upgrade | SK12-420-8 |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-420-8 |
| Grind Number | 270HR |
