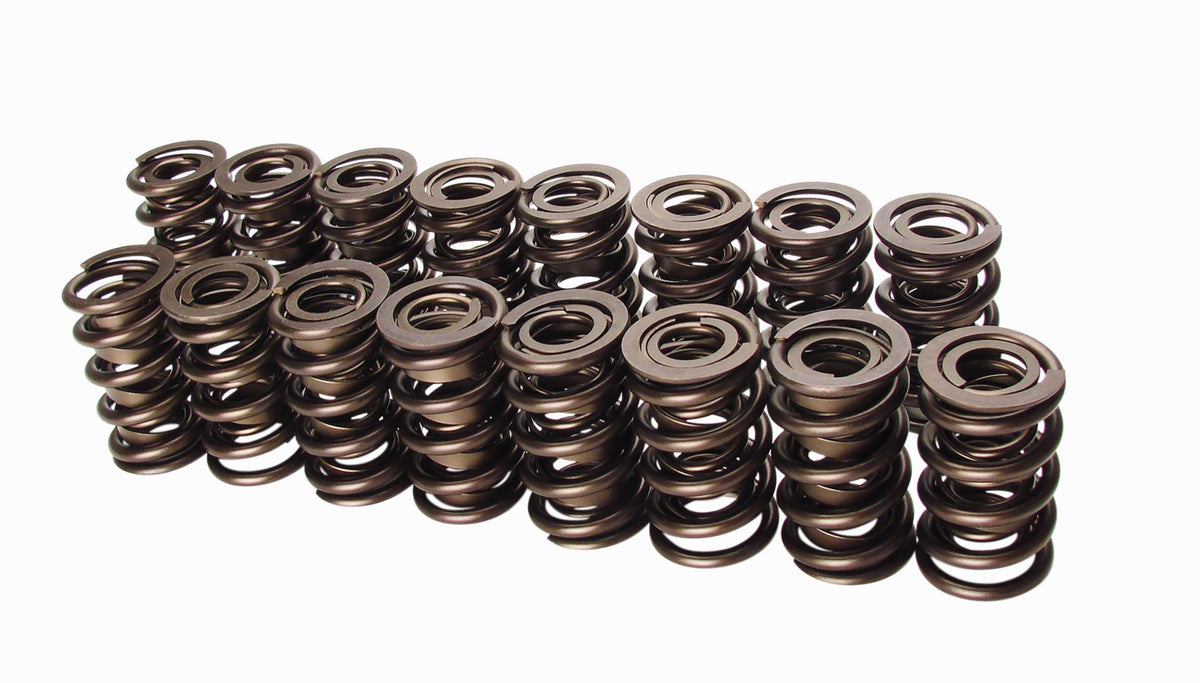

COMP Cams 26115-16 Race Endurance 1.560" OD Dual Springs, 2.050" Installed Height, 16 Springs
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Elite Race Dual Valve Springs: 1.549" OD Outer, .719" ID Inner
Elite Race Double Valve Springs from COMP Cams have a .700" to .800" maximum lift and outside diameter of 1.549". The best in durability and load loss prevention, and designed for use with Roller cams, they are widely used in Dirt Late Model and Asphalt Applications, as well as Serious bracket race engines. The Metallurgists at COMP Cams scrutinize every piece of Metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the Metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring Steel is the COMP Cams standard when selecting materials.
Specifications
| Number of Springs | 2 |
| Inner Spring Inside Diameter | 0.709 IN |
| Outer Spring Inside Diameter | 1.114 IN |
| Coil Bind Height | 1.165 IN |
| Outer Spring Outside Diameter | 1.56 IN |
| Seat Height | 2.05 IN |
| Seat Pressure | 225 PSI |
| Compatible Spring Cup (O.D. Locator) | 4700-16 |
| Compatible Shims | 4757 |
| Compatible .570" Guide Diameter Spring Seats | 4781-16 |
| Compatible .630" Guide Diameter Spring Seats | 4782-16 |
| Spring Rate | 544 PPI |
| Compatible Retainer | 748-16 |
| Valve Spring Series | Race Endurance |
| Damper | Yes |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
