COMP Cams 4784-16 Engine Valve Spring Seat

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

COMP Cams

SKU 4784-16

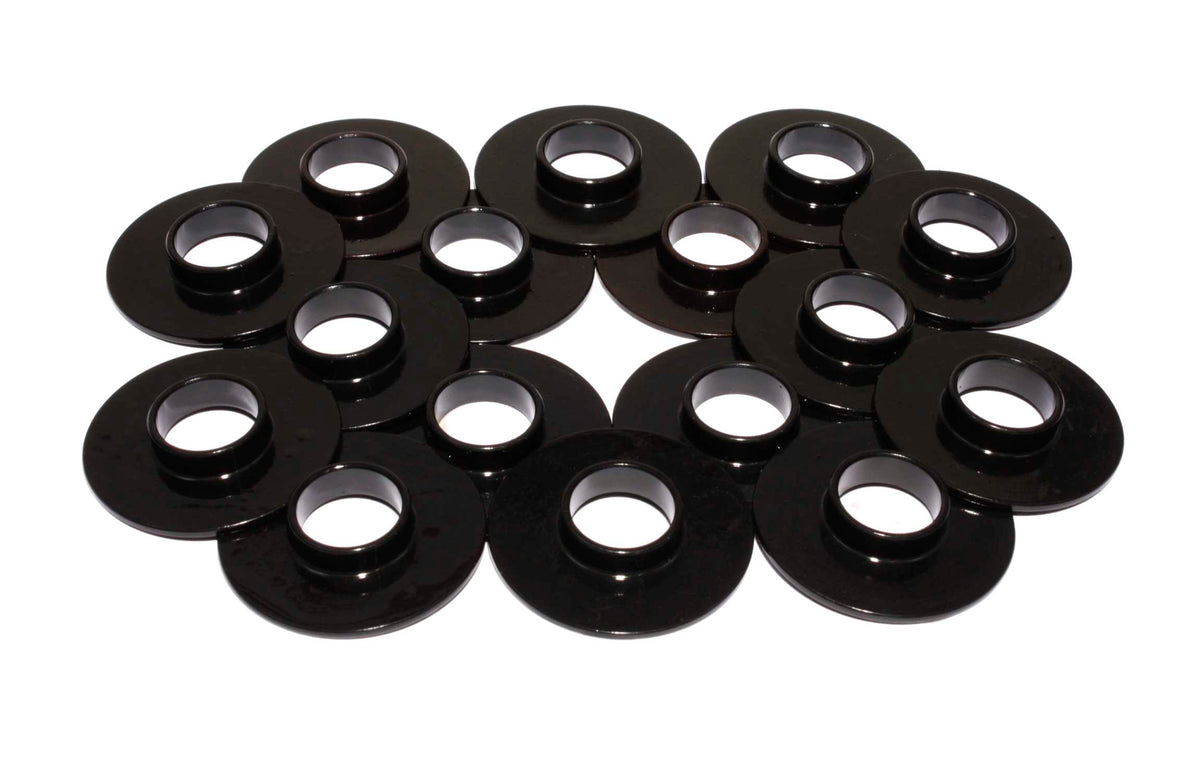

COMP Cams 4784-16 ID Spring Locator Set of 16 - 1.500" OD, .570" ID, .060" Thickness

Name: COMP Cams 4784-16 ID Spring Locator Set of 16 - 1.500" OD, .570" ID, .060" Thickness
Brand: COMP Cams
SKU: 4784-16
Price: 72.95 USD
Availability: InStock

$72.95 USD

Check Availability

Check availability, to reach.

Free shipping over $80 To the USA

Warranty 12 Months

Is this converter legal for your car? CARB legality checker · instant

Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4783 features a 1.540" OD and a .640" ID.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.

Specifications

Locator Inner Diameter	0.57 IN
Locator Outer Diameter	1.5 IN
Spring Inner Diameter	0.735 IN
Inside Diameter	.570" IN
Outside Diameter	1.5 IN
Spring Inside Diameter	.735" IN
Locator Thickness	.060" IN

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 12 Months

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
