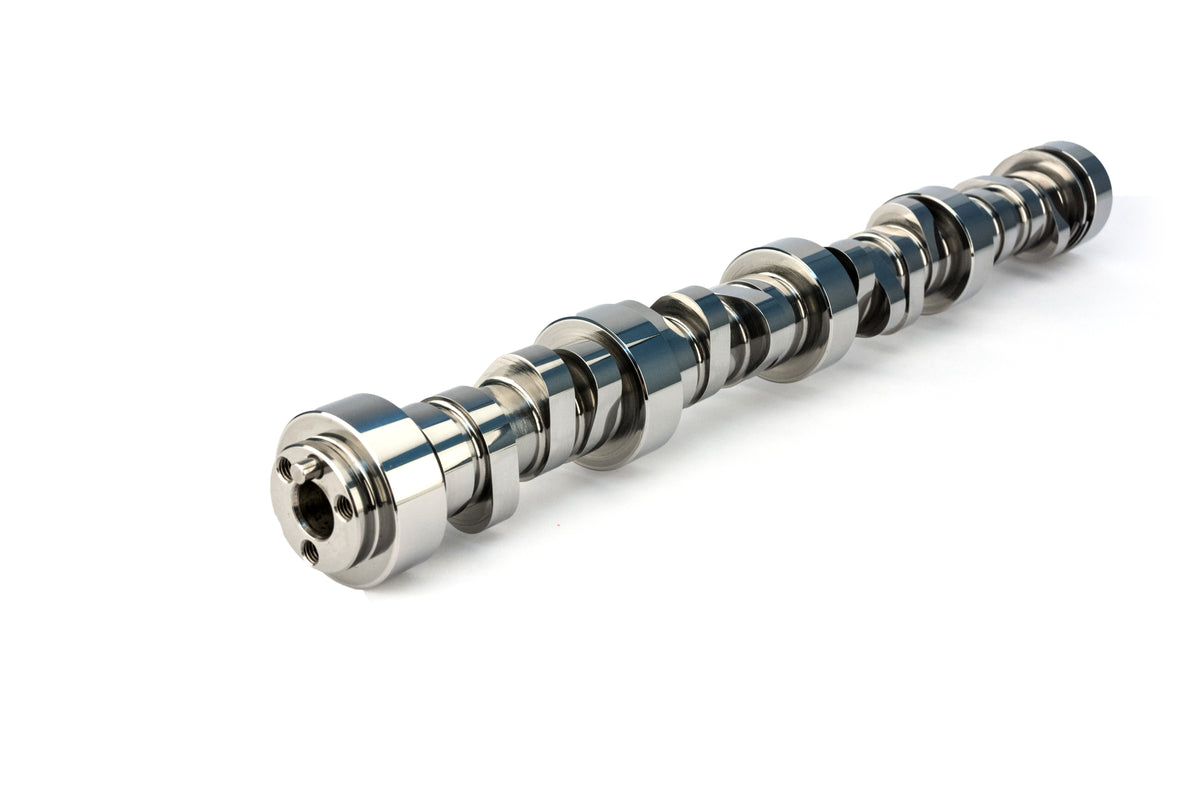

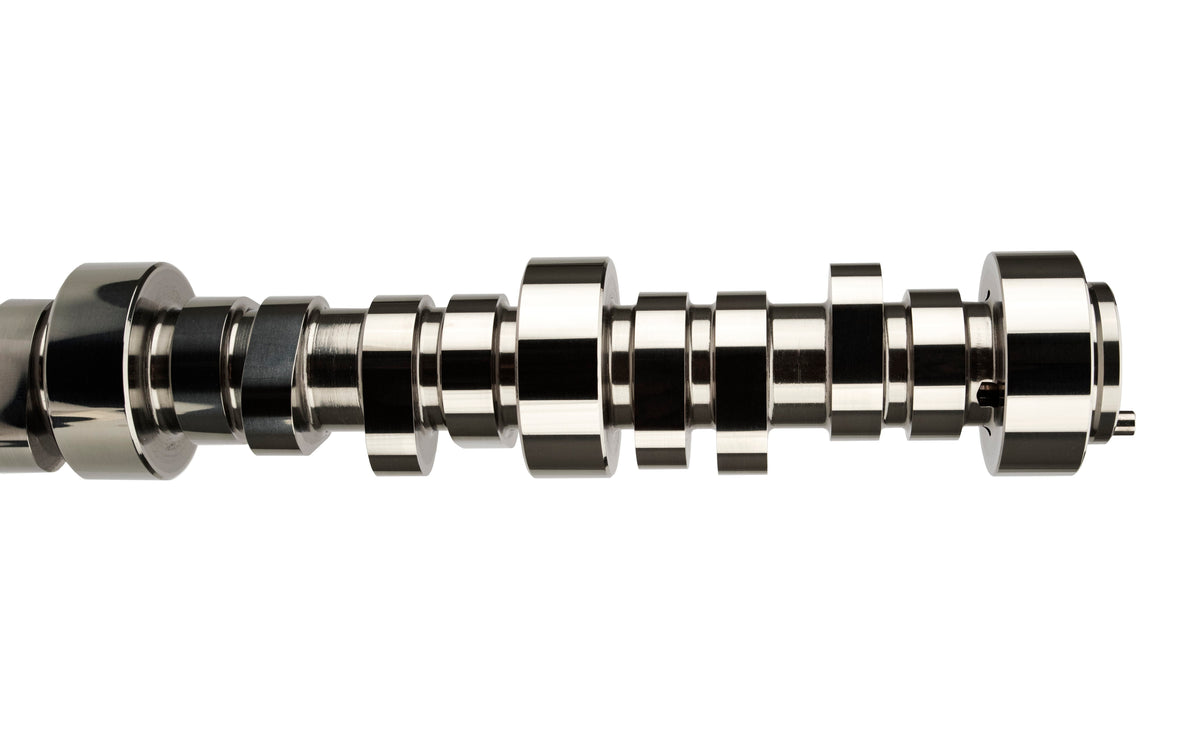

COMP Cams 54-460-11 LSR Cathedral Port 235/243 Hydraulic Roller Cam for GM LS GEN III/IV
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Very strong from mid-range to high end torque and horsepower for LS engines with cathedral port cylinder heads.
Hydraulic Roller: Very strong from mid-range to high end torque and horsepower for LS engines with cathedral port cylinder heads.
Specifications
| Camshaft Series | LSR Cathedral Port All Out Power |
| Cam Type | Hydraulic Roller |
| Grind Number | 285LR HR-13 |
| Basic Operating RPM Range | 2,200-7,200 R3 |
| Intake Duration at .050 Inch Lift | 235 DD |
| Exhaust Duration at .050 inch Lift | 243 DD |
| Advertised Intake Duration | 285 DD |
| Advertised Exhaust Duration | 293 DD |
| Lobe Separation | 113 DD |
| Intake Valve Lift | 0.621 IN |
| Exhaust Valve Lift | 0.624 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
| Engine Family | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Lifter Type | Hydraulic Roller |
| Grind Number | 285LR HR-13 |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
