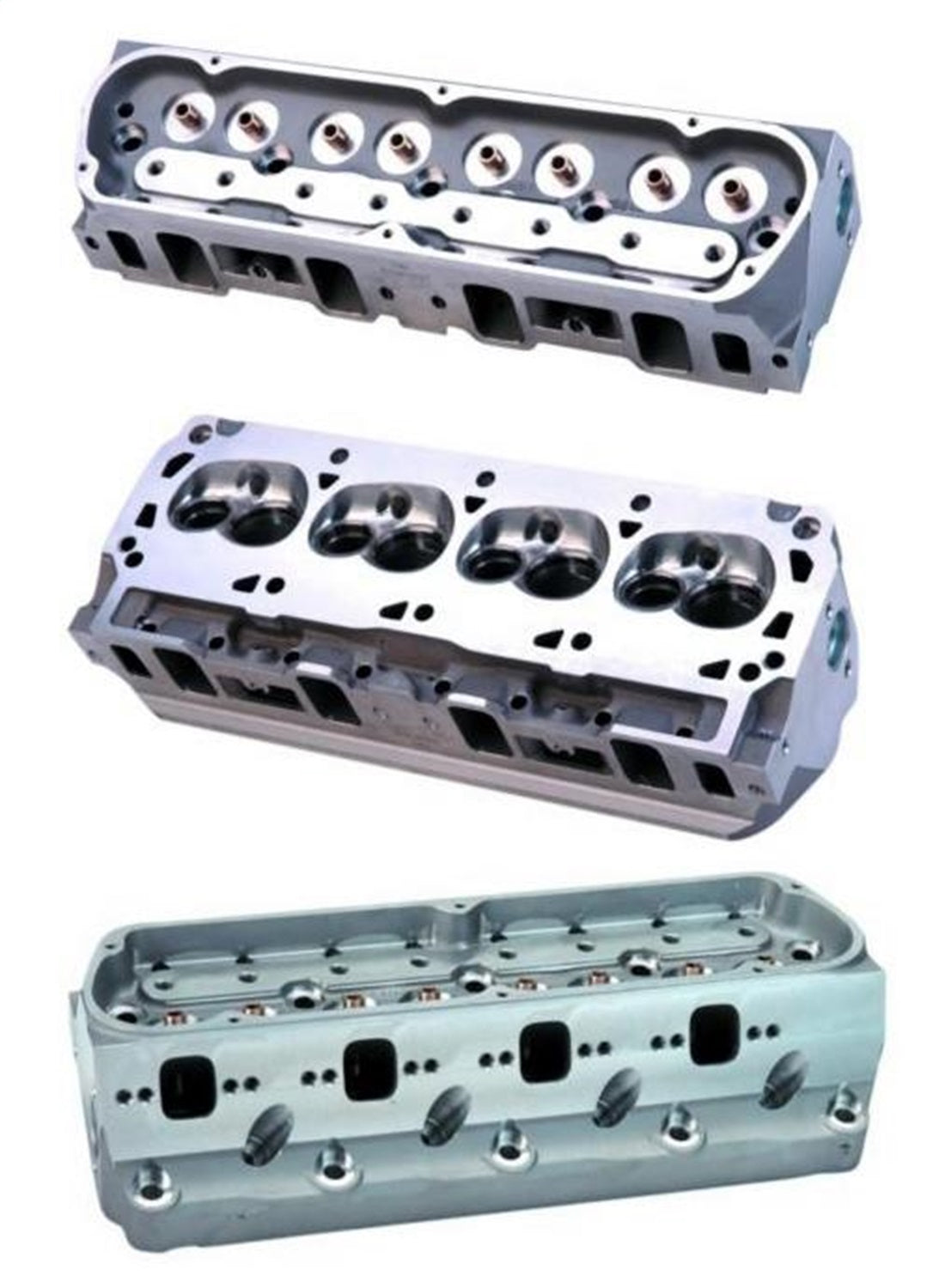

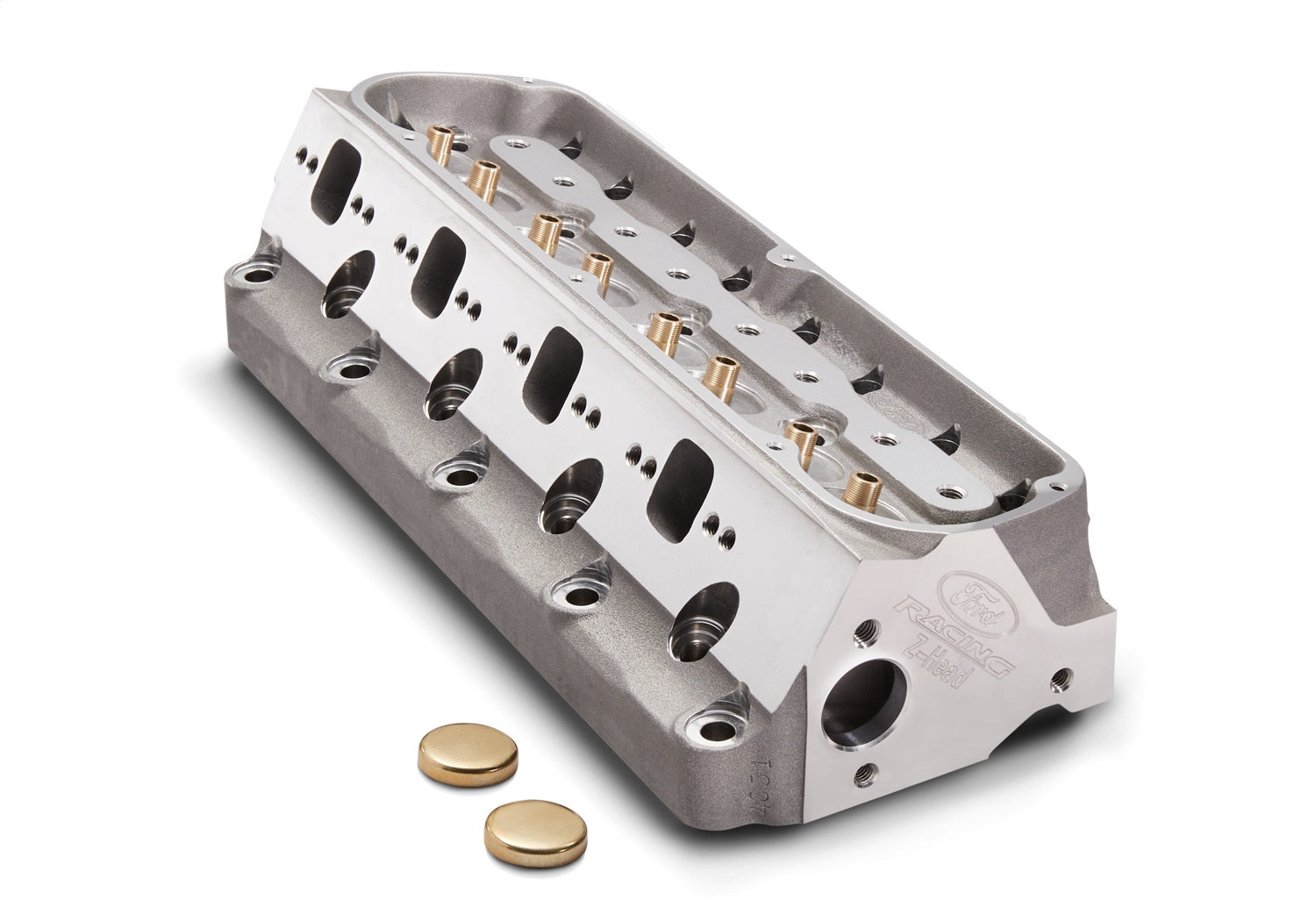

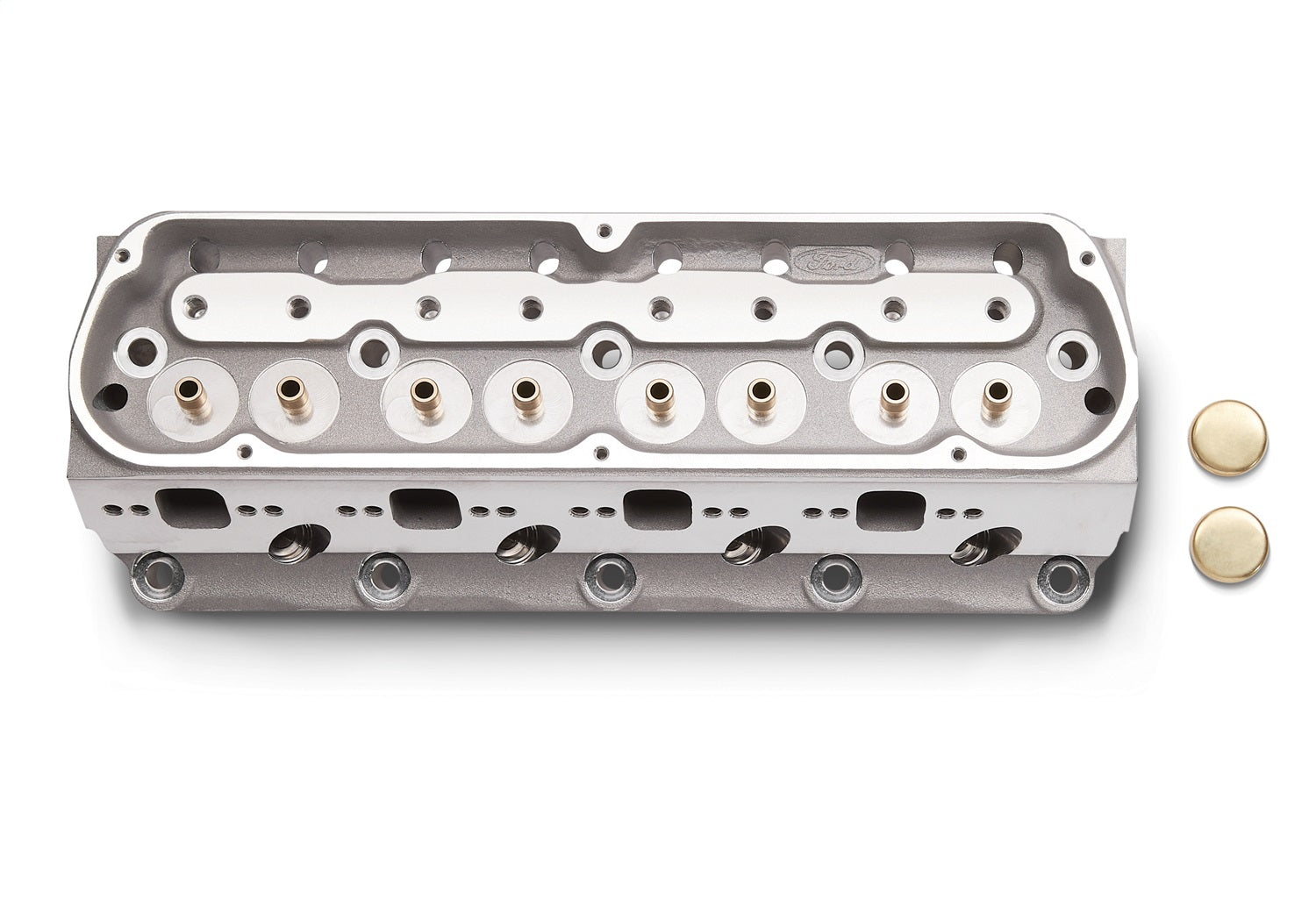

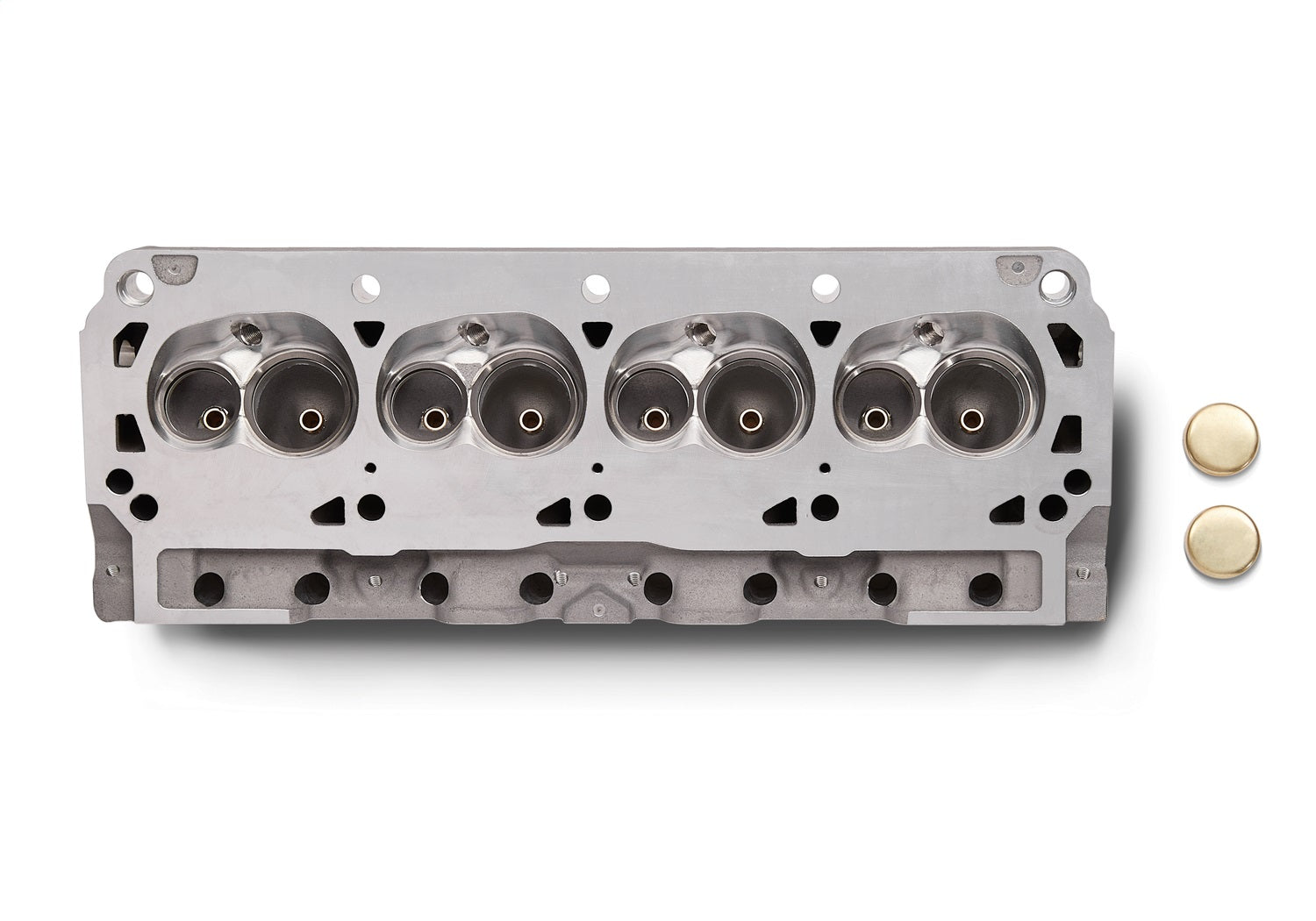

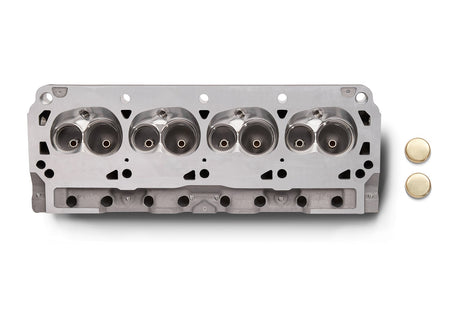

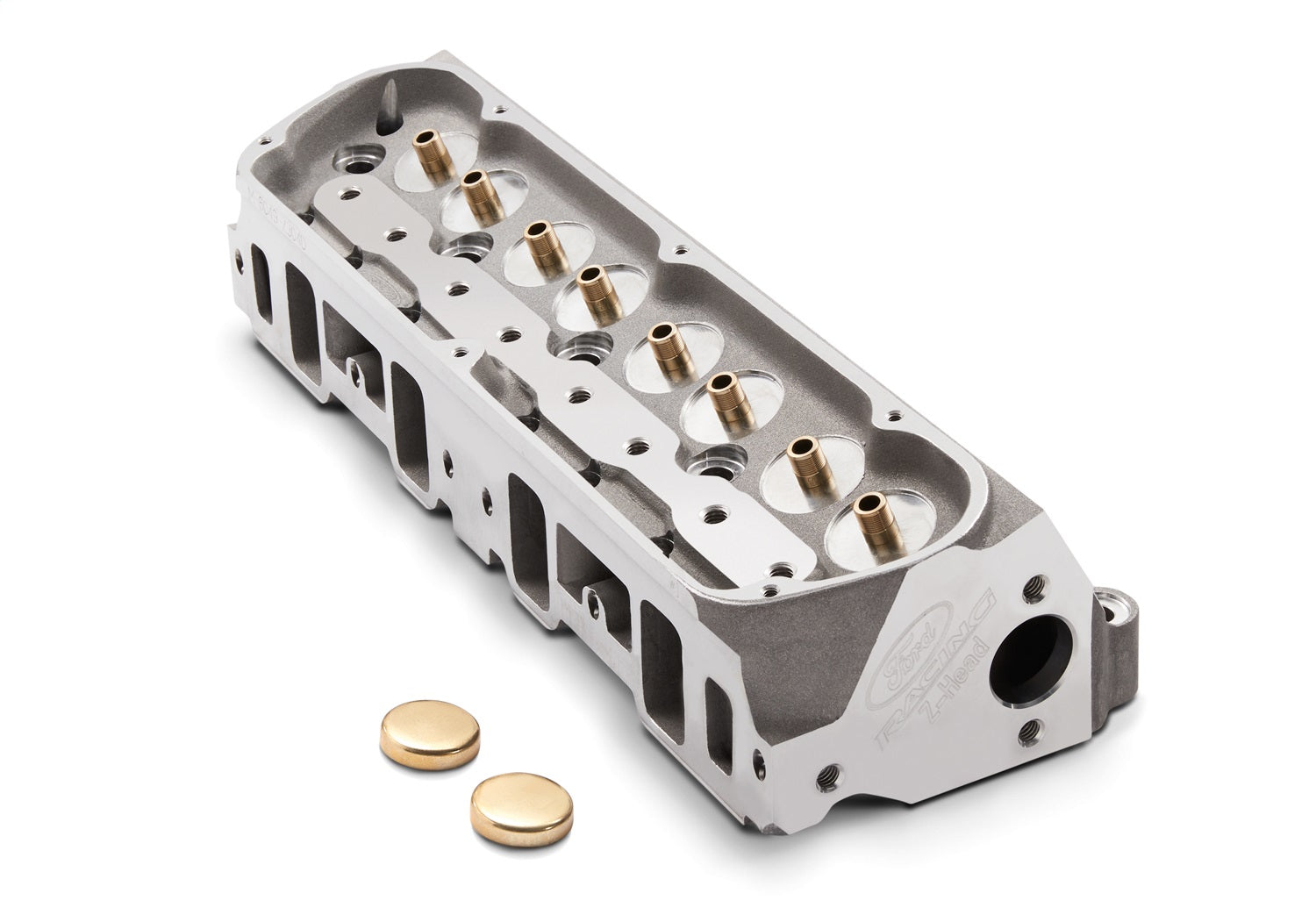

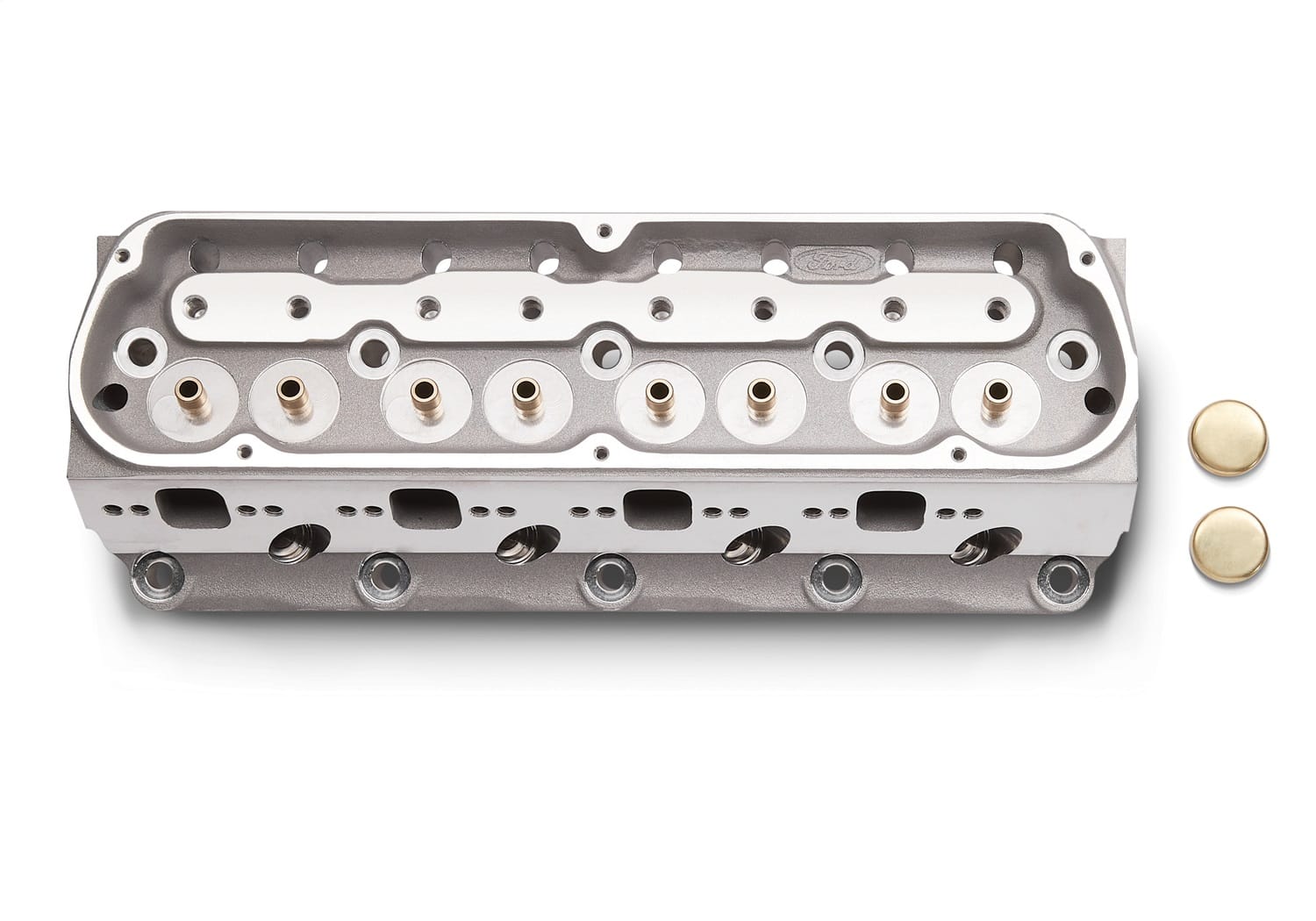

Ford Performance M-6049-Z304D Engine Cylinder Head
Regular price
$1,155.00 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
302/351W "Z-Head" Aluminum Head-Bare 63CC
Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.
Features
- Designed Using Solid Modeling Technology
- Raised Exhaust Port Exit
- Custom Headers May Be Required
- Made in the USA
- Cast From Prime A356 T6 Aluminum
- Heads are Cast w/High-Flow Ports
- 20 Degree Inline Valves
- Required Competition Valve Job and Bowl Belding
- Steel Alloy Intake/Exhaust Vale Seats Installed
- Manganese-Bronze Valve Guides Installed w/Semi-Finished ID
- 63cc CNCd Combustion Chamber
- 85cc Exhaust Port Volume As Cast
Short Description: Cylinder Head
Invoice Description: Cylinder Head - M-6049-Z304D
Definition: Engine Cylinder Head
Installation Guide: Download PDF
