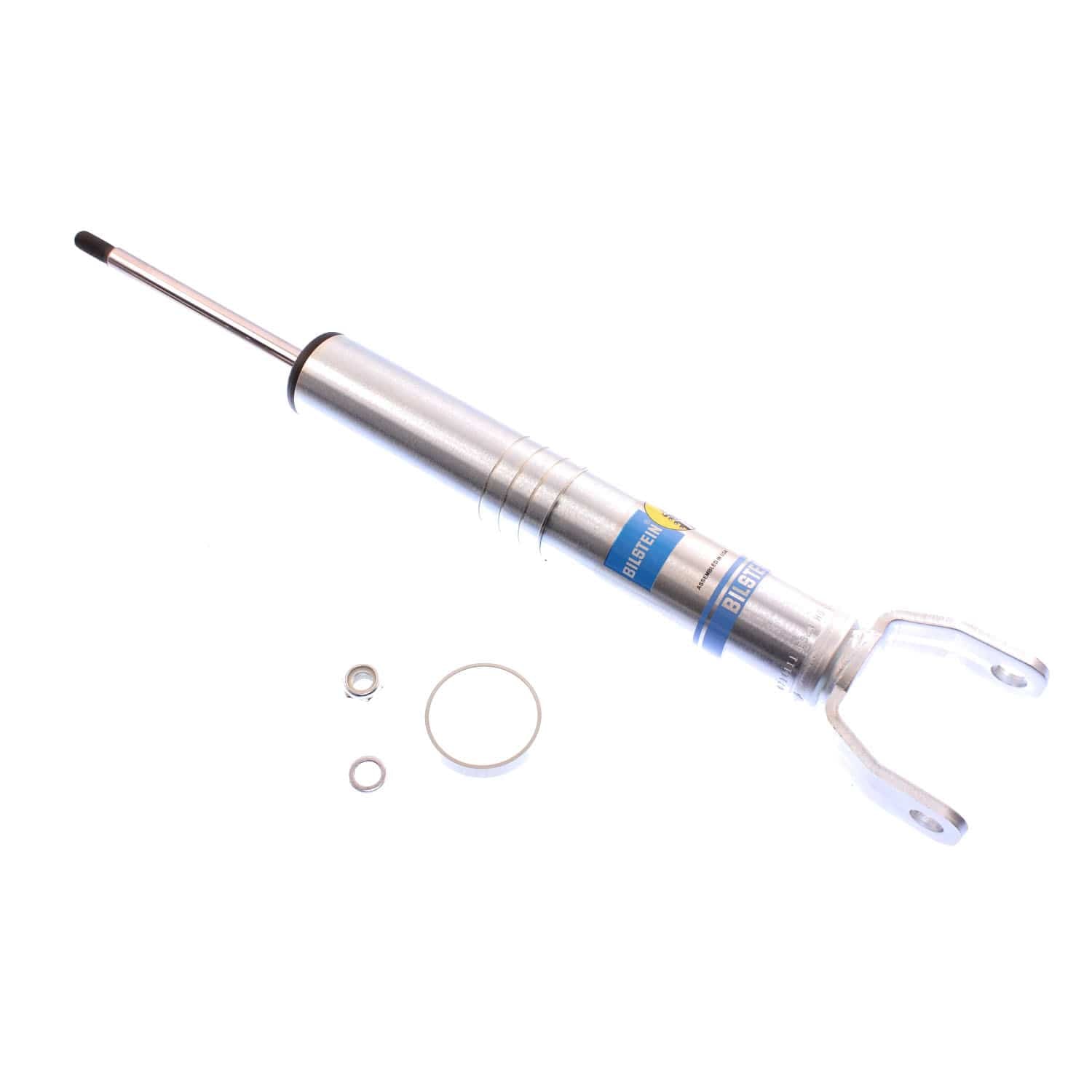

Bilstein 24-186988 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.Β Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Upper Mount Type | Stem |
| Extended Length (MM) | 540.0 |
| Collapsed Length (IN) | 15.18 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Series | B8 5100 (Ride Height Adjustable) |
| Collapsed Length (MM) | 385.5 |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| Finish | Zinc Plated |
| Boot Included | No |
| Extended Length (IN) | 21.26 |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No - Reuse OEM |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 154.4 |
| Stroke/Travel Length (IN) | 6.08 |
Short Description: Shock
Invoice Description: RAM 1500 4WD; '06-08; F; B8 5100
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
