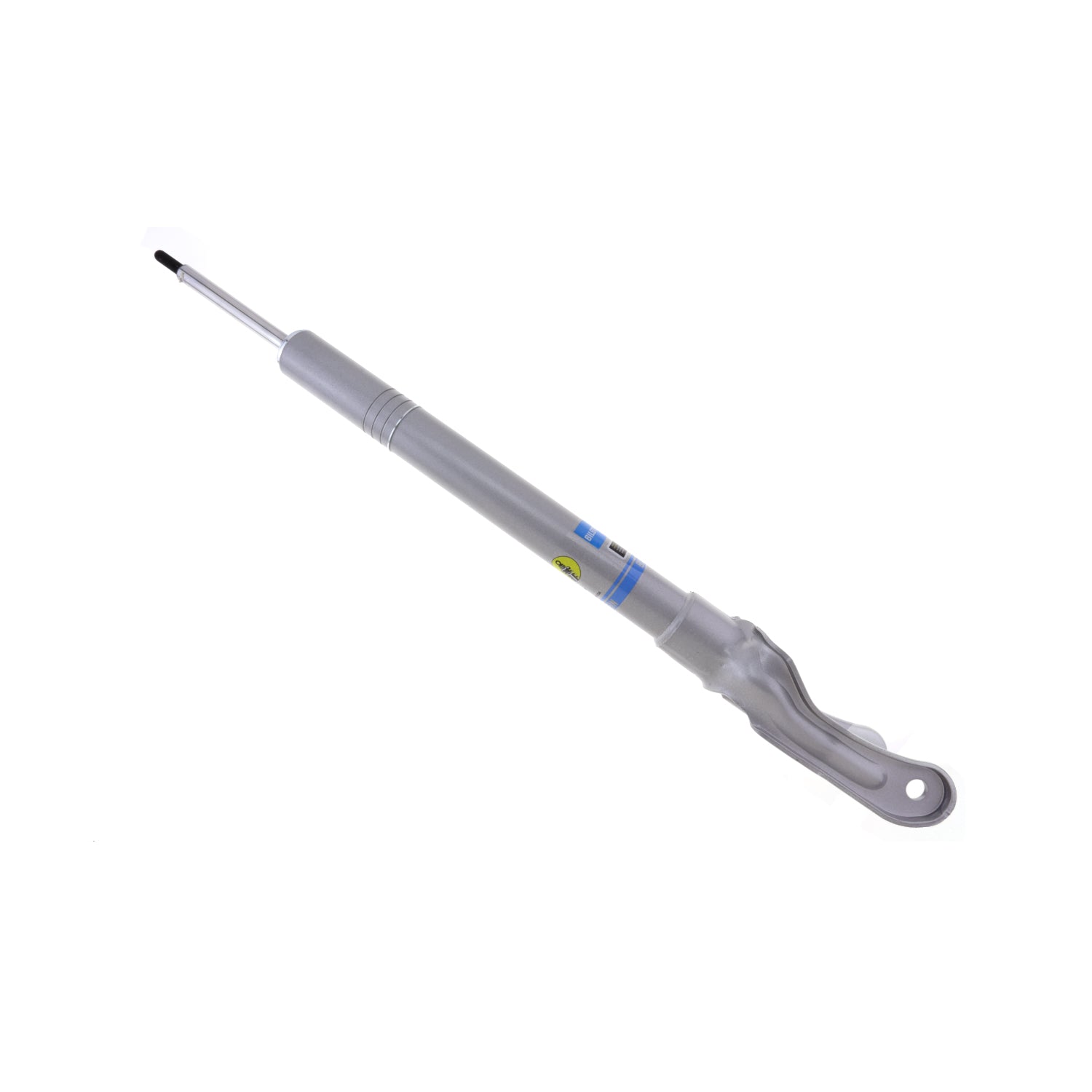

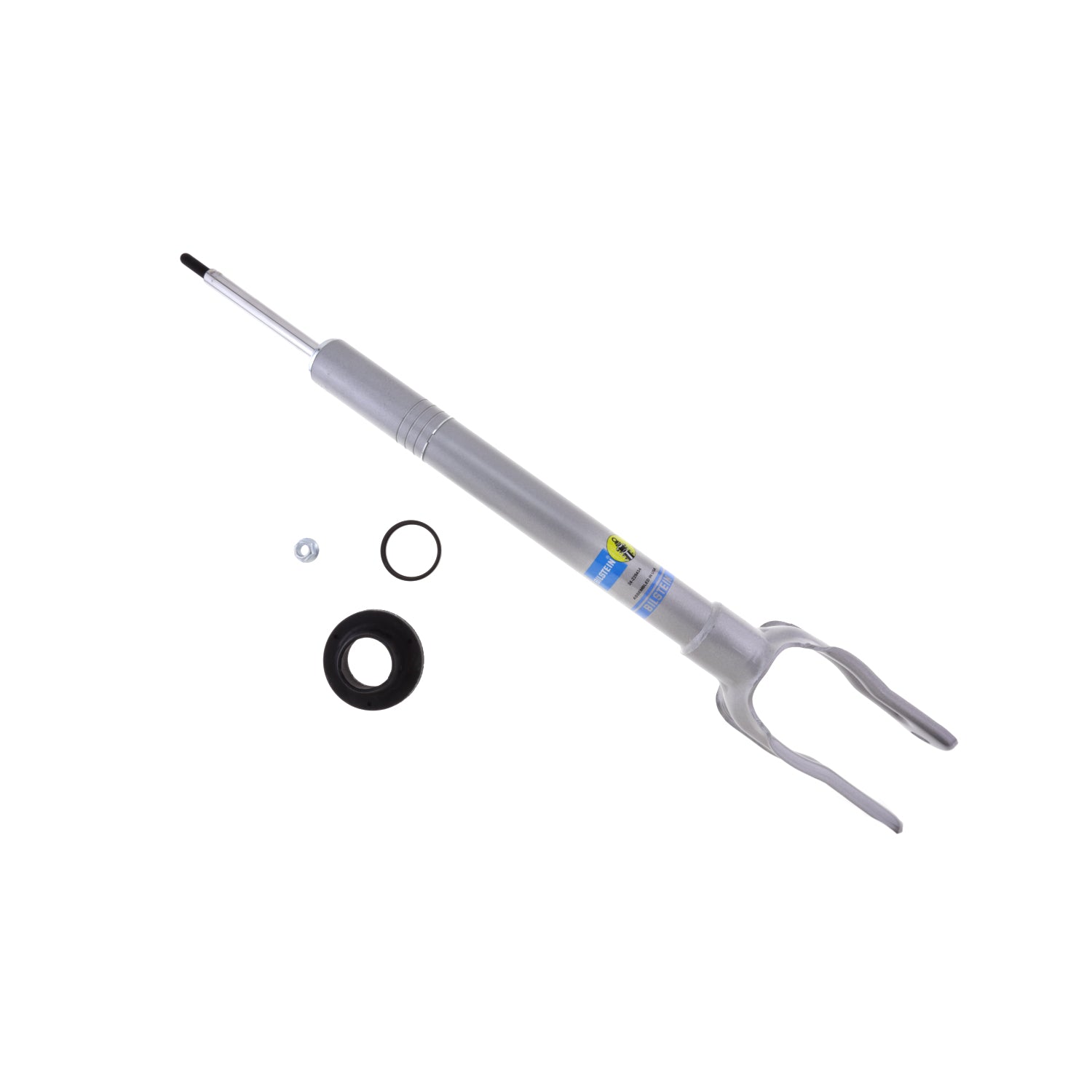

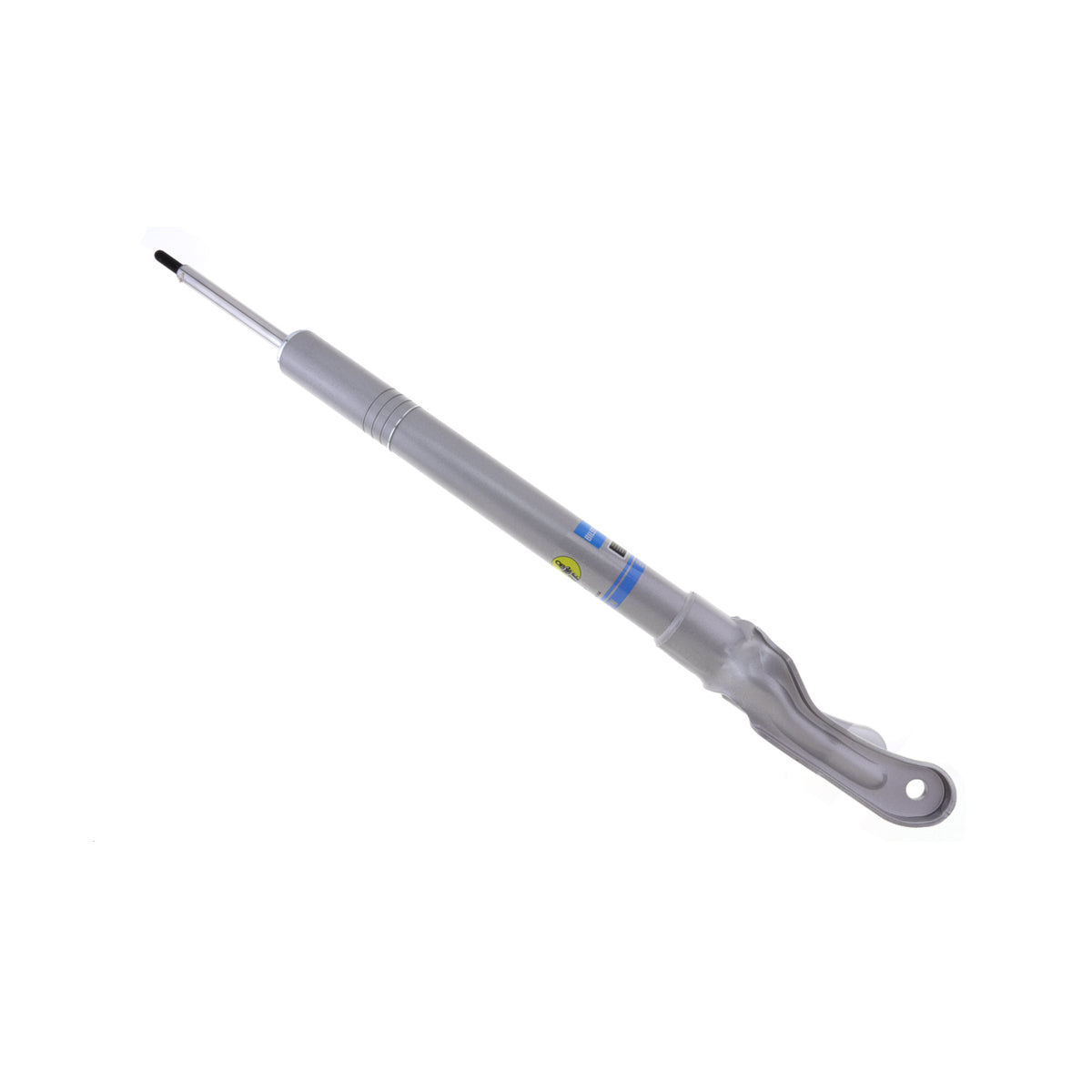

Bilstein 24-225434 Suspension Shock Absorber Front Monotube B8 5100 Ride Height Adjustable
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Jeep Grand Cherokee 2011, F, 5100 Series
Specifications
| Series | B8 5100 (Ride Height Adjustable) |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Upper Mount Type | Stem |
| Lower Mount Type | Clevis |
| Title | Bilstein Shock Absorbers |
| Extended Length (IN) | 32.09 |
| Collapsed Length (MM) | 667.6 |
| Internal Design | Monotube |
| Boot Included | No |
| Reservoir | No |
| Finish | Silver Painted |
| Extended Length (MM) | 815.0 |
| Collapsed Length (IN) | 26.28 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | Yes |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 147.3 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.80 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
