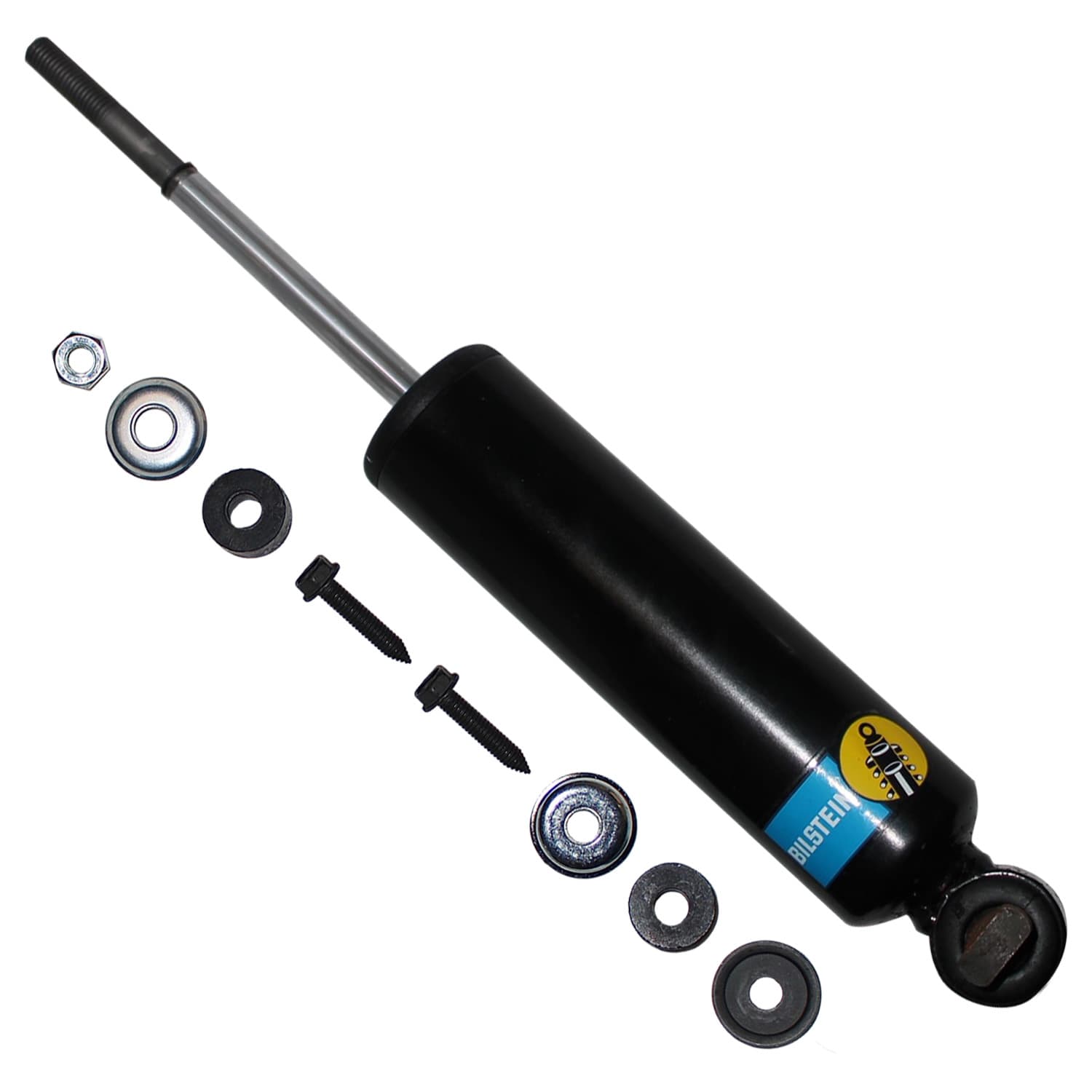

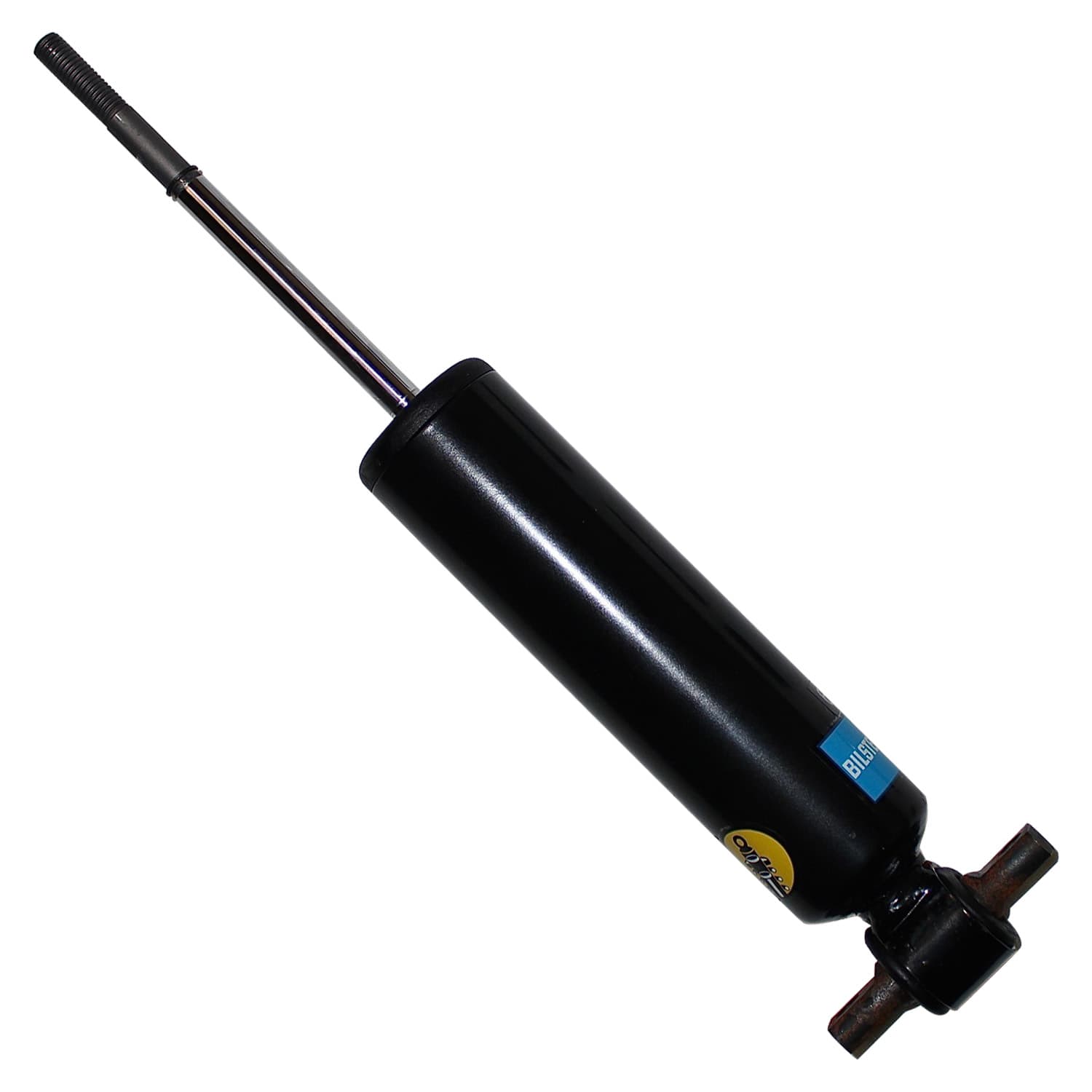

Bilstein 24-296748 - Suspension Shock Absorber GM Metric Front 3/5 Valving Monotube SMX Series Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.
Features & Benefits
- Stock mount design for GM metric chassis applications
- 46mm piston design for maximum damping control
- A wide range of valving choices available for endless tuning combinations
SMX Series - Suspension Shock Absorber
SMX GM METRIC FRONT, 3/6
Specifications
| Extended Length (IN) | 12.01 |
| Lower Mount Type | Bar Pin |
| Series | SMX Series |
| Upper Mount Type | Stem |
| Finish | Black Paint |
| Extended Length (MM) | 305.0 |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Piston Type | Linear |
| Internal Design | Monotube |
| Body Design | Stock Mount Smooth Body |
| Body Material | Steel |
| Collapsed Length (IN) | 8.27 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Compression @ 10"/sec | 175 |
| Rebound @ 10"/sec | 325 |
| Spring Hardware | N/A |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 210.0 |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (IN) | 3.74 |
| Stroke/Travel Length (mm) | 95.0 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
