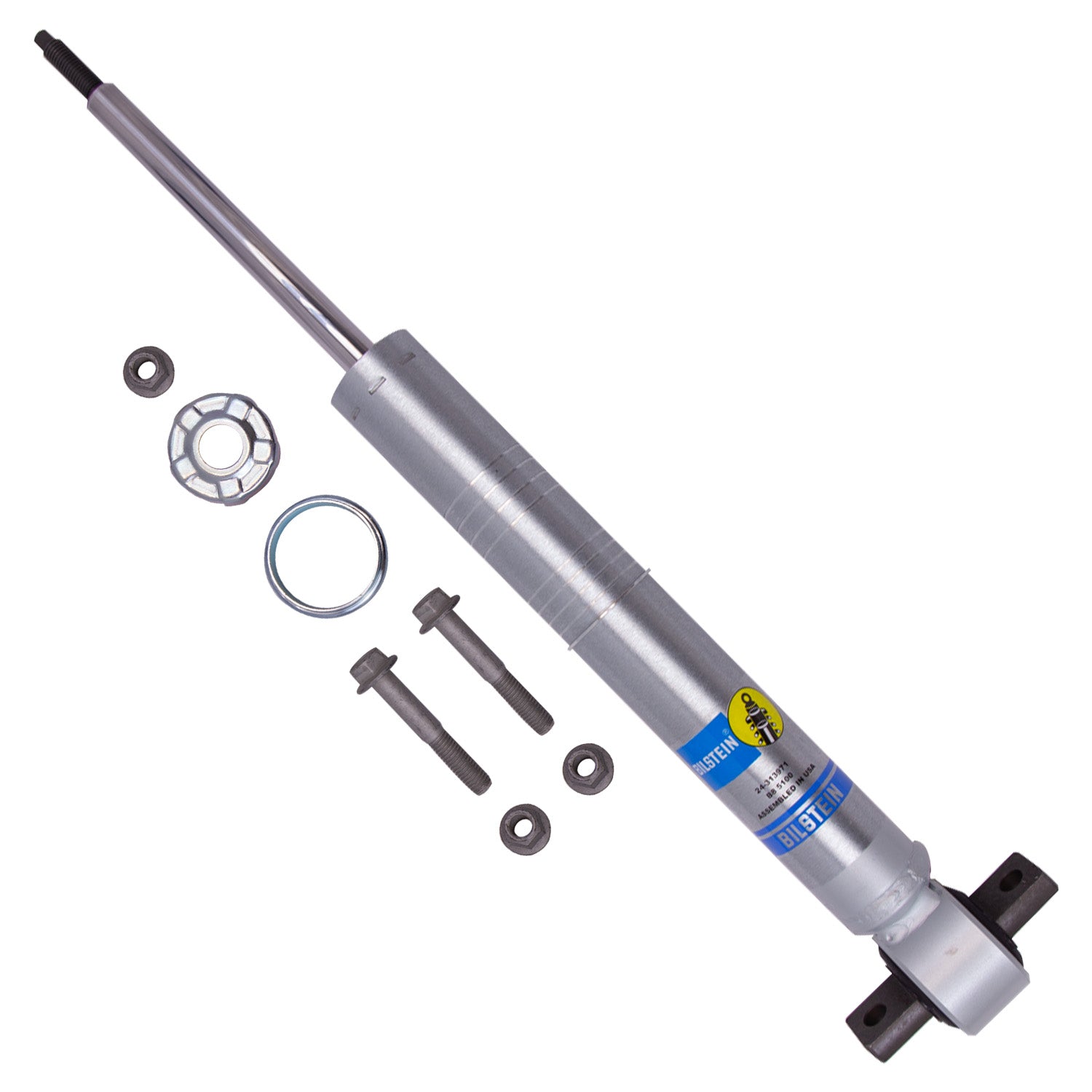

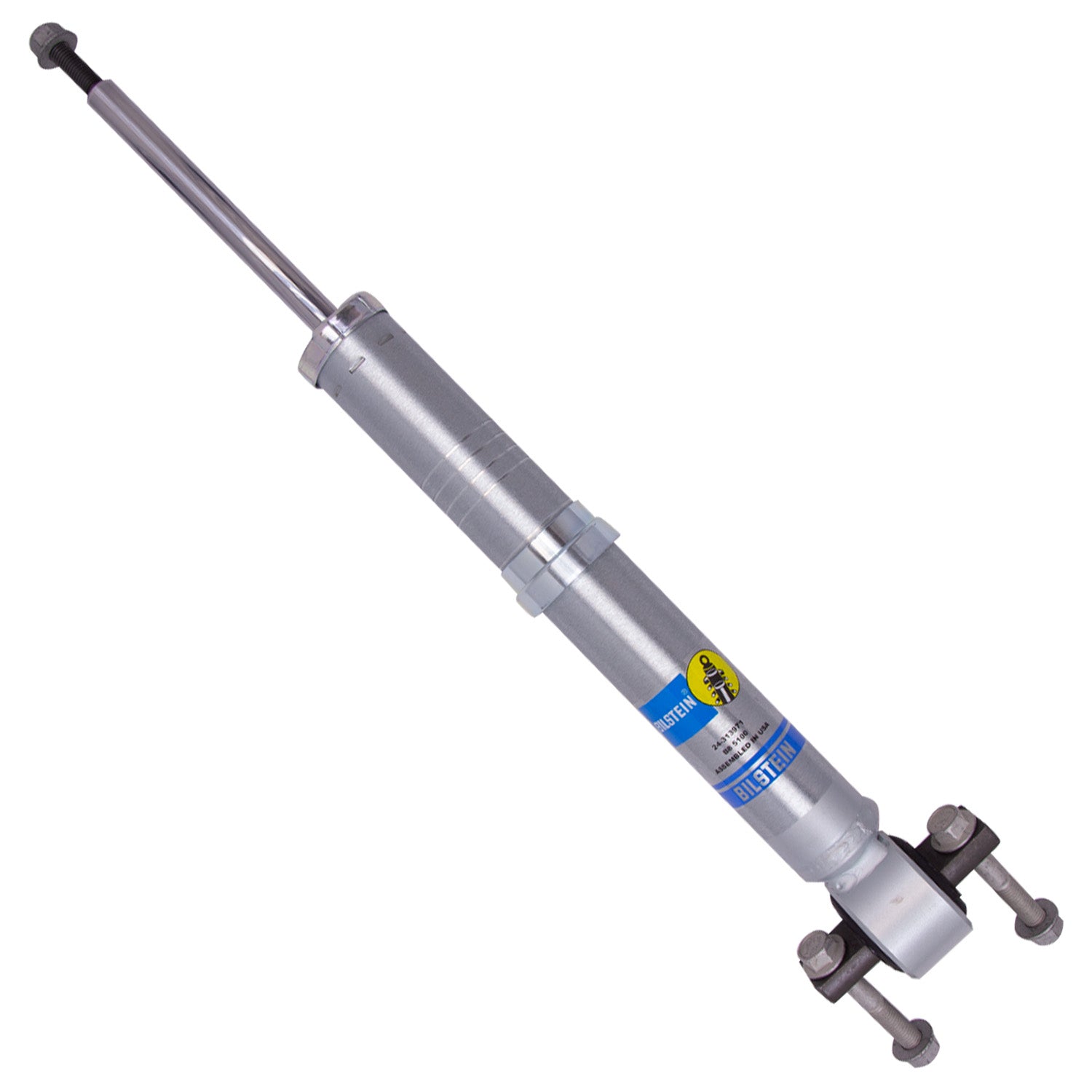

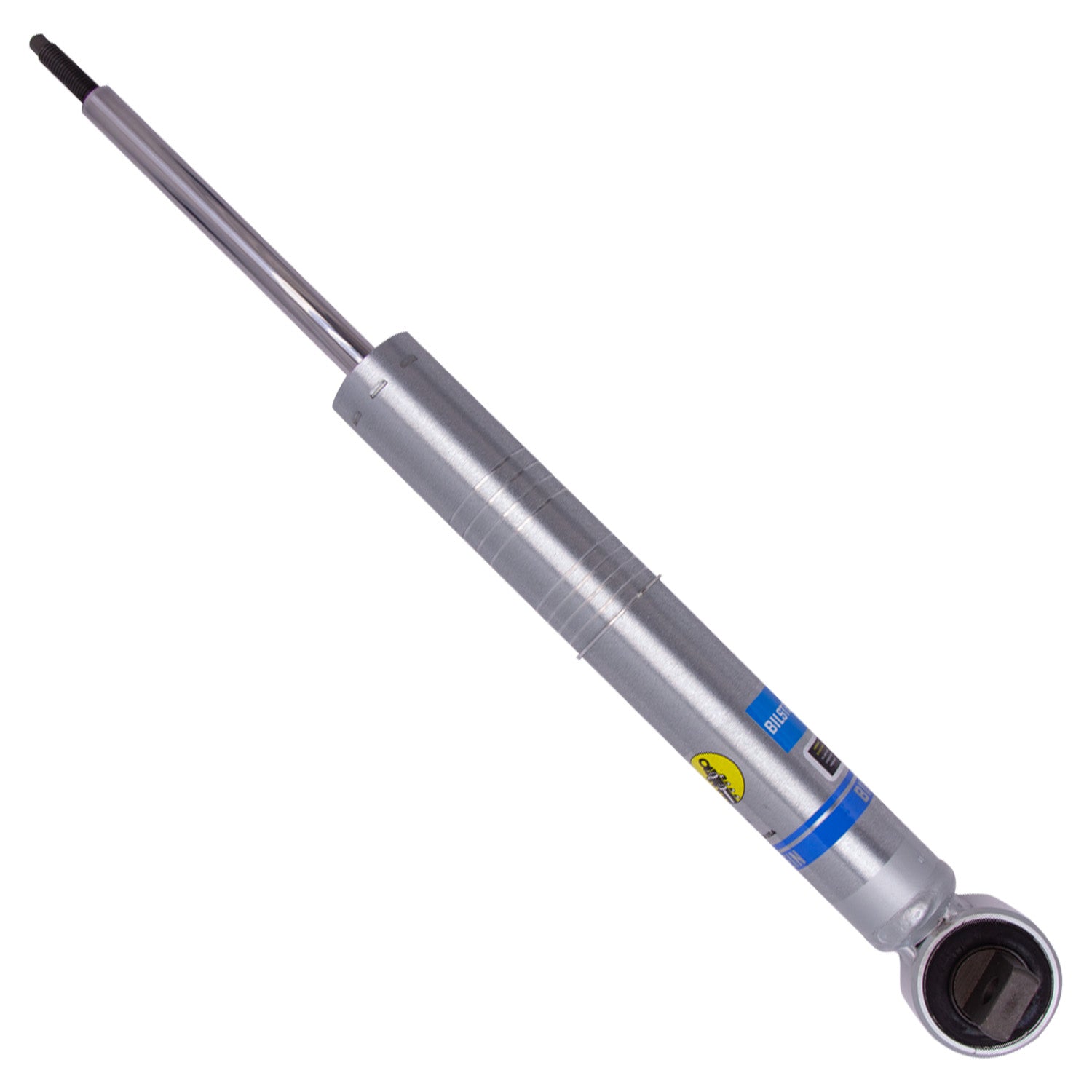

Bilstein 24-313971 Suspension Shock Absorber Front Monotube B8 5100 Lift Height 0-2.9 Inch
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.Β Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Bronco 4WD; Base 4dr; '21+; F; B8 5100
Specifications
| Extended Length (MM) | 579.2 |
| Series | B8 5100 (Ride Height Adjustable) |
| Title | Bilstein Shock Absorbers |
| Reservoir | No |
| Extended Length (IN) | 22.80 |
| Boot Included | No |
| Upper Mount Type | Stem |
| Collapsed Length (MM) | 422.2 |
| Lower Mount Type | Crossbar |
| Spring Seat Included | No - Reuse OEM |
| Internal Design | Monotube |
| Finish | Zinc Plated |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (IN) | 16.62 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 157.0 |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 6.18 |
β WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
