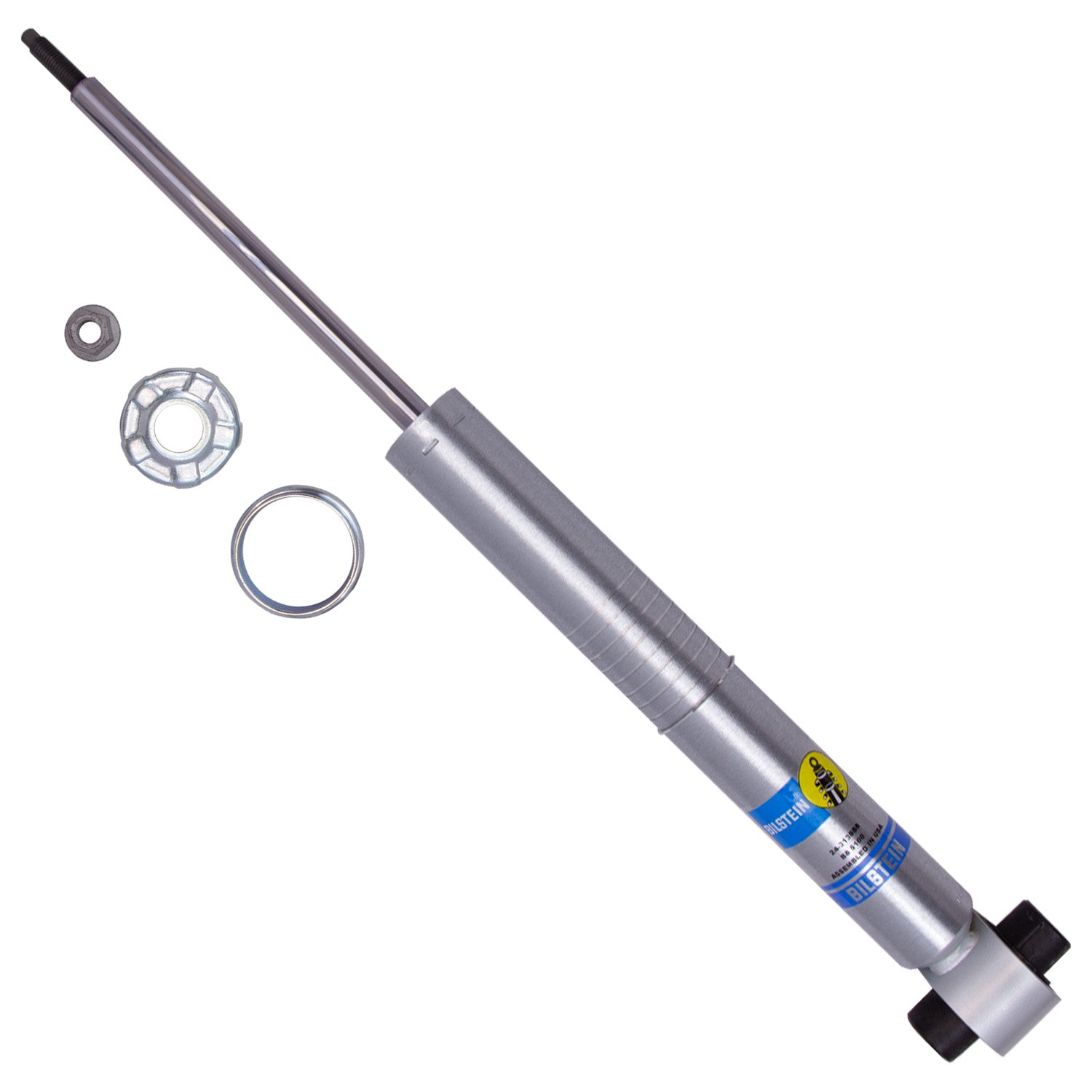

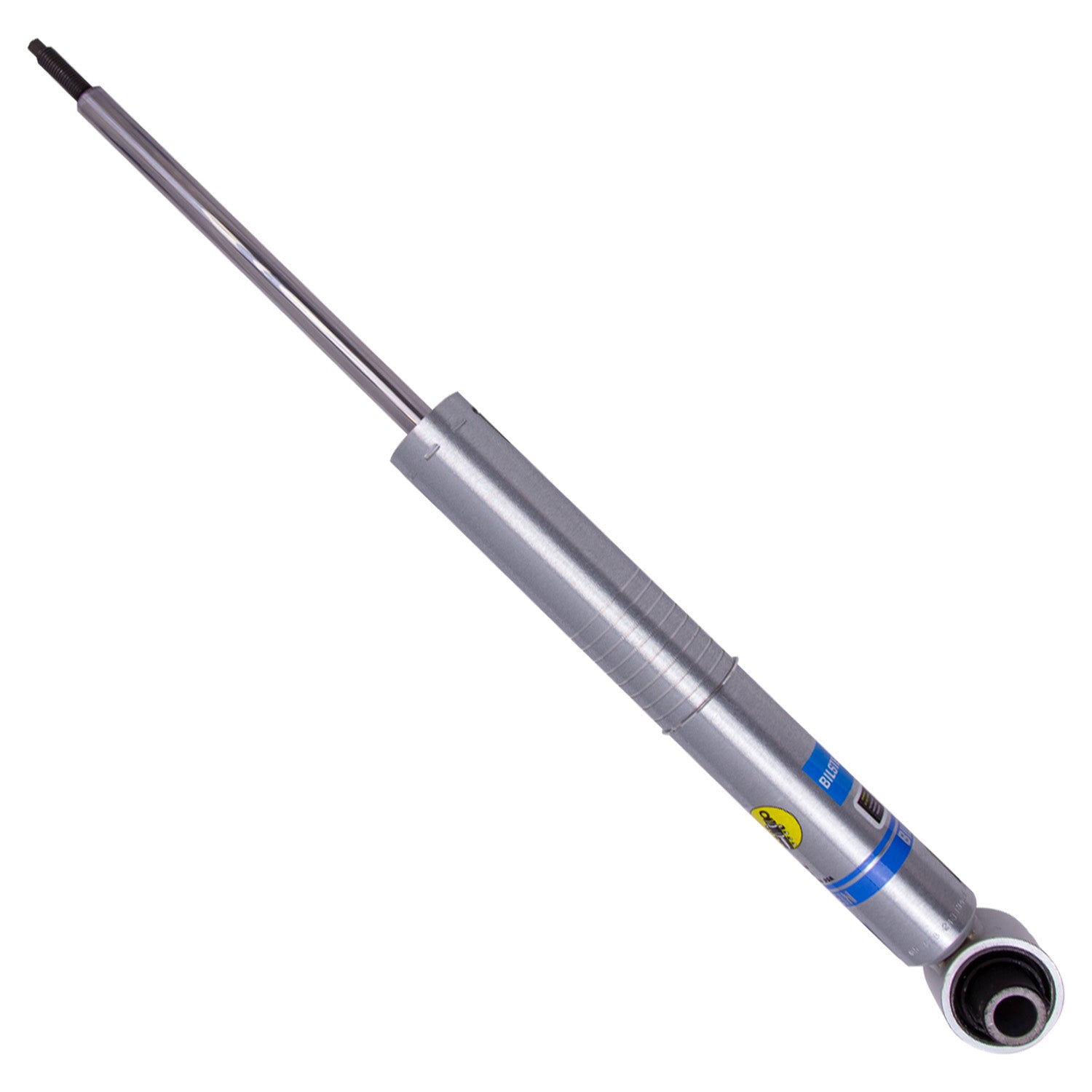

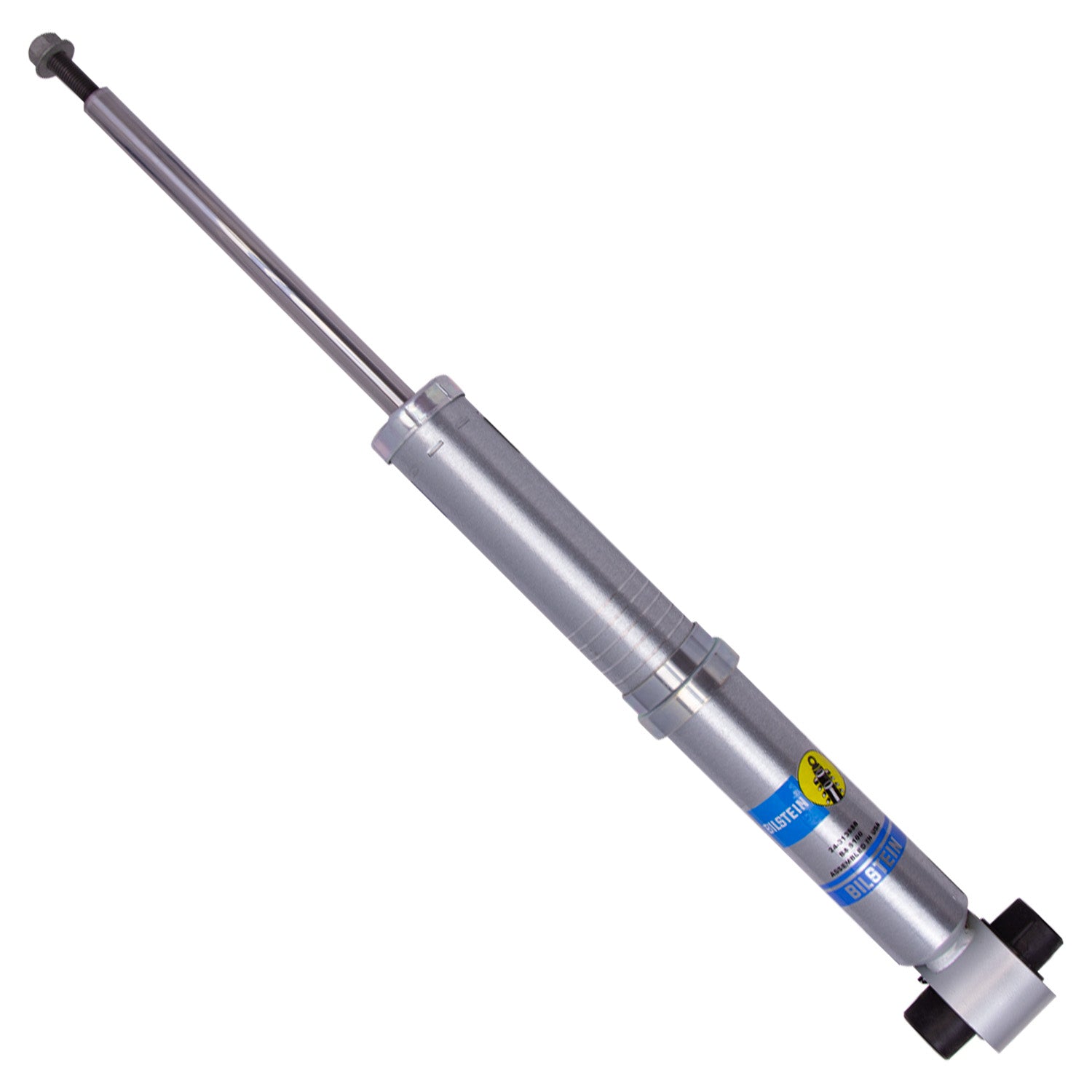

Bilstein 24-313988 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube Rear 2021-2026 Ford Bronco
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Bronco 4WD; Base 4dr; '21+; R; B8 5100
Specifications
| Collapsed Length (IN) | 17.11 |
| Extended Length (IN) | 25.56 |
| Extended Length (MM) | 649.3 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Lower Mount Type | Eye 20.2mm |
| Title | Bilstein Shock Absorbers |
| Series | B8 5100 (Ride Height Adjustable) |
| Boot Included | No |
| Finish | Zinc Plated |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | Stem |
| Reservoir | No |
| Collapsed Length (MM) | 434.6 |
| Spring Seat Included | No - Reuse OEM |
| Internal Design | Monotube |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (mm) | 214.6 |
| Stroke/Travel Length (IN) | 8.45 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
