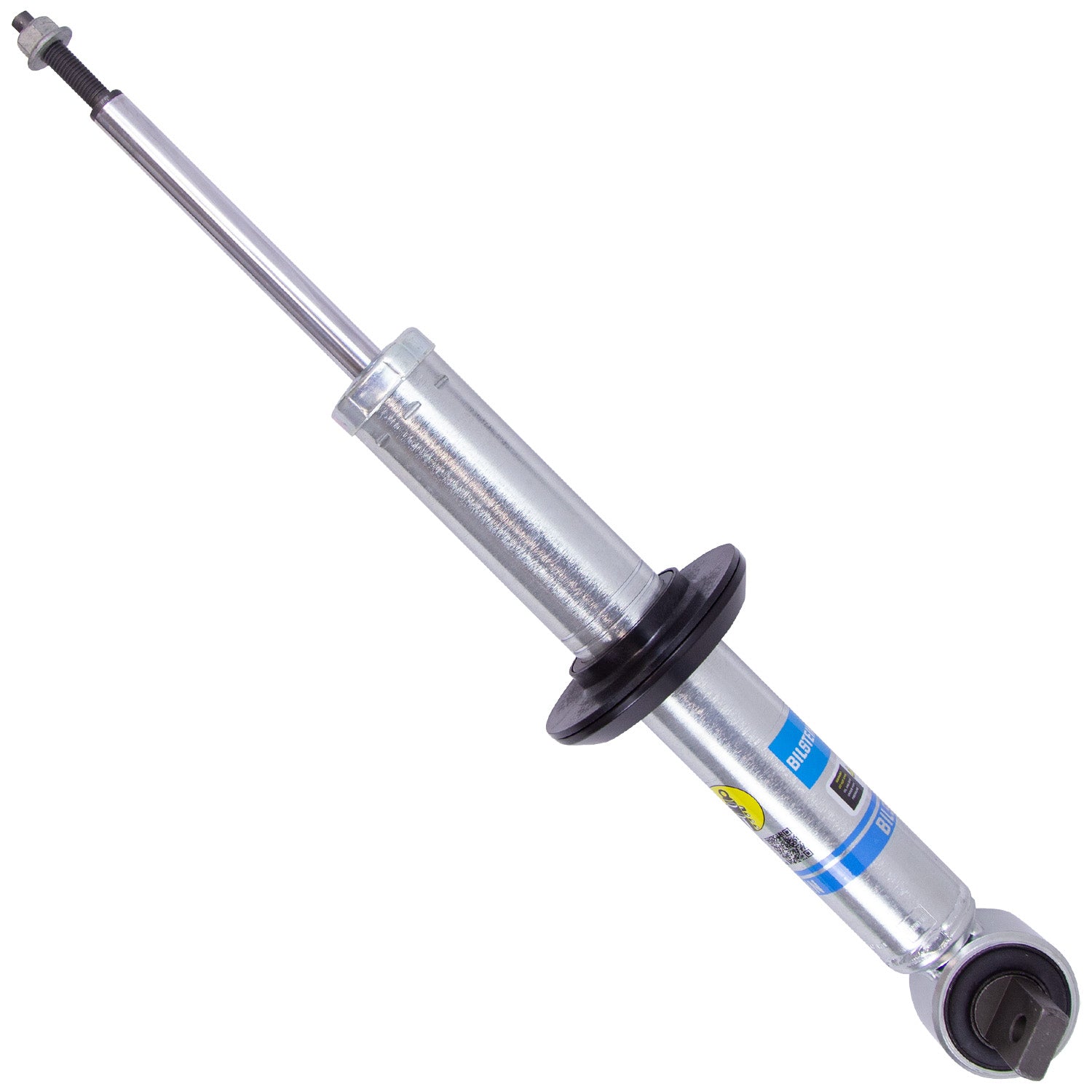

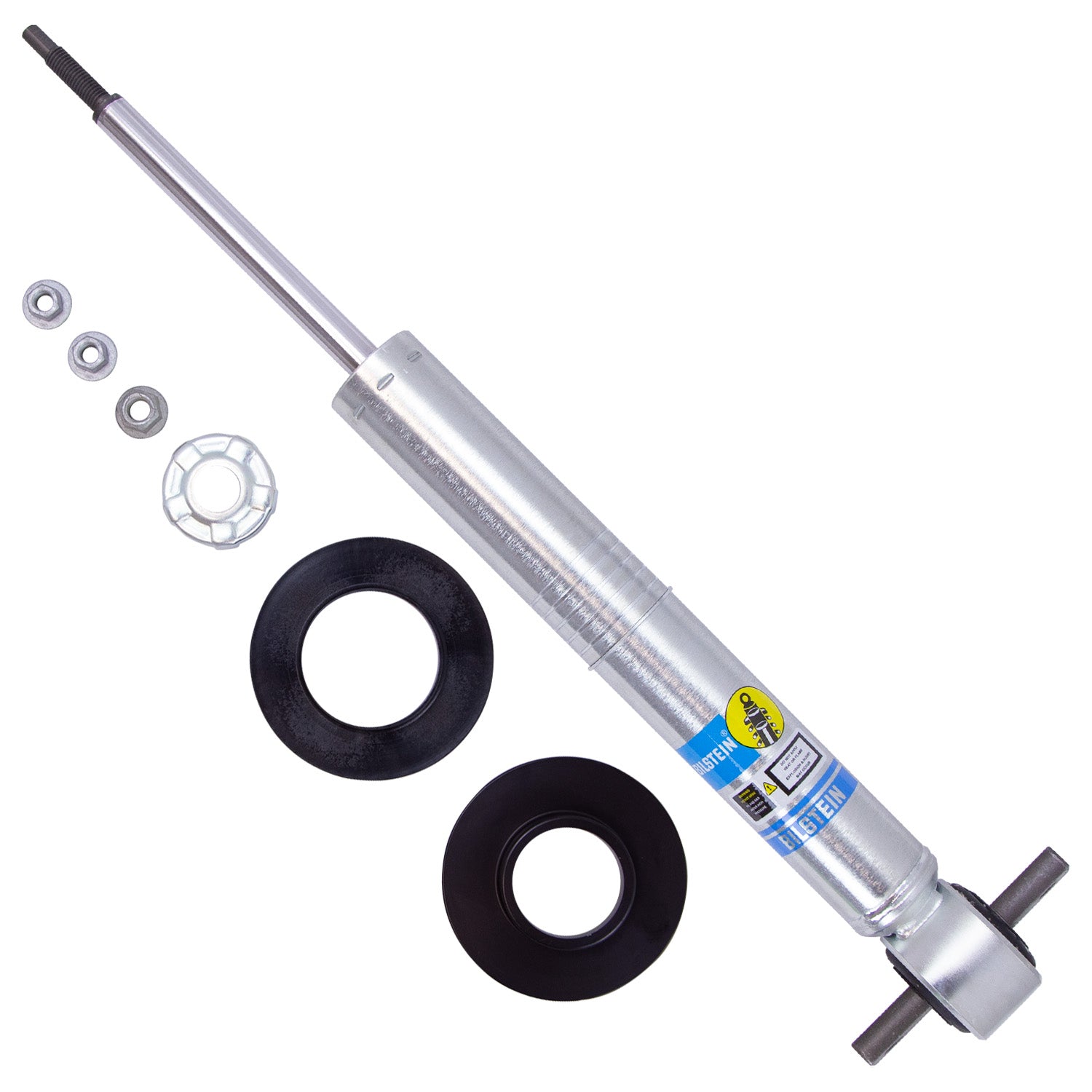

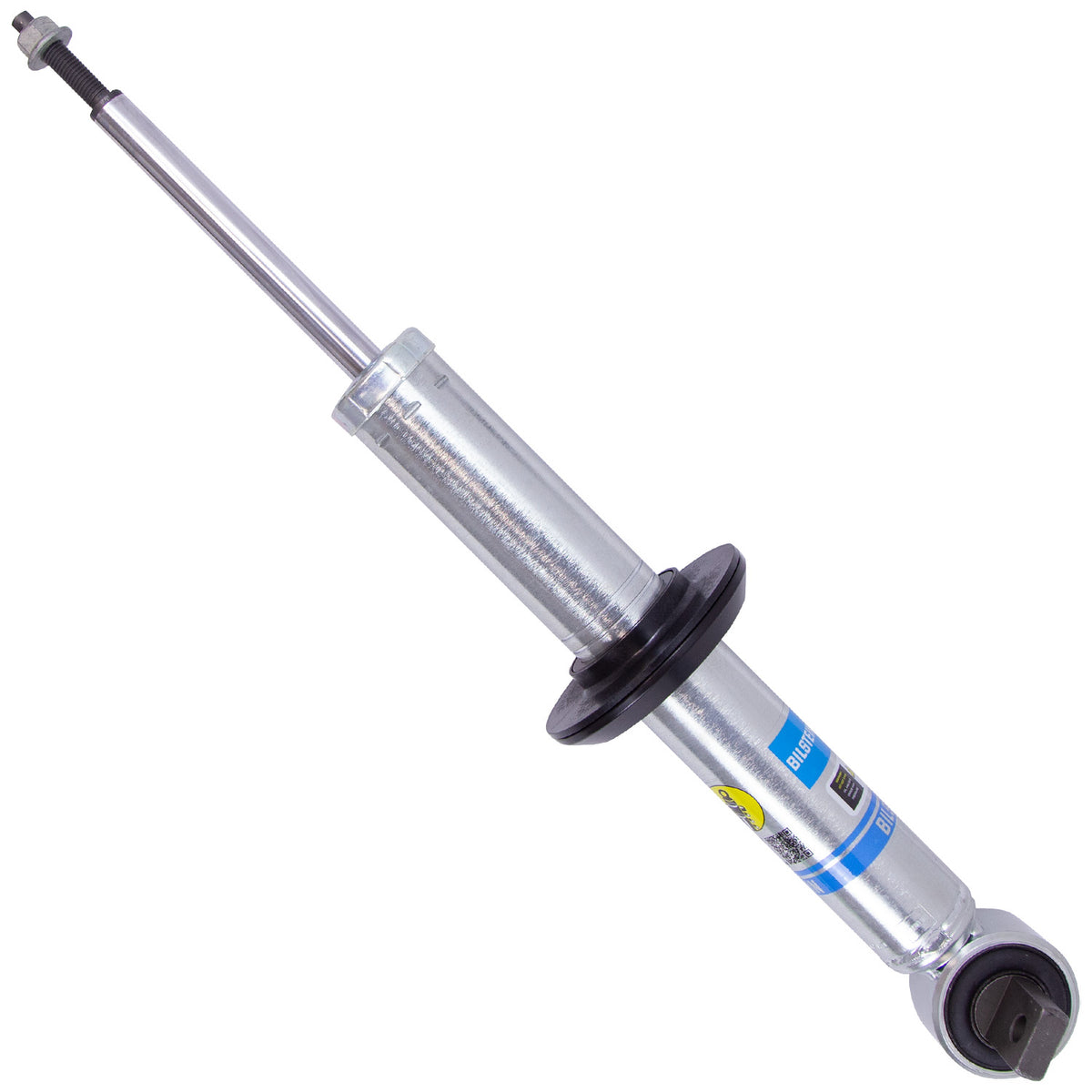

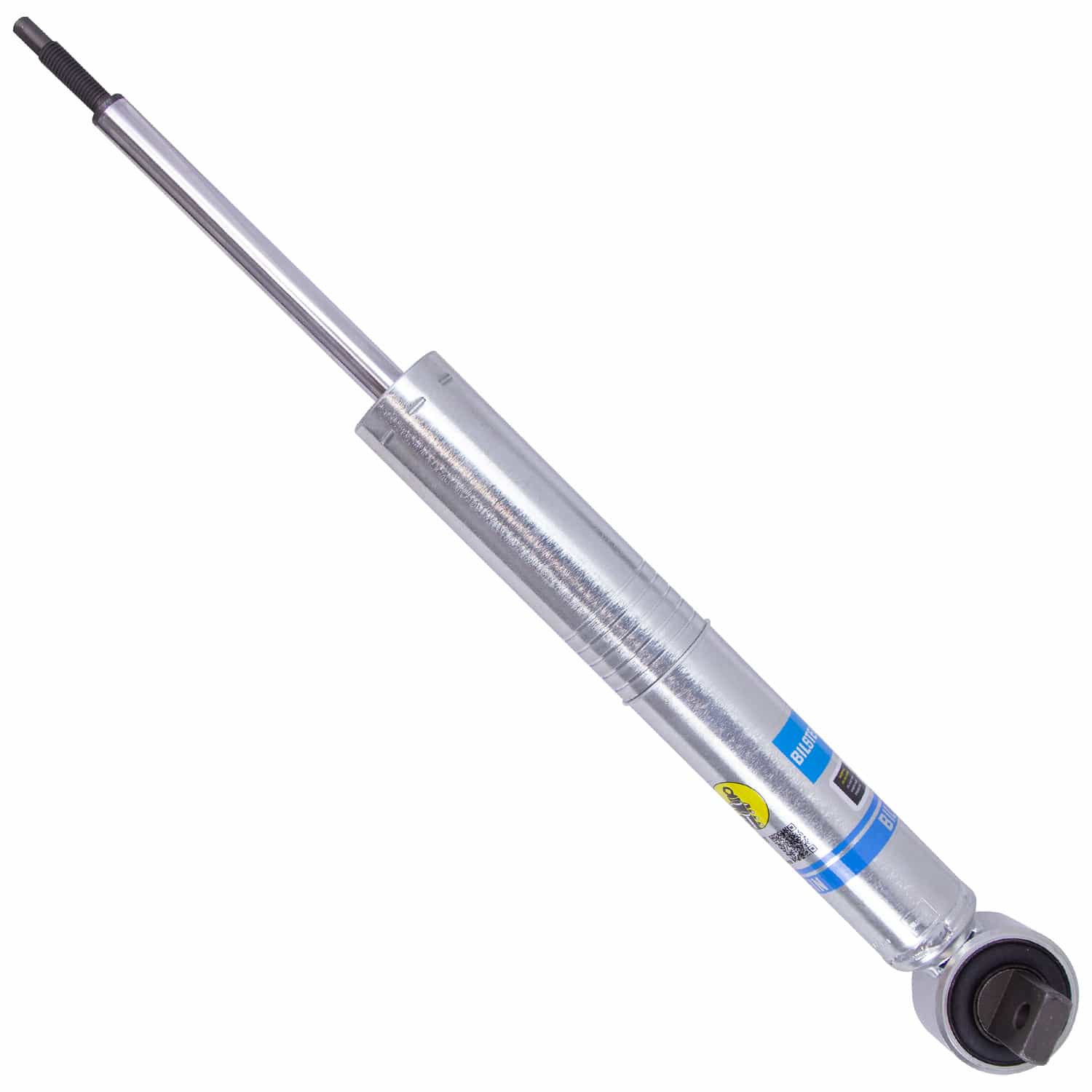

Bilstein 24-317467 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube Front 2021-2026 Chevrolet/GMC

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).

• The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.

Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Details:

• Series: B8 5100 (Ride Height Adjustable)
• Internal Design:Monotube
• Lower Mount Type: Crossbar
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Collapsed Length Inch: 16.34
• Extended Length Inch: 21.93
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Front
• Reservior: No
• Shaft Diameter: 18mm
• Stroke Travel Length In: 5.59
• Stroke Travel Length In: 142
• Interchange: 84844798, 84844799, 84844800, 84844801, 84844802, 84844807, 84844808
• Notes: Front Lift Height 0-2. 3 Inch Without Magnetic Ride Control or Air Suspension
• Applications: Chevrolet Suburban 2025-2021, Tahoe 2025-2021, GMC Yukon 2025-2021, Yukon XL 2025-2021
• Warranty: Limited Lifetime Warranty

Warranty

Limited Lifetime Warranty
