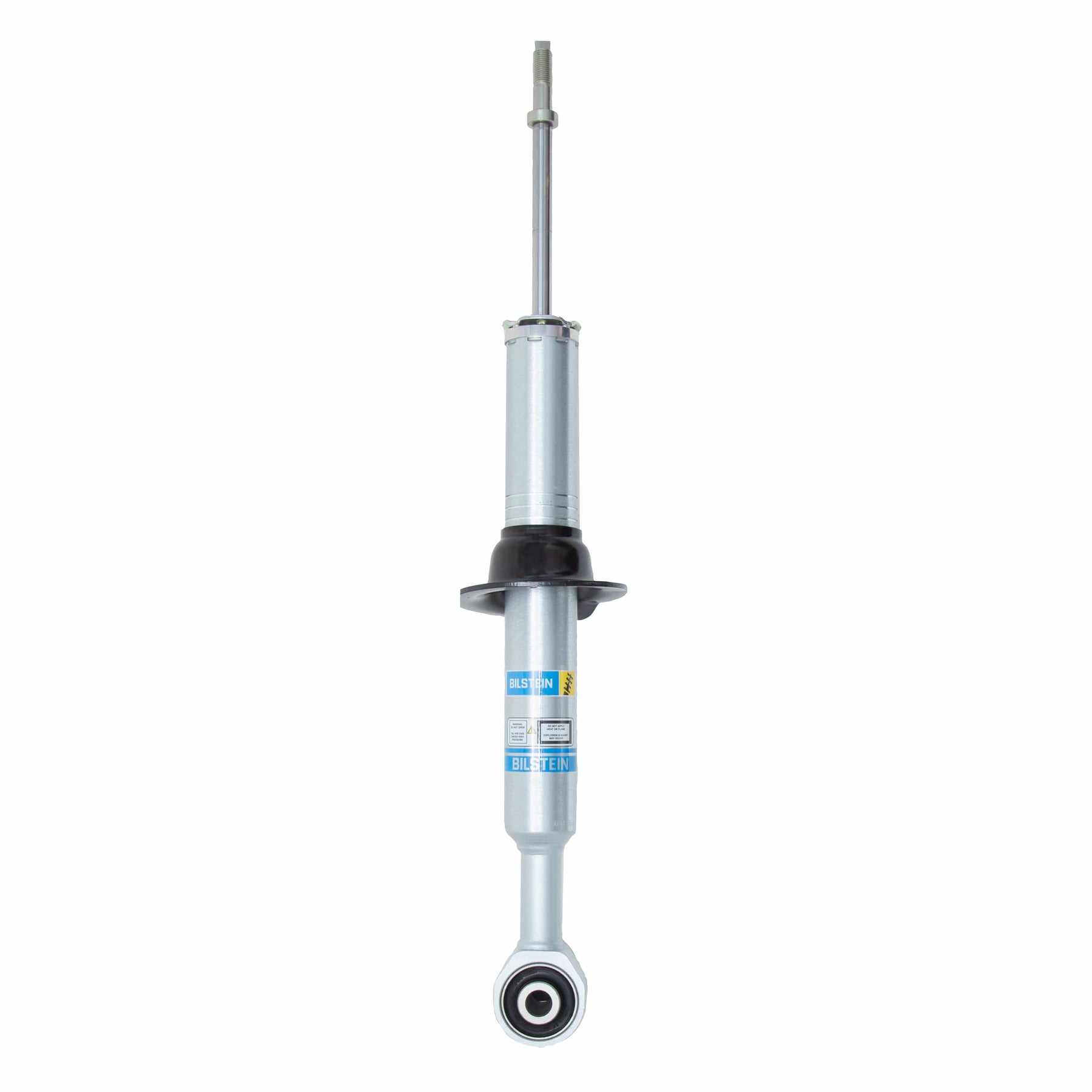

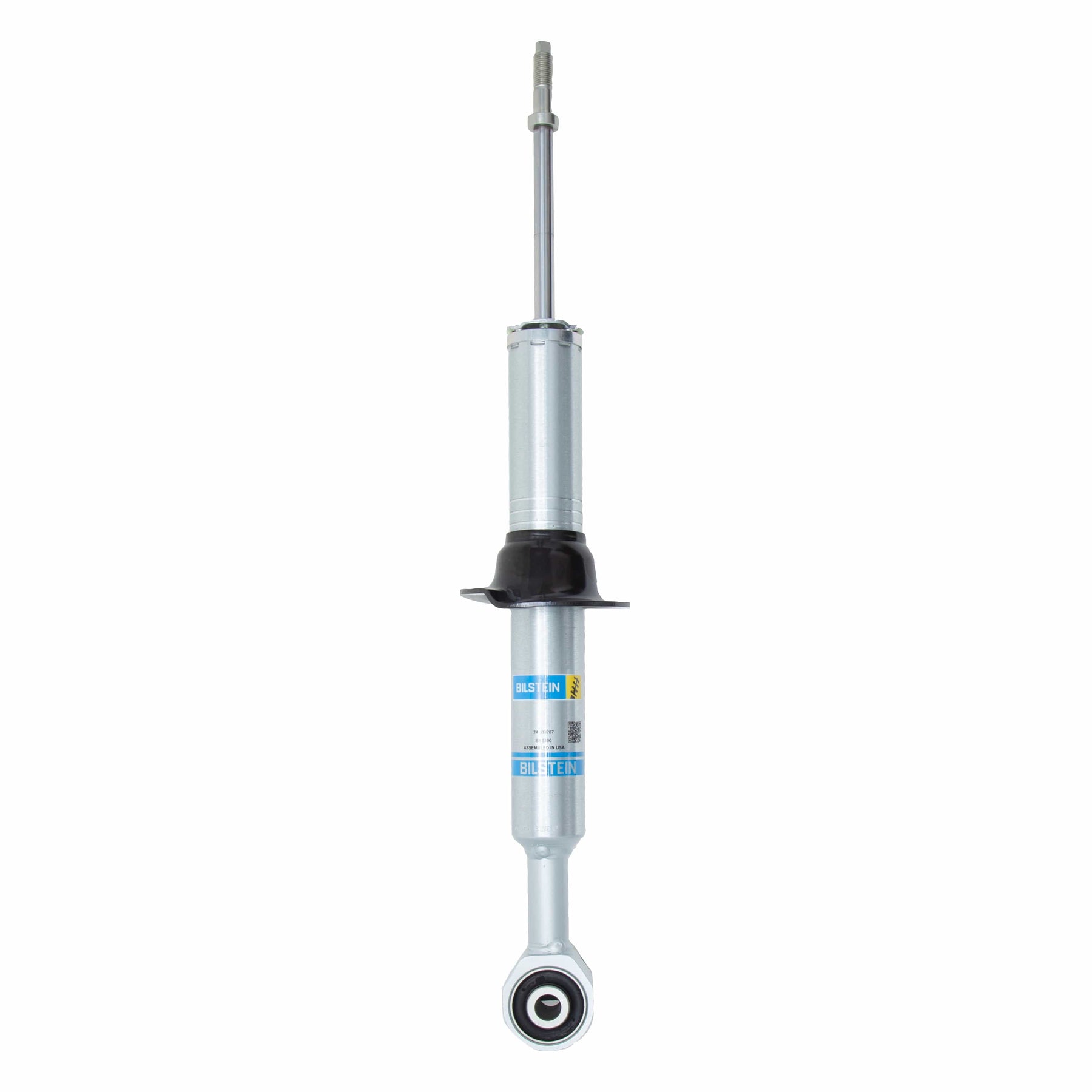

Bilstein 24-333207 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube 2024-2026 Toyota Tacoma
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Collapsed Length (IN) | 19.24 |
| Extended Length (IN) | 24.13 |
| Collapsed Length (MM) | 488.8 |
| Extended Length (MM) | 612.8 |
| Series | B8 5100 (Ride Height Adjustable) |
| Lower Mount Type | Eye 16.3mm |
| Internal Design | Monotube |
| Boot Included | No |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Upper Mount Type | Stem |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Finish | Zinc Plated |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 124.2 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 4.89 |
Short Description: Shock
Invoice Description: Toyota Tacoma '24+; F; B8 5100; 1-2.5"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
