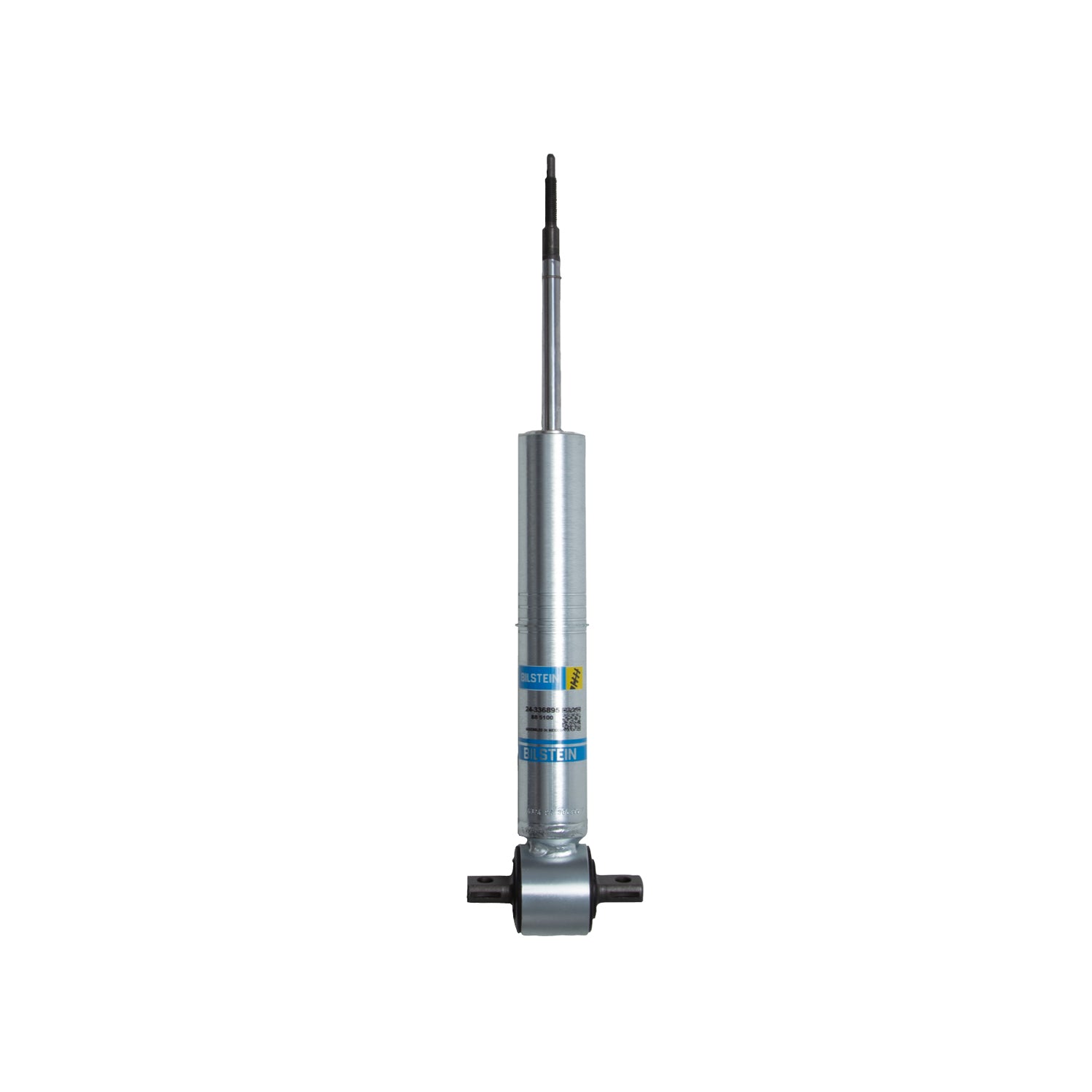

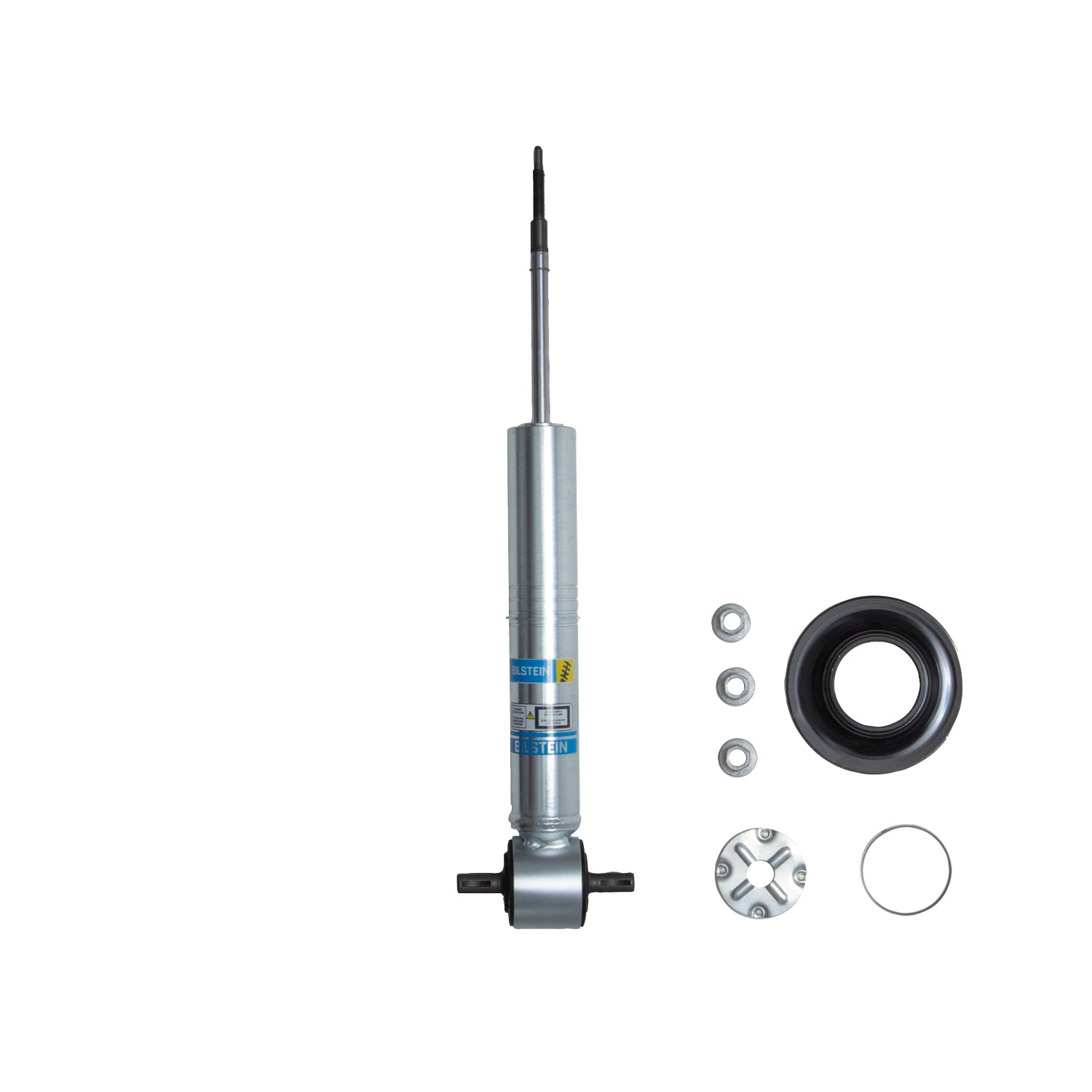

Bilstein 24-336895 - Suspension Shock Absorber B8 5100 (Ride Height Adjustable) Monotube Front 2014-2019 Chevrolet/GMC
Product Availability Request
Fill the form and our team will contact you.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).
- The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Details:
- Series: B8 5100 (Ride Height Adjustable)
- Internal Design:Monotube
- Lift Height: 6.0 Inch
- Lower Mount Type: Bar Pin
- Upper Mount Type: Stem
- Finish: Zinc Plated
- Adjustable: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Collapsed Length Inch: 15
- Extended Length Inch: 18.89
- Boot Included:No
- Pistion Diameter: 46mm
- Postion: Front
- Reservior: No
- Shaft Diameter: 14mm
- Stroke Travel Length In: 3.89
- Stroke Travel Length In: 98.8
- Notes: Front Lift Height 0-1. 9 Inch or 6 Inch Front Lift when utilizing stock length shock with lift spacer
- Applications: Silverado 1500 2018-2014, Silverado 1500 LD 2019, GMC Sierra 1500 2018-2014, Sierra 1500 Limited 2019
- Warranty: Limited Lifetime Warranty
Warranty
Limited Lifetime Warranty
Specifications
| Finish | Zinc Plated |
| Series | B8 5100 (Ride Height Adjustable) |
