Bilstein 24-336970 - B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Couldn't load pickup availability

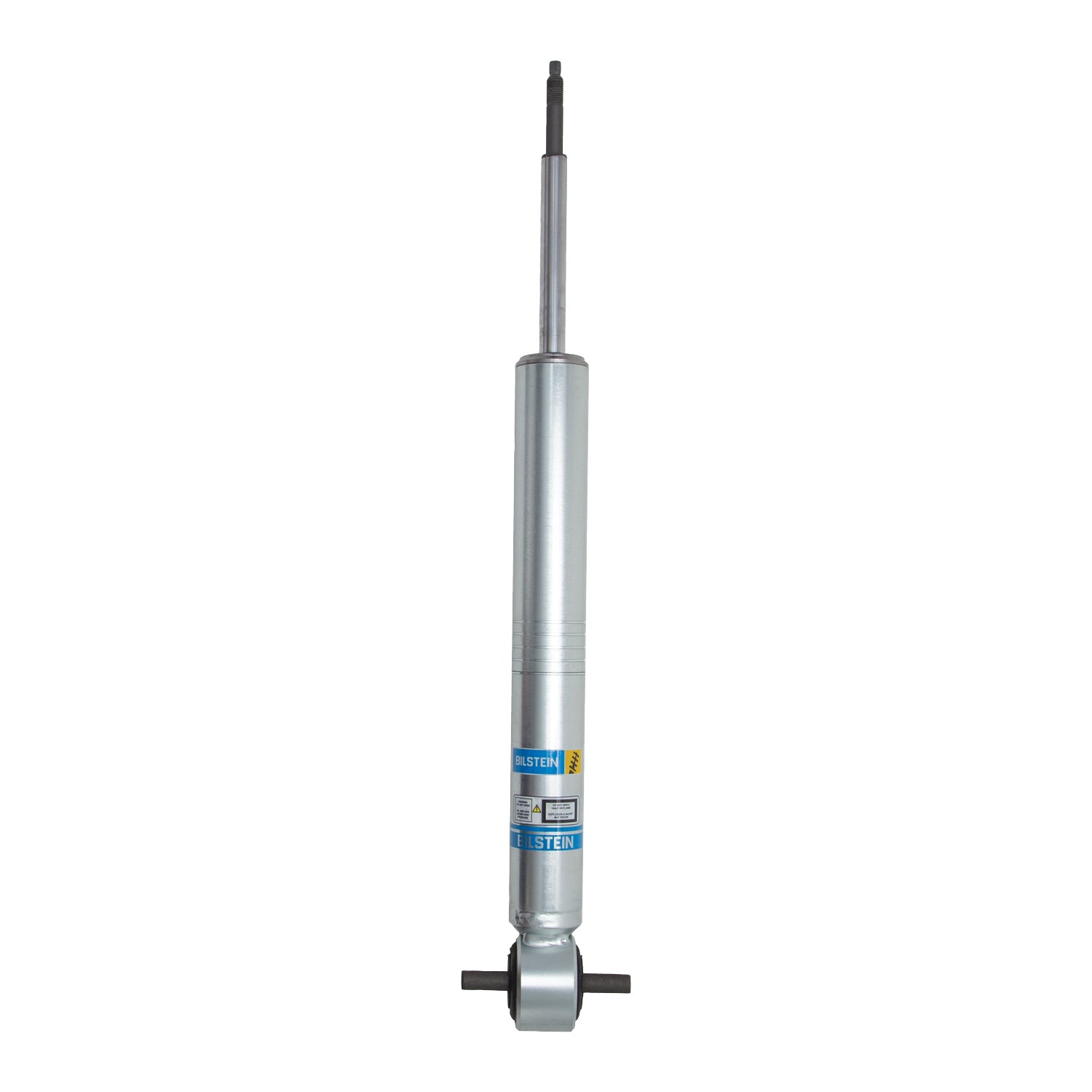

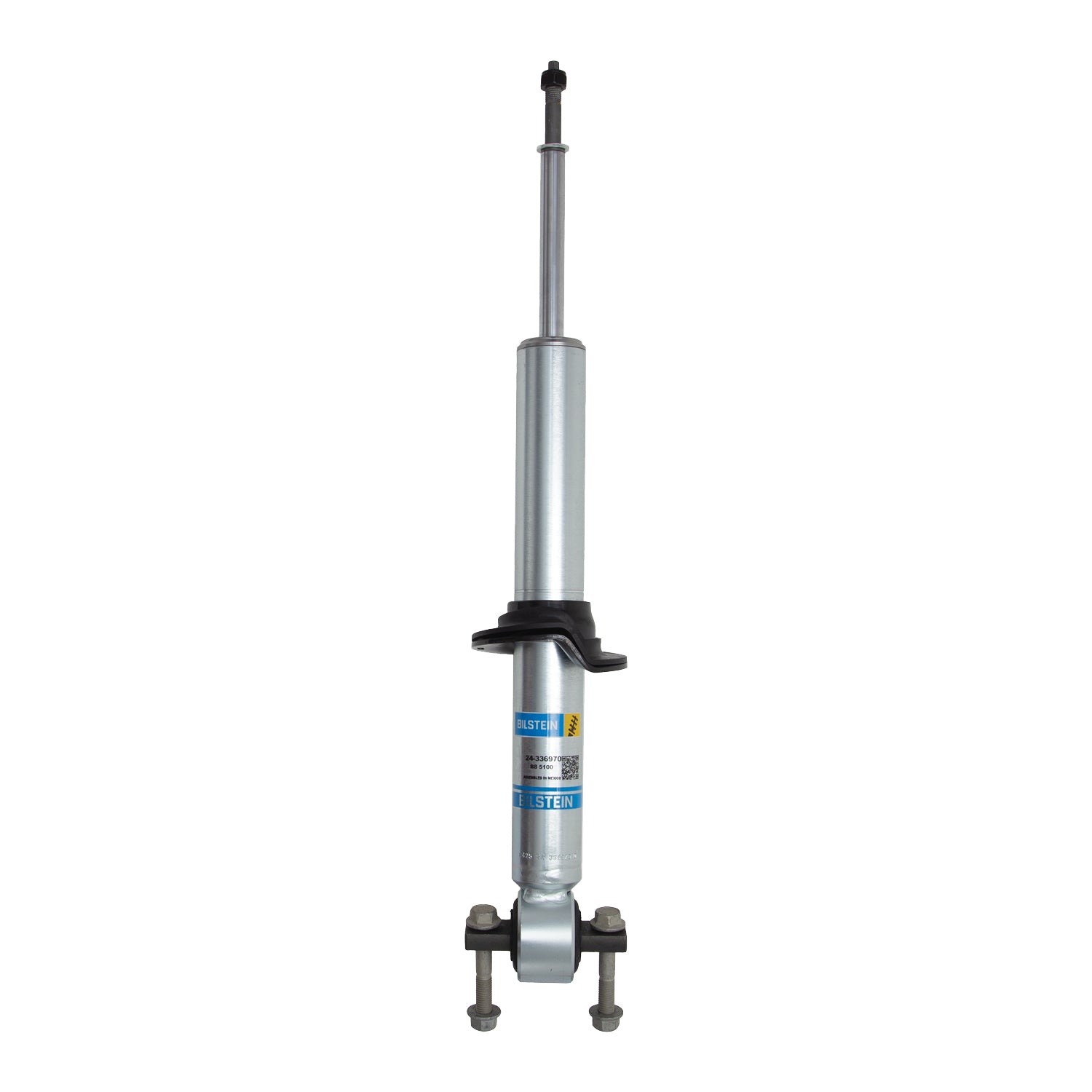

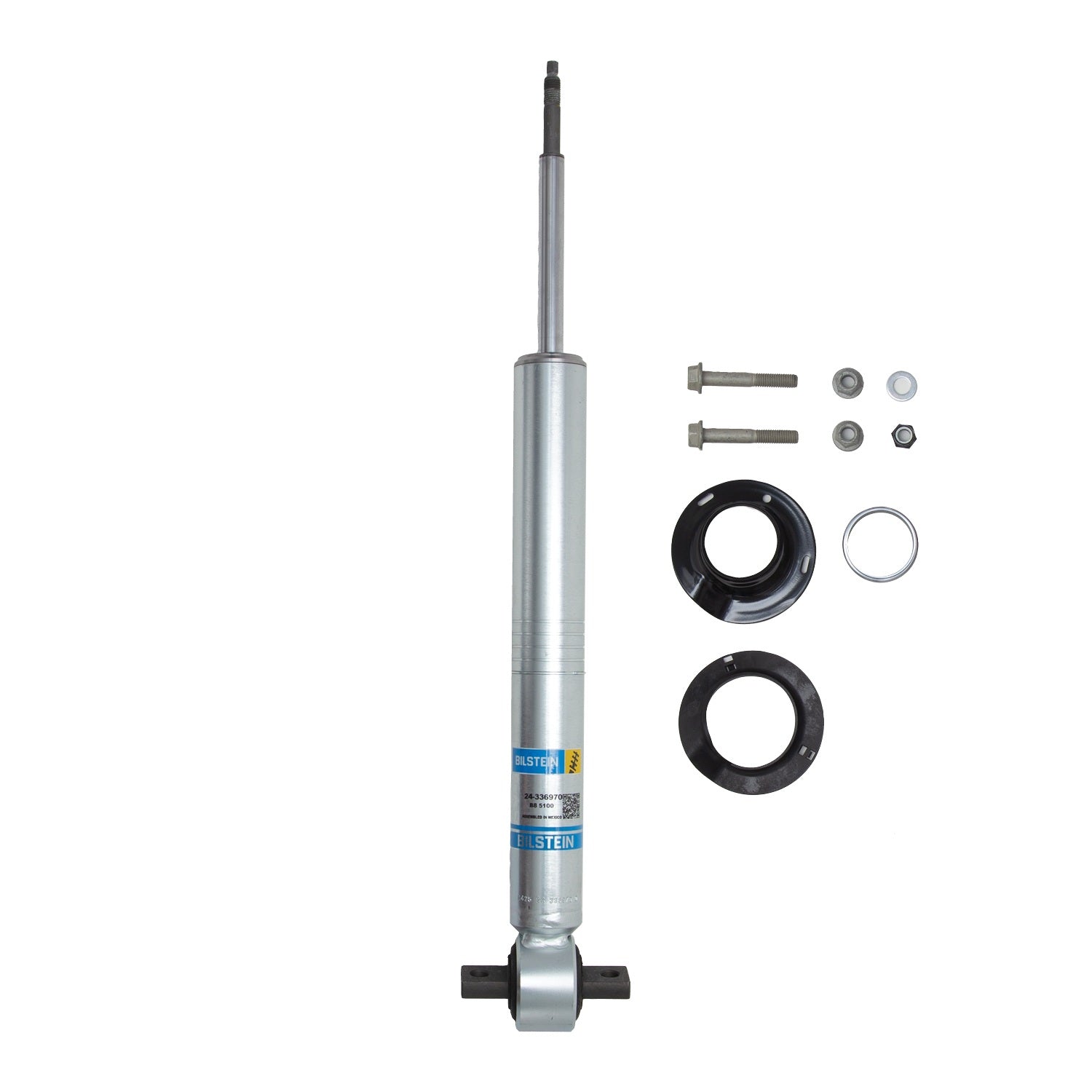

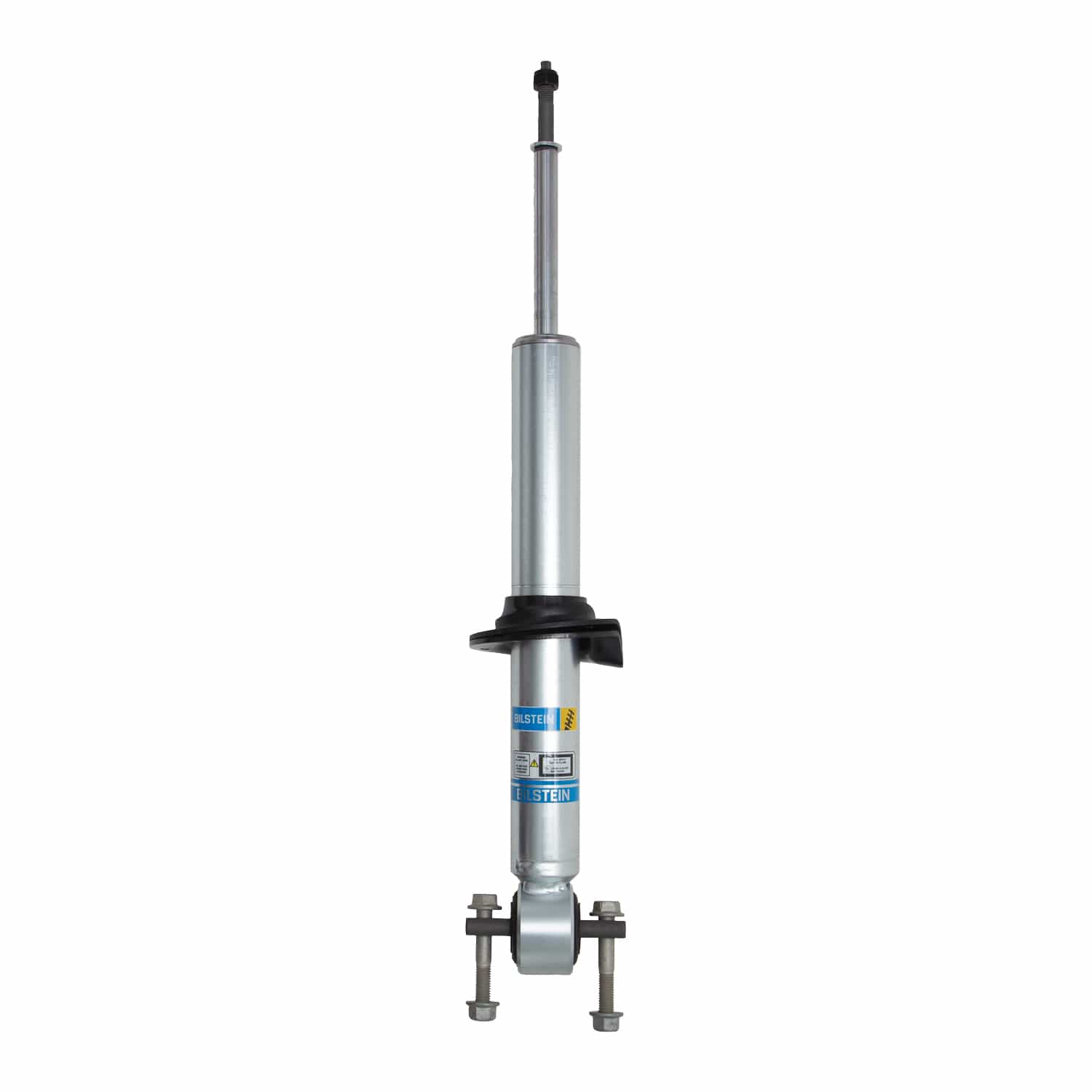

46mm Monotube Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Specifications
| Collapsed Length (IN) | 16.91 |
| Extended Length (IN) | 22.41 |
| Collapsed Length (MM) | 429.6 |
| Extended Length (MM) | 569.1 |
| Series | B8 5100 (Ride Height Adjustable) |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Crossbar |
| Segment | Light Truck |
| Internal Design | Monotube |
| Boot Included | No |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| PartType | Shocks / Struts |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Upper Mount Type | Stem |

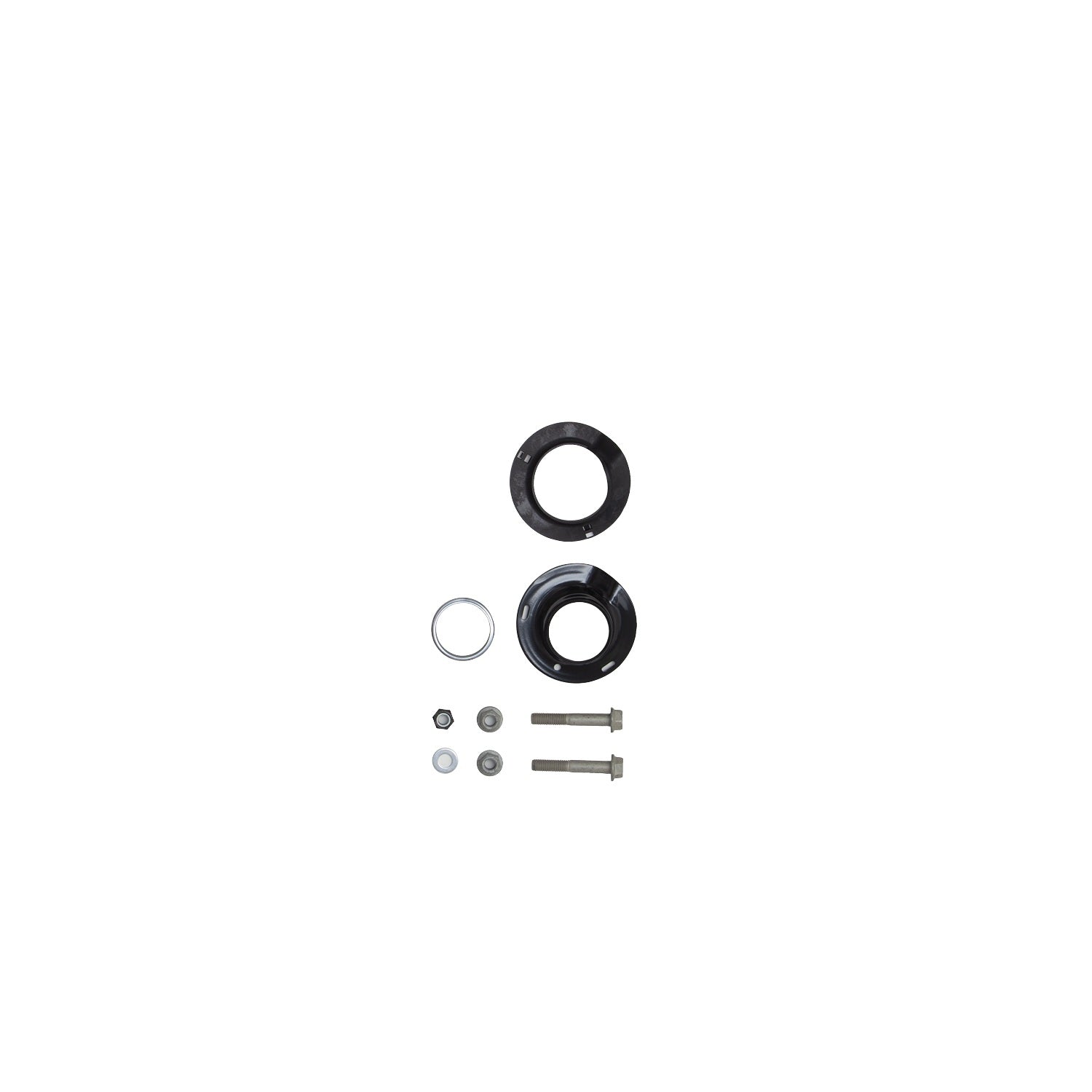

| Spring Seat Included | Yes |
| Finish | Zinc Plated |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 139.7 |
| Shaft Diameter | 18mm |
| Stroke/Travel Length (IN) | 5.50 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
