Bilstein 25-255003 - Suspension Shock Absorber B8 5160 Classic Monotube 2009-2013 Ford F-150
Product Availability Request
Fill the form and our team will contact you.

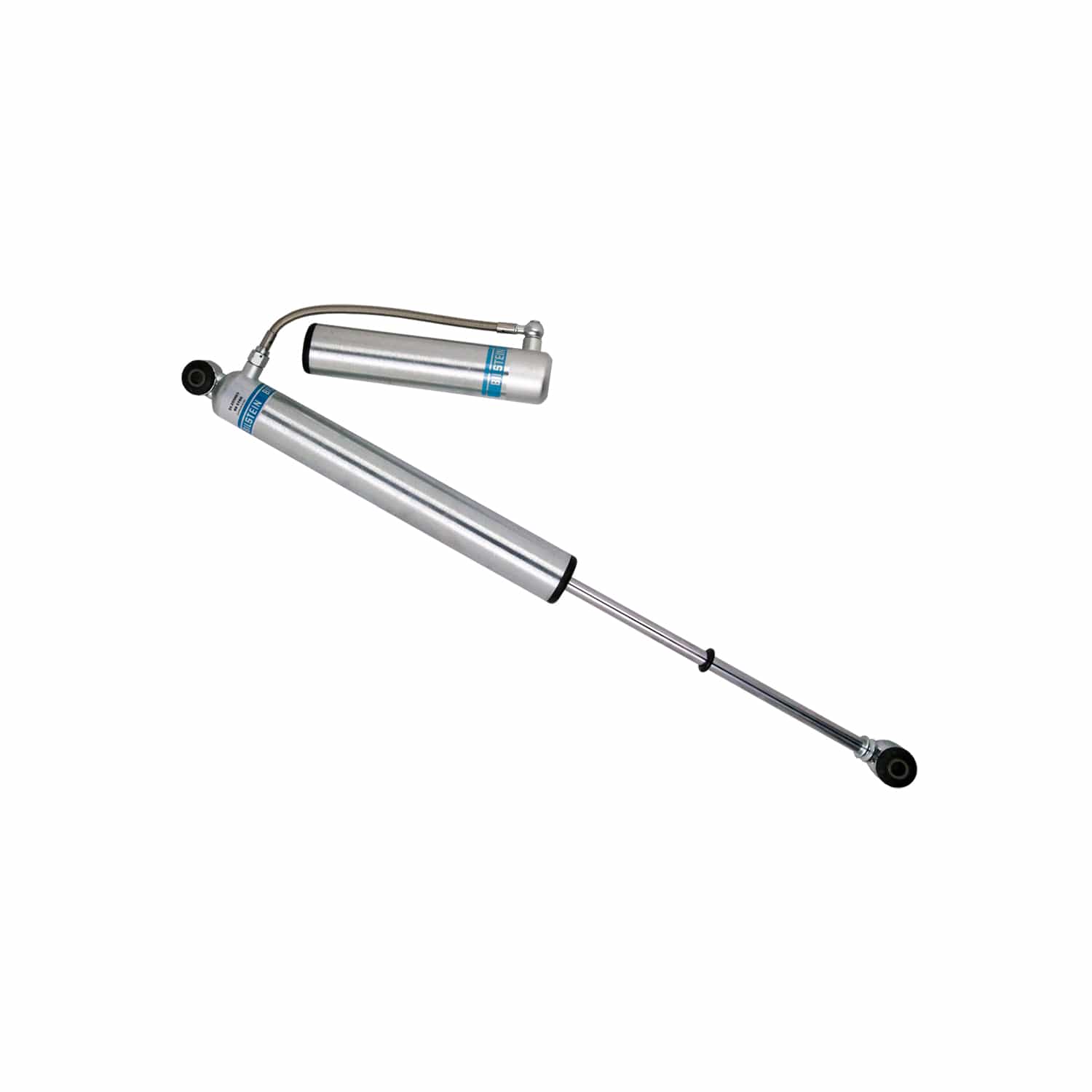

46mm Monotube Shock Absorber
Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVβs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Optional Reservoir Clamp | 11-176015 |
| Collapsed Length (MM) | 433.5 |
| Boot Included | No |
| Reservoir | Yes |
| Finish | Zinc Plated |
| Upper Mount Type | Eye 12mm |
| Body Design | Smooth Body (Non-Coilover) |
| Lower Mount Type | Eye 12mm |
| Billet Reservoir Clamp Included | No |
| Extended Length (MM) | 732.0 |
| Internal Design | Monotube |
| Collapsed Length (IN) | 17.07 |
| Extended Length (IN) | 28.82 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Series | B8 5160 Classic |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 11.75 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 298.5 |
Short Description: Shock
Invoice Description: Ford F150 2wd, 2009-13 Rear, B8 5160
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2013 | Ford | F-150 | FX2 |
| 2010-2012 | Ford | F-150 | Harley-Davidson Edition |
| 2009-2013 | Ford | F-150 | King Ranch |
| 2011 | Ford | F-150 | Lariat Limited |
| 2009-2013 | Ford | F-150 | Lariat |
| 2013 | Ford | F-150 | Limited |
| 2009-2013 | Ford | F-150 | Platinum |
| 2009-2013 | Ford | F-150 | STX |
| 2009-2013 | Ford | F-150 | XLT |
| 2009-2013 | Ford | F-150 | XL |
10 applications listed.
