Bilstein 25-302349 - Suspension Shock Absorber Rear Monotube Ram 3500 2025-2013 B8 5160 Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Boot Included | No |
| Collapsed Length (MM) | 464.8 |
| Series | B8 5160 |
| Adjustable Damping | Non-Adjustable |
| Internal Design | Monotube |
| Upper Mount Type | Eye 14.1mm |
| Finish | Zinc Plated |
| Reservoir | Yes |
| Extended Length (MM) | 759.0 |
| Lower Mount Type | Eye 14.1mm |
| Body Design | Smooth Body (Non-Coilover) |

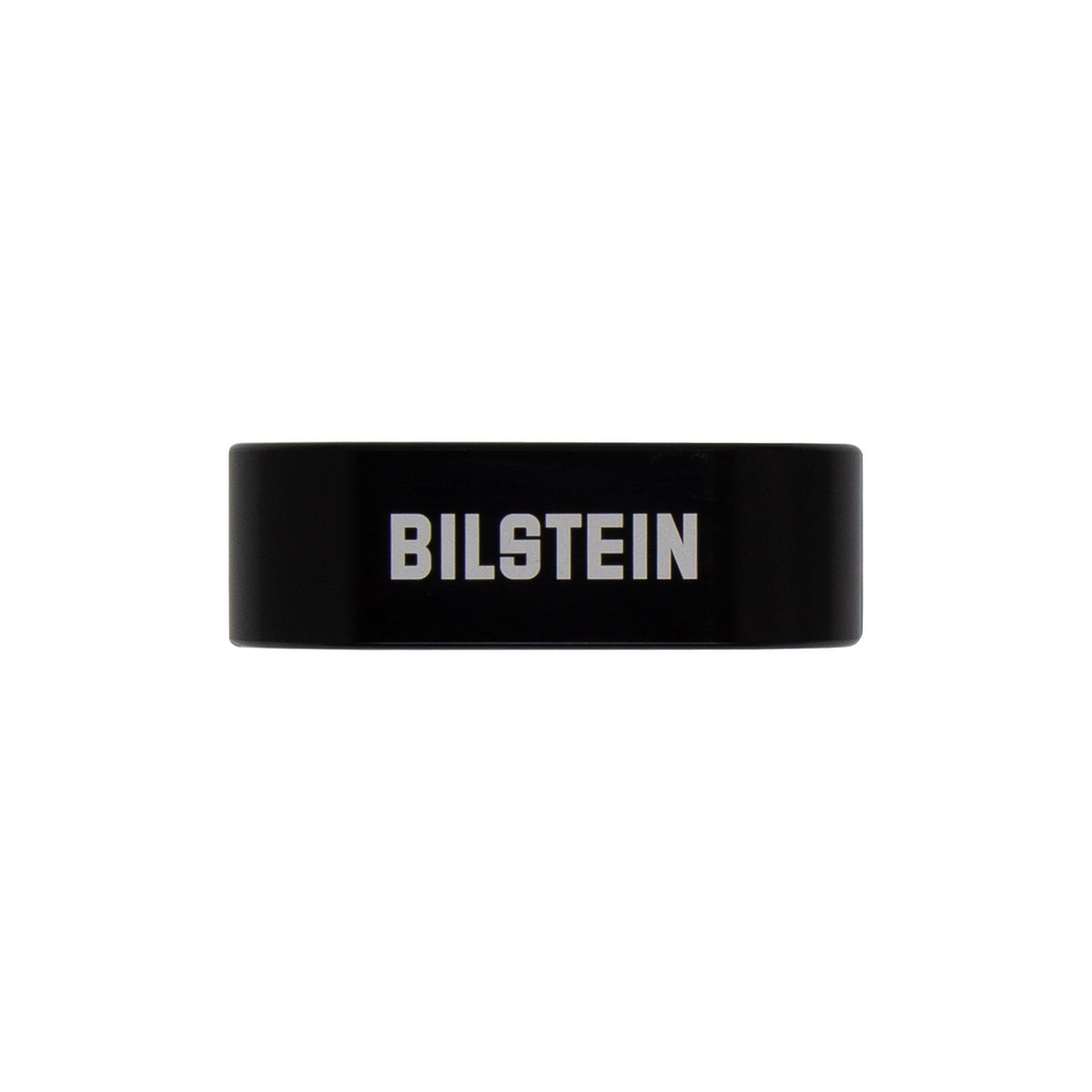

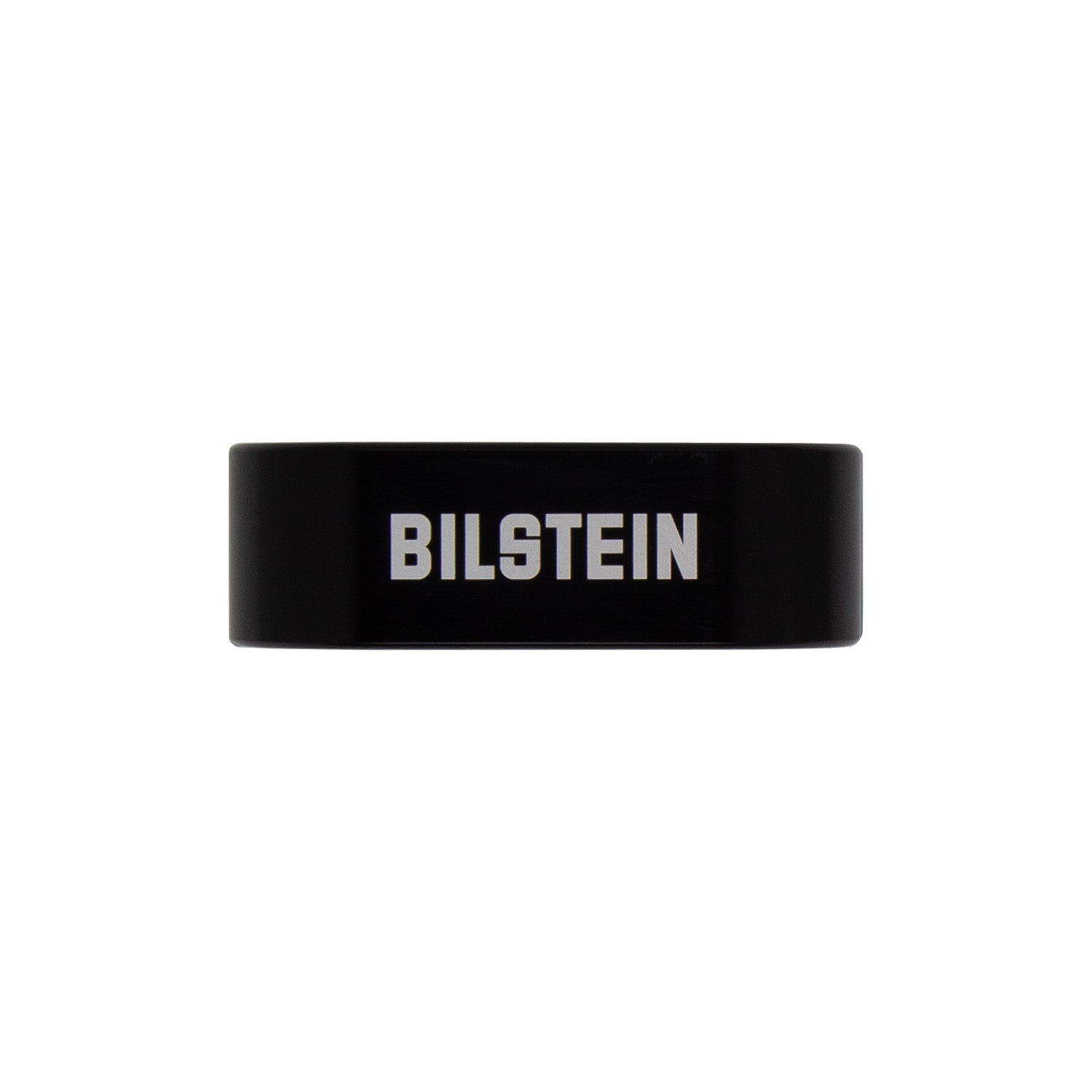

| Billet Reservoir Clamp Included | Yes |
| Spring Seat Included | No |
| Extended Length (IN) | 29.90 |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Collapsed Length (IN) | 18.30 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 11.60 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 294.6 |
Short Description: Shock
Invoice Description: RAM 3500 4WD '19+; R; B8 5160; 0-1" Lift
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
