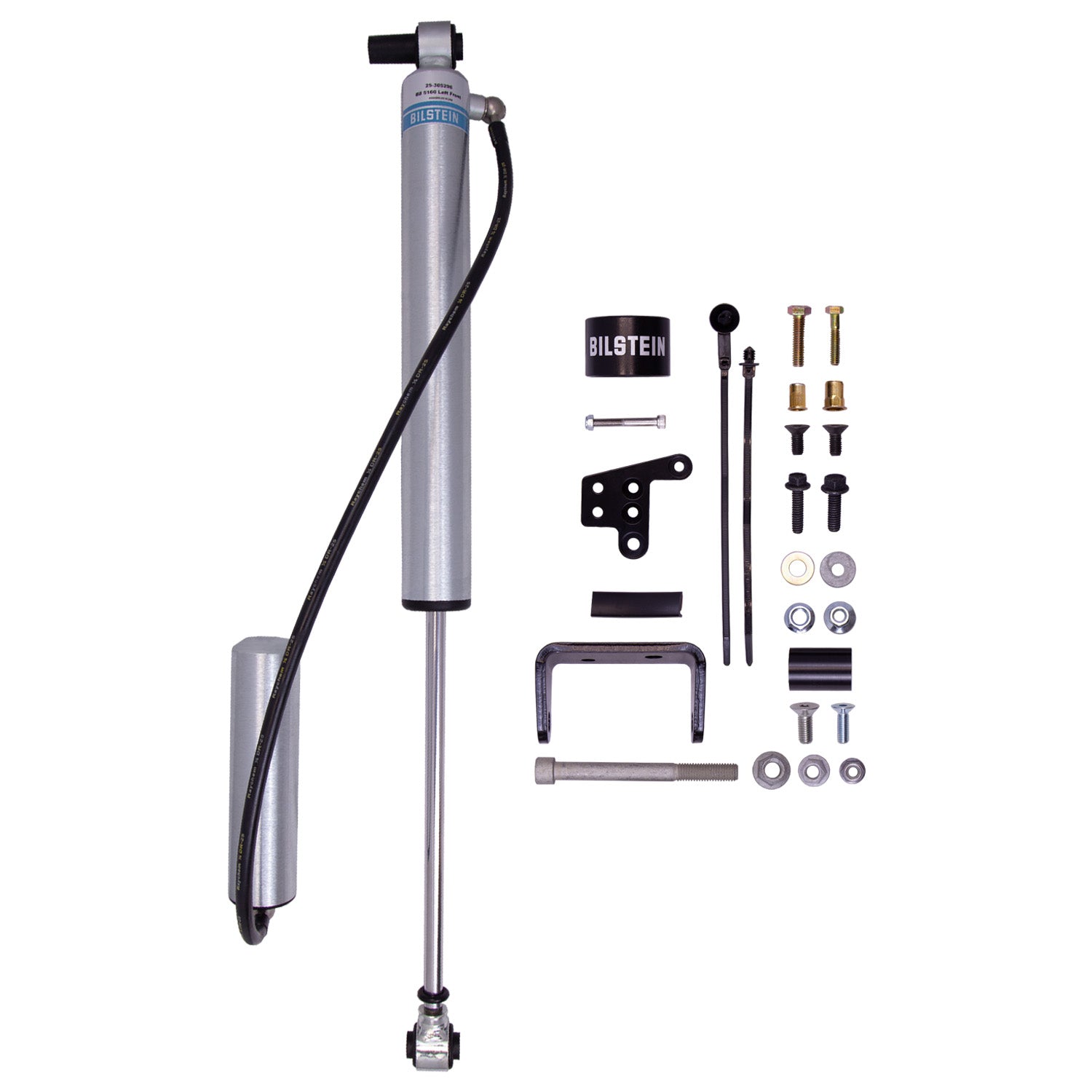

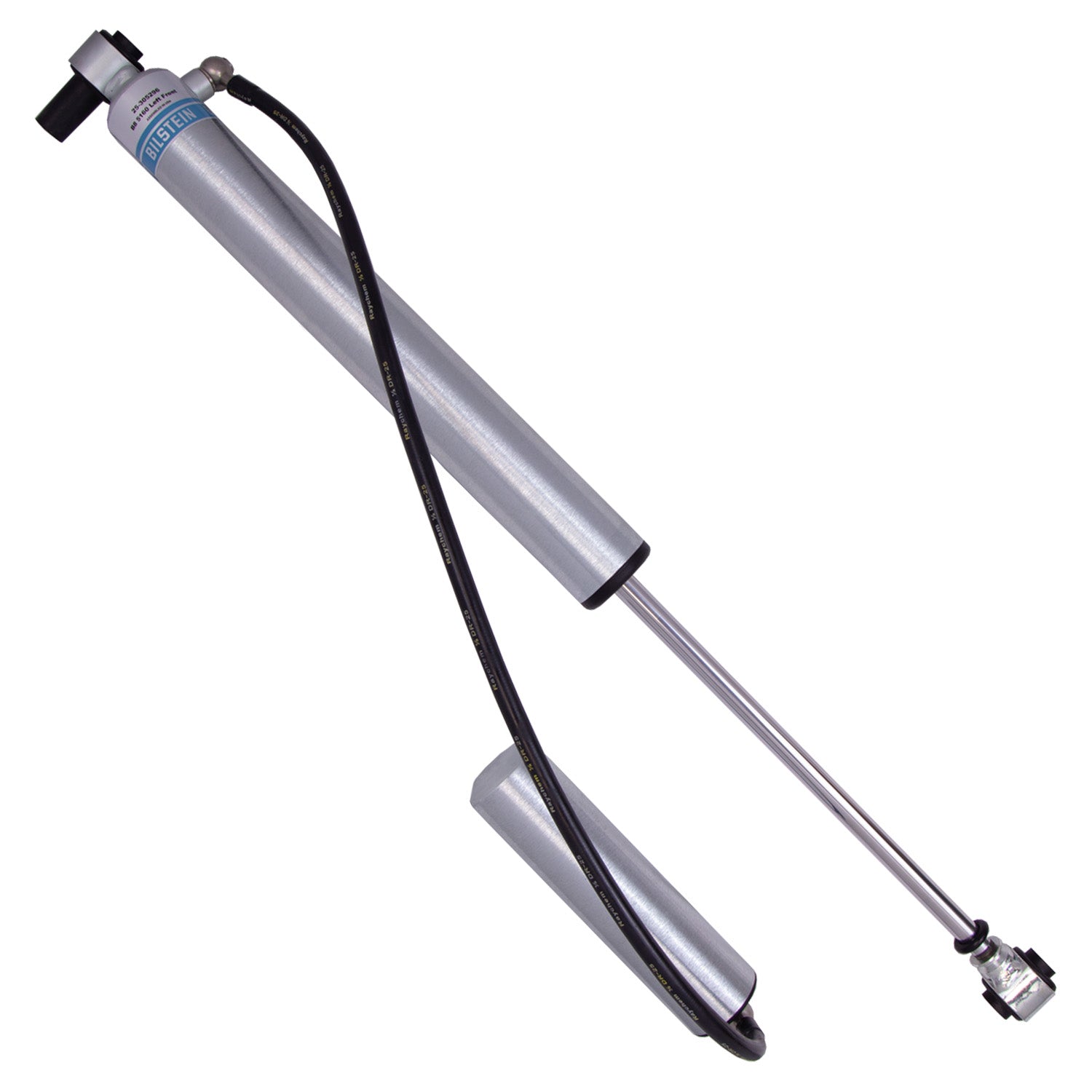

Bilstein 25-305296 - B8 5160 Classic - Suspension Shock Absorber
Couldn't load pickup availability
46mm Monotube Shock Absorber
Bilstein B8 5160 Classic remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 Classic remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Collapsed Length (IN) | 17.56 |
| Body Design | Smooth Body (Non-Coilover) |
| Billet Reservoir Clamp Included | Yes |
| Reservoir | Yes |
| Internal Design | Monotube |
| Extended Length (MM) | 746.2 |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye 12.8mm |
| Finish | Zinc Plated |
| Extended Length (IN) | 29.38 |
| Boot Included | No |
| Adjustable Damping | Non-Adjustable |
| Series | B8 5160 |
| Lower Mount Type | Eye 12.8mm |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 446.0 |
| Stroke/Travel Length (IN) | 11.82 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 300.2 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
