Bilstein 25-325072 - Suspension Shock Absorber B8 5160 Monotube Rear 2000-2014 Chevrolet/GMC

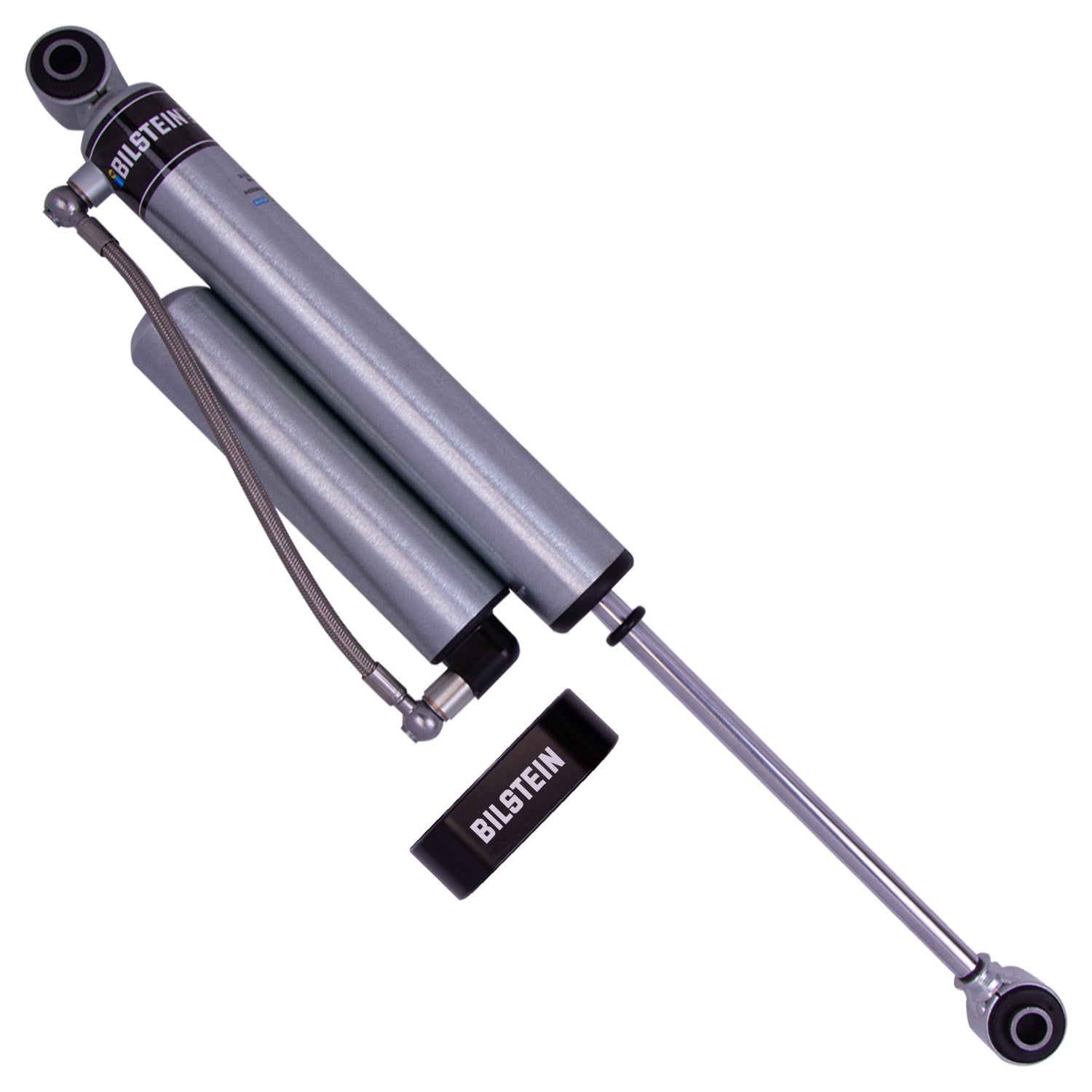

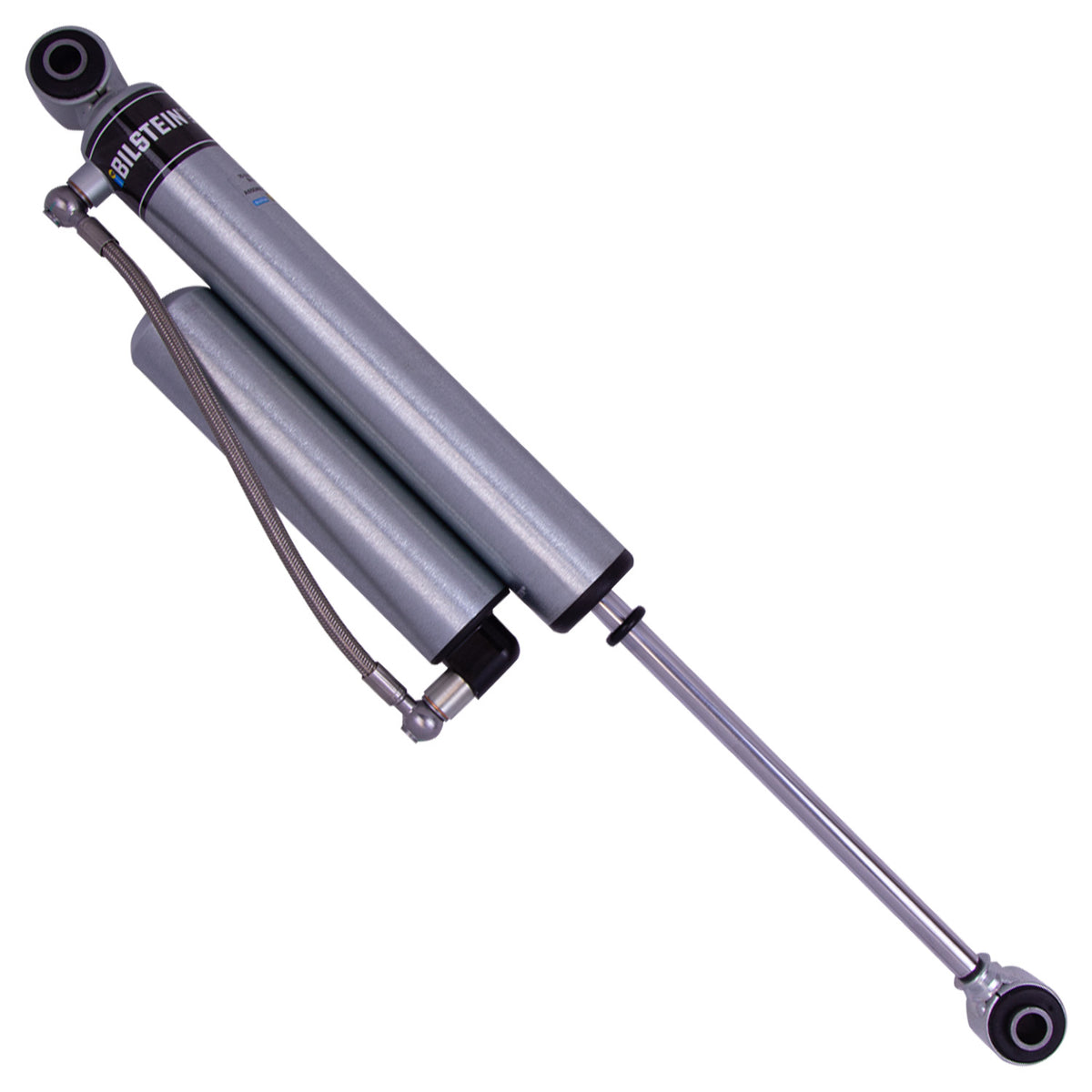

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber.

These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive Digressive valve settings which are tuned for each specific application.

Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation.

B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments

Details:

• Series: B8 5160
• Internal Design:Monotube
• Lift Height: 0-1 Inch
• Lower Mount Type: Eye 14.4mm
• Upper Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 14.82

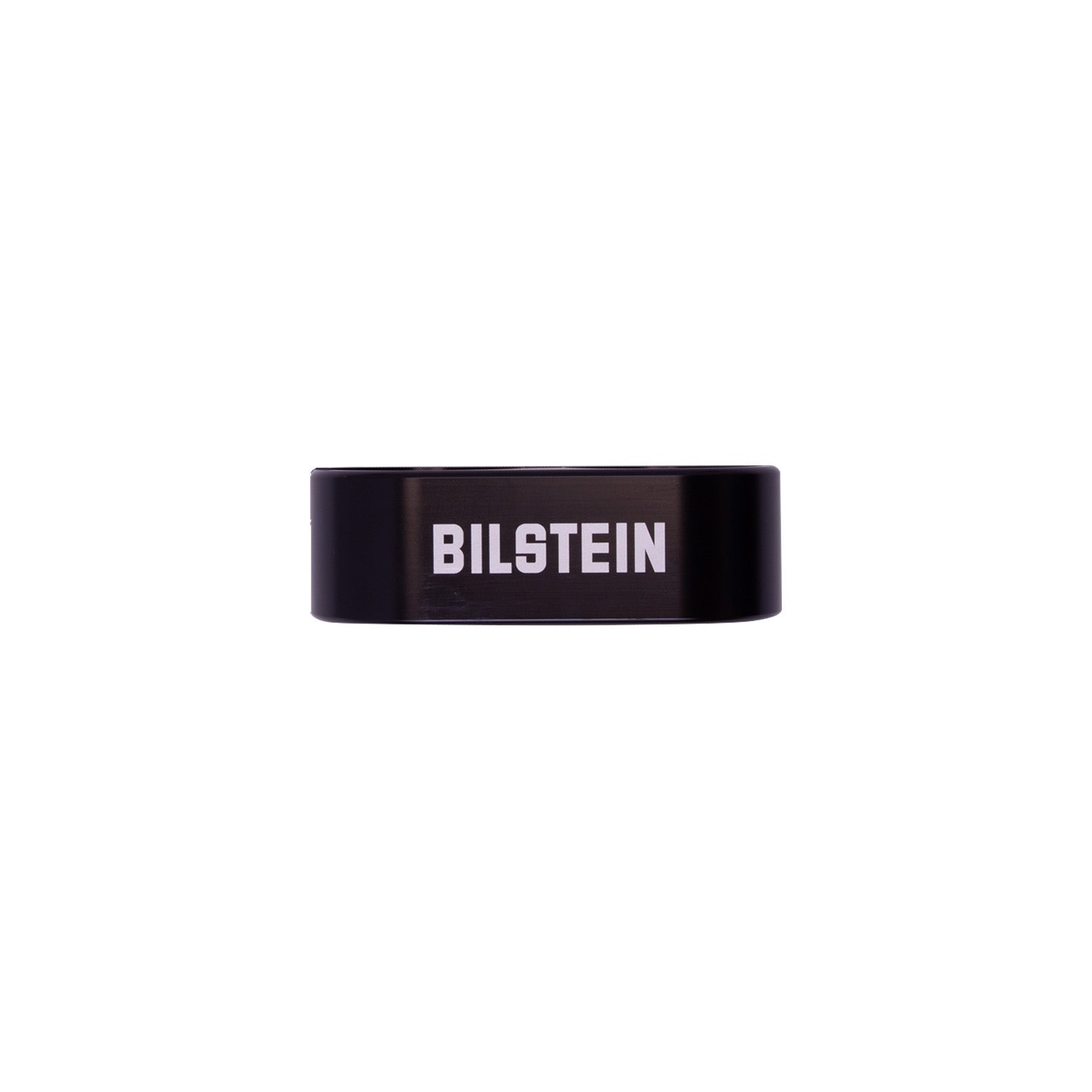

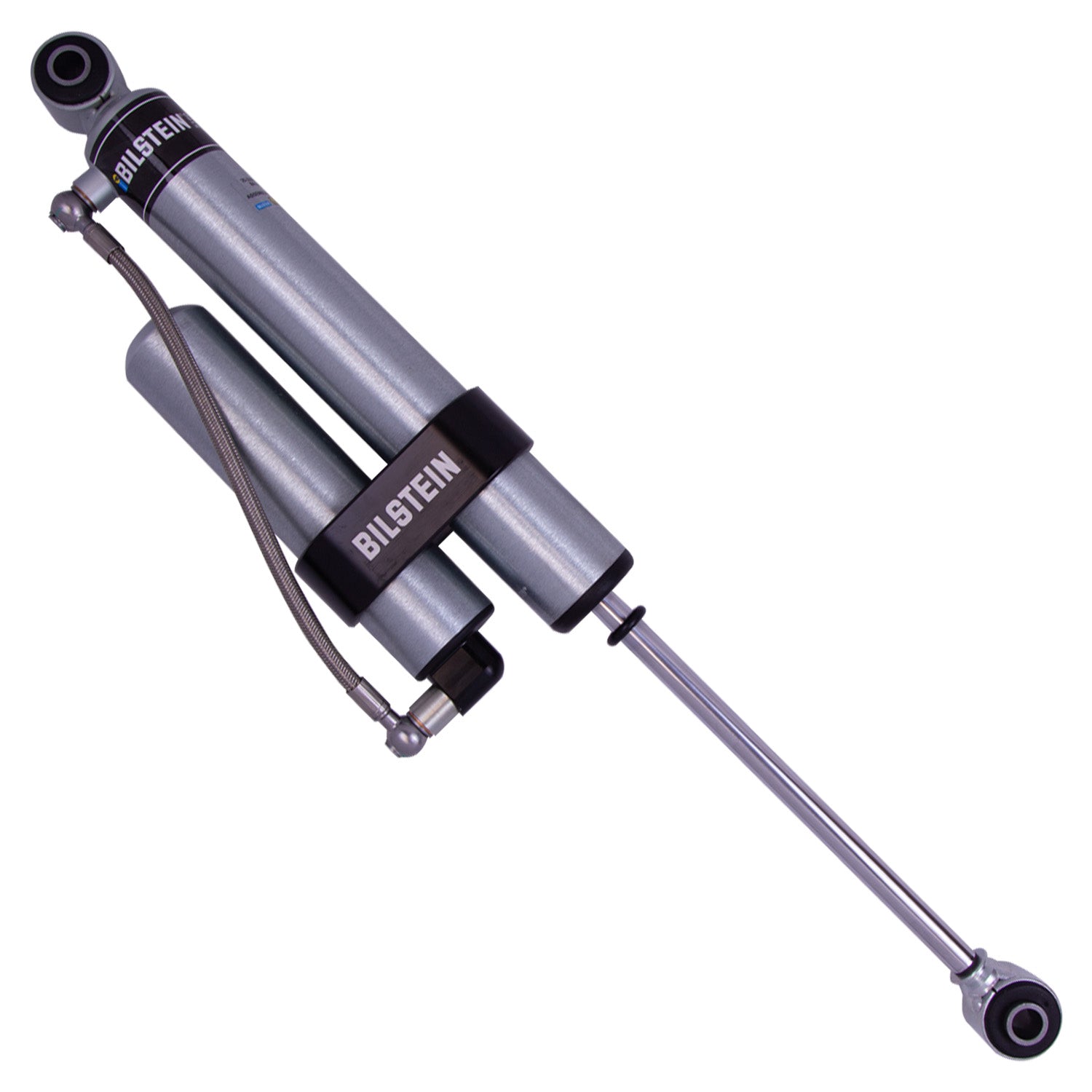

• Billet Reservoir Clamp Included: Yes
• Extended Length Inch: 24.47
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Rear
• Reservior: Yes
• Shaft Diameter: 14mm
• Stroke Travel Length In: 9.64
• Stroke Travel Length In: 244.9
• Notes: For Rear Lifted Height 0-1 Inch For Rear Lifted Height 5 Inch if using Rear stock shock relocation bracket
• Applications: Chevrolet Avalanche 2013-2007, Avalanche 1500 2006-2002, Suburban 1500 2014-2000, Tahoe 2014-2000, GMC Yukon 2014-2000, Yukon XL 1500 2014-2000
• Warranty: Limited Lifetime Warranty

Warranty

Limited Lifetime Warranty

Specifications
