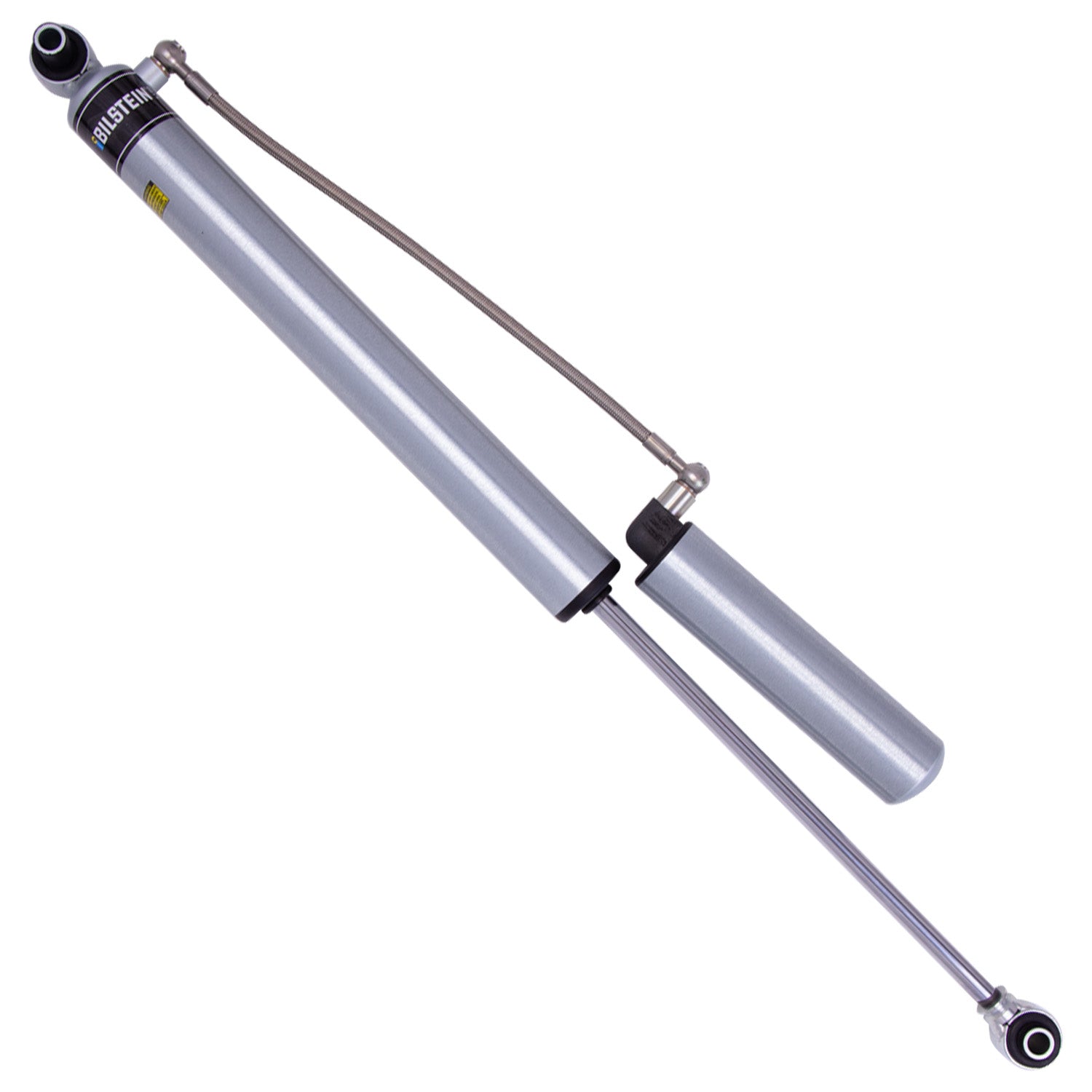

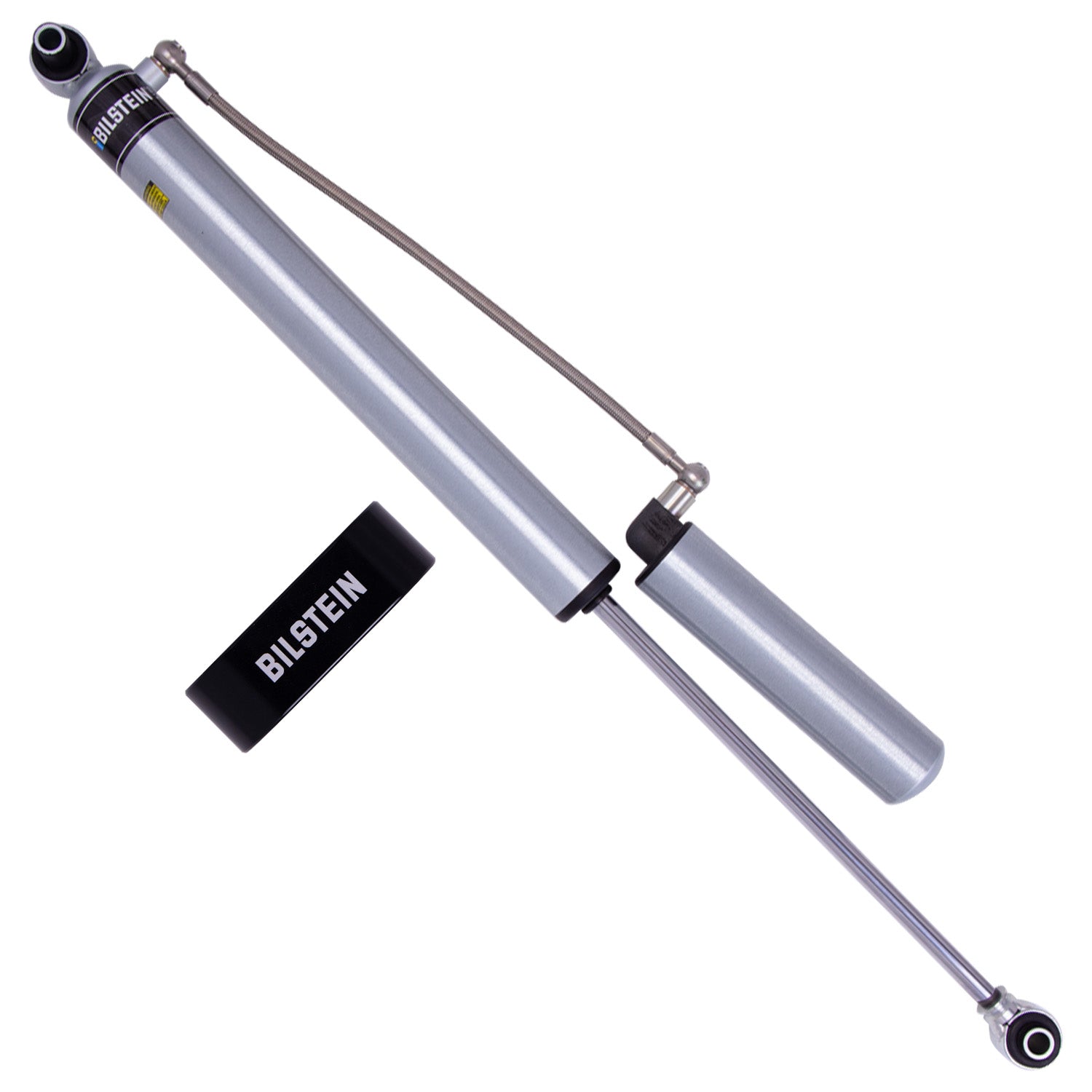

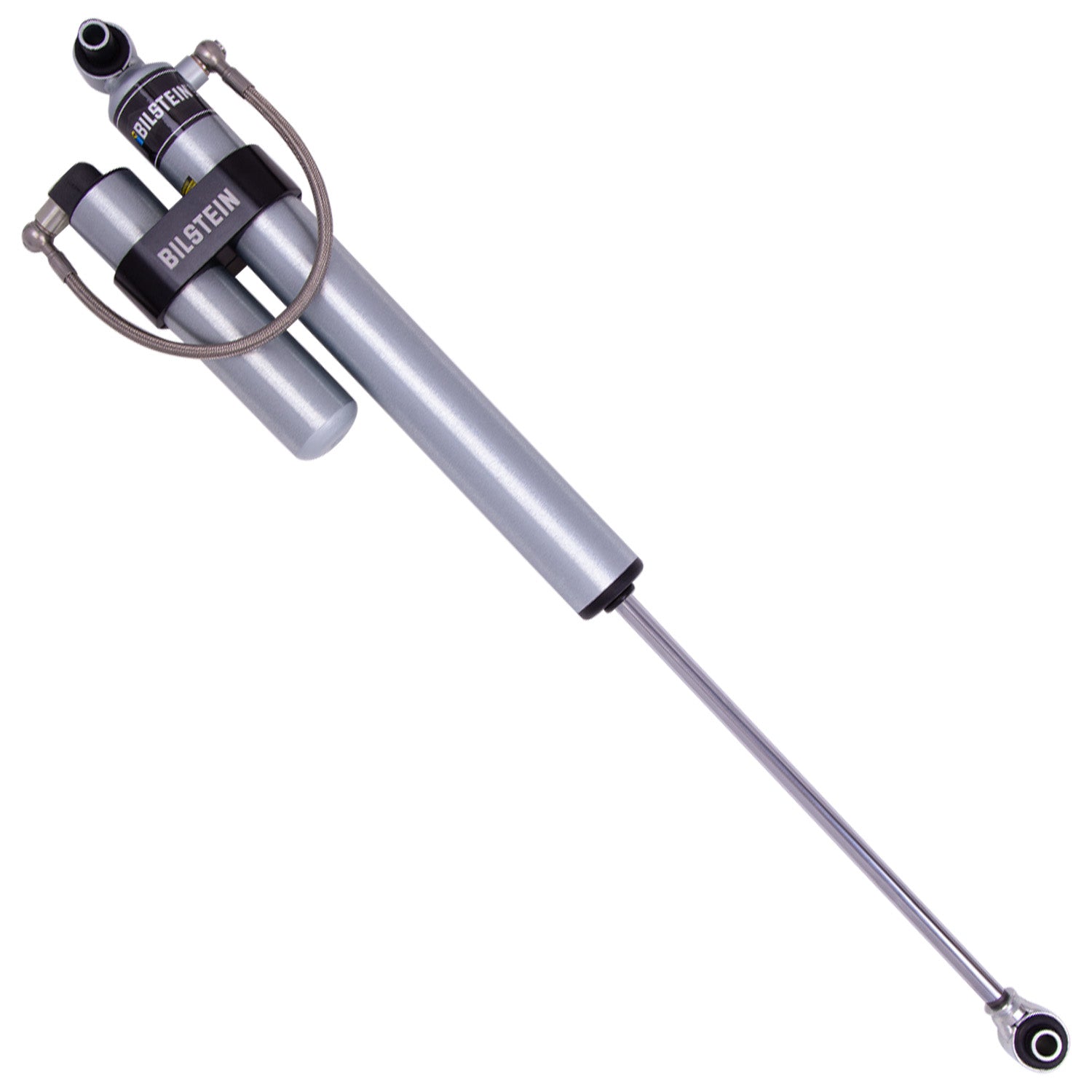

Bilstein 25-329926 - Suspension Shock Absorber Rear Monotube Jeep Wrangler 2025-2018 3-4.5 Inch B8 5160 Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- Remote reservoir increases shock oil capacity for greater heat dissipation
Specifications
| Reservoir | Yes |
| Spring Seat Included | No |

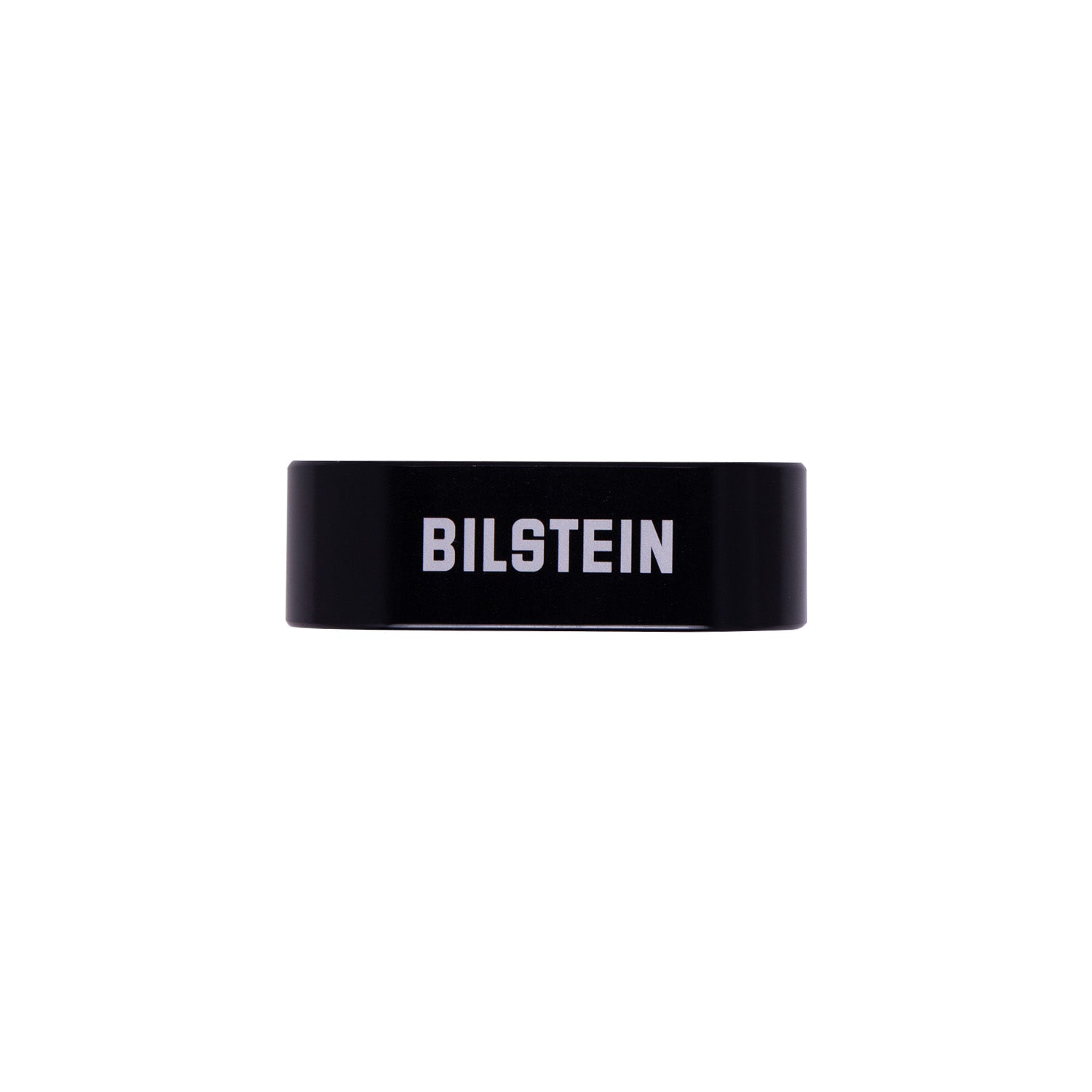

| Billet Reservoir Clamp Included | Yes |
| Collapsed Length (MM) | 475.5 |
| Internal Design | Monotube |
| Series | B8 5160 |
| Extended Length (IN) | 31.86 |
| Lower Mount Type | Eye 12.8mm |
| Boot Included | No |
| Extended Length (MM) | 809.2 |
| Upper Mount Type | Eye 12.8mm |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (IN) | 18.72 |
| Finish | Zinc Plated |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 13.14 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 333.8 |
Short Description: Shock
Invoice Description: Jeep Wrangler JL 4dr; R; B8 5160; 3-4"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: Limited Lifetime Warranty
