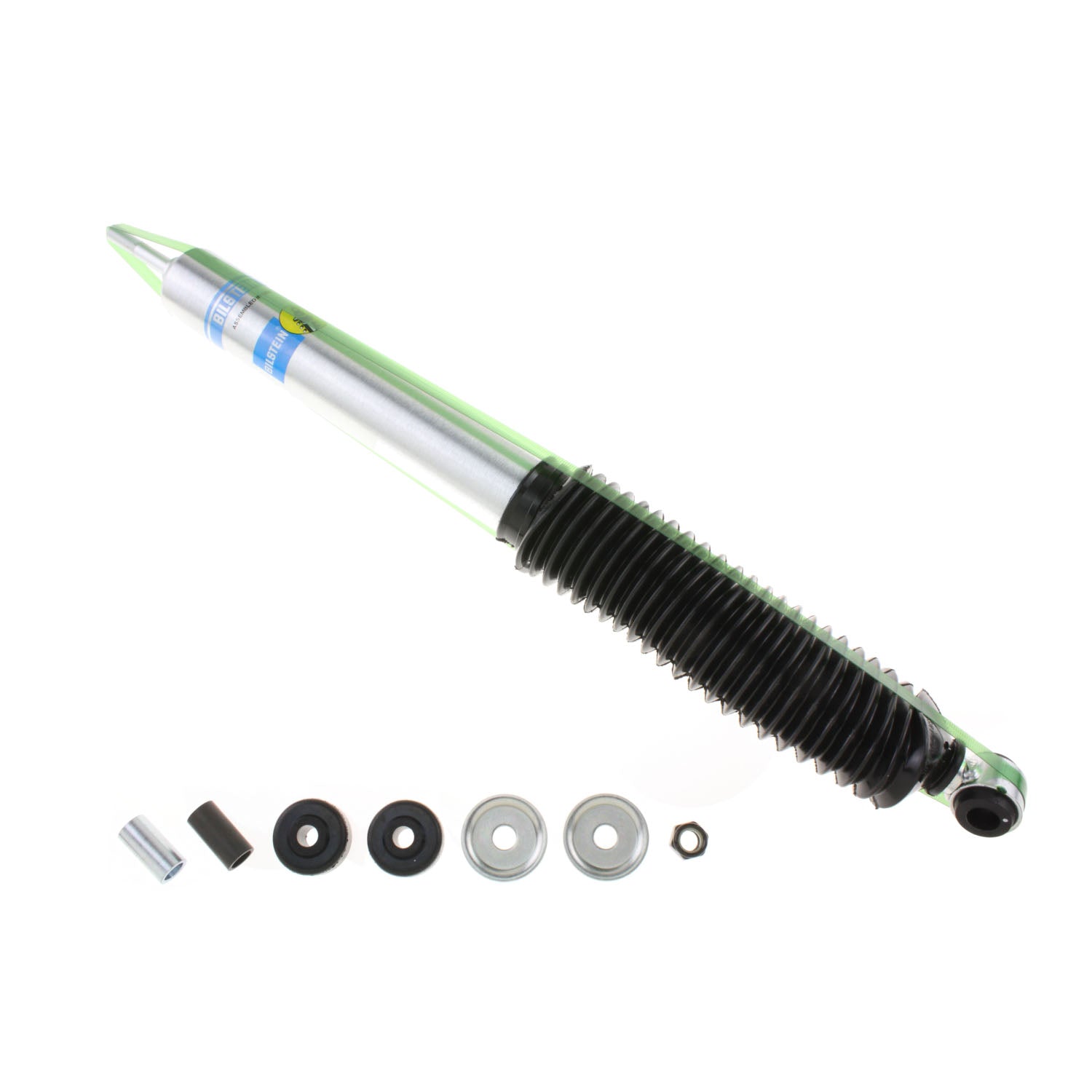

Bilstein 33-230368 Suspension Shock Absorber Eye 5/8in Zinc Plated Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5125 - Suspension Shock Absorber
Lifted Truck; B8 5125; 267mm Stroke
Specifications
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (MM) | 406.6 |
| Series | B8 5125 |
| Internal Design | Monotube |
| Title | Bilstein Shock Absorbers |
| Reservoir | No |
| Upper Mount Type | Stem |
| Finish | Zinc Plated |
| Mount Type | Stem-to-Eye |
| Lower Mount Type | Eye 5/8in |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 16.01 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Extended Length (IN) | 26.41 |
| Rebound @0.52m/s | 3775 |
| Extended Length (MM) | 670.8 |
| Compression @0.52m/s | 755 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 10.40 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 264.2 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
