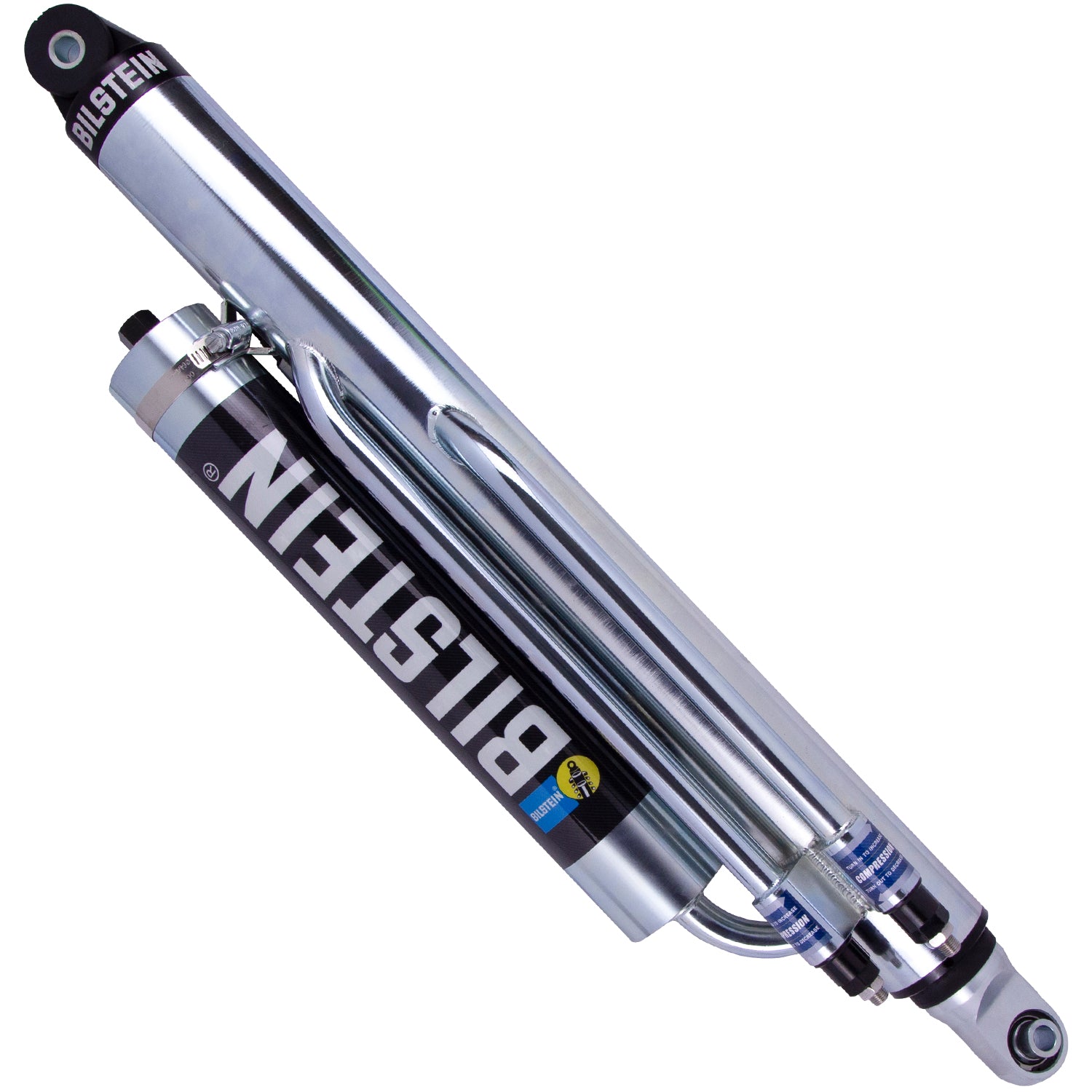

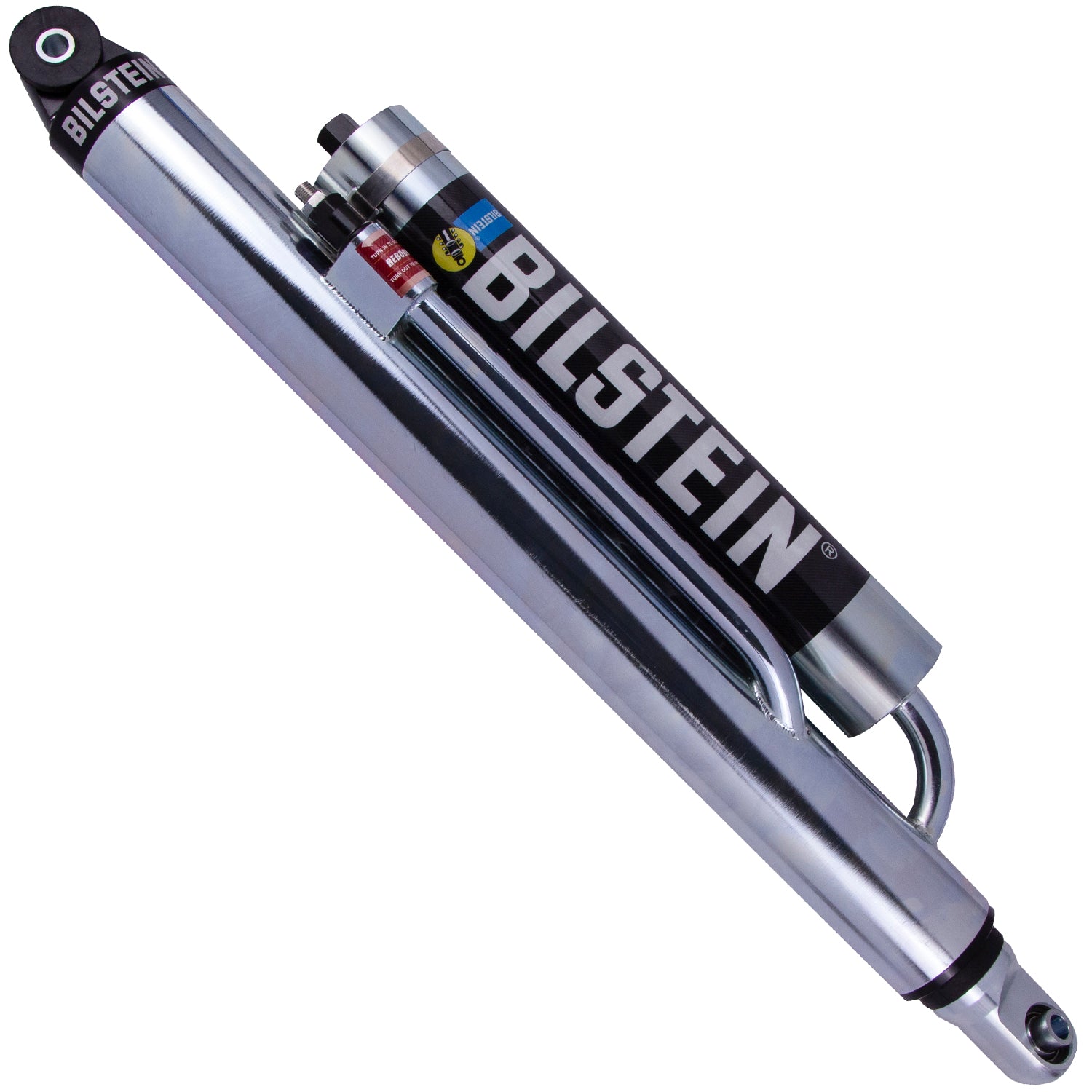

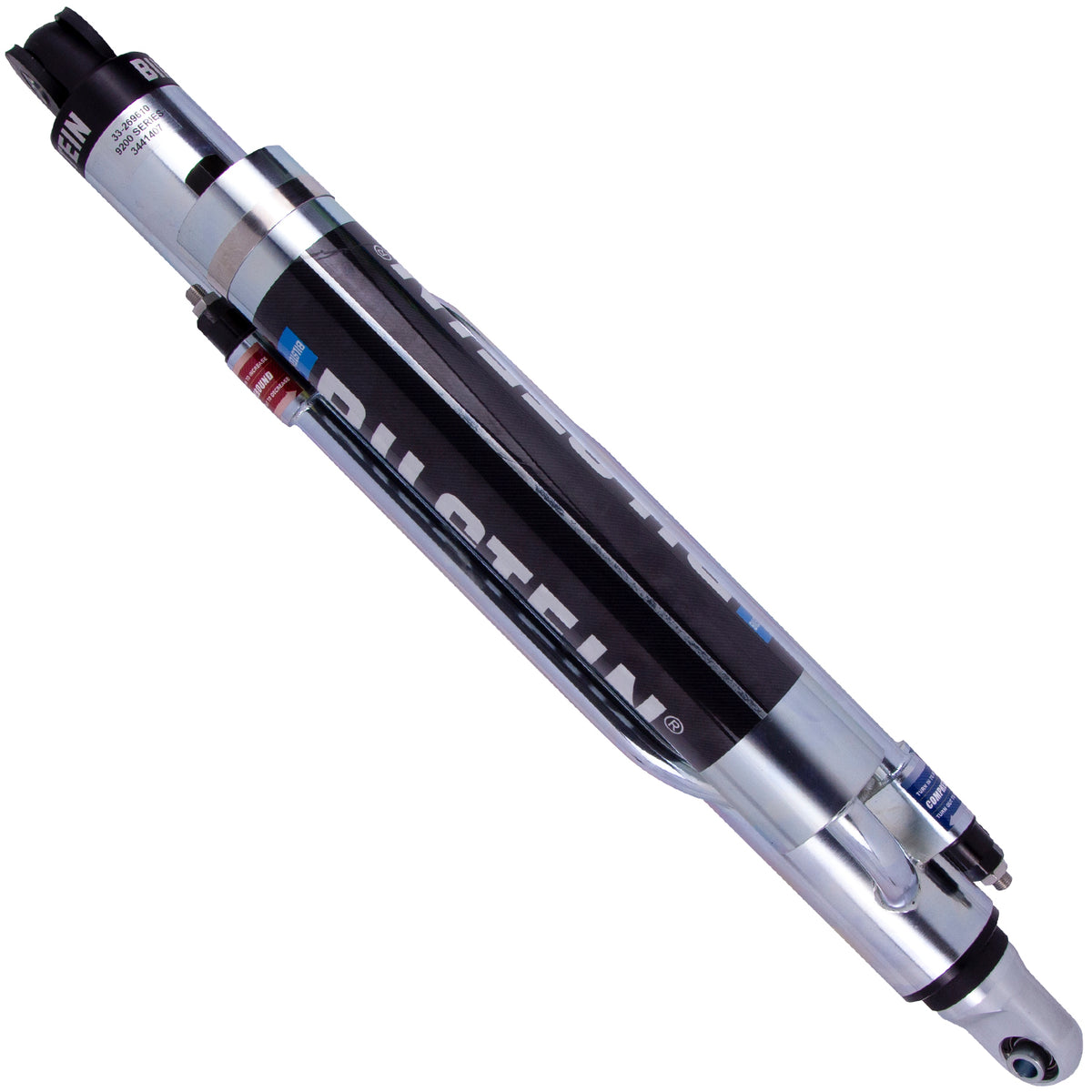

Bilstein 33-269610 - Suspension Shock Absorber M 9200 (Bypass) Monotube Right
Product Availability Request
Fill the form and our team will contact you.
60mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Features & Benefits
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
M 9200 (Bypass) - Suspension Shock Absorber
60mm, 3-Tube, 16" Stroke, Right, Stand
Specifications
| Reservoir | Yes |
| Upper Mount Type | Eye .5x1.5in |
| Optional Reservoir Clamp | N/A |
| Position | Right |
| Extended Length (IN) | 42.50 |
| Rebound @0.52m/s | Custom |
| Collapsed Length (MM) | 673.1 |
| Internal Design | Monotube |
| Compression @0.52m/s | Custom |
| Title | Bilstein Shock Absorbers |
| Body Design | 3-Tube Bypass Screw Top |
| Series | M 9200 (Bypass) |
| Finish | Zinc Plated |
| Mount Type | Eye-to-Eye |
| Boot Included | N/A |
| Lower Mount Type | Eye .5x1.5in |
| Extended Length (MM) | 1079.5 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 26.50 |
| Piston Diameter | 60mm |
| Stroke/Travel Length (IN) | 16.00 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (mm) | 406.4 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
