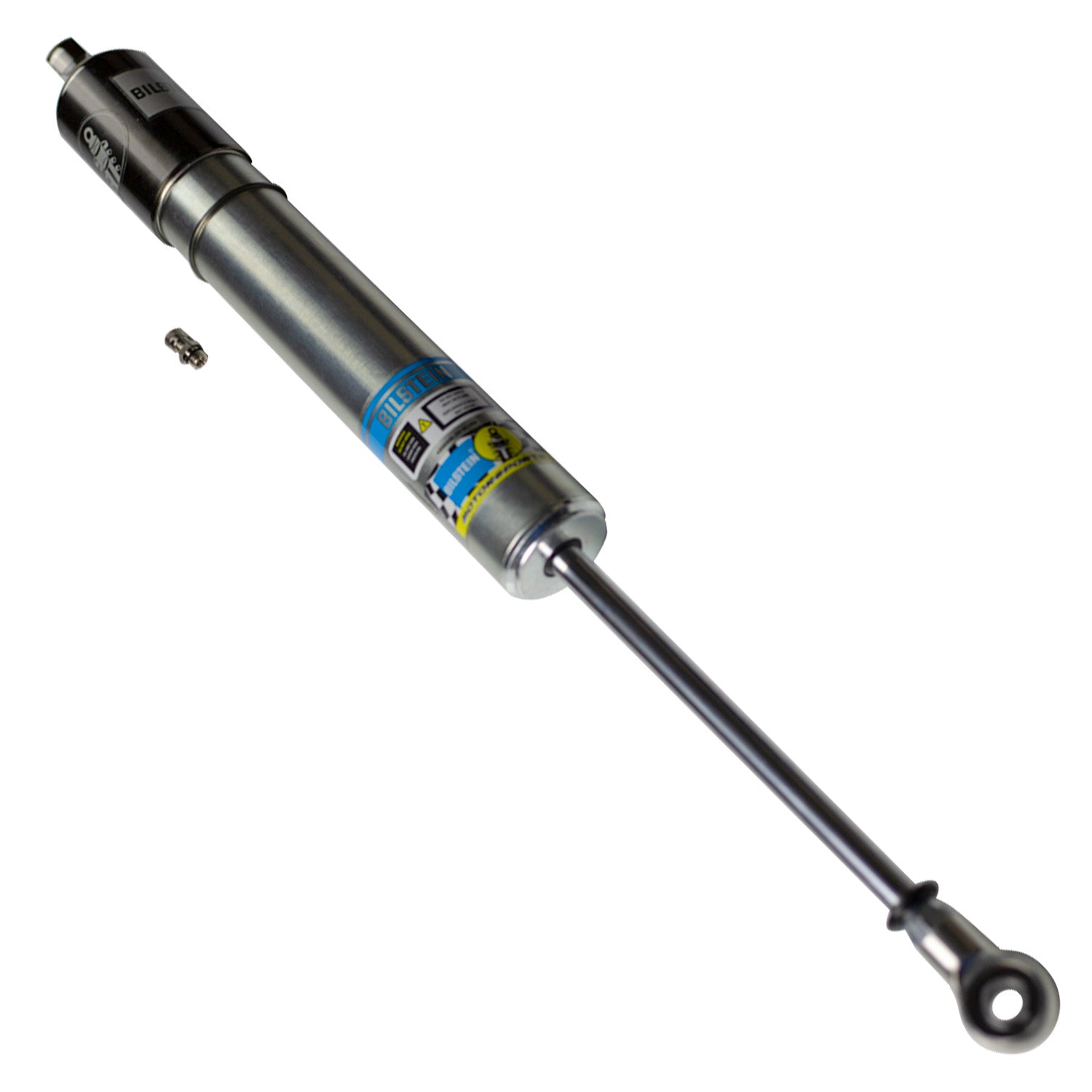

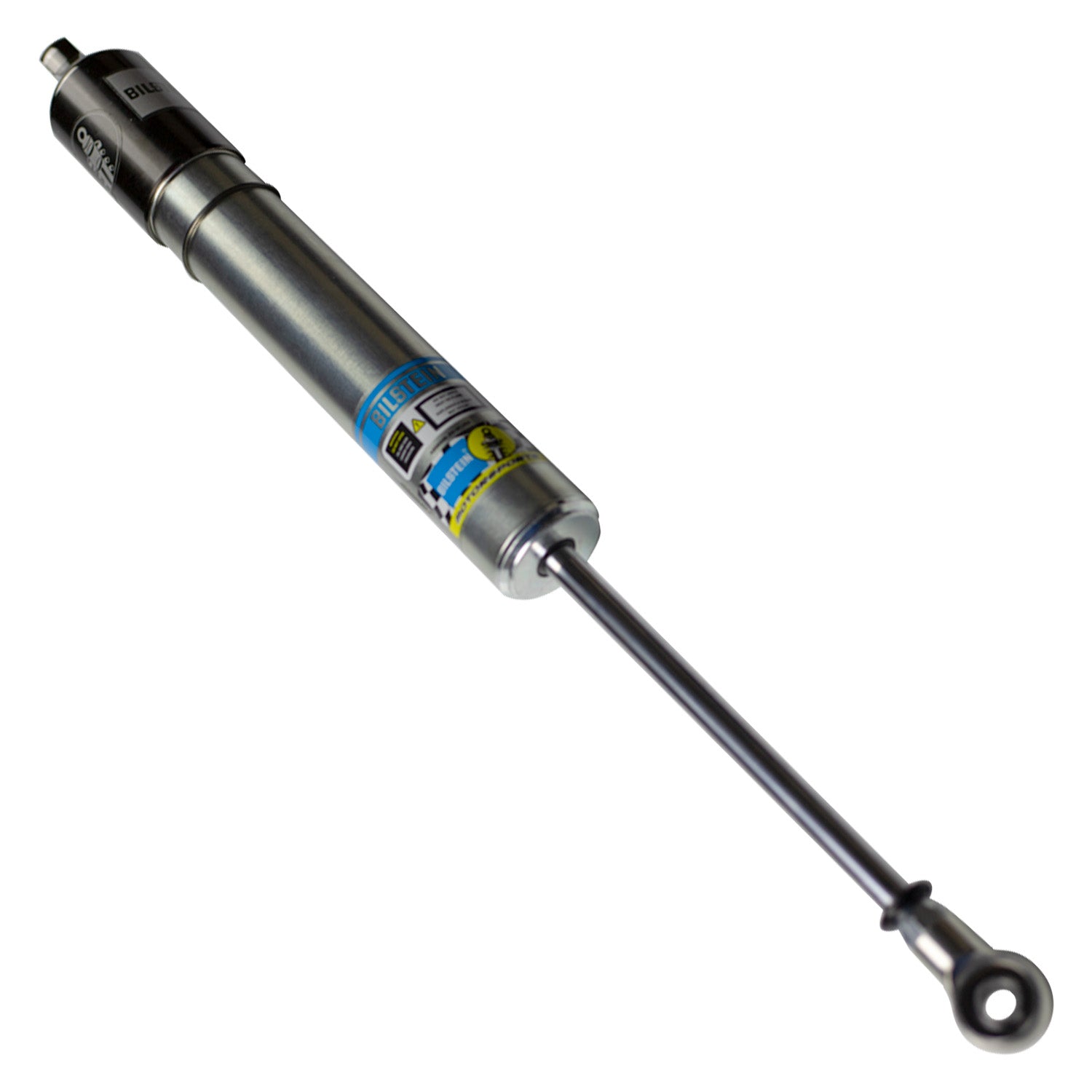

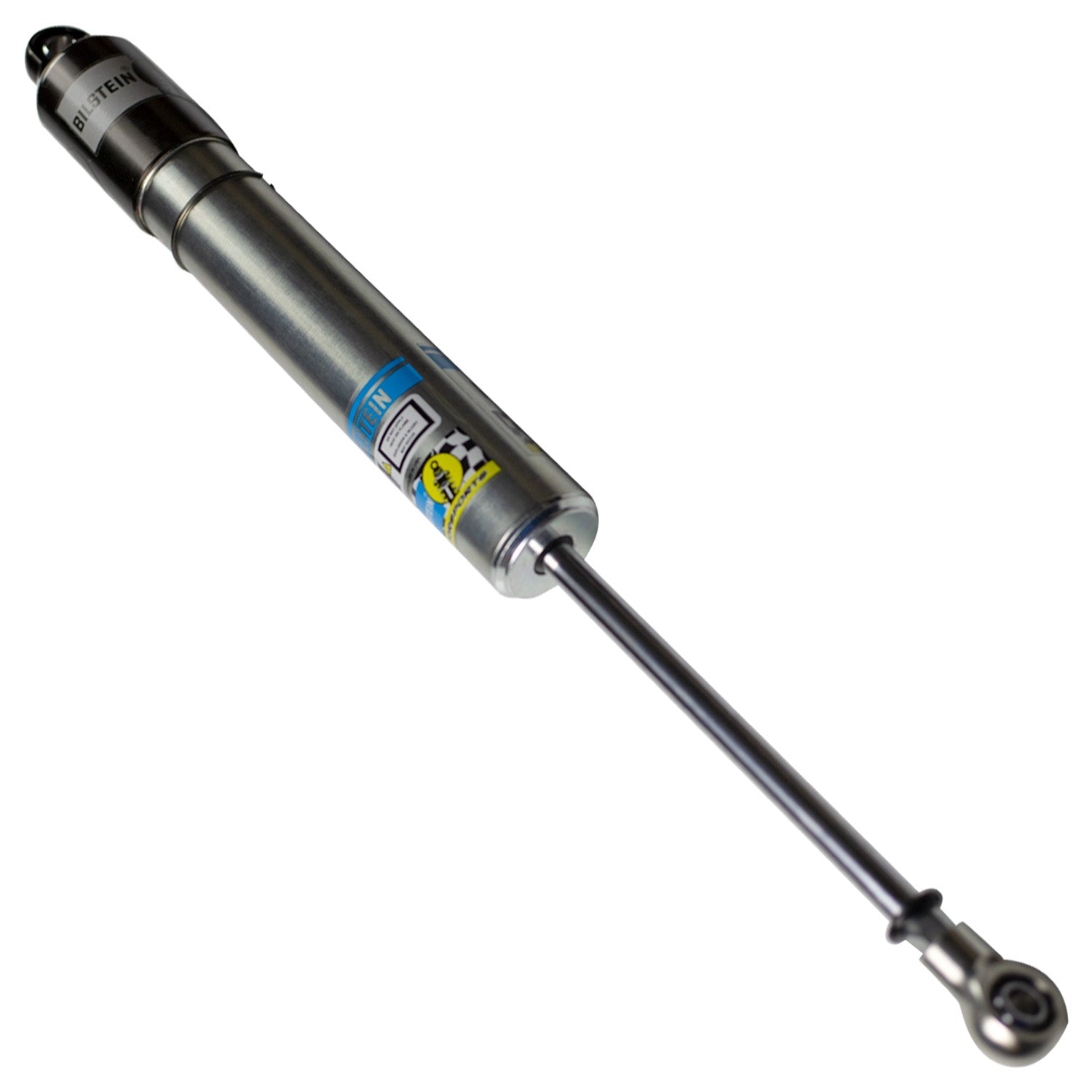

Bilstein 33-297927 - Suspension Shock Absorber SNS2 BV 7 Inch Non Adjustable Digressive C2-R12 Monotube SNS2 Series (BV) Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber

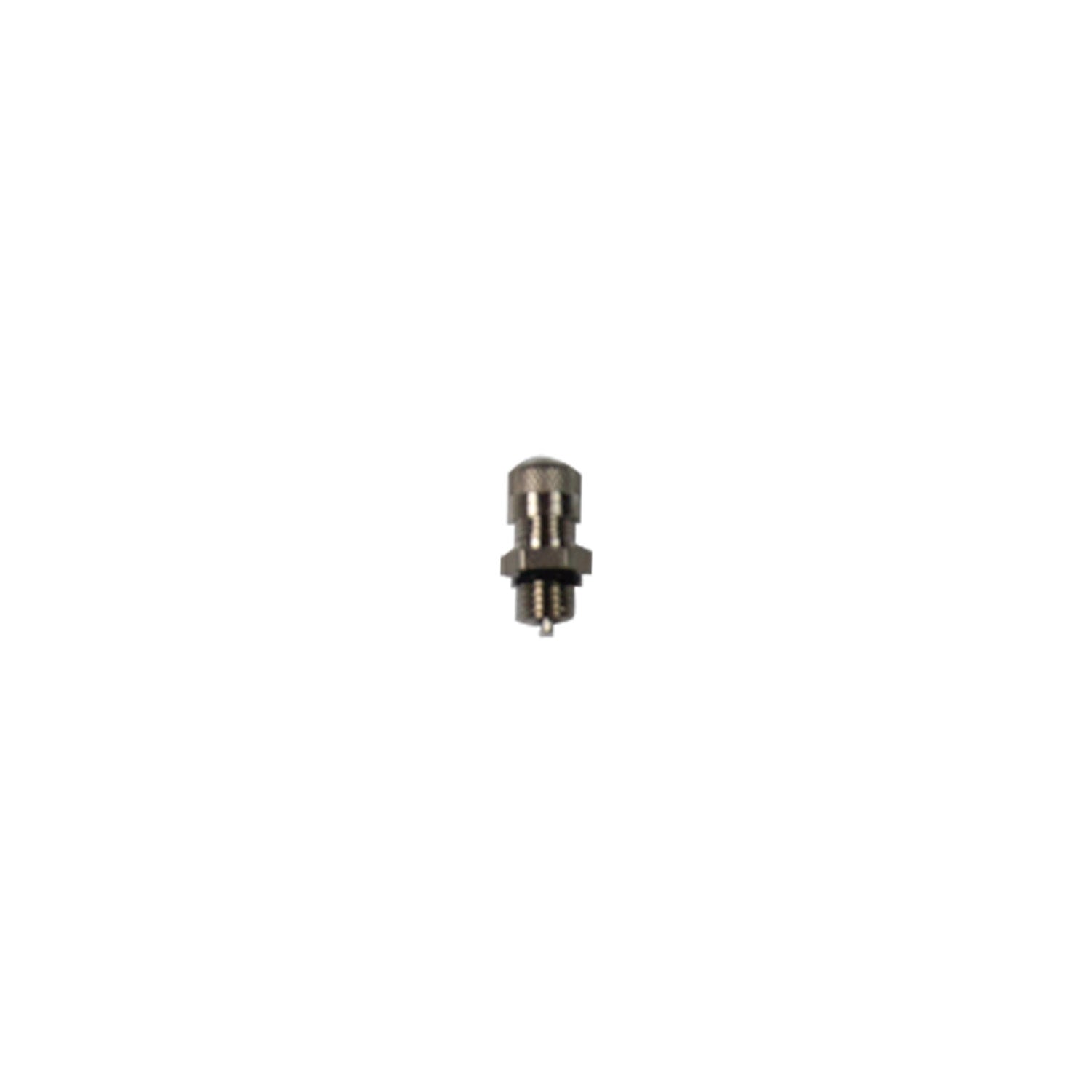

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
Features & Benefits
- Base Valve design delivers ultra low rod pressures and elminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
SNS2 Series (BV) - Suspension Shock Absorber
SNS2 BV, 7" Non Adj. Dig. C2-R12
Specifications
| Adjustable Damping | Non-Adjustable |
| Finish | Zinc Plated |
| Extended Length (IN) | 19.16 |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Internal Design | Monotube |
| Body Material | Steel |
| Series | SNS2 Series (BV) |
| Boot Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | 1/2in Heim |
| Piston Type | Digressive |
| Collapsed Length (IN) | 13.35 |
| Extended Length (MM) | 486.8 |
| Lower Mount Type | 1/2in Heim |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | B4-BOA-0000117 |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 339.0 |
| Stroke/Travel Length (mm) | 147.8 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.82 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
