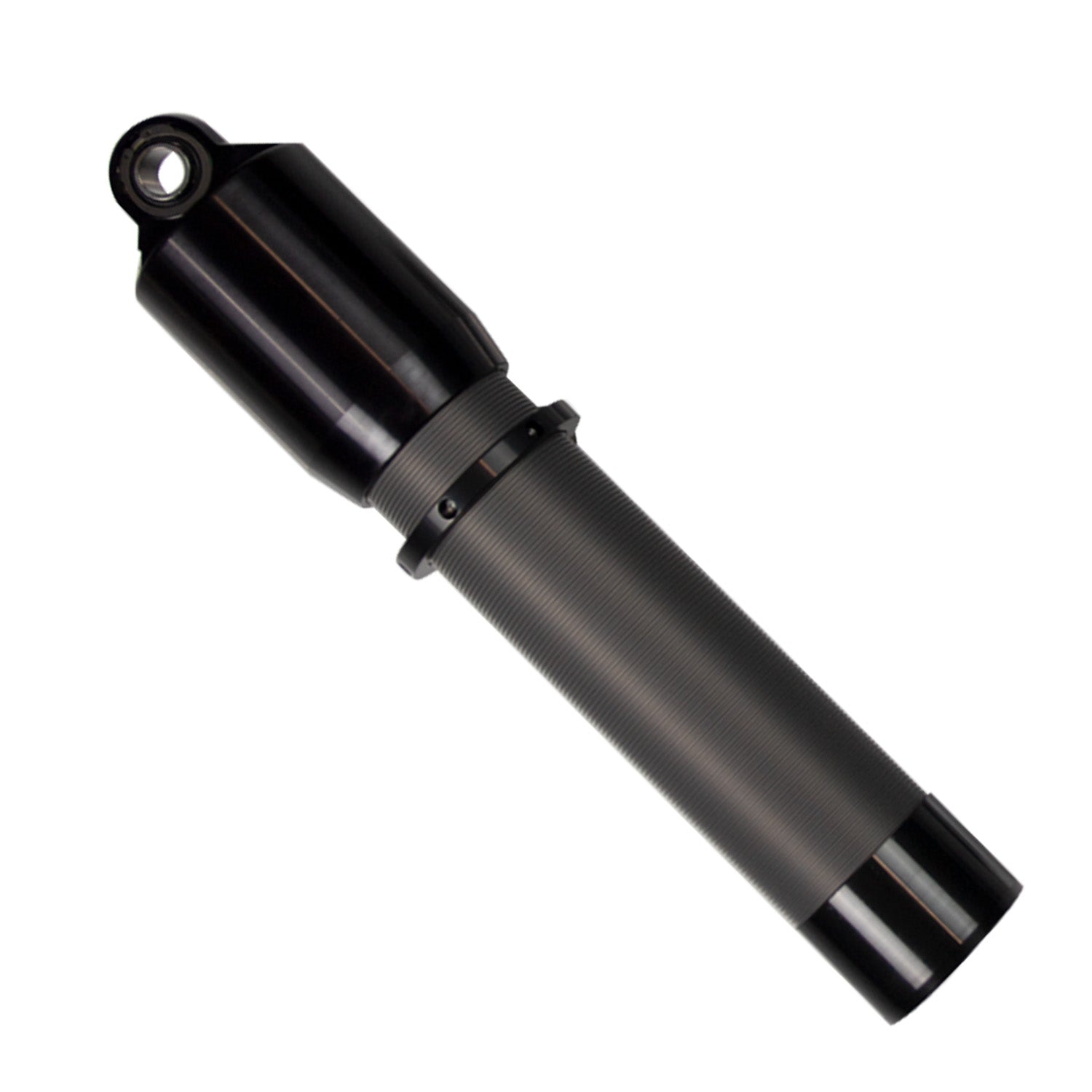

Bilstein 33-314587 - XVA Series - Suspension Shock Absorber
Couldn't load pickup availability
46mm Monotube Shock Absorber
Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Features & Benefits
- 46mm extruded aluminum threaded body improves durability and heat dissipation
- Dual-zone gas bulb decreases gas pressure while increasing grip levels
- Optimized floating piston improves driver feel and response
Specifications
| Adjustable Damping | Non-Adjustable |
| Body Material | Aluminum |
| Series | XVA Series |
| Piston Type | Sold Separately |
| Finish | Clear Anodized |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (IN) | 12.81 |
| Collapsed Length (MM) | 325.5 |
| Body Design | Threaded Body Large Bulb Screw Top (Coilover) |
| Extended Length (IN) | 18.56 |
| Internal Design | Monotube |
| Extended Length (MM) | 471.5 |
| Boot Included | No |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 146.1 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.75 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
