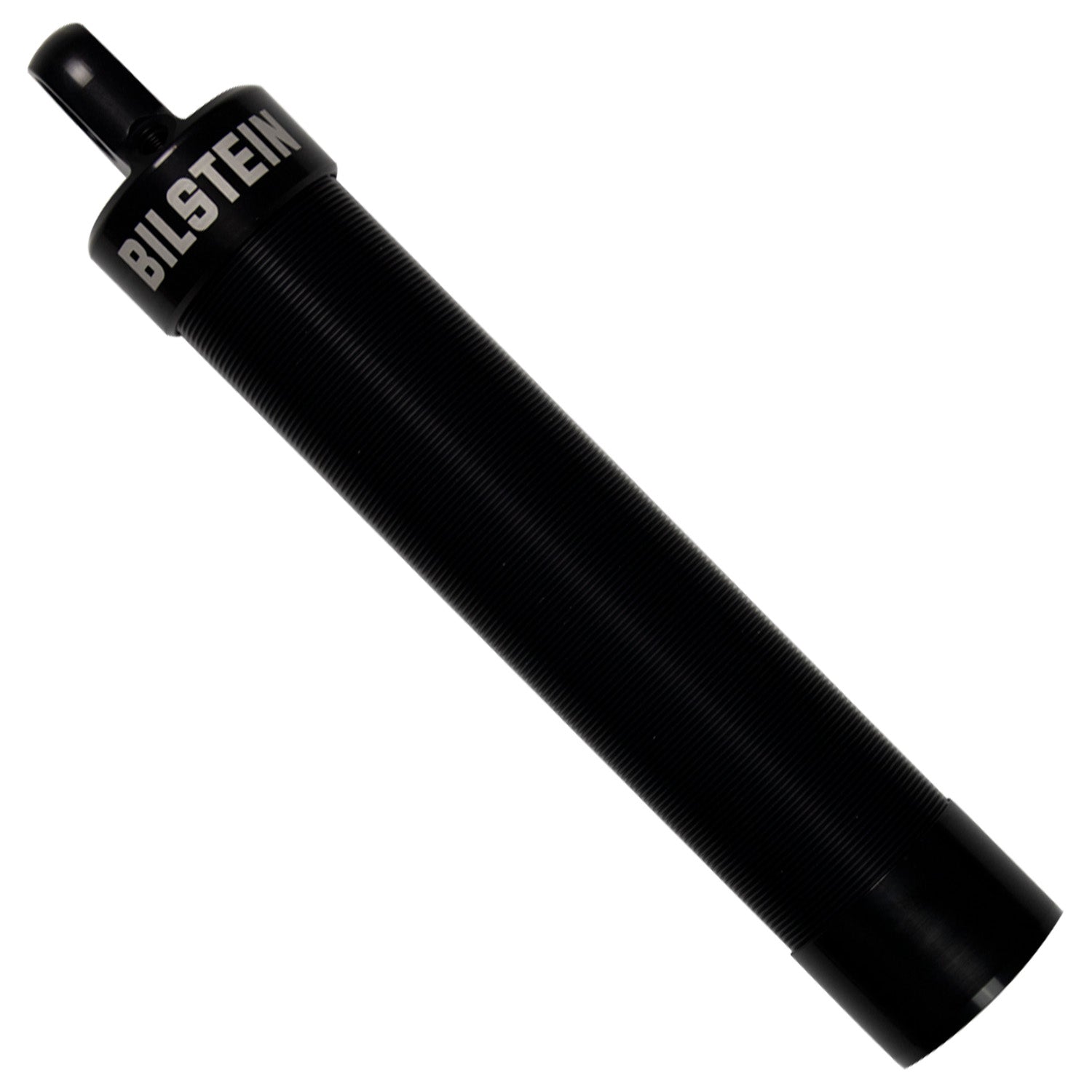

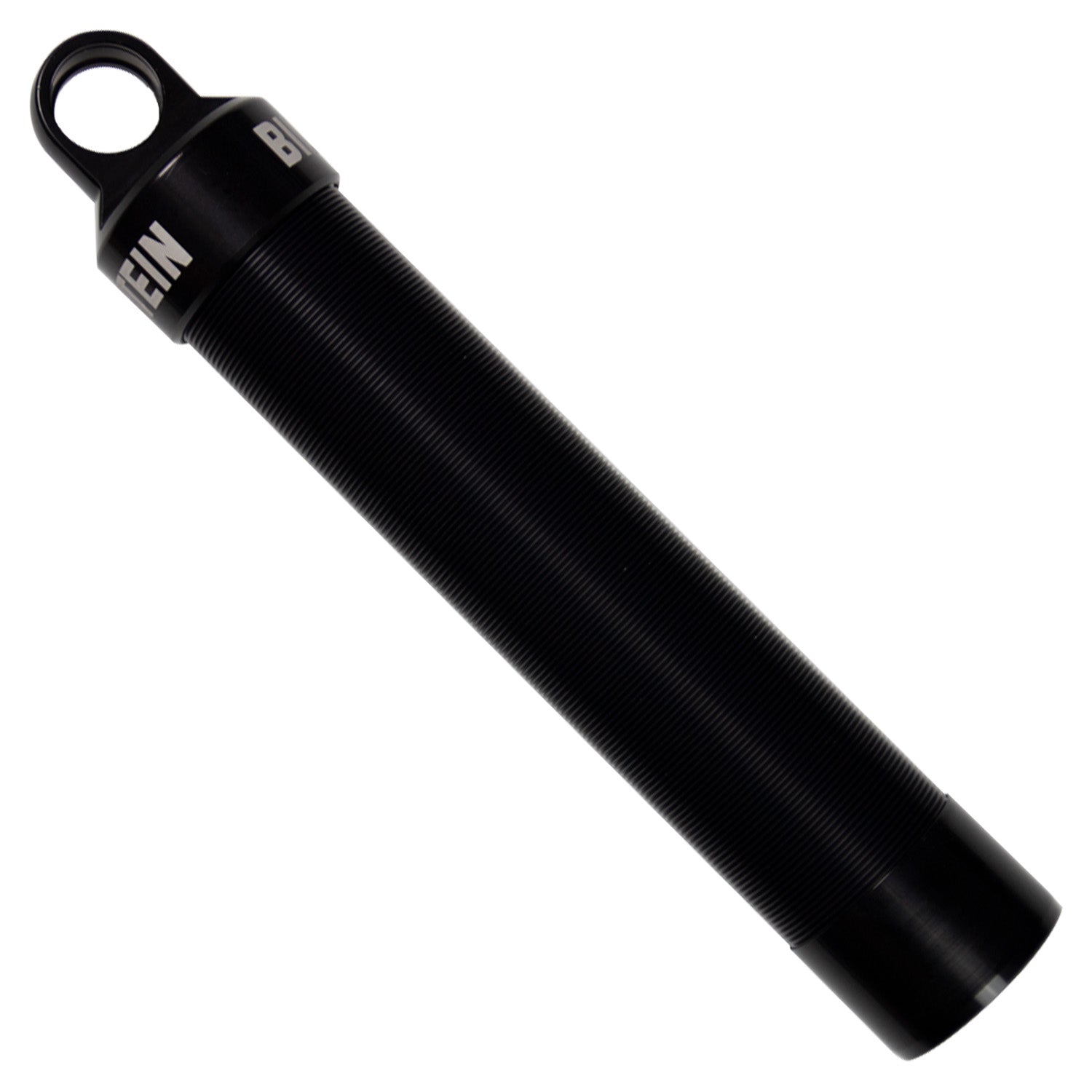

Bilstein 33-315430 - AS2 Series - Suspension Shock Absorber
Couldn't load pickup availability
46mm Monotube Shock Absorber

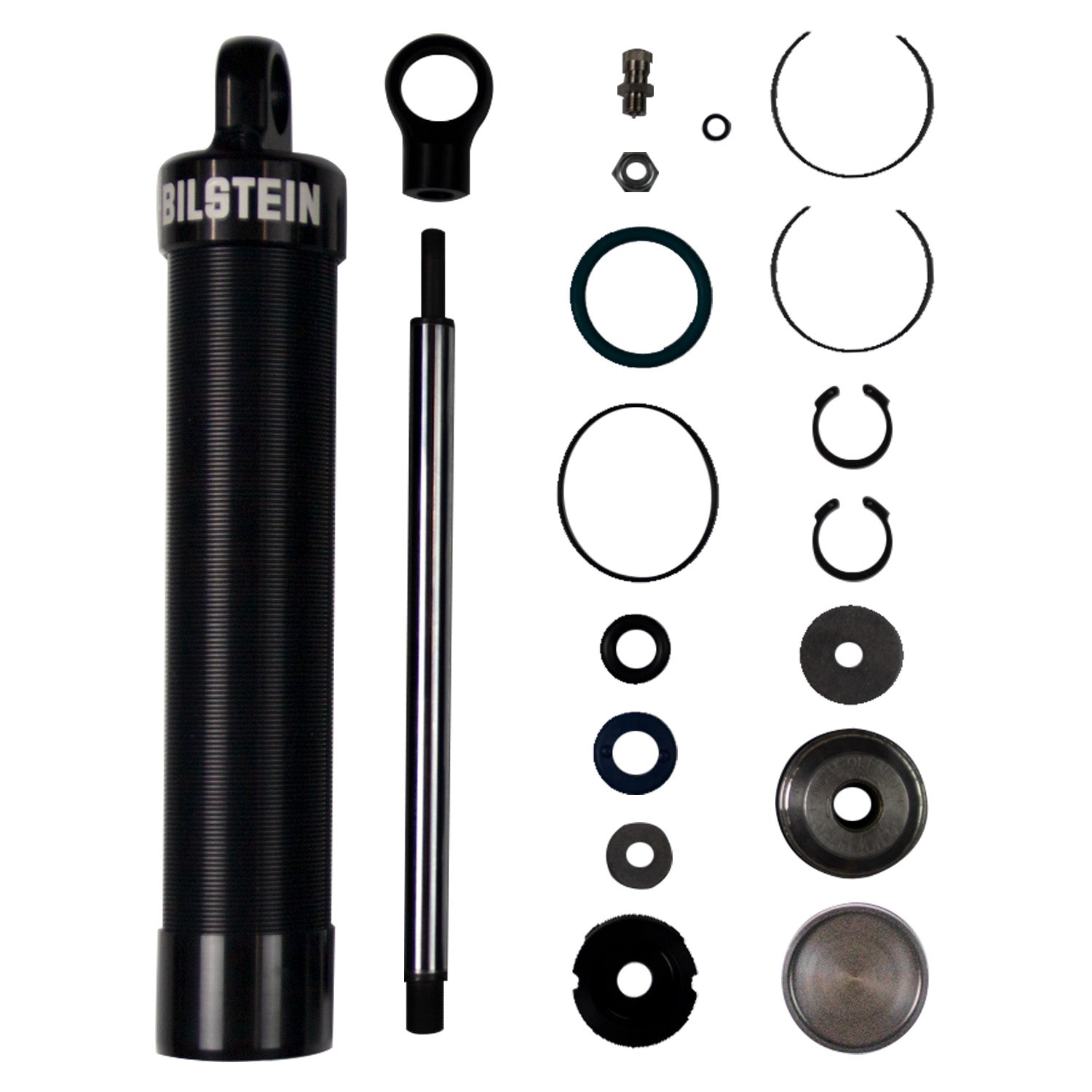

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.
Features & Benefits
- 46mm lightweight extruded aluminum body for superior heat dissipation
- Fine thread body provides precise adjustments in coilover applications
- Single and double adjustable shaft options available
Specifications
| Extended Length (IN) | 19.88 |
| Adjustable Damping | Non-Adjustable |
| Finish | Clear Anodized |
| Body Design | Threaded Body Screw Top (Coilover) |
| Collapsed Length (IN) | 12.99 |
| Body Material | Aluminum |
| Series | AS2 Series |
| Extended Length (MM) | 505.0 |
| Title | Bilstein Shock Absorbers |
| Internal Design | Monotube |
| Boot Included | No |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Lower Mount Type | 1/2in teflon heim |
| Upper Mount Type | 1/2in teflon heim |
| Piston Type | Sold Separately |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 330.0 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 175.0 |
| Stroke/Travel Length (IN) | 6.89 |
