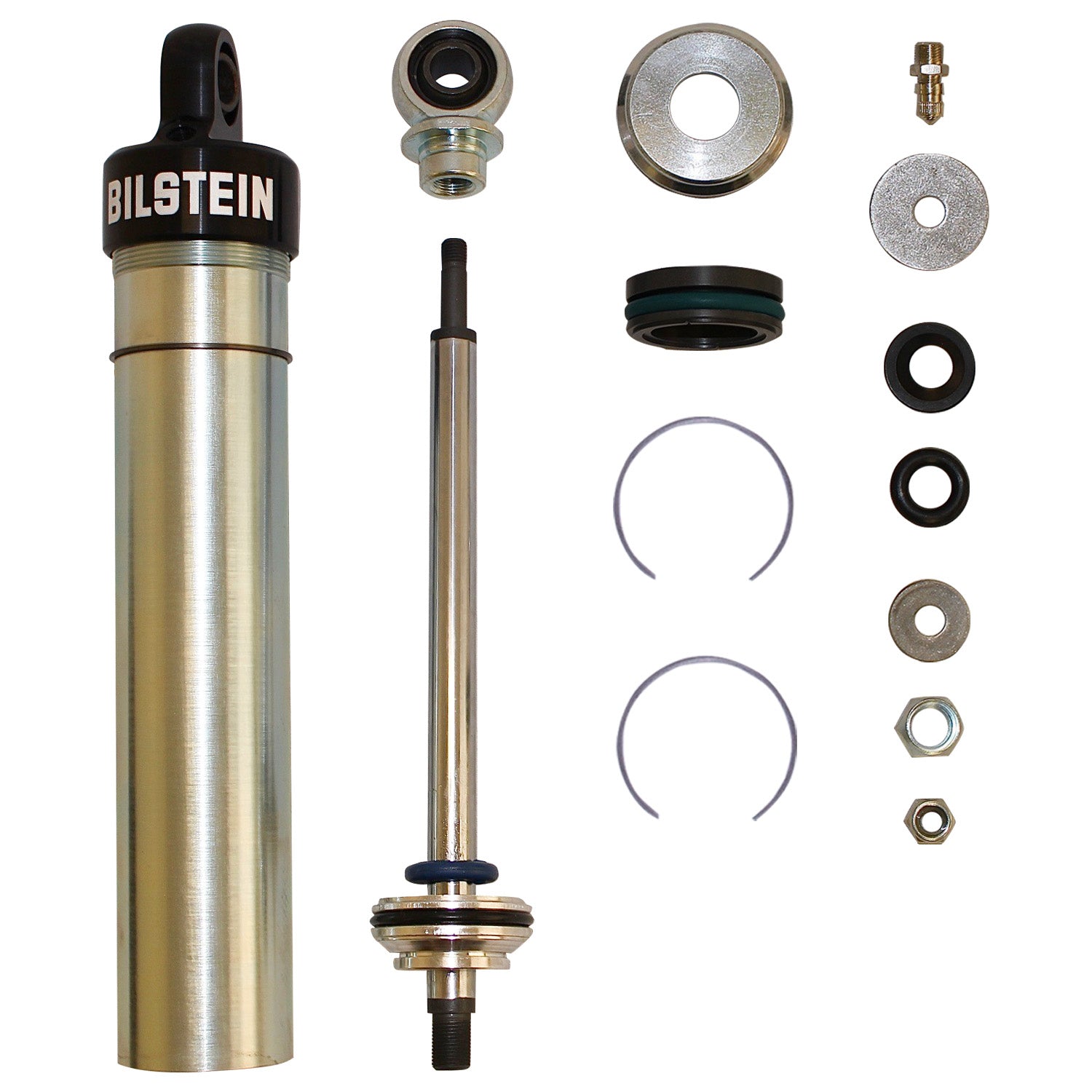

Bilstein 33-316437 - SN2 Series - Suspension Shock Absorber
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein SN2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers are available in non-, single and double adjustable configurations in optimized lengths and can also be converted to a coilover design (kit sold separately). SN2 Series shock absorbers are ideal for racers whose sanctioning rules require steel body shock absorbers but allow for a user rebuildable design and aluminum end caps.
Features & Benefits
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Specifications
| Lower Mount Type | 1/2in Heim |
| Internal Design | Monotube |
| Extended Length (MM) | 452.3 |
| Adjustable Damping | Non-Adjustable |
| Piston Type | Sold Separately |
| Finish | Zinc Plated |
| Extended Length (IN) | 17.81 |
| Series | SN2 Series |
| Boot Included | No |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (MM) | 304.8 |
| Body Material | Steel |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Collapsed Length (IN) | 12.00 |
| Stroke/Travel Length (mm) | 147.6 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.81 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
