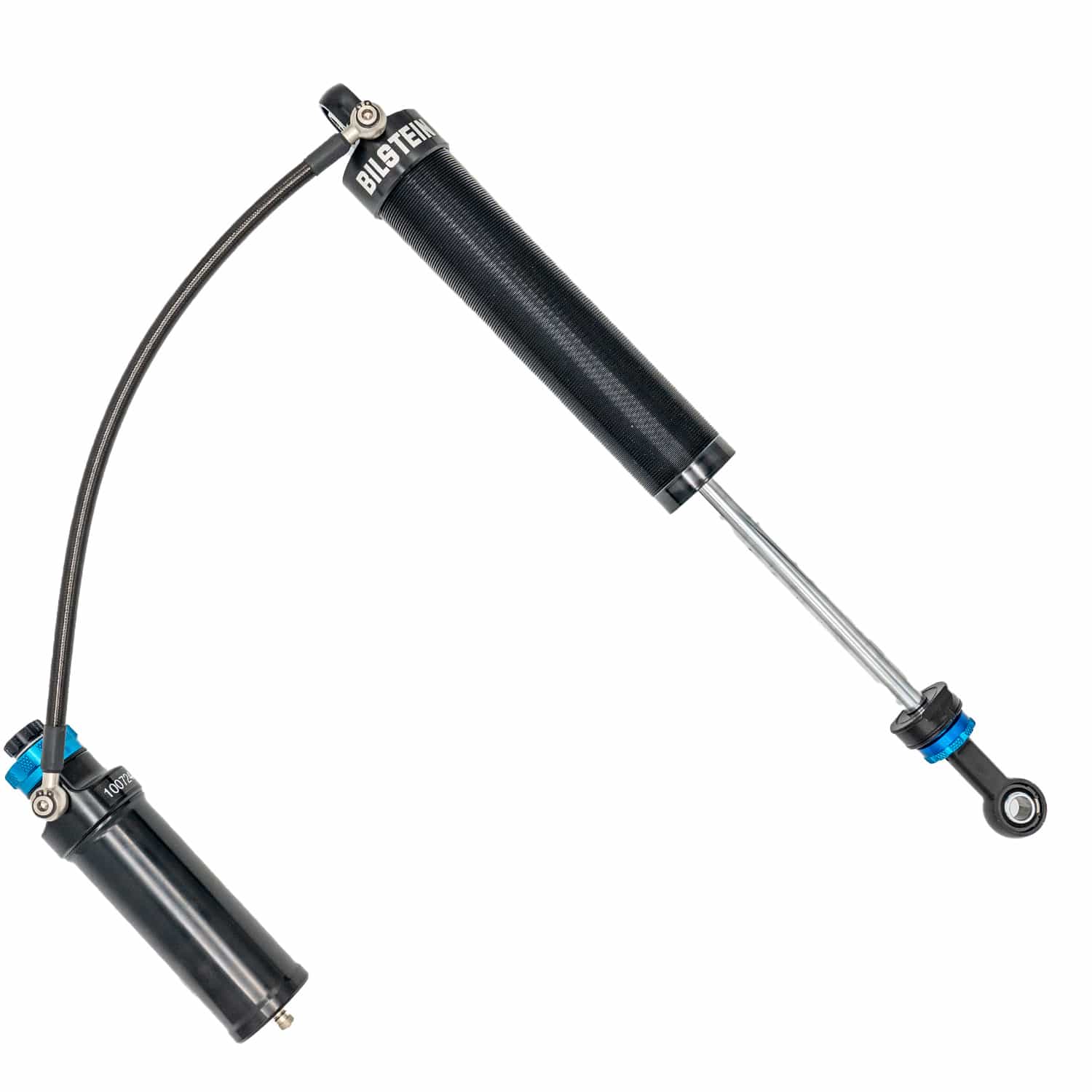

Bilstein 33-349923 - Suspension Shock Absorber AS2-R Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilsteinβs AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.
Features
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
Specifications
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 14.02 |
| Collapsed Length (MM) | 355.9 |
| Extended Length (MM) | 523.1 |
| Valving Identifier | 5TH COIL HYDRO |
| Body Material | Aluminum |
| Series | AS2-R Series |
| Finish | Clear Anodized |
| Piston Type | Digressive |
| Internal Design | Monotube |
| Segment | Motorsports |
| Boot Included | No |
| Spring Seat Included | No |
| PartType | Shocks / Struts |
| Body Design | Threaded Body Screw Top (Coilover) |
| Adjustable Damping | Triple Adjustable - Rebound and High and Low Speed Compression |
| Prop 65 (Y/N) | Y |
| Extended Length (IN) | 20.60 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 167.1 |
| Stroke/Travel Length (IN) | 6.58 |
Short Description: Shock
Invoice Description: AS2-R, 5th Coil Hydro
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 90 Day Warranty
