Bilstein

Bilstein 41-314319 - B8 8112 Black Hawk - Front Left Corner Module

Contact Us for Availability
$1,584.00 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Bilstein
  • SKU 41-314319
  • Barcode 651860934150

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

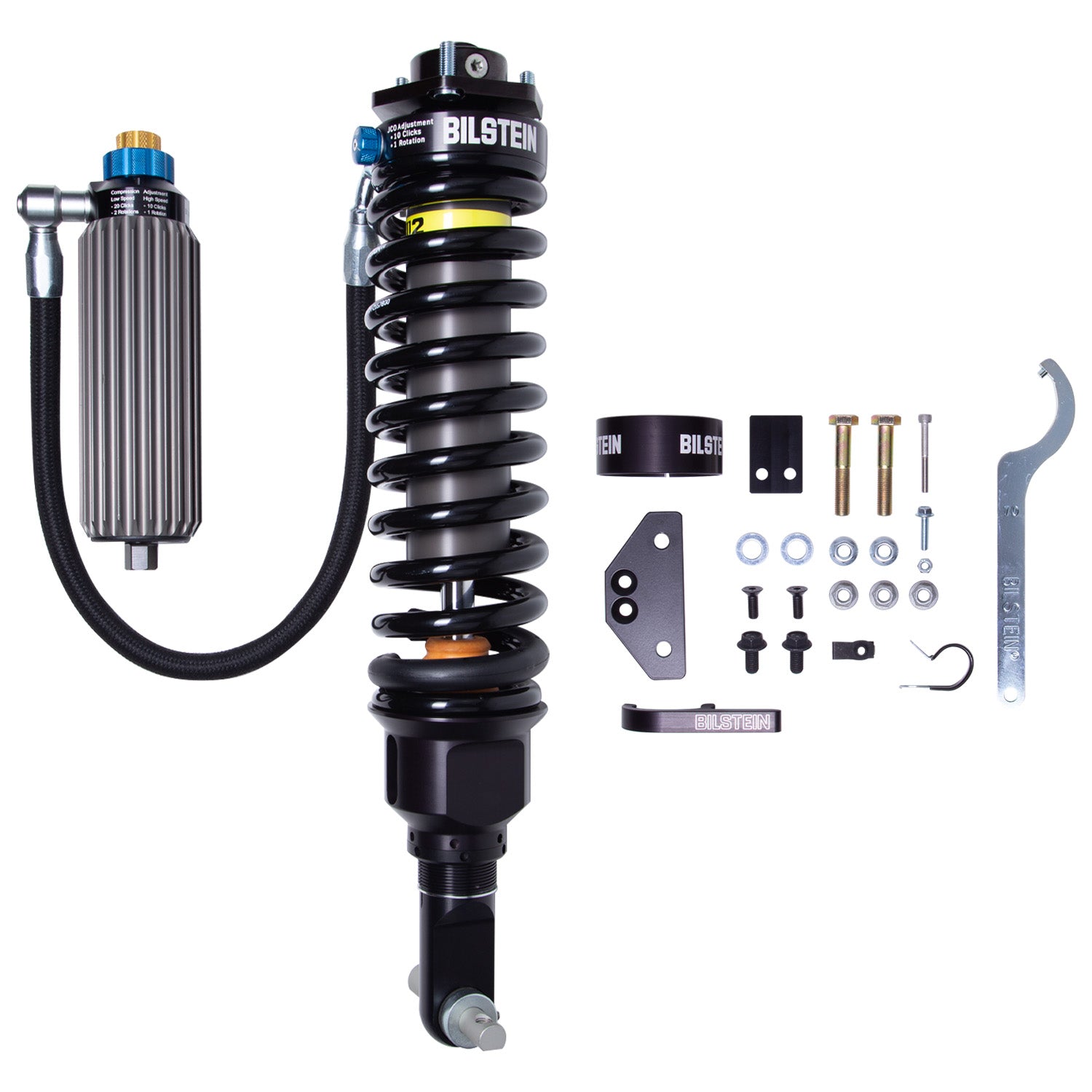

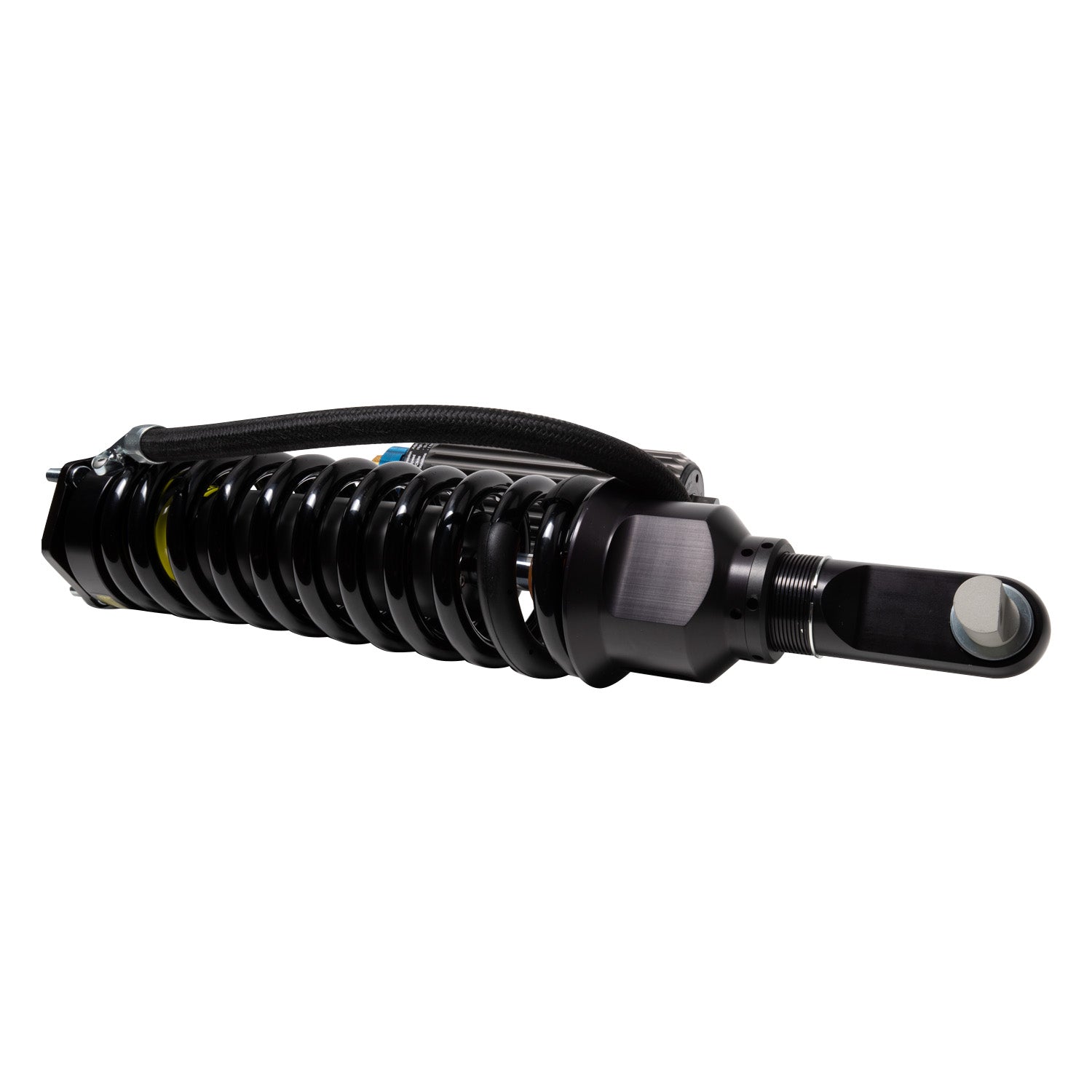

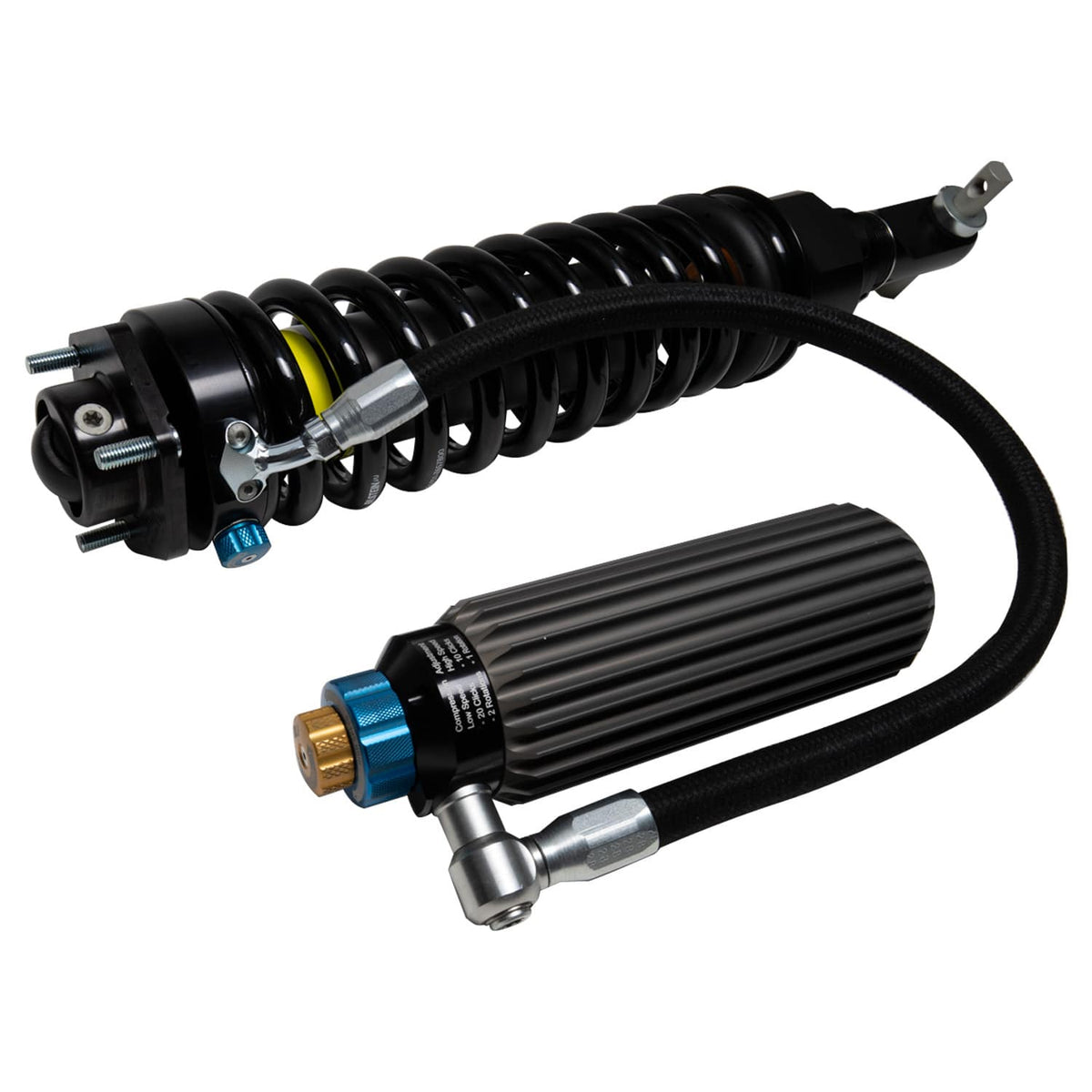

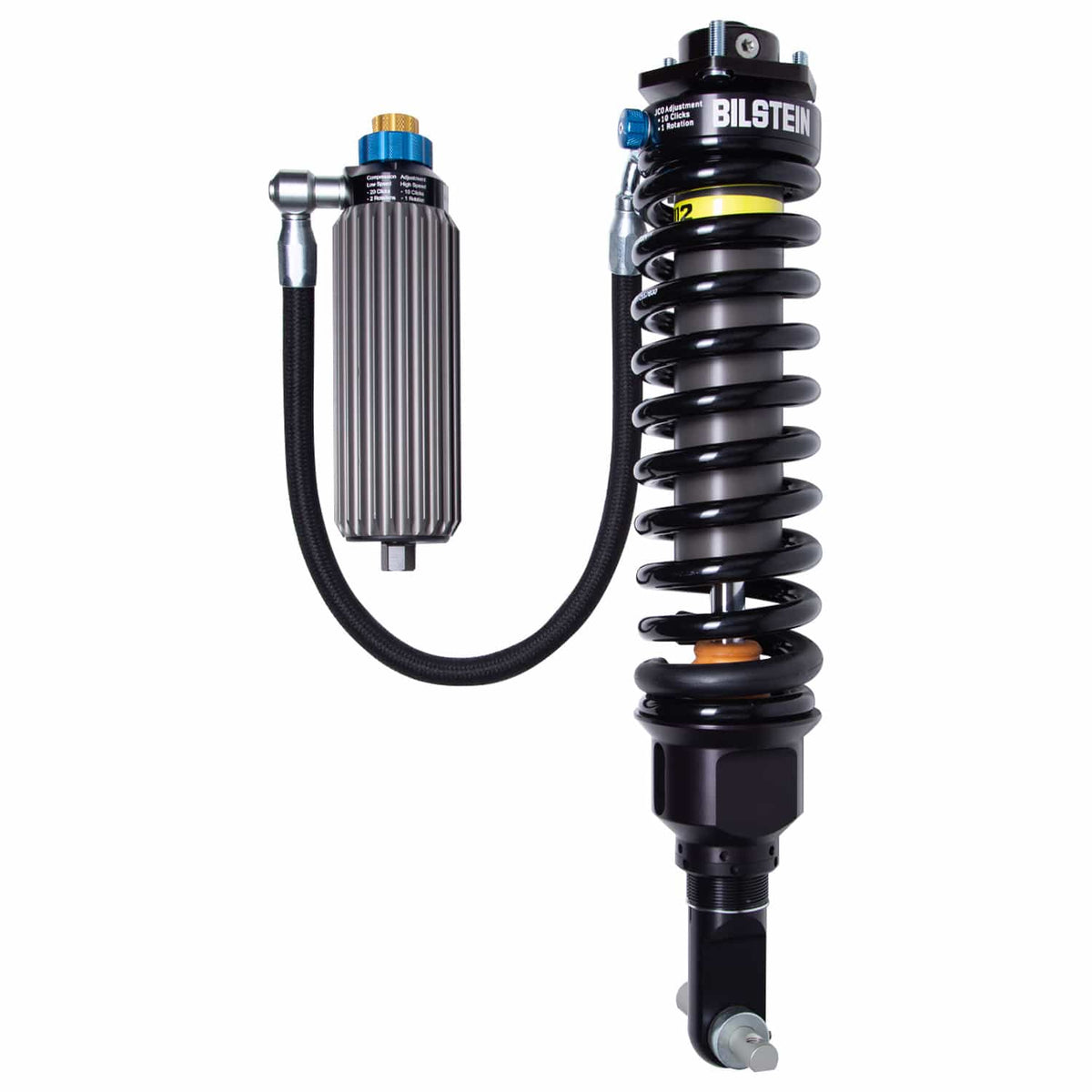

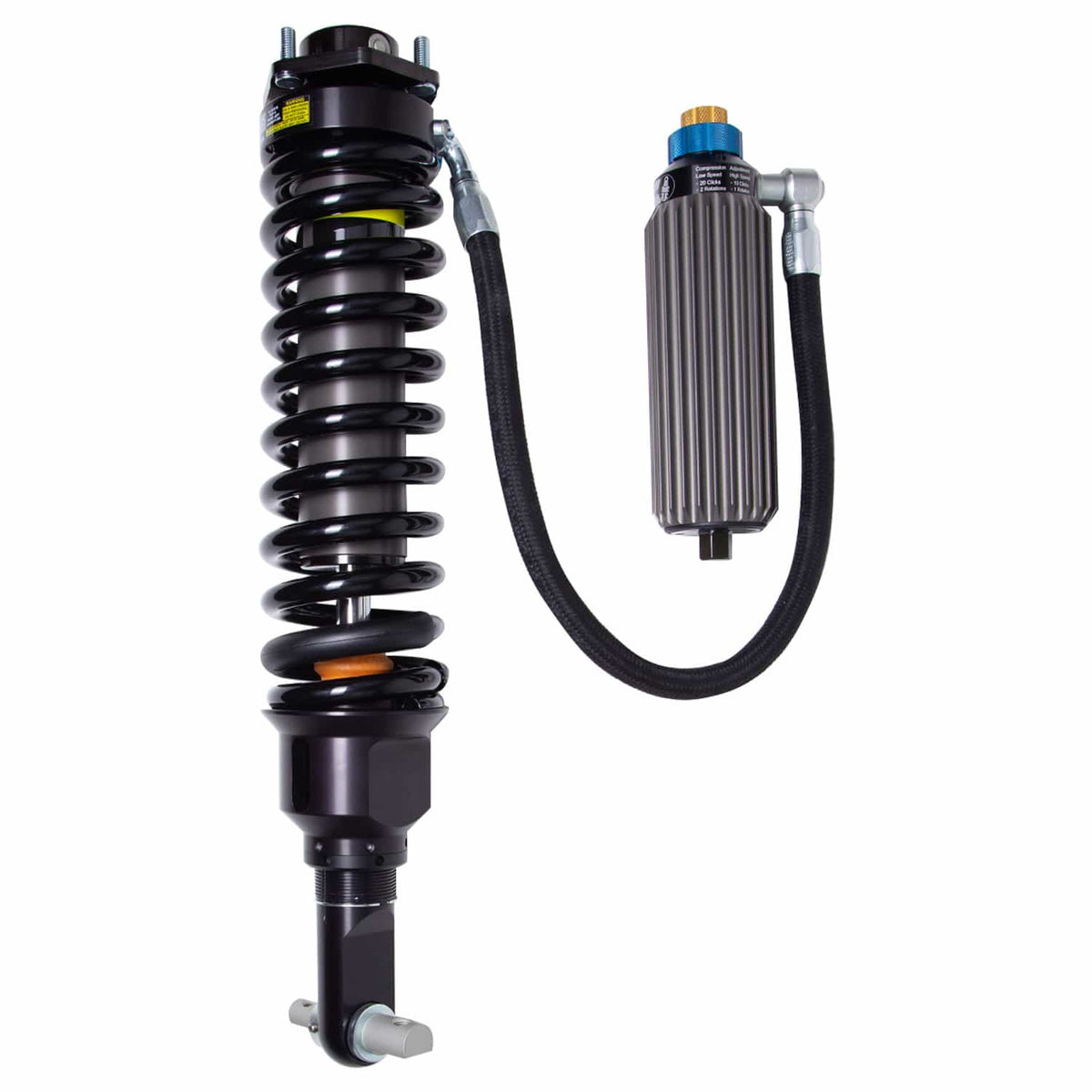

60mm Front Left Corner Module

BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound.  Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option.  The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.

Features & Benefits

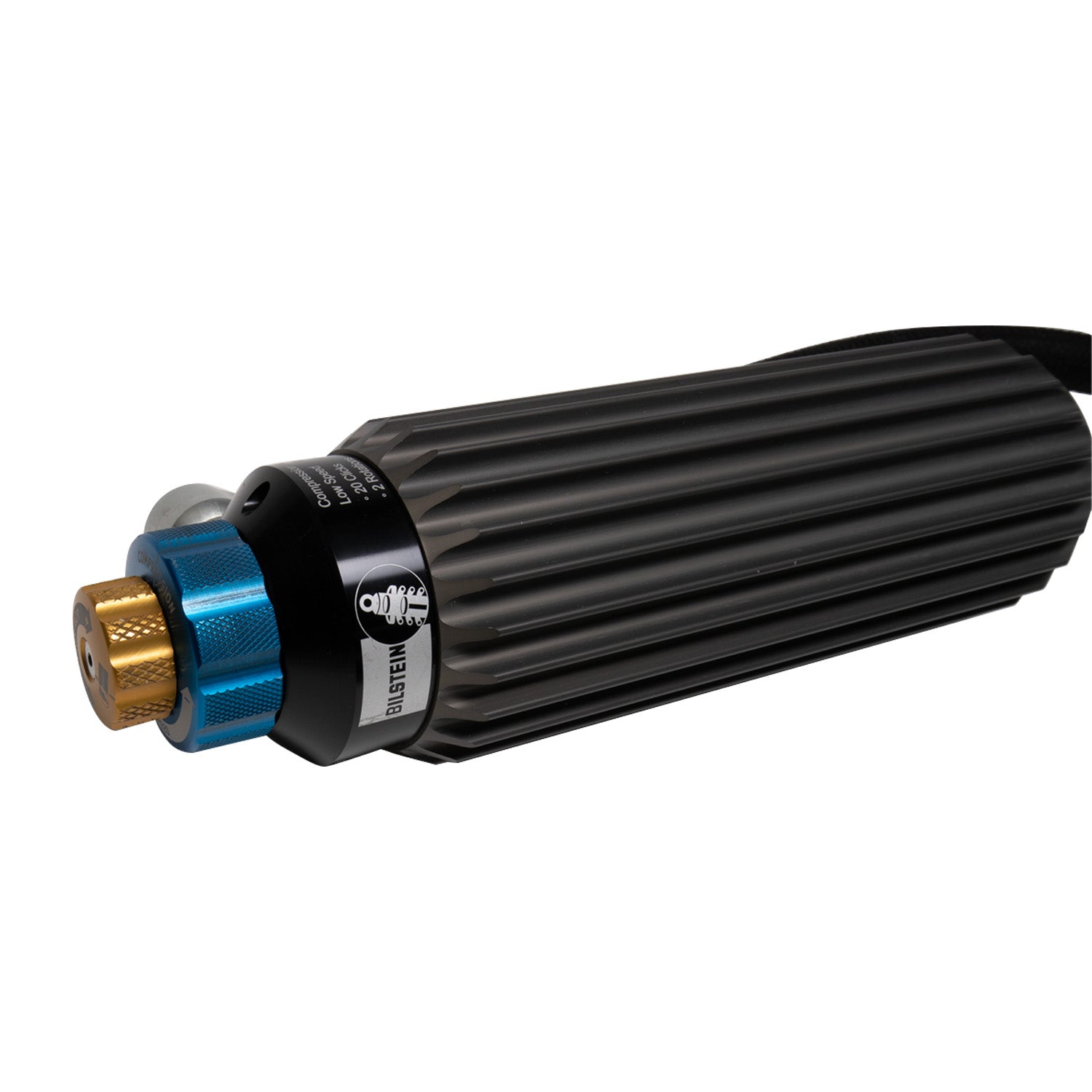

  • Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop

Specifications

Collapsed Length (IN) 17.59
Extended Length (IN) 23.40
Collapsed Length (MM) 446.2
Extended Length (MM) 594.7
Body Material Aluminum
Title Bilstein Shock Absorbers
Adjustable Damping Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Lower Mount Type Crossbar
Finish Dampers: EVO Grey/Springs: Black
Segment Light Truck
Internal Design Monotube
Boot Included No
PartType Shocks / Struts
Body Design Smooth Body (Coilover)
Upper Mount Type Special
Spring Seat Included Yes
Reservoir Yes - Finned Aluminum
Aftermarket Upper Arms Required Yes
Piston Diameter 60mm
Shaft Diameter (mm) 22.0
Front Main Spring Rate (lbs/in) 400
Series B8 8112 Black Hawk

⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation Guide: Download PDF
