Bilstein Bilstein 41-326251 Suspension Shock Absorber and Coil Spring Assembly
Bilstein Bilstein 41-326251 Suspension Shock Absorber and Coil Spring Assembly
Bilstein Bilstein 41-326251 Suspension Shock Absorber and Coil Spring Assembly
Bilstein Bilstein 41-326251 Suspension Shock Absorber and Coil Spring Assembly
Bilstein
SKU 41-326251

Bilstein 41-326251 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR DSA+) Monotube 2010-2024 Toyota/Lexus

$1,457.00 USD
In Stock · Fast Shipping
Free US shipping on orders over $80
Warranty 24 Months

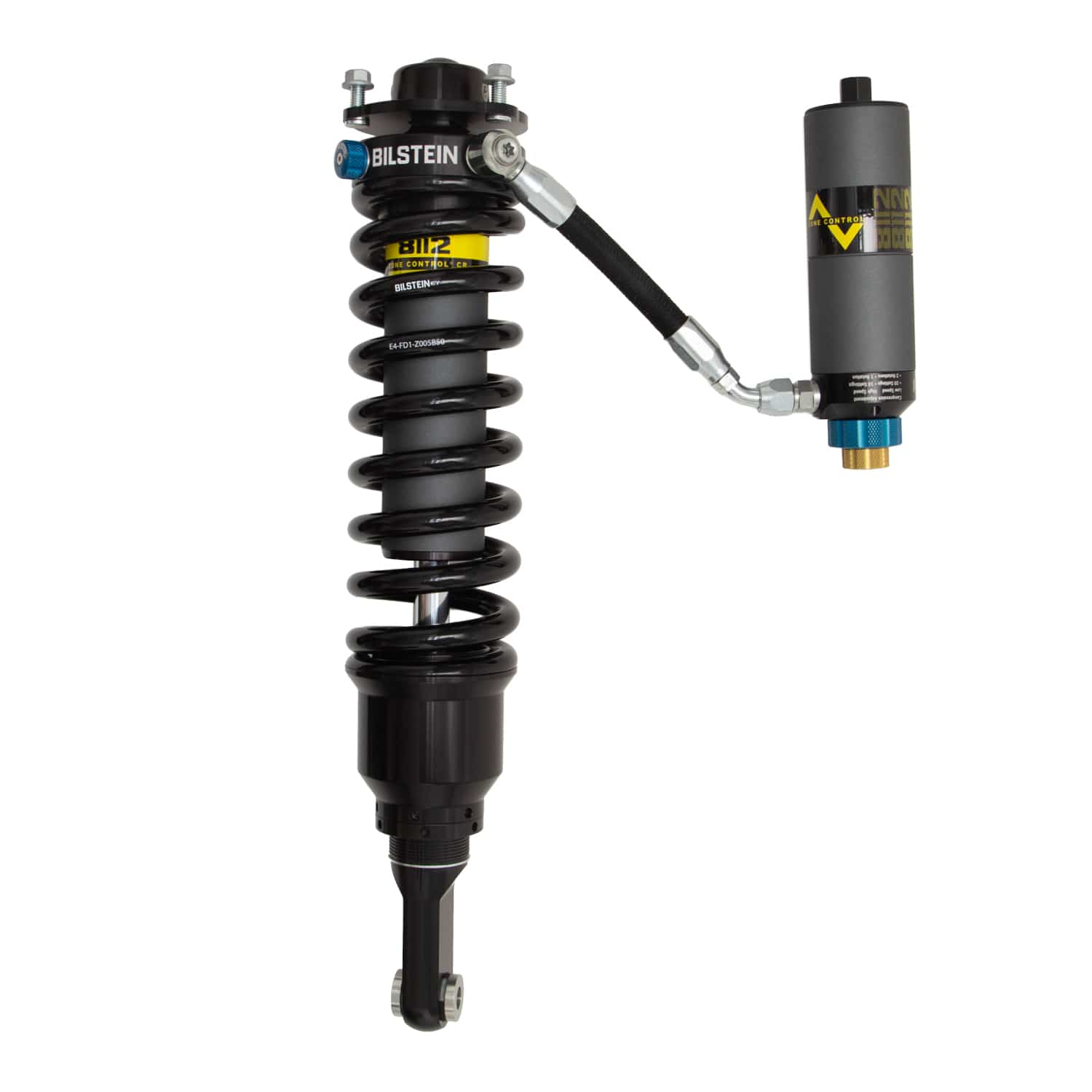

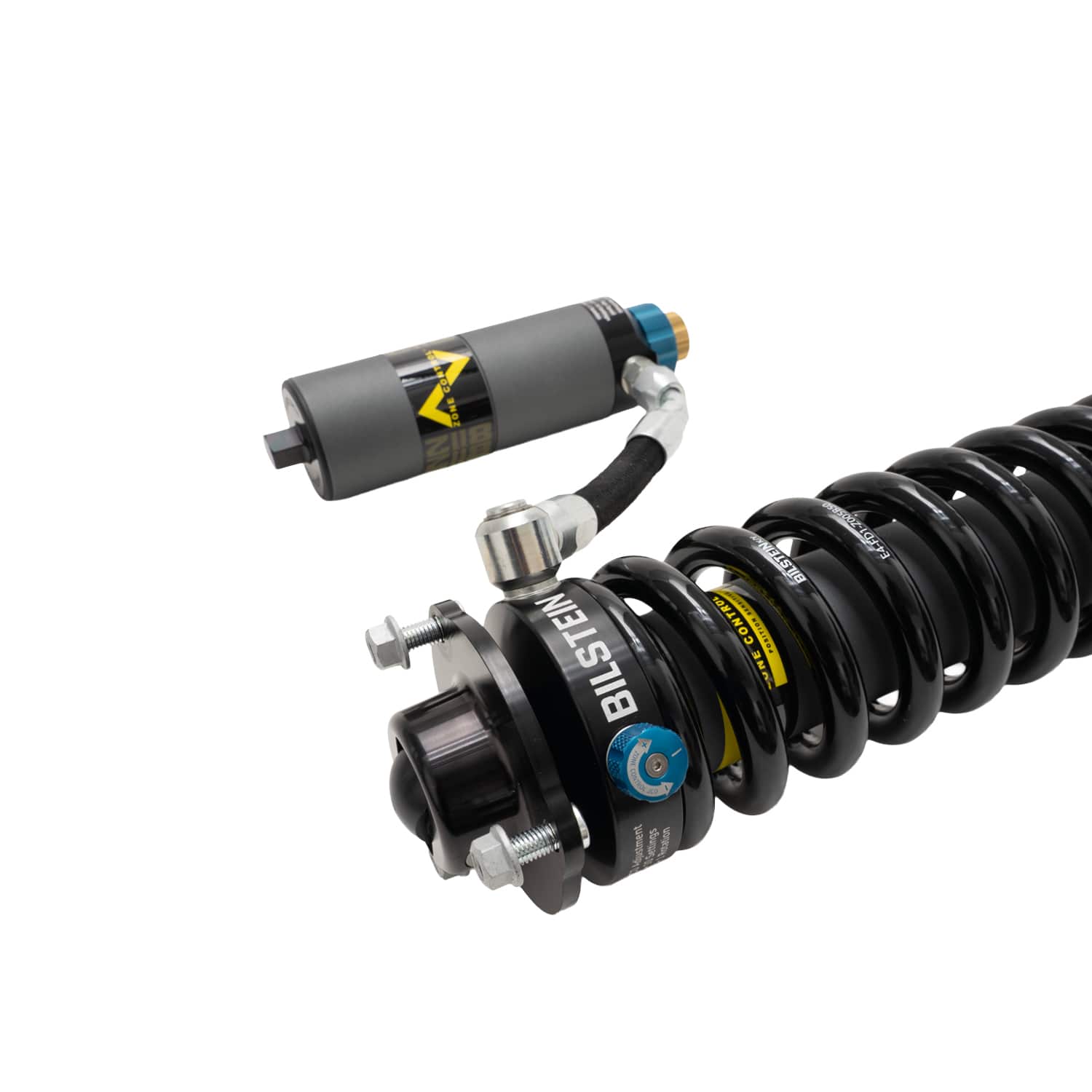

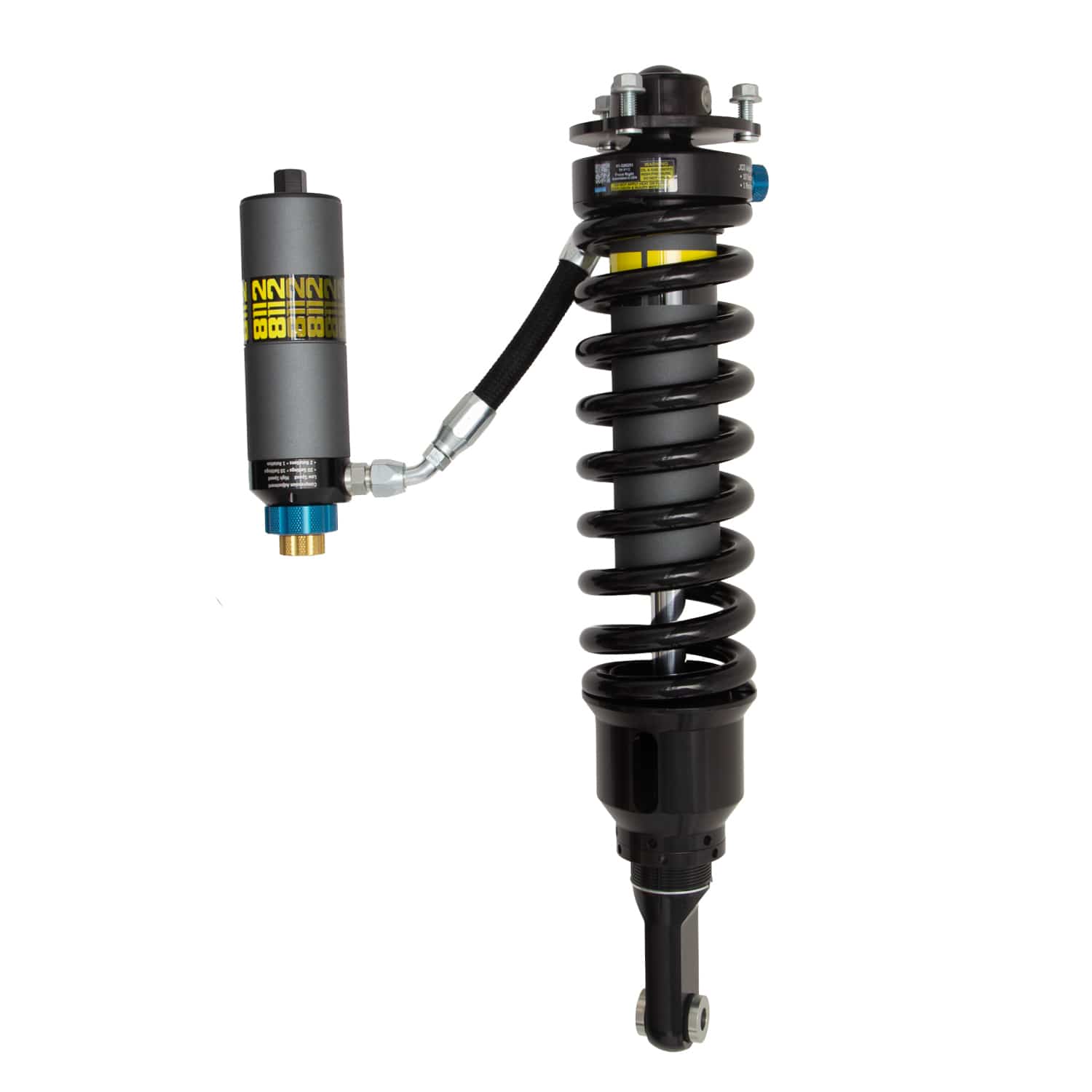

A front coilover shock assembly combining adjustable damping with height control, the Bilstein 41-326251 features a 60mm piston diameter and 22.0mm shaft housed in a smooth-body monotube design. Fits the 2017-2024 Toyota 4Runner TRD Off-Road; the 2018-2024 Toyota 4Runner TRD Off-Road Premium; the 2010-2023 Lexus GX460 Base and GX460 Premium; the 2023 Lexus GX460 Black Line Edition and GX460 Luxury; the 2020-2022 Toyota 4Runner Venture; and the 2010-2016 Toyota 4Runner Trail. With a 600 lbs/in front spring rate and included spring seat, this B8 8112 ZoneControl CR DSA+ module uses position-sensitive damping across three compression zones and two rebound zones, managed by three independent pistons. Click adjusters allow dual-speed adjustment of low and high compression, plus an internal hydraulic bump stop (JCO), with extended and collapsed lengths of 22.24 and 17.43 inches respectively.

  • Front Main Spring Rate (lbs/in): 600
  • Internal Design: Monotube
  • Spring Seat Included: Yes
  • Reservoir: Yes
  • Extended Length (IN): 22.24
  • Collapsed Length (IN): 17.43
  • Series: B8 8112 (ZoneControl CR DSA+)
  • Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
  • Upper Mount Type: Special
  • Piston Diameter: 60mm
  • Extended Length (mm): 564.8
  • Body Design: Smooth Body (Coilover)
  • Shaft Diameter (mm): 22.0
  • Lower Mount Type: Eye 14.1mm
  • Body Material: Steel
  • Collapsed Length (mm): 442.6
  • Boot Included: No
  • Finish: Dampers: EVO Grey/Springs: Black
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

Country of Origin: United States

Product resources

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Vehicle Fitment Fits 8 vehicle applications (2010-2024).
