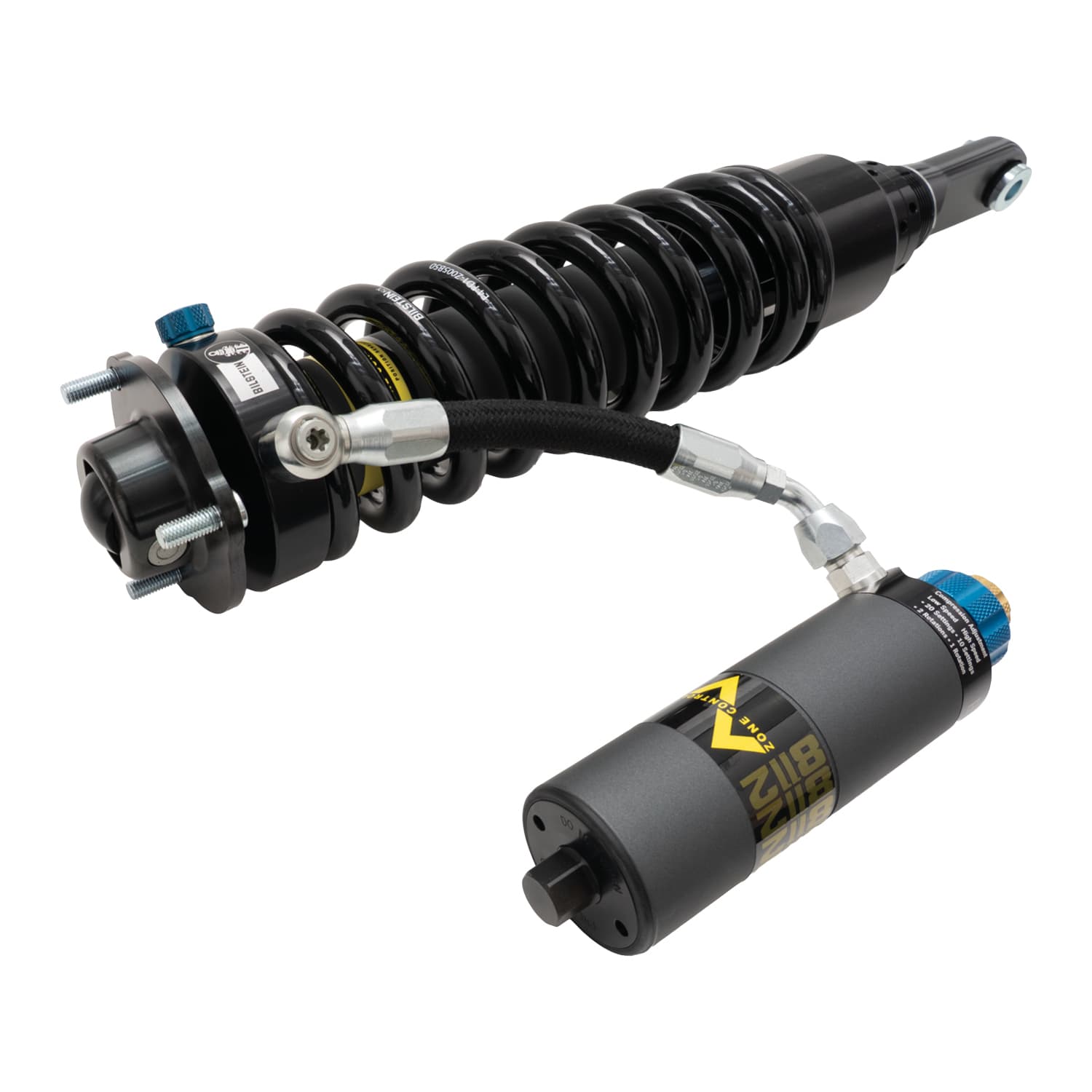

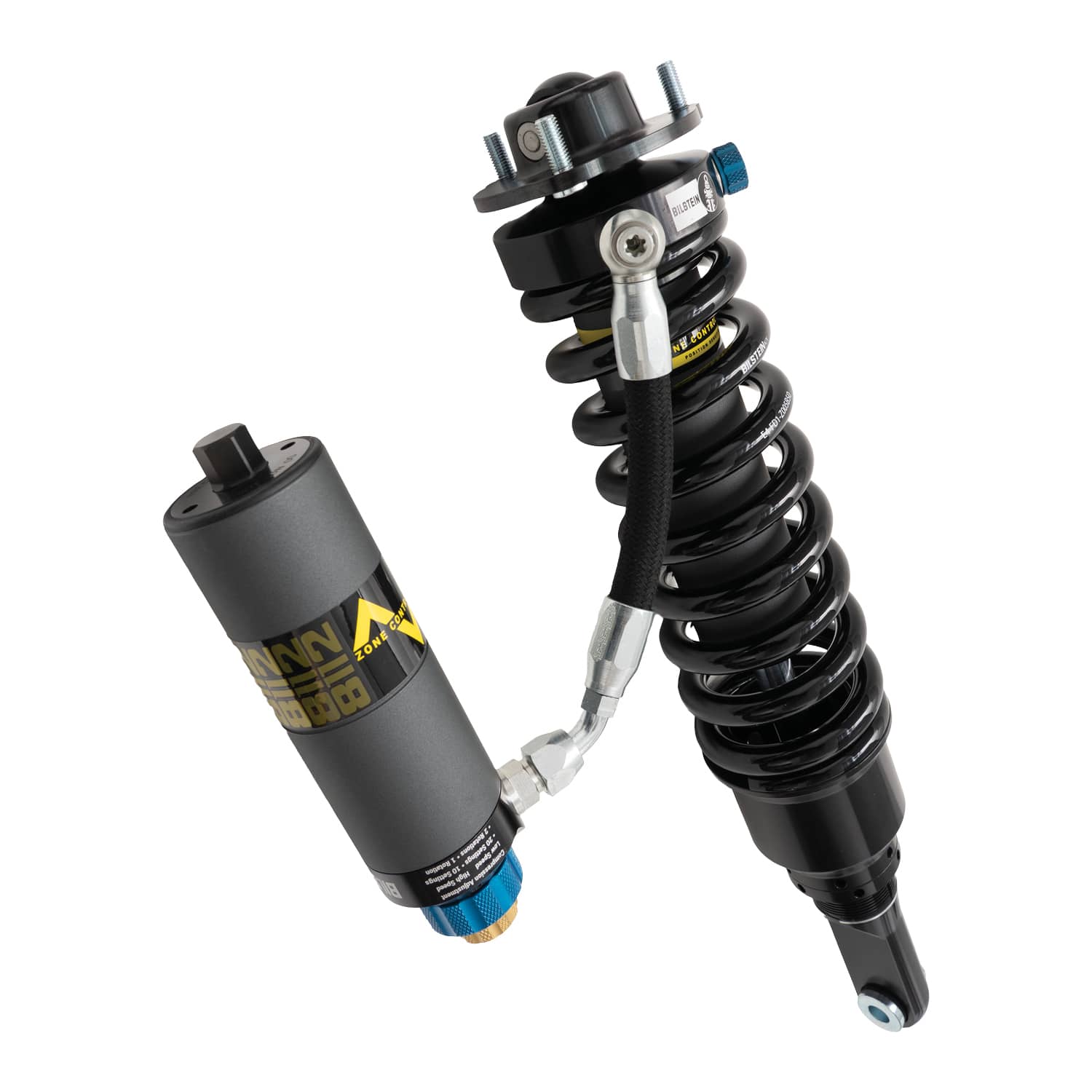

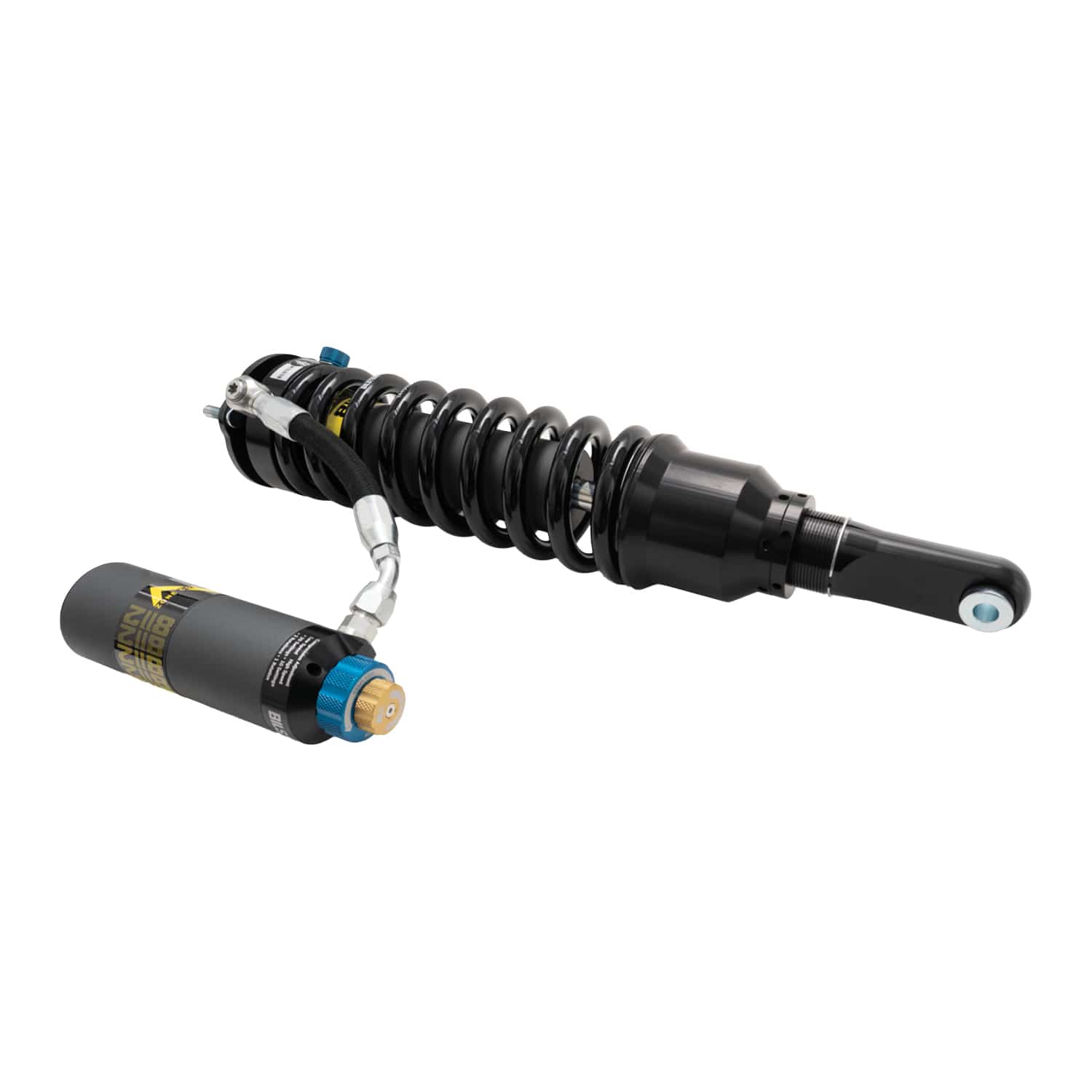

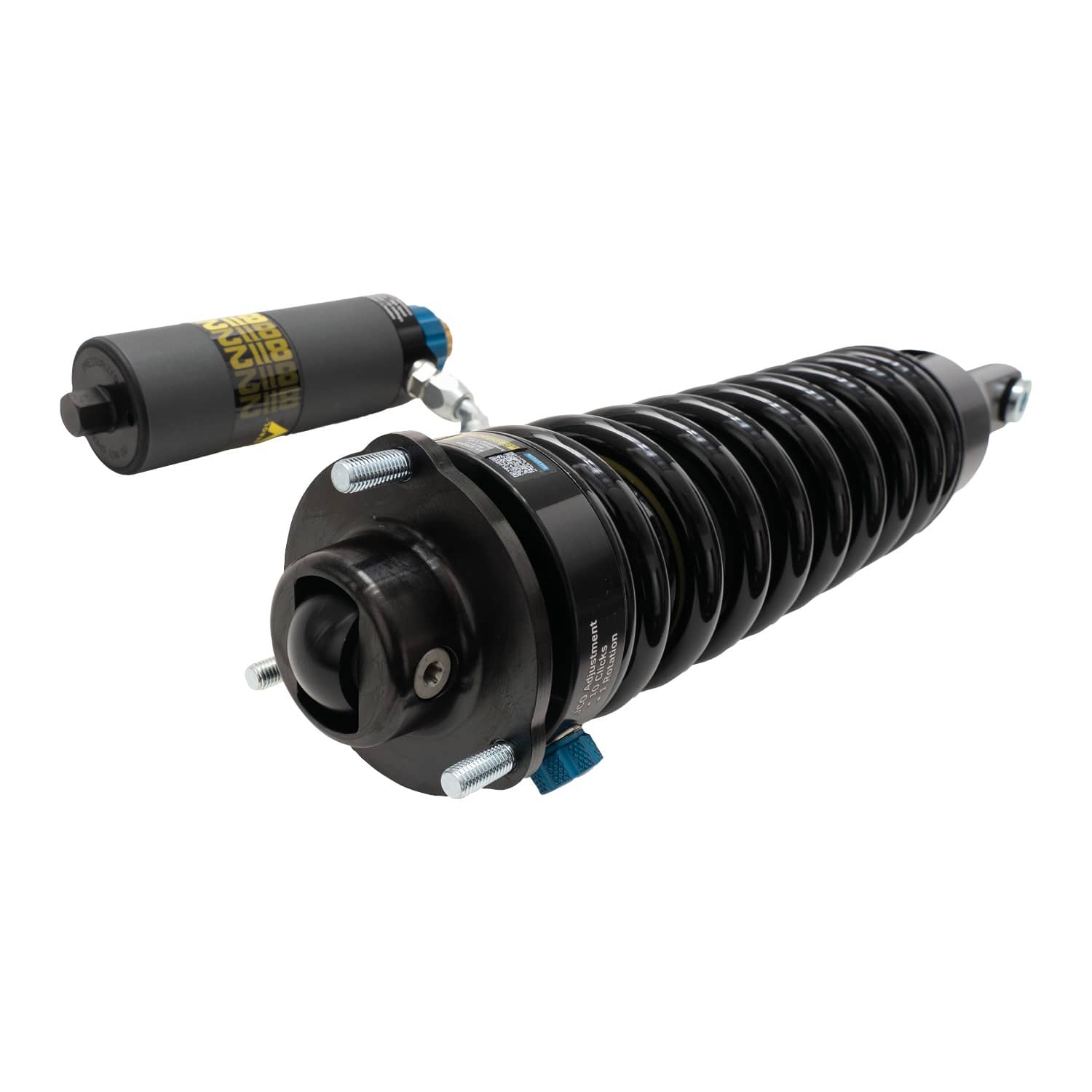

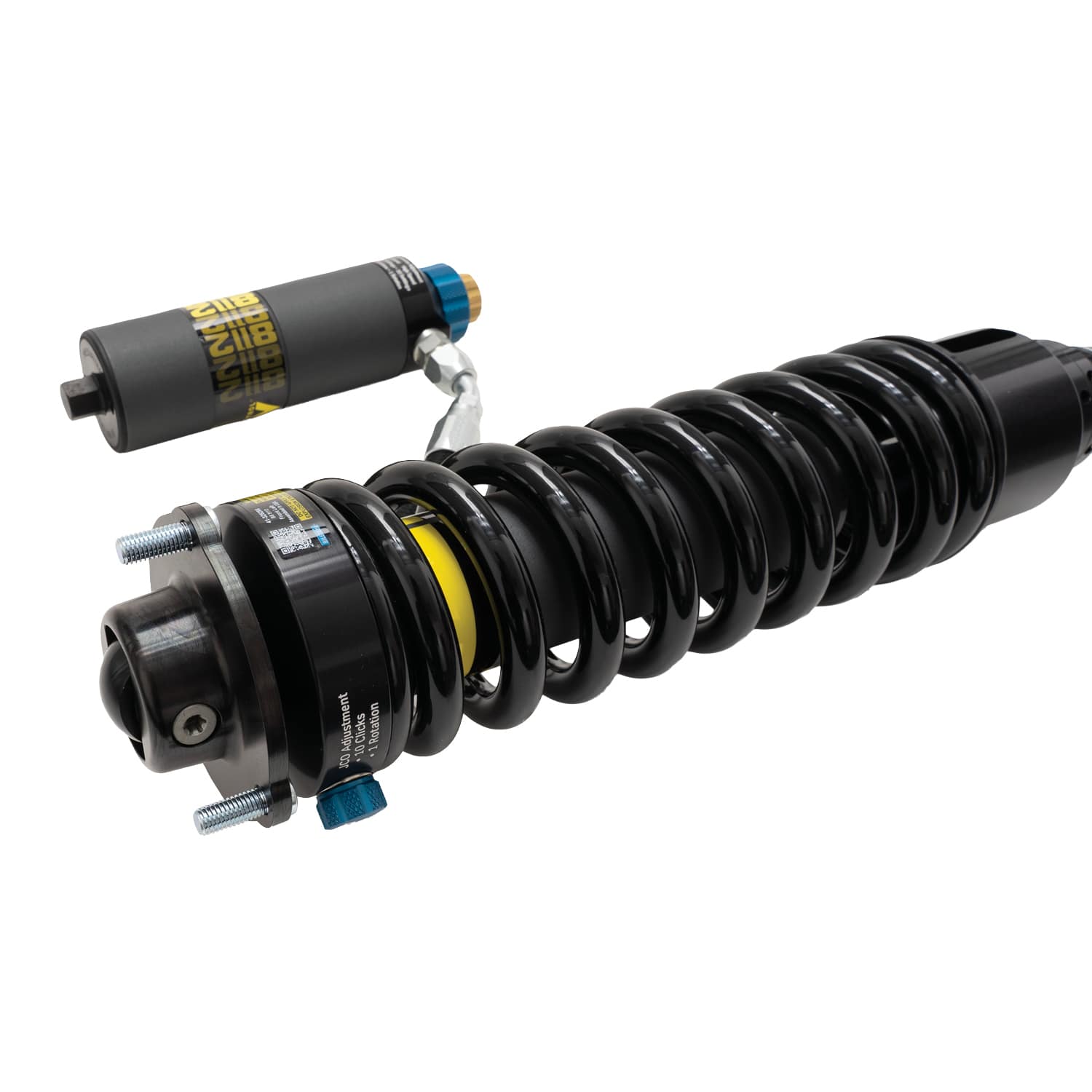

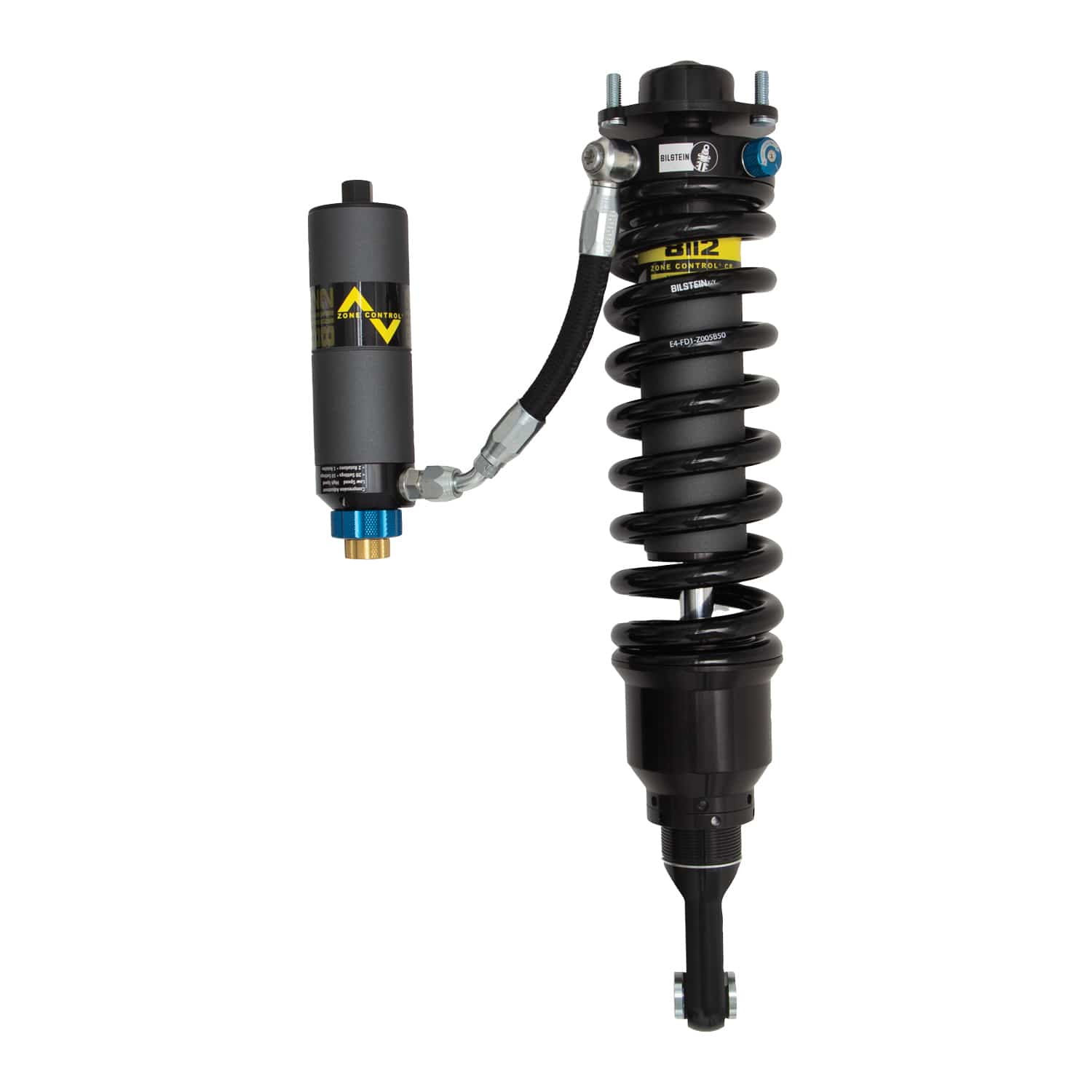

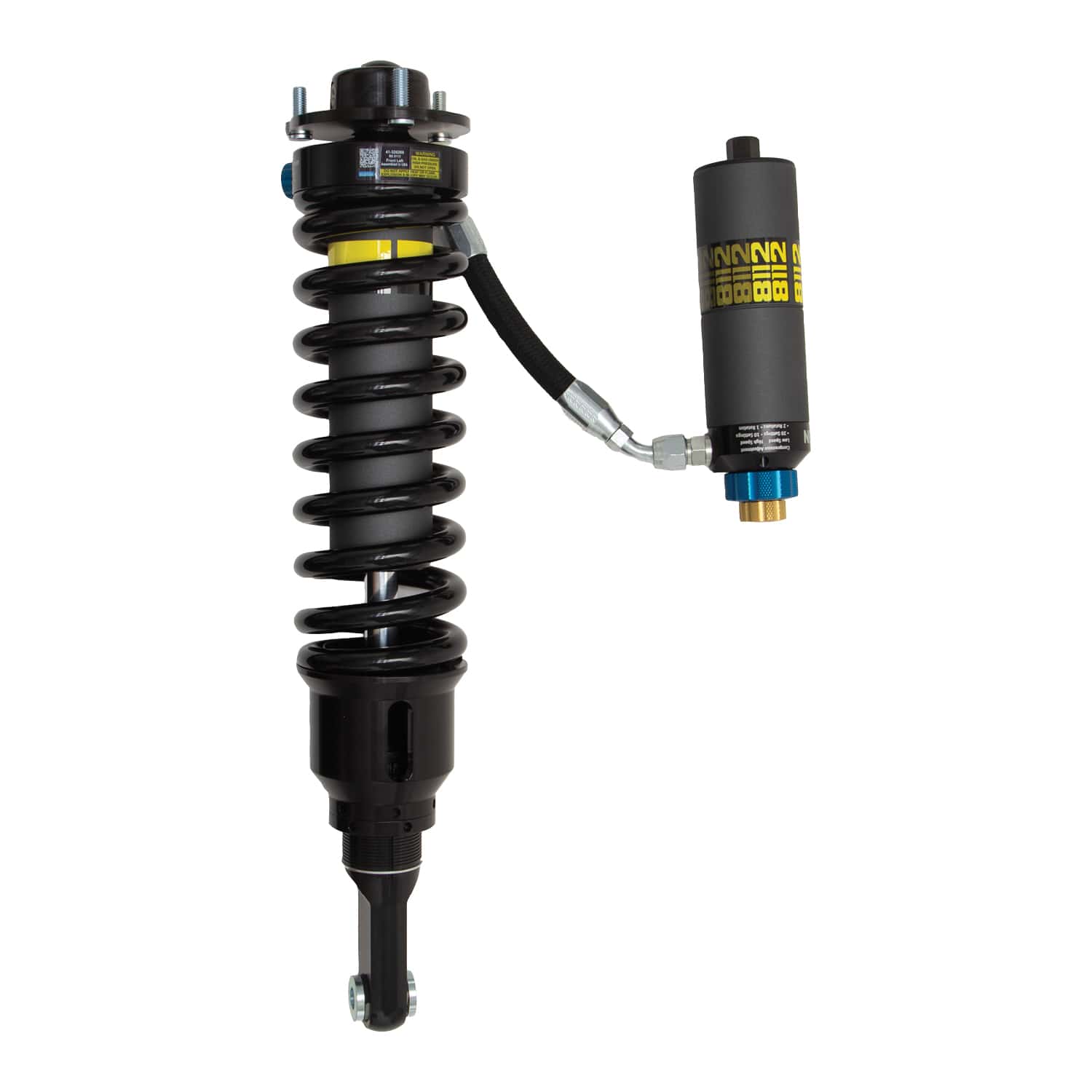

Bilstein 41-326268 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR DSA+) Monotube 2010-2024 Toyota 4Runner/FJ Cruiser

60mm Front Left Corner Module

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

Features

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• 60mm remote reservoir for increased oil capacity and cooling

Specifications

Short Description: Front Corner Module

Invoice Description: 4Runner 10-23; FL; 8112 DSA+ EVO; Module

Definition: Suspension Shock Absorber and Coil Spring Assembly

Installation Guide: Download PDF
