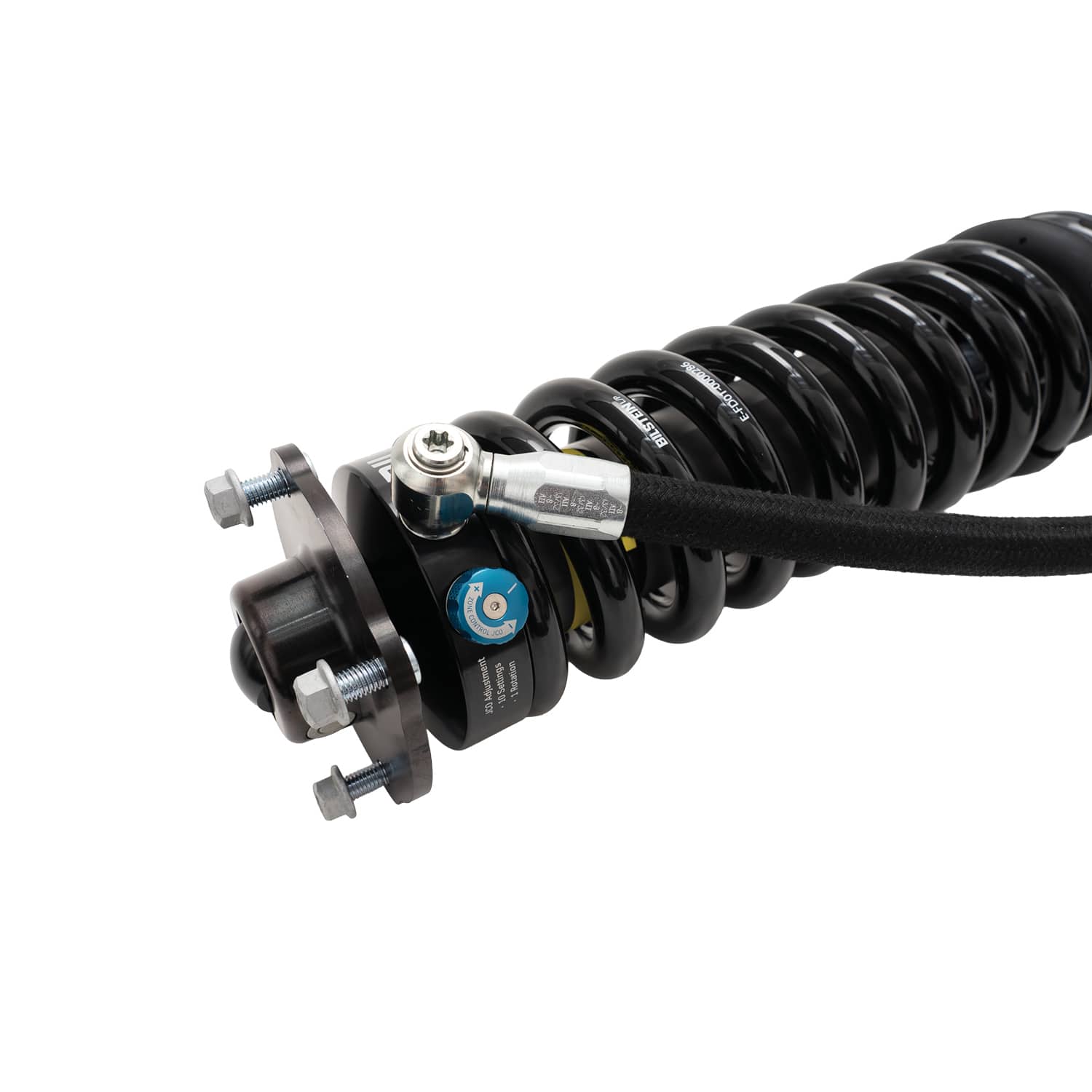

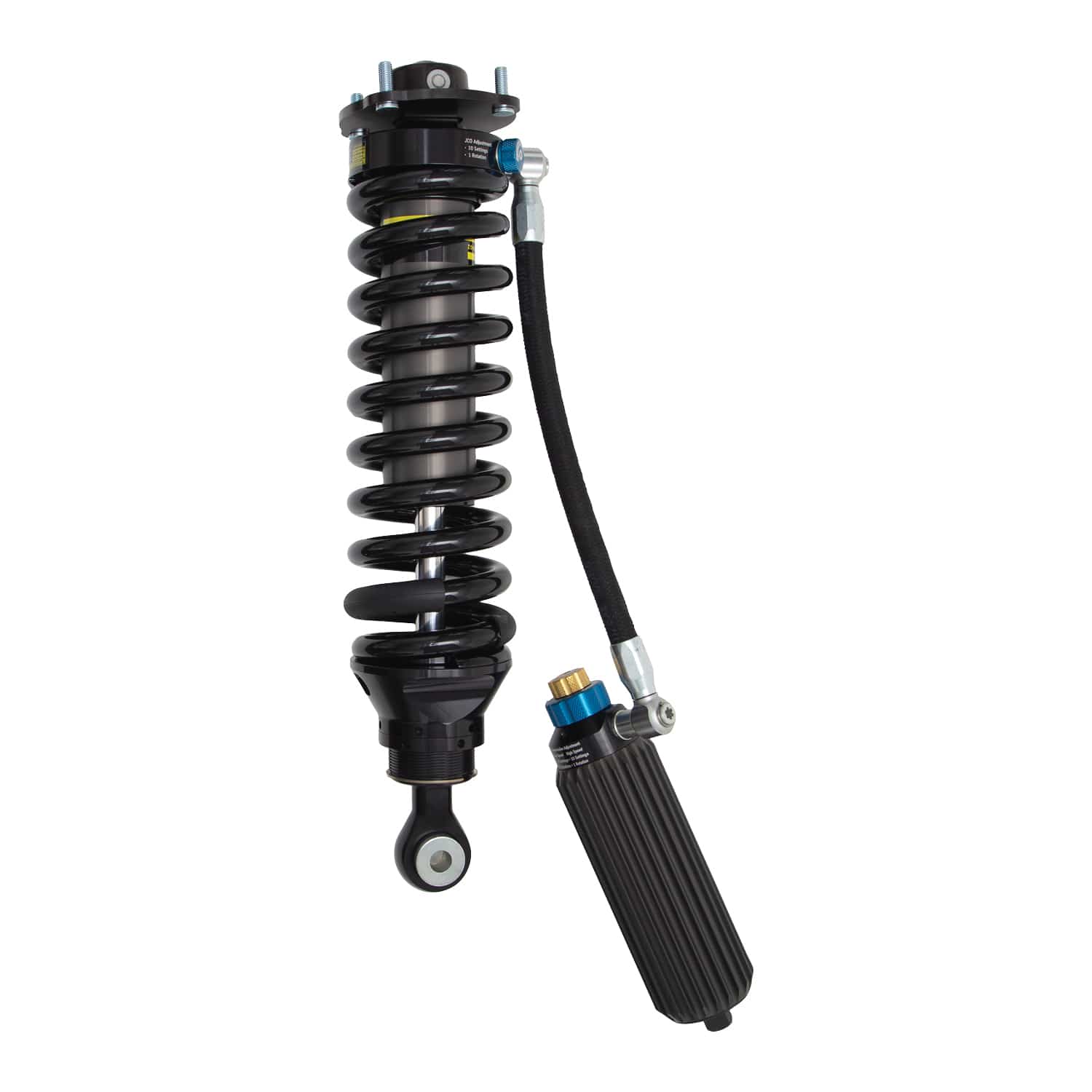

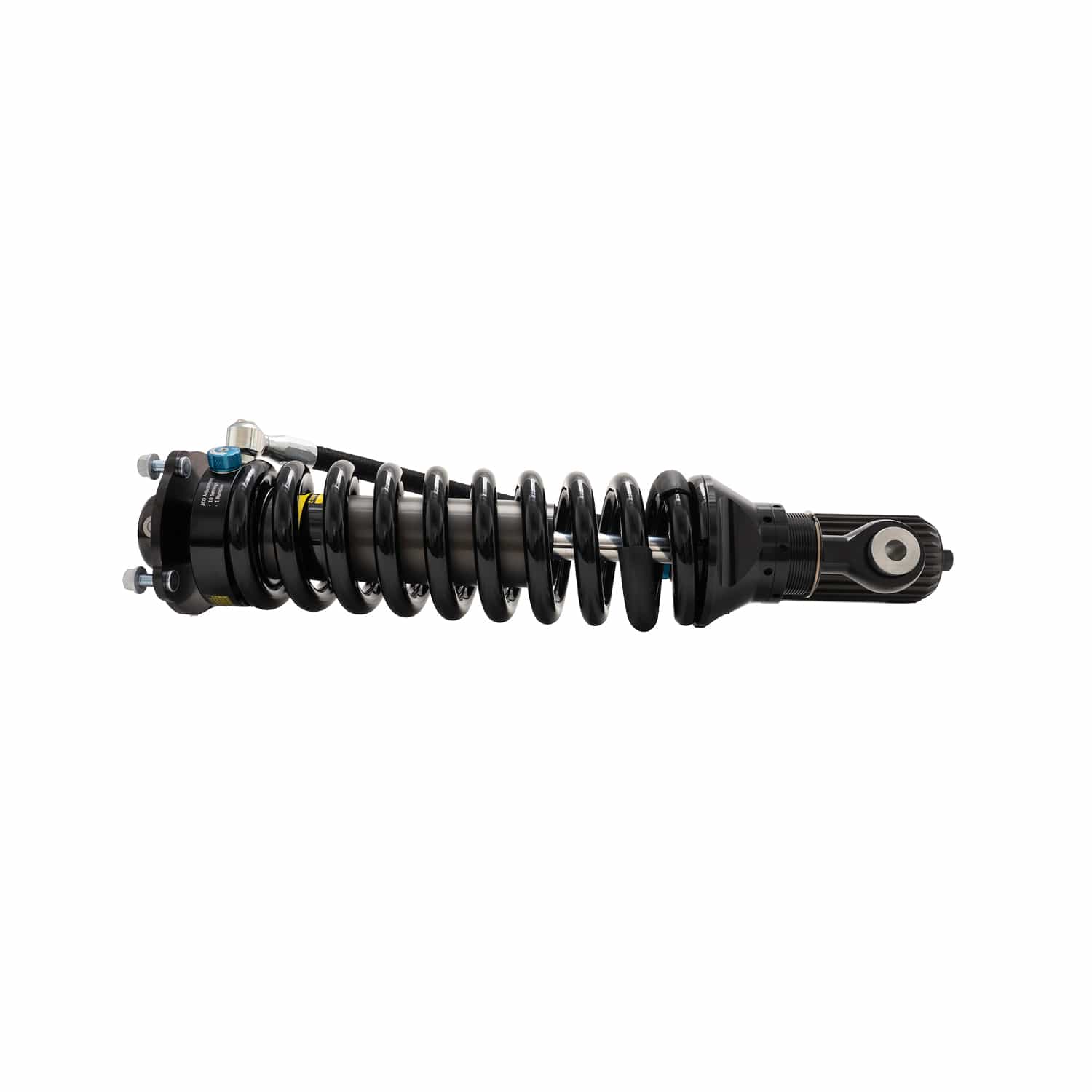

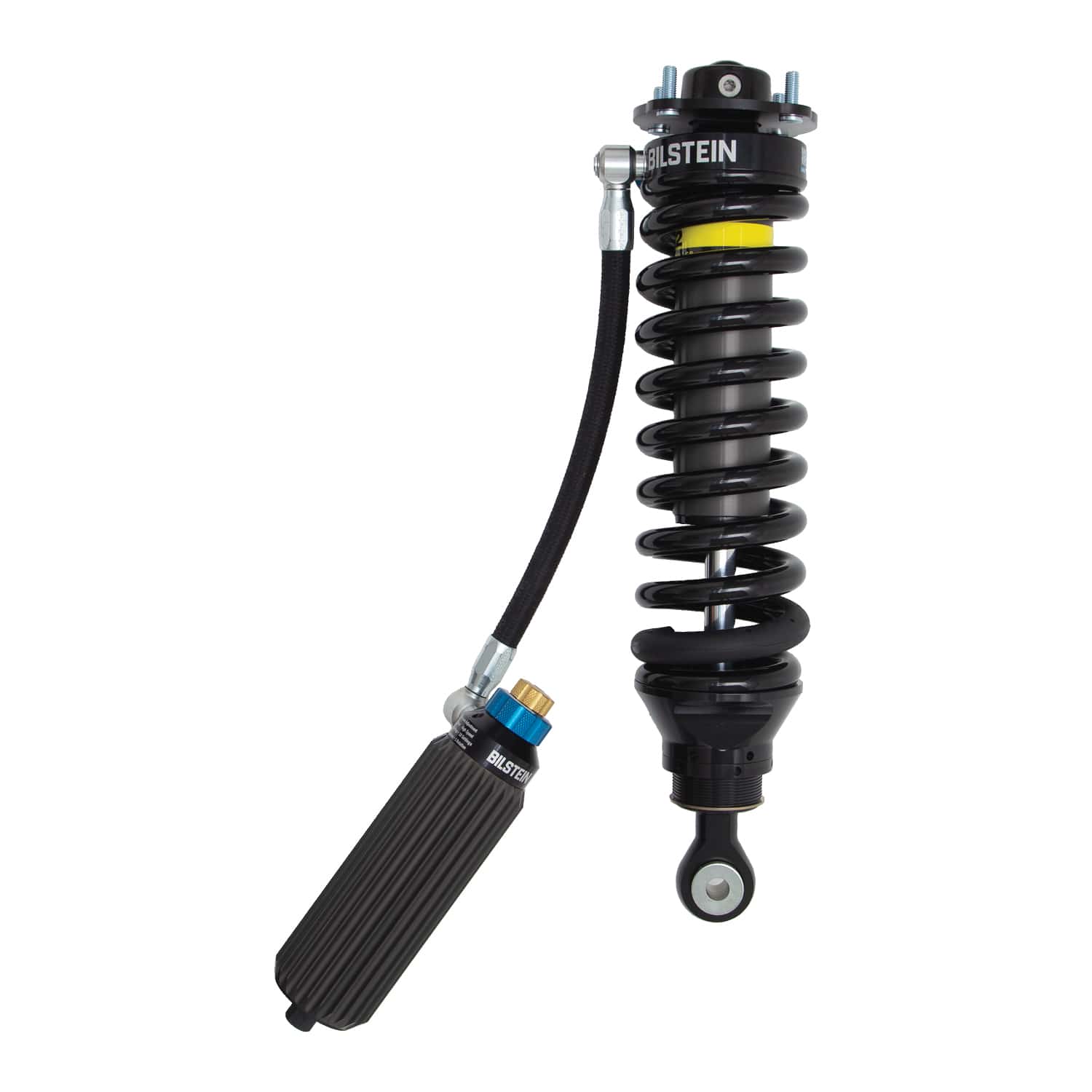

Bilstein 41-332245 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 Black Hawk Monotube 2022-2026 Toyota Tundra
Product Availability Request
Fill the form and our team will contact you.
60mm Front Left Corner Module
BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.
Features
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Specifications
| Extended Length (mm) | 554.4 |
| Lower Mount Type | Eye 19.05mm |
| Piston Diameter | 60mm |
| Upper Mount Type | Eye 12mm |
| Prop 65 (Y/N) | Y |
| Body Design | Smooth Body (Coilover) |
| Series | B8 8112 Black Hawk |
| Collapsed Length (mm) | 426.8 |
| Boot Included | No |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Collapsed Length (IN) | 16.80 |
| Reservoir | Yes - Finned Aluminum |
| Shaft Diameter (mm) | 22.0 |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Extended Length (IN) | 21.83 |
| Body Material | Aluminum |
| Front Main Spring Rate (lbs/in) | 600 lbs |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Spring Seat Included | Yes |
| Internal Design | Monotube |
Short Description: Front Corner Module
Invoice Description: TUNDRA 22+; FL; 8112 BLACK HAWK MODULE
Definition: Suspension Shock Absorber and Coil Spring Assembly
Installation Guide: Download PDF
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2022-2026 | Toyota | Tundra | 1794 Edition | 3.4L V6 |
| 2022-2026 | Toyota | Tundra | Capstone | |
| 2022-2026 | Toyota | Tundra | Limited | 3.4L V6 |
| 2022-2026 | Toyota | Tundra | Platinum | 3.4L V6 |
| 2022-2026 | Toyota | Tundra | SR5 | 3.4L V6 |
| 2022-2026 | Toyota | Tundra | SR | 3.4L V6 |
6 applications listed.
