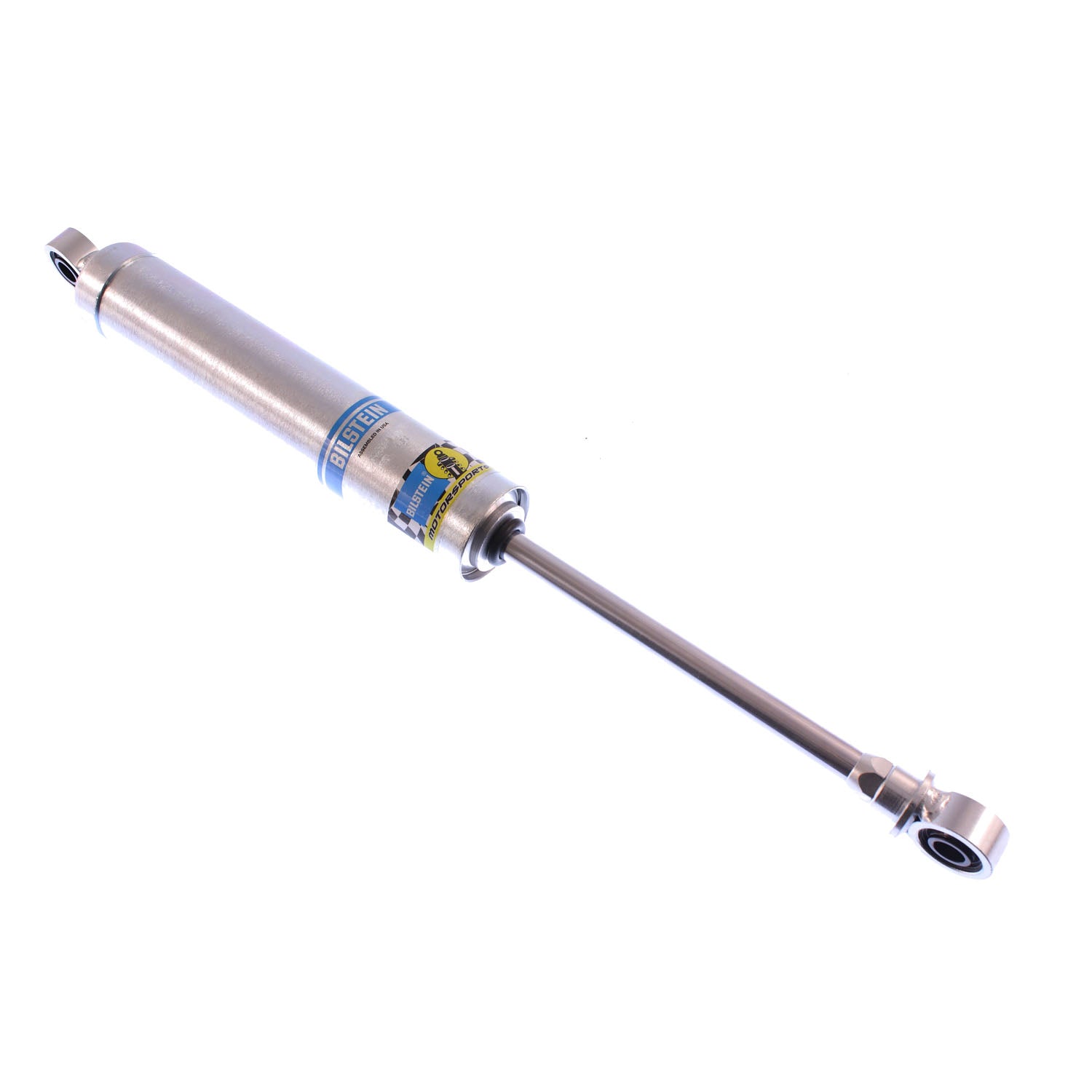

Bilstein F4-B46-0210-H0 - SL Series - Suspension Shock Absorber
Regular price
$214.30 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
46mm Monotube Shock Absorber
Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Features & Benefits
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2” graphite heims
Specifications
| Finish | Zinc Plated |
| Boot Included | No |
| Lower Mount Type | 1/2in Heim |
| Body Design | Smooth Body (Non-coilover) |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | 1/2in Heim |
| Extended Length (IN) | 20.08 |
| Internal Design | Monotube |
| Extended Length (MM) | 510.0 |
| Title | Bilstein Shock Absorbers |
| Piston Type | Custom |
| Collapsed Length (IN) | 13.15 |
| Body Material | Steel |
| Series | SL Series |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Collapsed Length (MM) | 334.0 |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 176.0 |
| Stroke/Travel Length (IN) | 6.93 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
