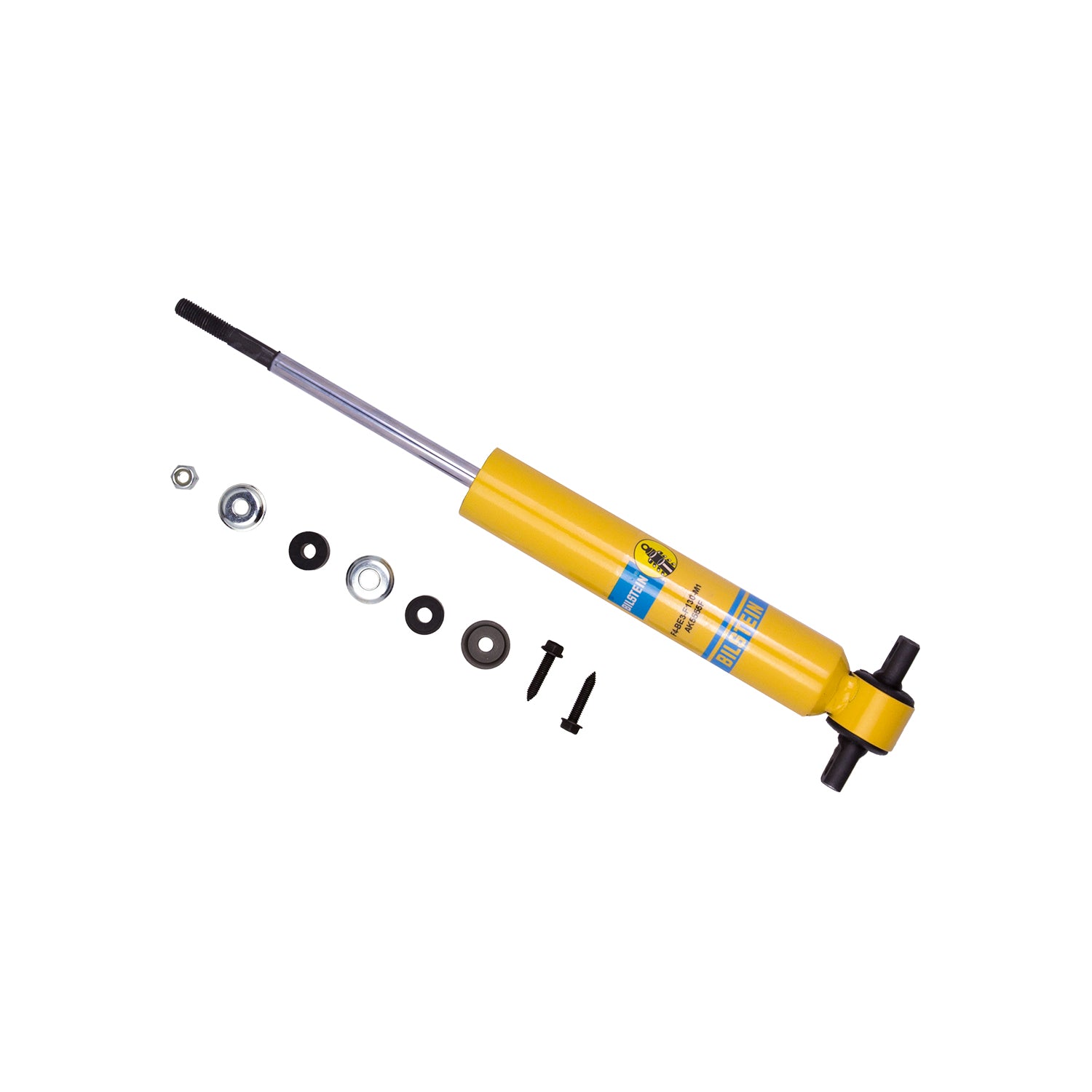

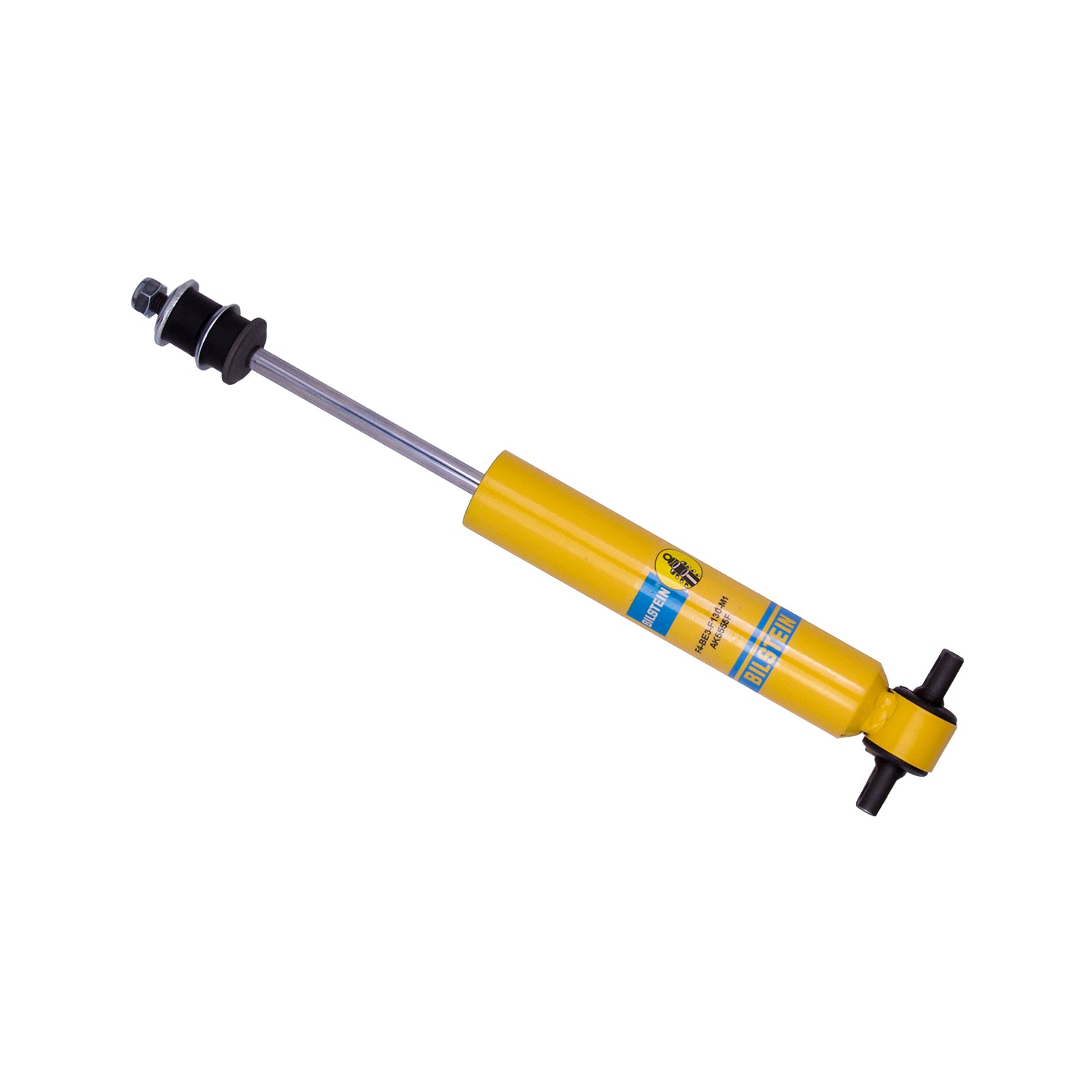

Bilstein F4-BE3-F130-M1 - Suspension Shock Absorber AK Series Monotube
Product Availability Request
Fill the form and our team will contact you.
36mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Features & Benefits
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
AK Series - Suspension Shock Absorber
GM G/H body Motorsport front AK5555F
Specifications
| Body Material | Steel |
| Collapsed Length (MM) | 221.8 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Stock Mount Smooth Body |
| Piston Type | Digressive |
| Compression @0.26m/s | 875 |
| Finish | Yellow Paint |
| Extended Length (MM) | 342.0 |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Bar Pin |
| Boot Included | No |
| Extended Length (IN) | 13.46 |
| Upper Mount Type | Stem |
| Series | AK Series |
| Internal Design | Monotube |
| Collapsed Length (IN) | 8.73 |
| Rebound @0.26m/s | 1395 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 36mm |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 120.1 |
| Stroke/Travel Length (IN) | 4.73 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
