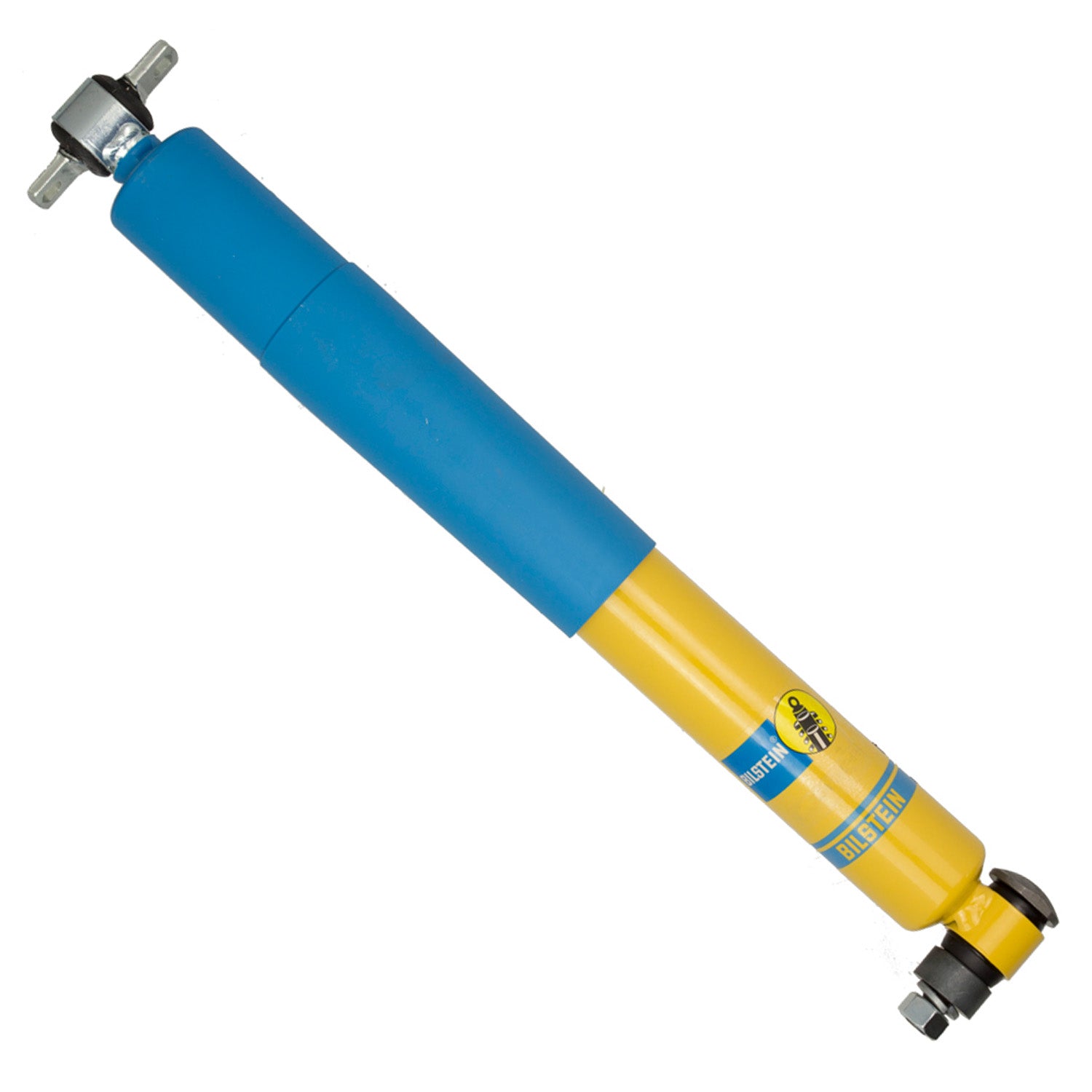

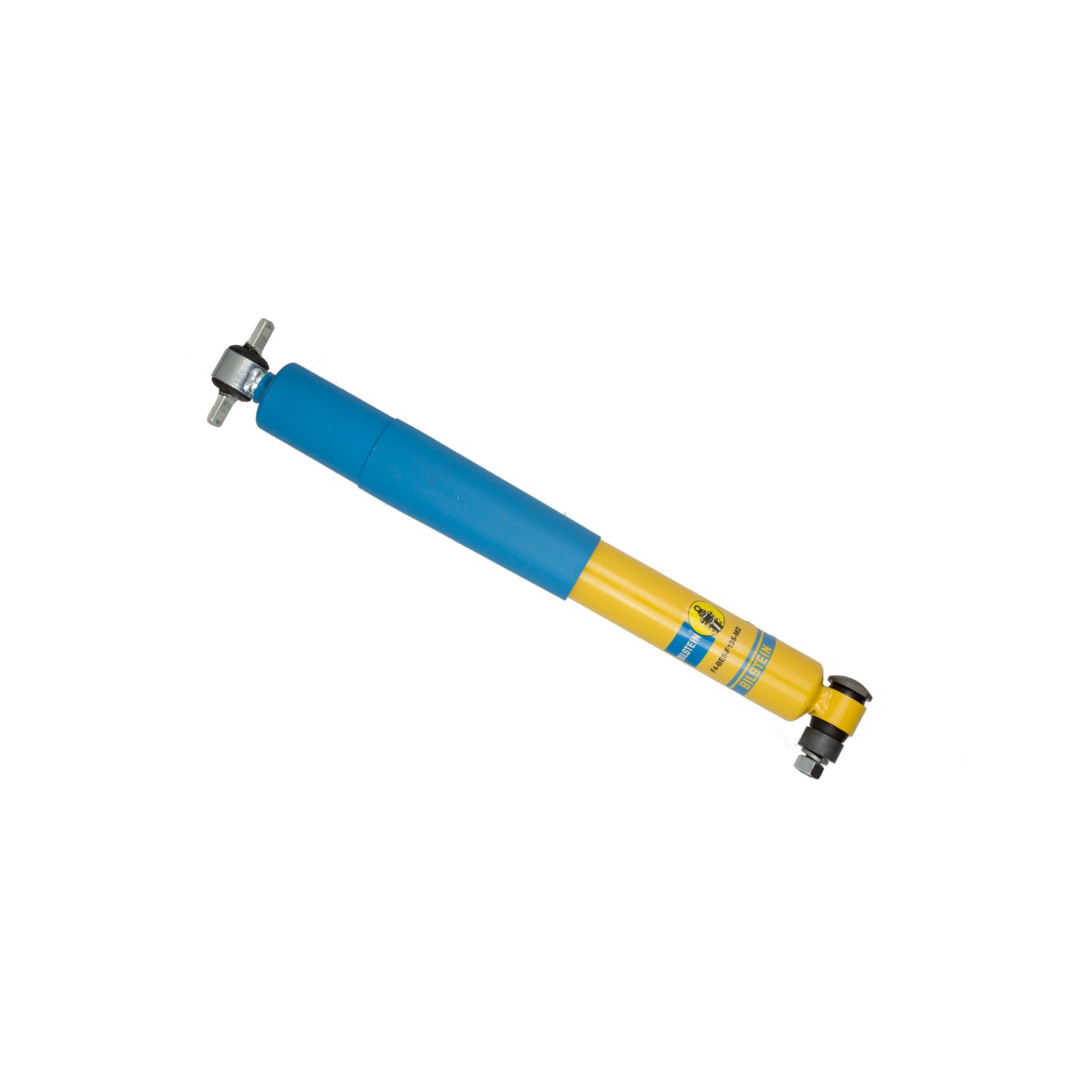

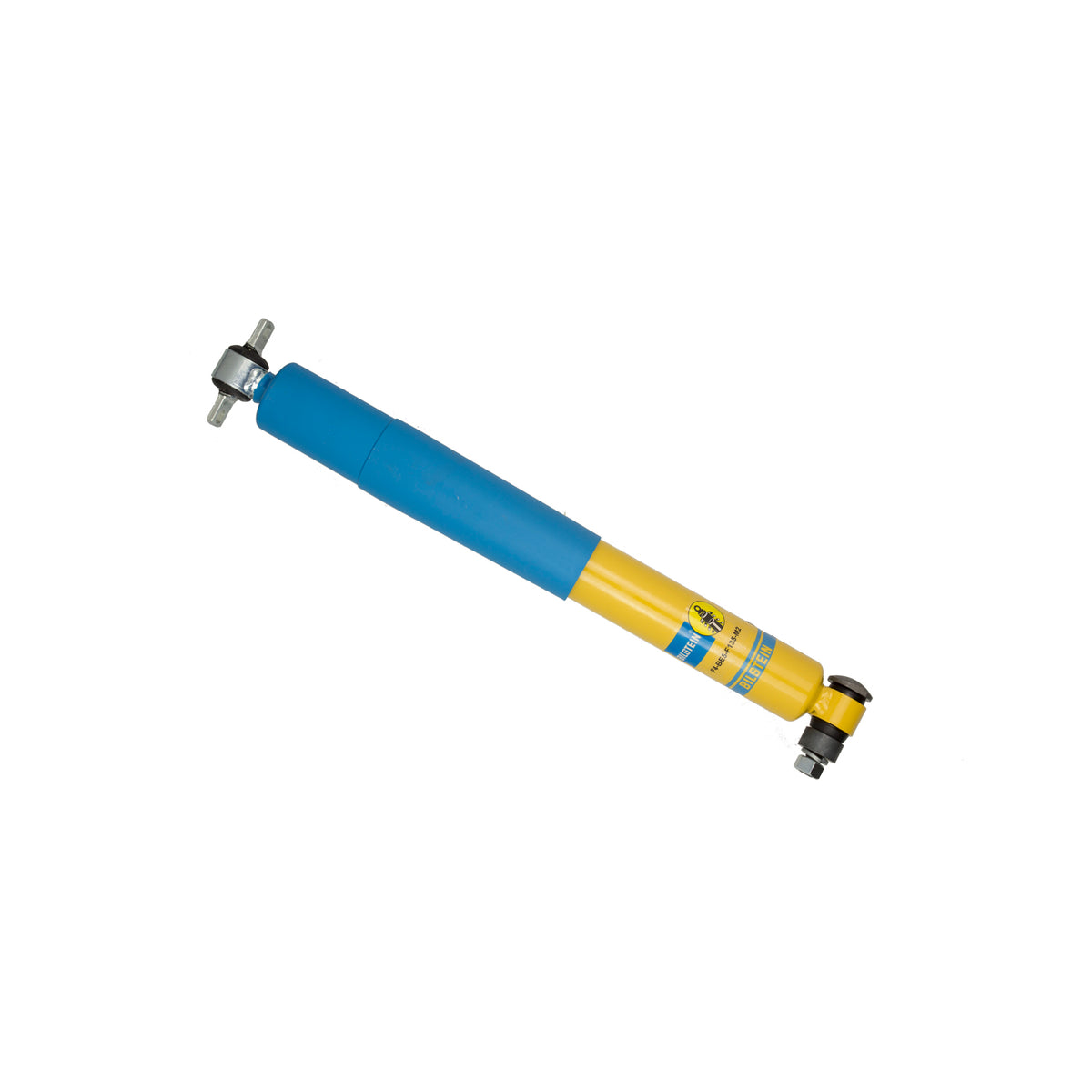

Bilstein F4-BE5-F135-M2 - Suspension Shock Absorber AK Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Features & Benefits
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
AK Series - Suspension Shock Absorber
GM G/H body Motorsport rear AK6010COB R
Specifications
| Series | AK Series |
| Finish | Yellow Paint |
| Collapsed Length (IN) | 13.11 |
| Piston Type | Digressive |
| Body Design | Stock Mount Smooth Body |
| Upper Mount Type | Bar Pin |
| Internal Design | Monotube |
| Title | Bilstein Shock Absorbers |
| Body Material | Steel |
| Compression @0.26m/s | 295 |
| Boot Included | Blue Straight |
| Extended Length (MM) | 515.0 |
| Adjustable Damping | Non-Adjustable |
| Lower Mount Type | Cantilever |
| Extended Length (IN) | 20.28 |
| Rebound @0.26m/s | 785 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 333.0 |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 182.1 |
| Stroke/Travel Length (IN) | 7.17 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
