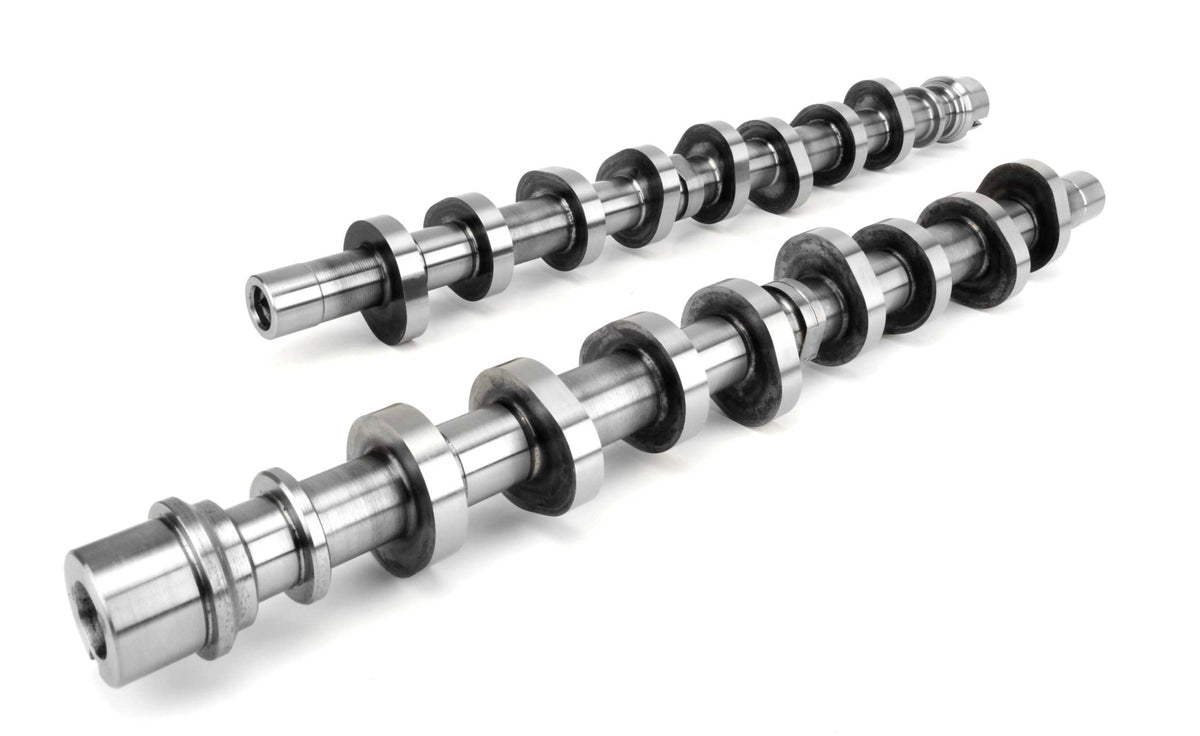

COMP Cams 102500 Xtreme Energy 226/230 Cams for Ford 4.6/5.4L Modular 2 Valve w/ PI Heads

A hydraulic roller finger follower camshaft for 4.6L and 5.4L V8 engines, the COMP Cams Xtreme Energy 102500 improves low- and mid-range torque. Fits 30 Ford, Lincoln, Mercury, Mobility Ventures and 1 other makes vehicles from 1991 to 2016 with the 4.6L V8 and 5.4L V8, including the 1999-2016 Ford E-350 Super Duty and the 2014-2015 Mobility Ventures MV-1. Full vehicle list below. The camshaft is manufactured from billet steel with 0.55-inch valve lift and operates from 1,400-5,400 RPM. This Street/Performance camshaft works with stock computers but performs best with custom tuning, and requires valve springs and assembly lubricant, which are not included.

• Camshaft Series: Xtreme Energy
• Engine Type: 8 Cylinder
• Intake Valve Lift: 0.55 IN
• Exhaust Valve Lift: 0.55 IN
• Intake Duration at.050 Inch Lift: 226 deg
• Exhaust Duration at.050 inch Lift: 230 deg
• Advertised Intake Duration: 262 deg
• Advertised Exhaust Duration: 266 deg
• Lobe Separation: 113 deg
• Camshaft Material: Billet Steel
• Camshaft Gear Attachment: 1-Bolt
• Lifter Type: Hydraulic Roller Finger Follower
• Usage: Street/Performance
• Grind Number: XE262AH
• Basic Operating RPM Range: 1,400-5,400 RPM
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• Engine Family: Ford 4.6L and 5.4L SOHC Modular 2 Valve 8 Cylinder (1991+)
