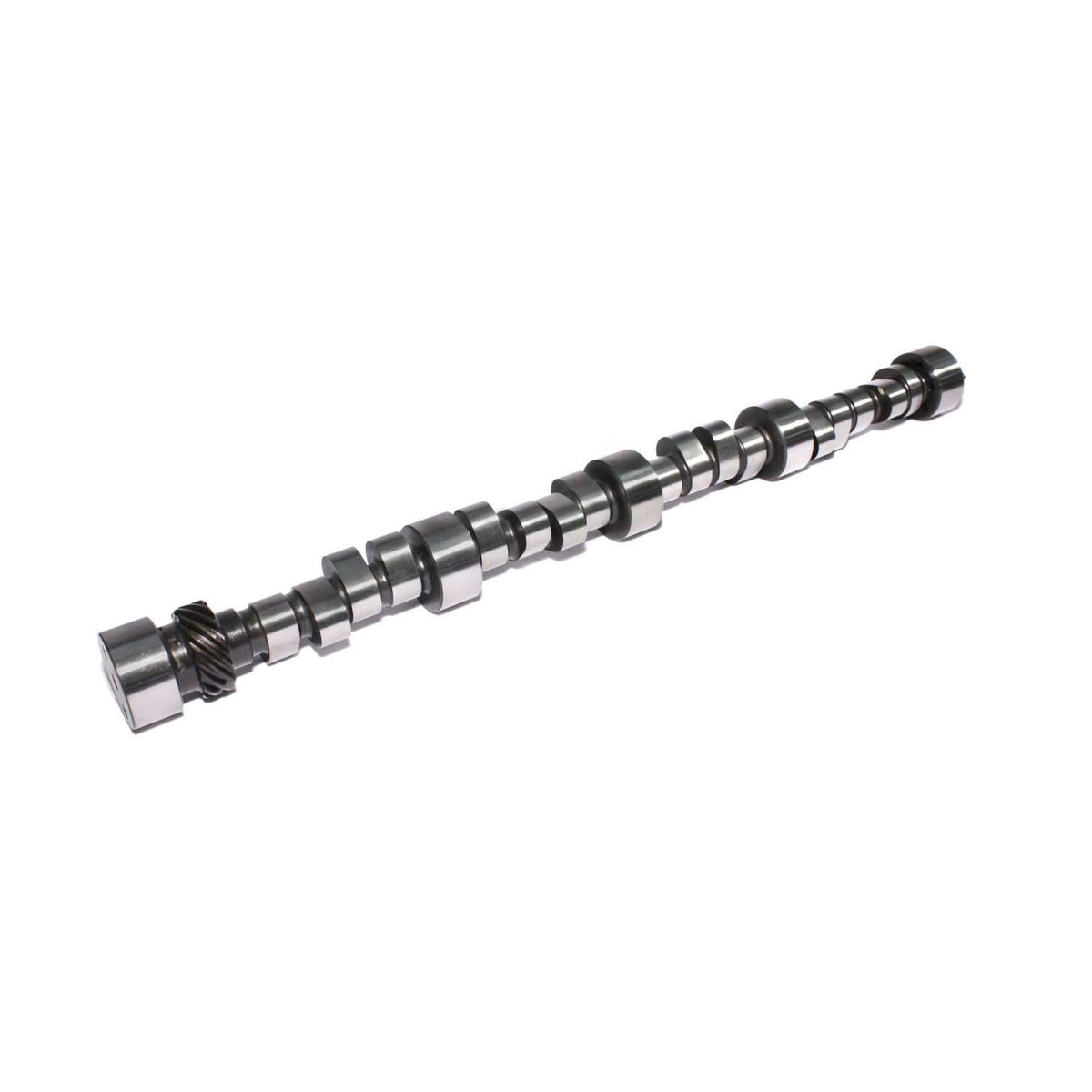

COMP Cams 11-736-9 Drag Race 286/294 Solid Roller Cam for Chevrolet Big Block 396-454

Extreme performance for drag racing is delivered by the COMP Cams Drag Race solid roller camshaft (part 11-736-9) designed for 8 cylinder big-block engines. The camshaft provides 0.775-inch intake and 0.748-inch exhaust valve lift with 286-degree intake and 294-degree exhaust duration at 0.050-inch lift for maximum valve control. Billet steel construction with 3-bolt gear attachment operates across 5,000-7,800 RPM range, and the camshaft requires Melanized or Nitrided distributor gears with valve springs for installation.

• Camshaft Series: Drag Race
• Cam Type: Solid Roller
• Lifter Type: Solid Roller
• Grind Number: 324IR-10
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Usage: Strip
• Advertised Intake Duration: 324 deg
• Advertised Exhaust Duration: 332 deg
• Intake Duration at.050 Inch Lift: 286 deg
• Exhaust Duration at.050 inch Lift: 294 deg
• Lobe Separation: 110 deg
• Intake Valve Lift: 0.775 IN
• Exhaust Valve Lift: 0.748 IN
• Basic Operating RPM Range: 5,000-7,800 RPM
• Camshaft Material: Billet Steel
• Camshaft Gear Attachment: 3-Bolt
• Valve Springs Required: Yes
• Lifters Included: No
• Assembly Lubricant Included: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
