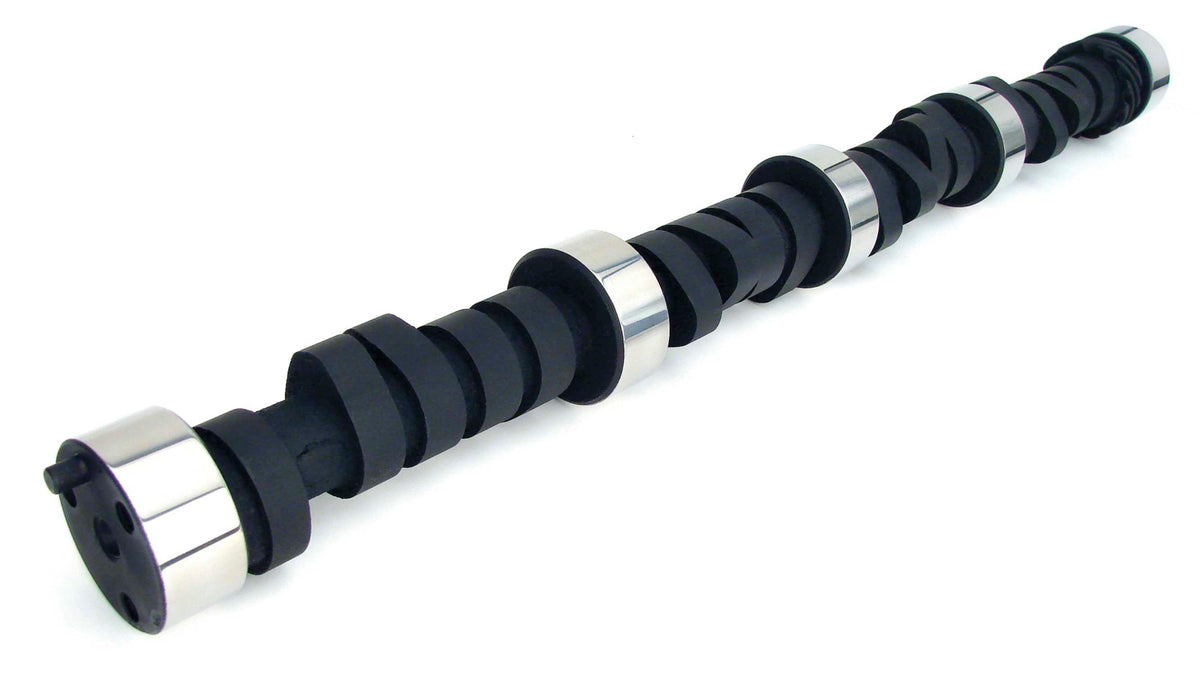

COMP Cams 12-242-2 Xtreme Energy 224/230 Hydraulic Flat Cam for Chevrolet Small Block
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
Enter your Engine Family Number and we will confirm whether this exact converter is street-legal for your vehicle.
Great for street machines, largest cam for stock converter, better with 2000+ stall.
Xtreme Energy 224/230 Hydraulic Flat Tappet Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles.Xtreme Energy Benefits: Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-242-2 Designation: XE268H-10. Duration @ 0.006": 268 / 280deg. Duration @ 0.050": 224 / 230deg. Max Lift w/ 1.5RR: .477" / .480" Lobe Separation: 110deg. Lobe ID#'s: 5443 / 5203. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore: 4.040" Stroke: 3.480" Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 413 ft/lbs @ 3800 RPM. Max Power: 342 HP @ 5000 RPM. Manifold Vacuum:15.5" Hg @ 800 RPM & 17" Hg @ 1000 RPM w/ no load.
Specifications
| Camshaft Material | Cast Iron |
| Engine Family | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Cam and Lifter Kit Upgrade | CL12-242-2 |
| K-Kit Upgrade | K12-242-2 |
| Lifter Type | Hydraulic Flat Tappet |
| SK-Kit Upgrade | SK12-242-2 |
| Intake Duration at .050 Inch Lift | 224 DD |
| Exhaust Duration at .050 inch Lift | 230 DD |
| Advertised Intake Duration | 268 DD |
| Advertised Exhaust Duration | 280 DD |
| Lobe Separation | 110 DD |
| Intake Valve Lift | 0.477 IN |
| Exhaust Valve Lift | 0.48 IN |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Series | Xtreme Energy |
| Usage | Street/Performance |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | XE268H |
| Basic Operating RPM Range | 1,600-5,800 R3 |
| Grind Number | XE268H |
